Home>DIY RC Drone Accessories>DIY RC Drone Kit>RCinpower NameLessRC AIO412T F4 AIO F411 FC+12A ESC with RCinpower 1204 5000KV 3-4S Motor FE200T 5.8G VTX DIY RC Quadcopter FPV Racing Drone Accessories Kit

RCinpower NameLessRC AIO412T F4 AIO F411 FC+12A ESC with RCinpower 1204 5000KV 3-4S Motor FE200T 5.8G VTX DIY RC Quadcopter FPV Racing Drone Accessories Kit Item NO.: F32994-B

Name: RCinpower NameLessRC AIO412T F4 AIO F411 FC+12A ESC with RCinpower 1204 5000KV 3-4S Motor FE200T 5.8G VTX DIY RC Quadcopter FPV Racing Drone Accessories Kit
Brand: RCinpower
SKU: F32994-B
Price: 81.57 USD
Availability: SoldOut

Write a Review Sold (2)

US$ 81.57

US$ 95.97 Save US$ 14.40 (15% Off)

Sold Out

Product Name	RCinpower NameLessRC AIO412T F4 AIO F411 FC+12A ESC with RCinpower 1204 5000KV 3-4S Motor FE200T 5.8G VTX DIY RC Quadcopter FPV Racing Drone Accessories Kit
Item NO.	F32994-B
Weight	0.09 kg = 0.1984 lb = 3.1747 oz
Category	DIY RC Drone Accessories > DIY RC Drone Kit
Brand	RCinpower
Creation Time	2019-11-20

NameLessRC AIO412T F4 AIO F411 FC+12A ESC with RCinpower 1204 5000KV 3-4S Motor FE200T 5.8G VTX DIY RC Quadcopter FPV Racing Drone Accessories Kit

Package include:
1xFullSpeed NameLessRC AIO F411 Flight Controller+12A ESC
4x RCinpower 1204 5000KV 3-4S Brushless Motor
1x FE200T 5.8G VTX

NameLessRC AIO412T F4 AIO F411Flight Controller+12A ESC 2-4S HV DShot600 for DIY FPV Racing Drone Quadcopter

Specification:

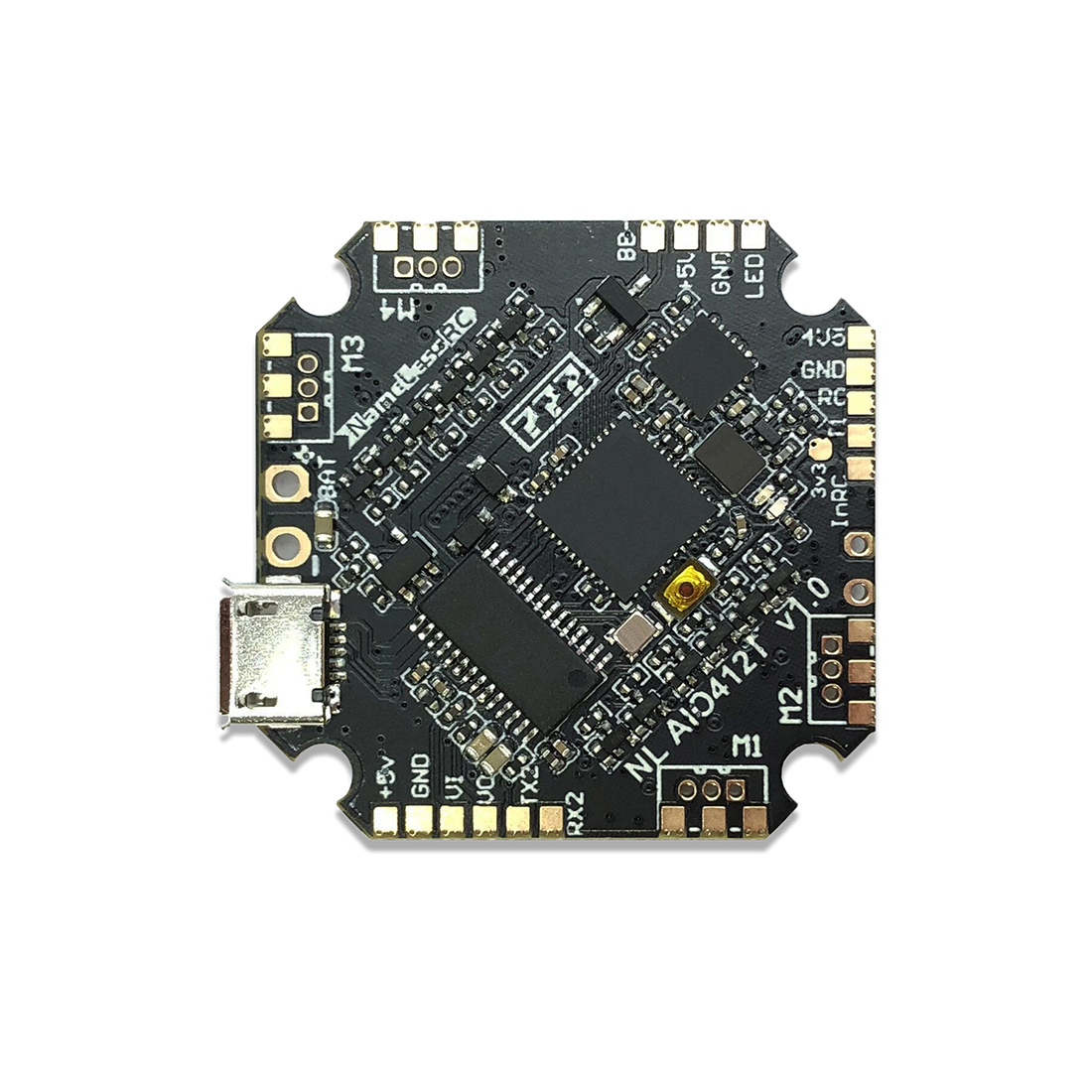

Item name: NameLessRC AIO412T (FC+ESC AIO)
Processor: STM32F411
Sensor: MPU-6000
Input Voltage: 2-4S Lipo or 2- 4S HV Lipo
Size: 33×33mm (mounting hole 26.5mm)
Weight: 4.7g (W/O battery wire)

RCinpower 1204 5000KV 3-4S Brushless Motor for 2-3inch Propellers FPV Racing Drone Quadcopter

Brand: RCinpower
Model: 1204
KV value: 5000KV
Color: pink + blue
Net weight: 6g
Wire: 0.8mm silicone wire
Line length: 8cm
For 2-3 inch paddles 3-4S Lipo

FE200T 5.8G 40CH Transmitter 25mW 100mW 200mW OSD Adjustable AV 4.5-5.2V IPEX VTX for Flight Controller RC FPV Racing Drone

Performance:
1, input voltage: DC 4.5-5.2V
2. Input current: 200MW = 400 MA
3, power switching: third gear 25MW, 100MW, 200MW
4, signal channel: 40
5, frequency switching: manual button / OSD (IRC Tramp) (simultaneous support)
6, antenna interface: IPEX
7, the dimensions: 16.5MM * 16.5MM

GND power supply negative
+5V power supply positive
RXD flight control serial transmission
VIN camera video input
