PCIe3.0 PCI-E 16X to M.2 Dual Key A-E Adapter Cable 4pin FDD Power Connector for M.2 NGFF Key A-E 2230 for PCIe Tester Extender

Product features:

1. This adapter cable allows you connect any PCI-E device to M.2 Dual Key A-E slot

through a stand PCI-E 16X port.

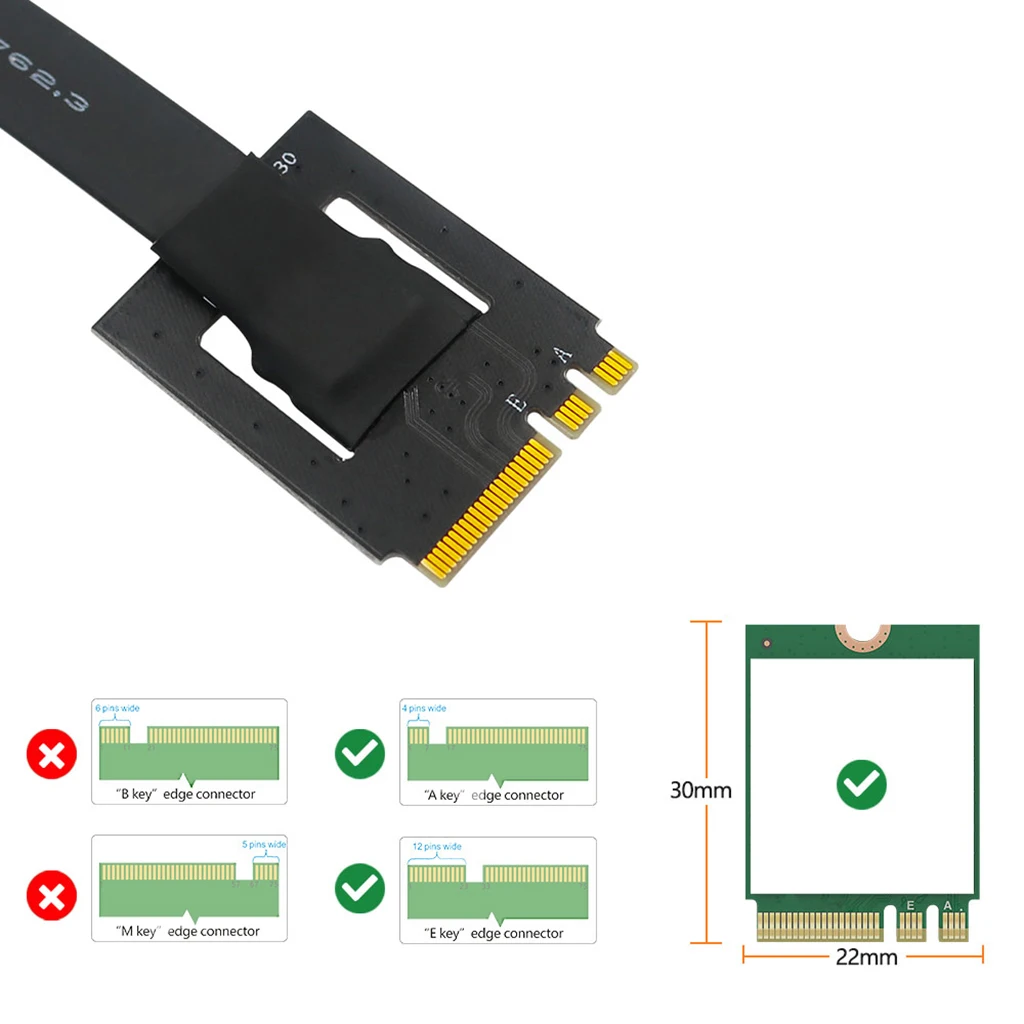

2. Support M.2 socket with type 2230.

3. Support 12V power by 4pin FDD power connector for Standard PCI-E device.

If your device doesn’t need 12V power input,

you won’t connect this attached power cable.

4. The speed will limit 1X because of the M.2 speed limited.

5. Using High quality wire, using High quality connector,

high frequency support PCI-E 3.0 stable transfer.

6. No drivers needed for this Adapter.

7. Supports Win XP, Vista 32/64, Win 7, Win 8, Win10, Win11 or Linux and so on.

8. System requirement: M.2 Key A or E slot on the motherboard.

Sometime this slot support PCI-E WLAN(eg 9260 AX200), however ,

there exist exception, If your board only support 9560 or AX201,

It won’t support this adapter cable. Because the system interface

type of 9560 is CNVio2, not Wi-Fi(PCIe).

9. Cable length around: 20cm, Total length around: 25cm.

Cable thickness is around 1.0mm.

10. It’s also a powerful tool for engineers, or use for PCI-E tester,

extender and so on.

Package contents:

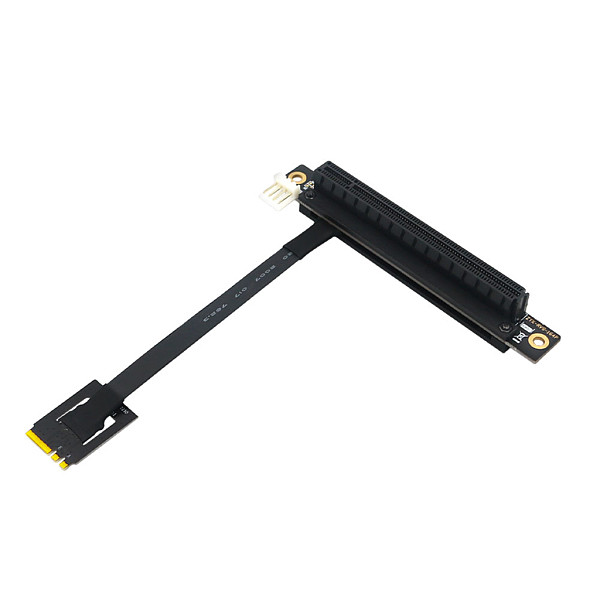

1x 270 degree M.2(NGFF) Dual Key A-E To PCI-E 16X Adapter cable

2x M2 Screw

1x screw driver

1x FDD 4Pin to SATA Power cable

1x dust cap
