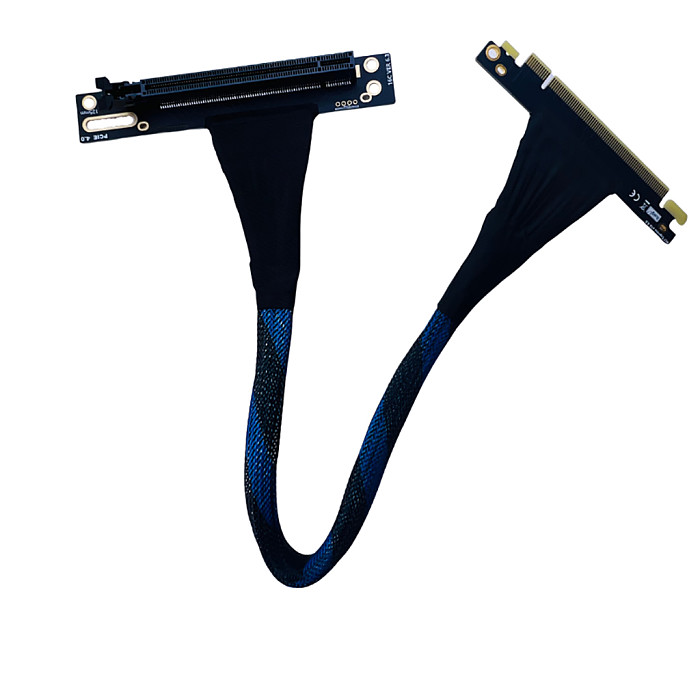

PCI-E 4.0 X16 Server Graphics Card Extension Cable 32GB\S GEN4 for AI Server Braided Mesh Silver-plated Wire GPU Adapter Cable Item NO.: F50736 F50737 F50738 F50739 F50740-F50747-B1/B2

PCI-E 4.0 X16 Server Graphics Card Extension Cable 32GB\S GEN4 for AI Server Braided Mesh Silver-plated Wire GPU Adapter Cable

Note:

AB-(Slot 180 degree flat straight model)

AC-(Slot 90 degree right angle model)

AD -(Slot 270 degree reverse right angle model)

Features:
1 , PCIE 4.0 X16 graphics card extension cable, 32GB\S bidirectional bandwidth.
2, Silver-plated cable, aluminum foil shielding, braided mesh harness structure, high speed without loss.
3, Support PCIE 4.0 devices, backward compatible with PCIE 3.0.
4, gold finger immersion gold process, thickness of 5U, using high-density low-impedance circuit boards.
5, male shortening processing, reduce the height of the occupation.
6, the cable can be bent and folded, suitable for compact space chassis.
7, Support graphics card, network card, solid state disk, capture card, etc..
8, Full machine processing, VU adhesive protection welding.
9, Shortened circuit board design, does not take up more space.

Product Function	Extends the PCIE X16 4.0 socket on all computer motherboards.
Product use	The PCIE card originally plugged directly into the motherboard, through the extension cable to replace the location for installation.
PCIE cards include	GPU cards, display cards, graphics cards, computing cards, accelerator cards, network cards, sound cards, capture cards, solid state drives, array cards, etc.

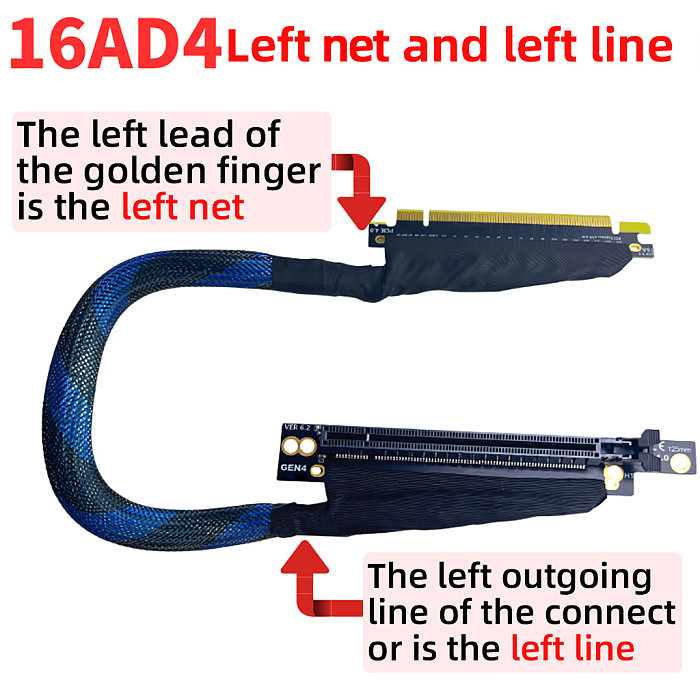

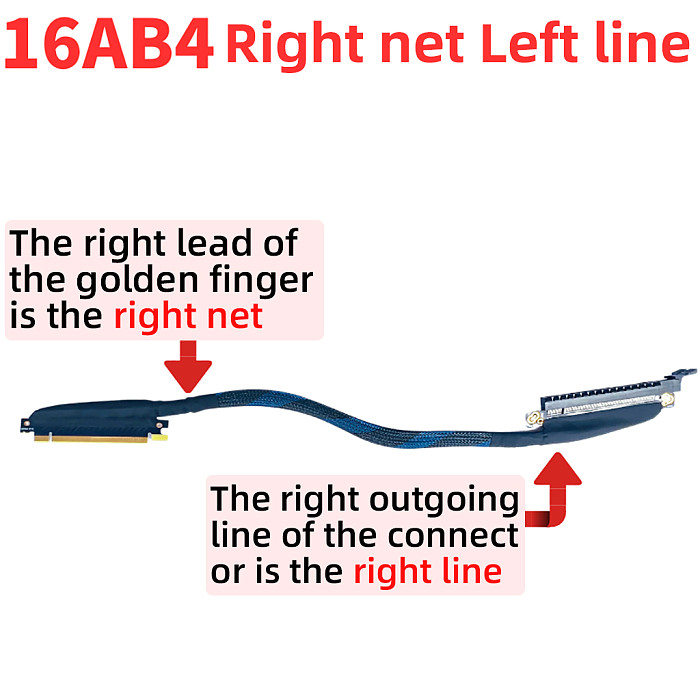

Product Model	16AXX-Left net left line. 16AXX-Left net right line. 16AXX-Right net left line. 16AXX-Right net right line	Left and right indicate the direction of the wire, with the board and slot notch on the left as the positive direction.  Mesh and wire indicate braided mesh and silver-plated wire.
16A	16A indicates the male gold finger end of X16
16ABX	B indicates 180 degree parallelism of female slot ends
16ACX	C indicates a 90 degree right angle to the slot end of the female connector, with the line at the top
16ADX	D indicates female slot 270 degrees counter-right angle, line down
16AB4\16ABZ\16ABG	The last letter 4\Z\G means PCIE 4.0	4 indicates silver-plated wire, Z indicates ultra-narrow silver-plated wire, and G indicates silicone silver-plated wire.
