New USR-TCP232-T2 V1.2 V1.1 Tiny Serial Ethernet Converter Module Pin Type UART TTL to Ethernet TCPIP Module Support DHCP DNS
-
Detail
- Product Name: New USR-TCP232-T2 V1.2 V1.1 Tiny Serial Ethernet Converter Module Pin Type UART TTL to Ethernet TCPIP Module Support DHCP DNS
- Item NO.: Q18042 Q18042-E2
- Weight: 0.02 kg = 0.0441 lb = 0.7055 oz
- Category: Consumer Electronics > Computer Accessories > Converter & Adapter
- Brand: USR
- Creation Time: 2021-08-28
1x New V1.1 V1.2 Options USR-TCP232-T2 Tiny Serial Ethernet Converter Module Serial UART TTL to Ethernet TCPIP Module Support DHCP and DNS
Note, there are 2 versions of USR-TCP232-T2 optional, please choose the version you request.
USR-TCP232-T2 is a tiny size serial Ethernet module that can realize data bidirectional transparent transmission between TTL and RJ45 Port.
Note:
Under the premise of ensuring the same quality and function, the manufacturer will use chips with different appearances to arrange production and shipment after testing, so the goods received by customers may have the below two products. The product function is the same, please customers must fully understand and consider this consultation before purchase, do not buy if you mind, Thanks!
Serial to ethernet converter modules USR-TCP232-T2 can transmit data transparently between TCP/IP and TTL, and it can also be applied in RS232/ RS485 by level shift circuit.
● Based on Cortex-M0 core.
● Pin type.
● Low Power, fast-speed and high-efficiency.
● Supports TCP server/client, UDP server/client
● Web page configuration / DHCP & DNS
● Virtual COMIntroduction of Serial to Ethernet Converter Modules USR-TCP232-T2
Serial to Ethernet converter module USR-TCP232-T2 can realize data bidirectional transparent transmission between serial TTL and RJ45 Port. USR-TCP232-T2 is based on Cortex-M0 core. It has characters of low power, fast speed, and high efficiency.Serial UART Ethernet Module – M0 Series
Solution
Cost-Effective, -25~75C
Keep-Alive
Detect the inactive connection, rebuild connection automatically
Built-In Webpage
Configure parameters
DHCP+DNS
DNS and DHCP automatically obtain an IP address
Firmware
Upgrade firmware via network
Client connection
Support 1 to 16 clients to be connected in TCP server mode
Features of Serial to Ethernet Converter Modules USR-TCP232-T2
DHCP &DNS, automatically obtain an IP address and query IP address through serial setting protocolSet parameters through webpage and serial AT commandUpgrade firmware via networkAuto-MDI/MDIX, RJ45 port with 10/100MbpsSerial port baud rate from 600 bps to 460.8 Kbps, Check bit of None,Odd,Even,Mark and SpaceWork mode: TCP Server, TCP Client, UDP Client, UDP Server, httpsD ClientSupport virtual serial port and provide corresponding software USR-VCOMHeartbeat package mechanism to ensure connection is reliable, put an end to dead linkUser-defined registration package mechanism, check connection status and use as custom packet headerUnder TCP Server mode, Client number ranges from 1 to 16; default number is 4The global unique MAC address bought from IEEE, user can define MAC addressRestore factory defaultAcross the gateway, switches, routersCan work in LAN, also can work in the Internet (external network)Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOSSupport customizationApplication Field of Serial UART Ethernet Modules
Industrial data transmission, industrial automationsecurity and protection monitoring, public securitySmart home, power control, environmental monitoring, intelligent agricultureDoor check on work attendance system, POS system, rice selling systemBuilding automation system, power monitoring, self-service banking system, telecom machine room monitoringImage of Serial UART to Ethernet Modules

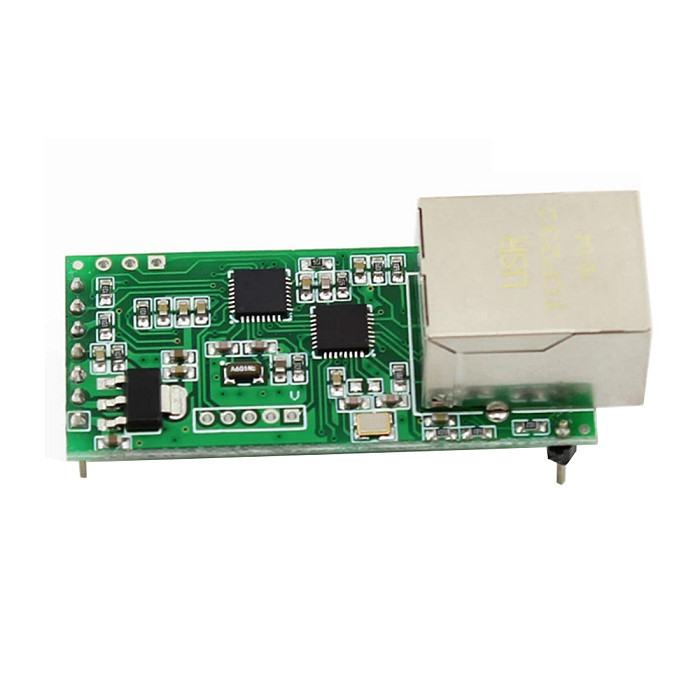

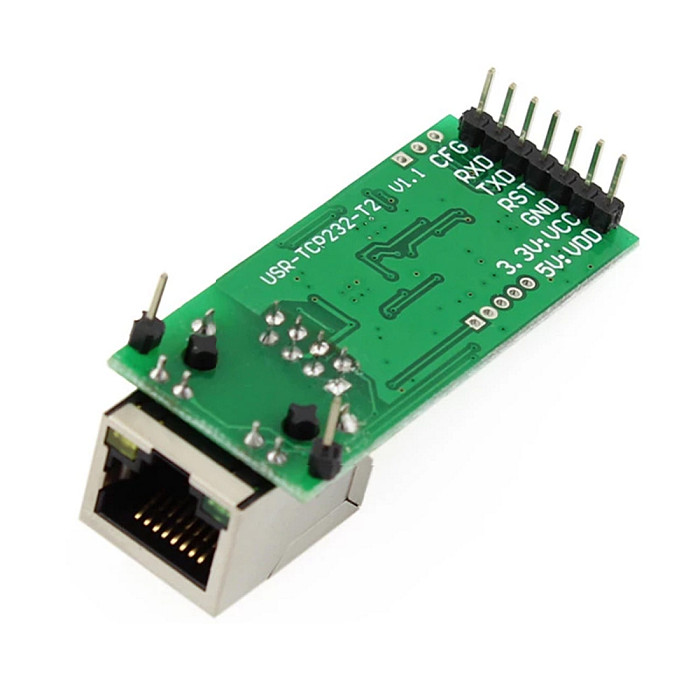

V1.1 New Version

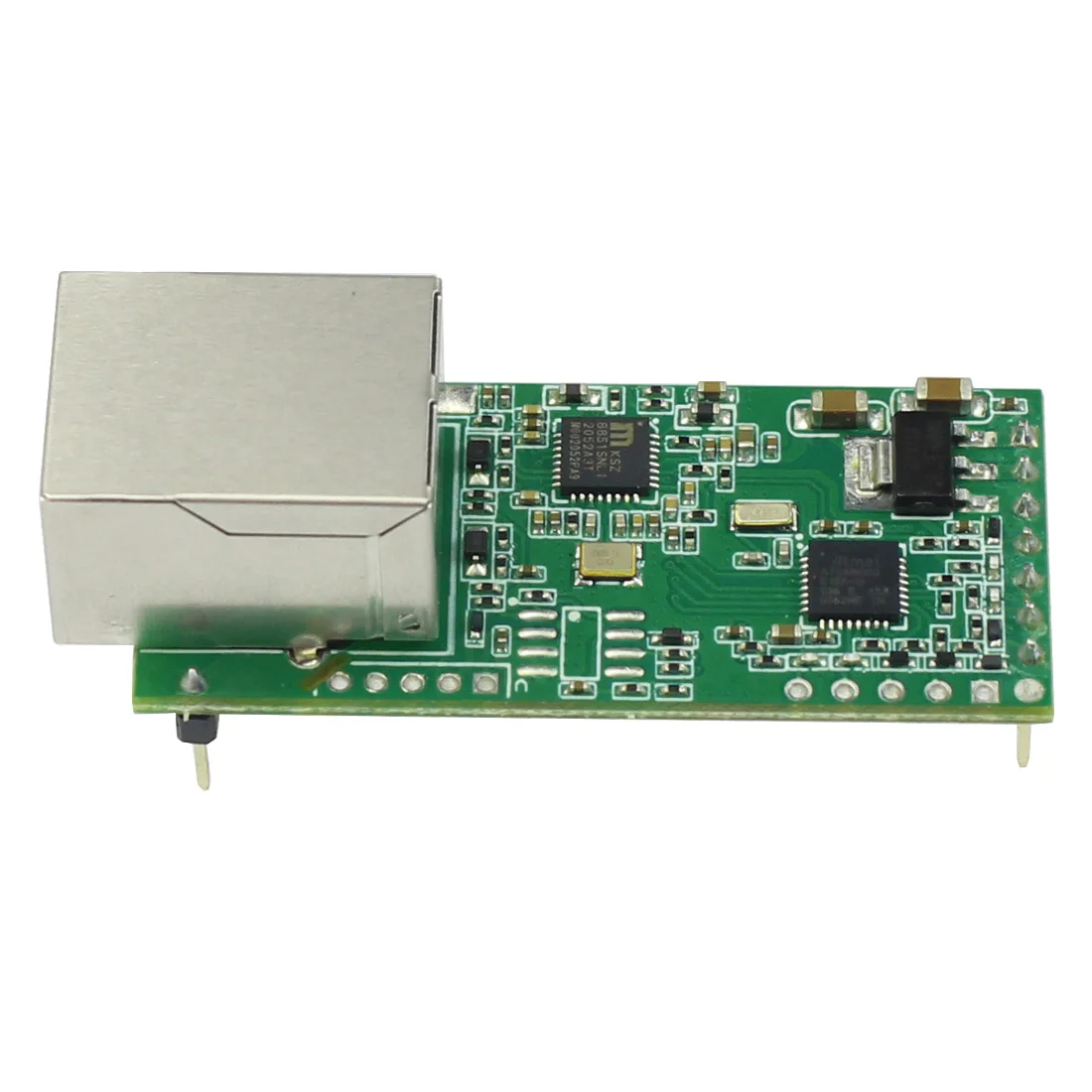

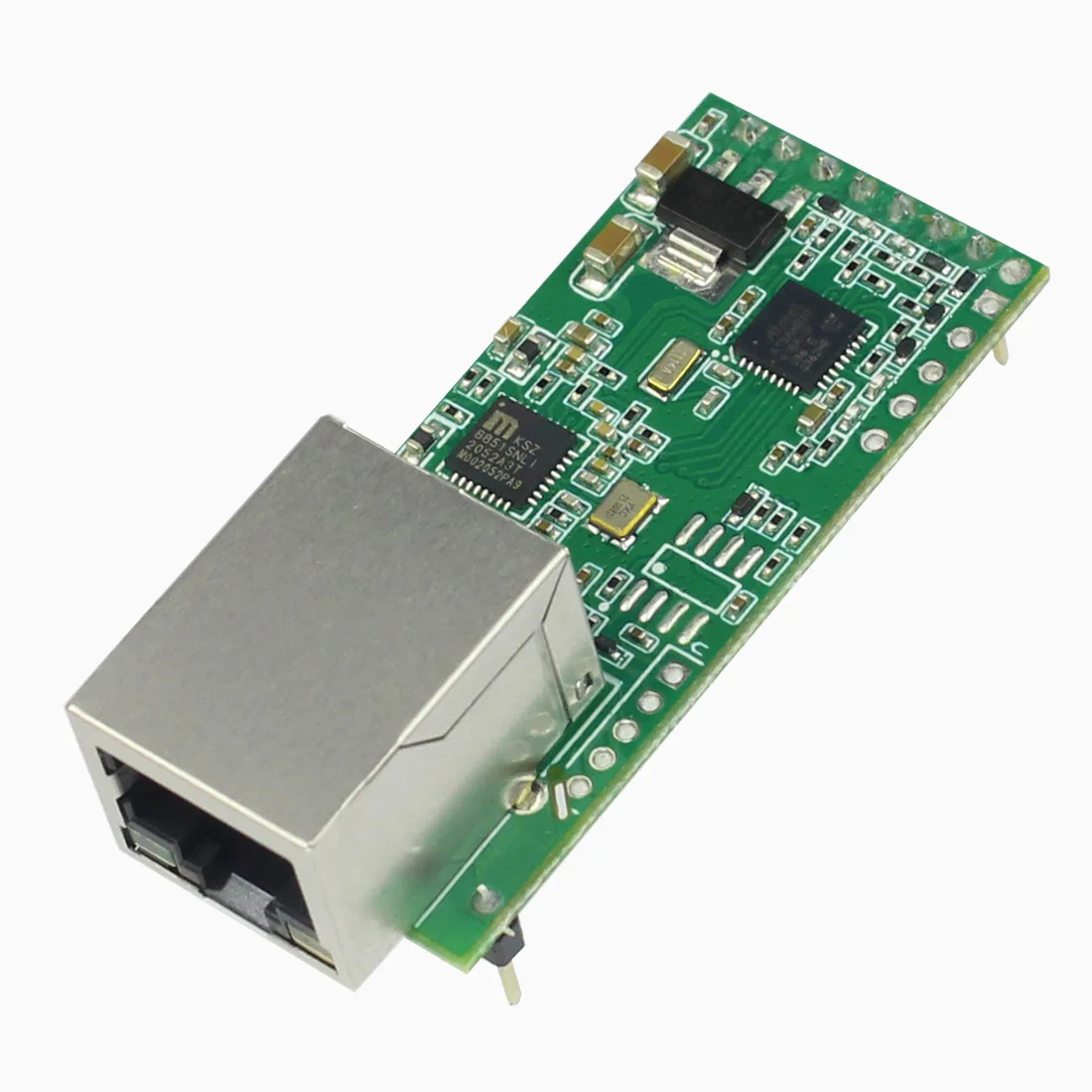

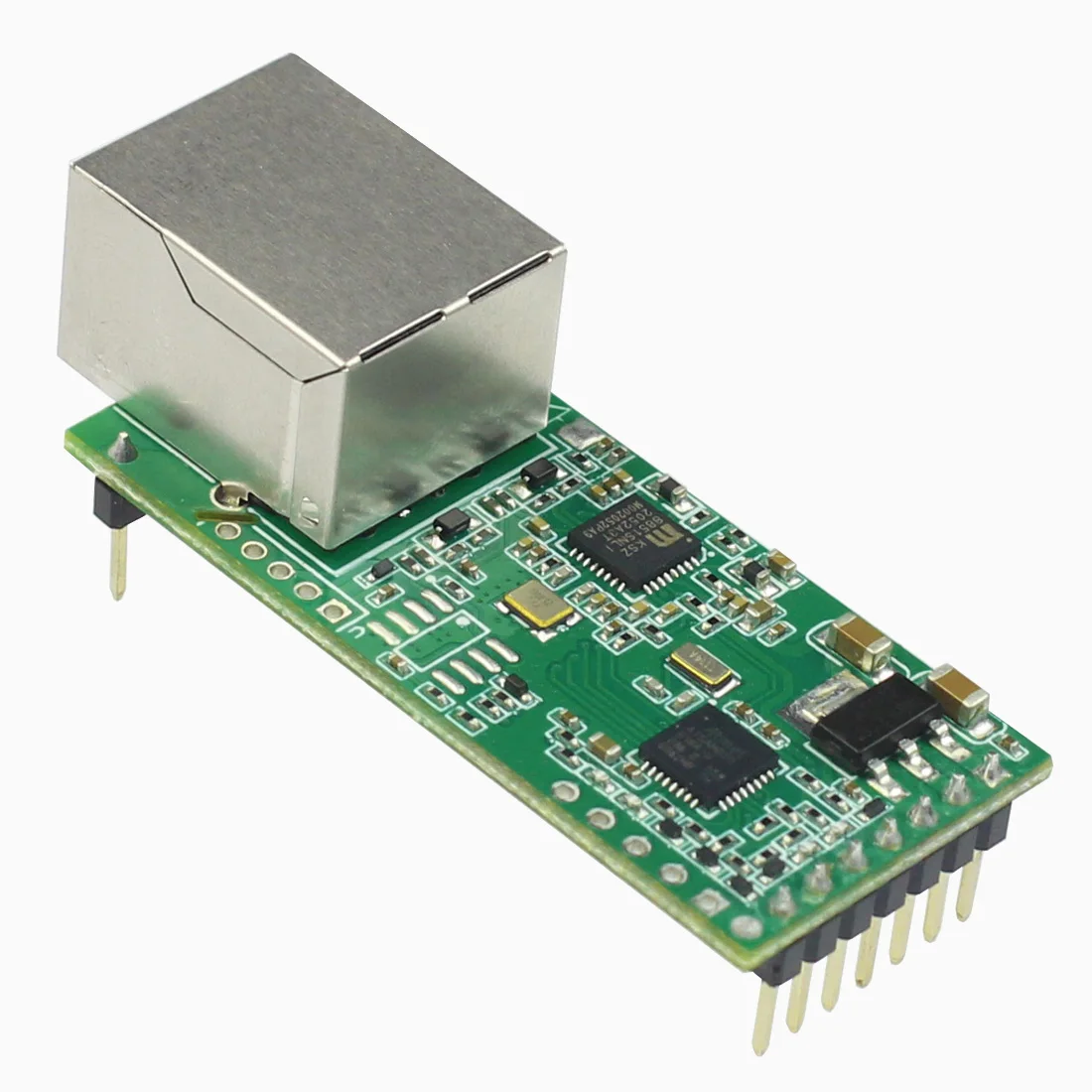

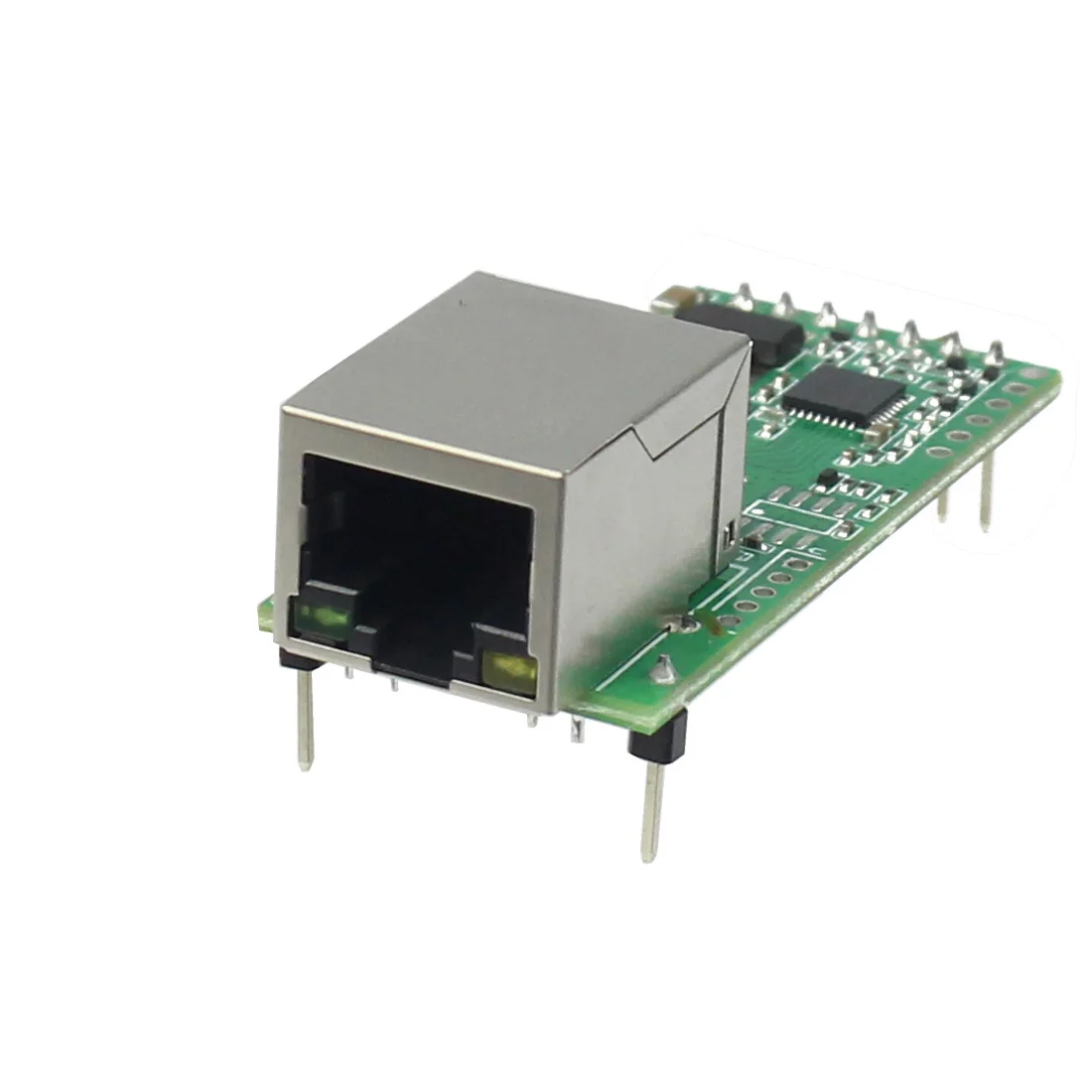

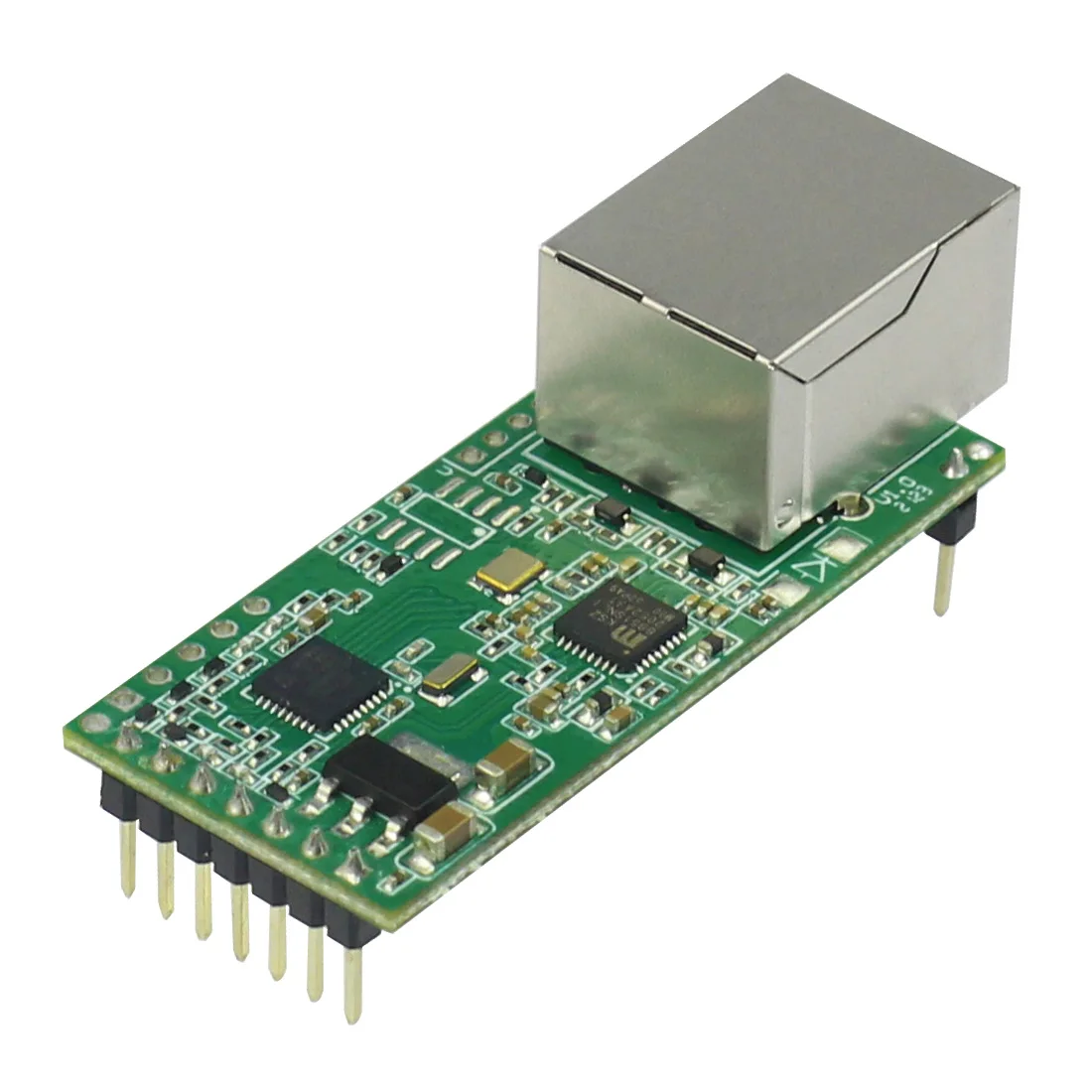

V1.2 New Version
