CopyProduct Name | NEO-6M/7M/M8N/7N/M9N/M10-0-10GPS Beidou GNSS Timing Satellite Flight Control Navigation Module |
Item NO. | F53175-D1 D2 D3 D4 |
Weight | 0.02 kg = 0.0441 lb = 0.7055 oz |
Category | DIY RC Drone Accessories > Receiver |
Creation Time | 2024-10-18 |

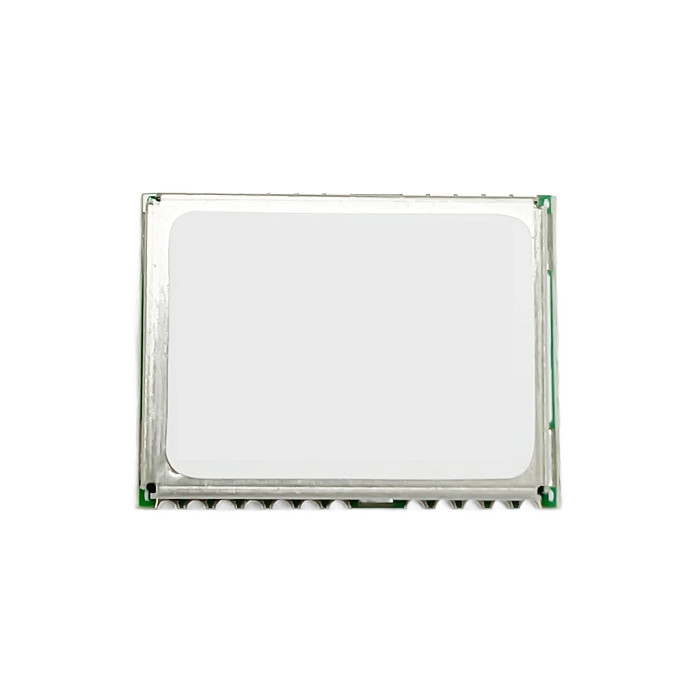

NEO-6M/7M/M8N/7N/M9N/M10-0-10GPS Beidou GNSS Timing Satellite Flight Control Navigation Module
Description:
Technical characteristics:
1. Module performance
Chip: compatible-UBLOX-8030
Frequency: BDS/GPS/GLONASS/1.5611-1.57542GHz
Protocol: NMEA0183
Available baud rate: 4800.,119200,38400,57600,115200bps (default 9600 baud rate)
Support satellite: 72CH
Channels: Support GPS/QZSS+GLONASS (default), GPS/QZSS+ BDS BDS+ GLONASS output
Sensitivity: Tracking: -162dBm Capture: -148dBm
Cold start: 35 seconds on average
Warm start: 10 seconds on average
Hot start: 1 second on average
Accuracy: <2.5m [Autonomous] [50%] <3m [SBAS]
Maximum height: 18000 meters
Maximum speed: 515m/s
Maximum acceleration: ≤4G
Update frequency: 1-10 Hz

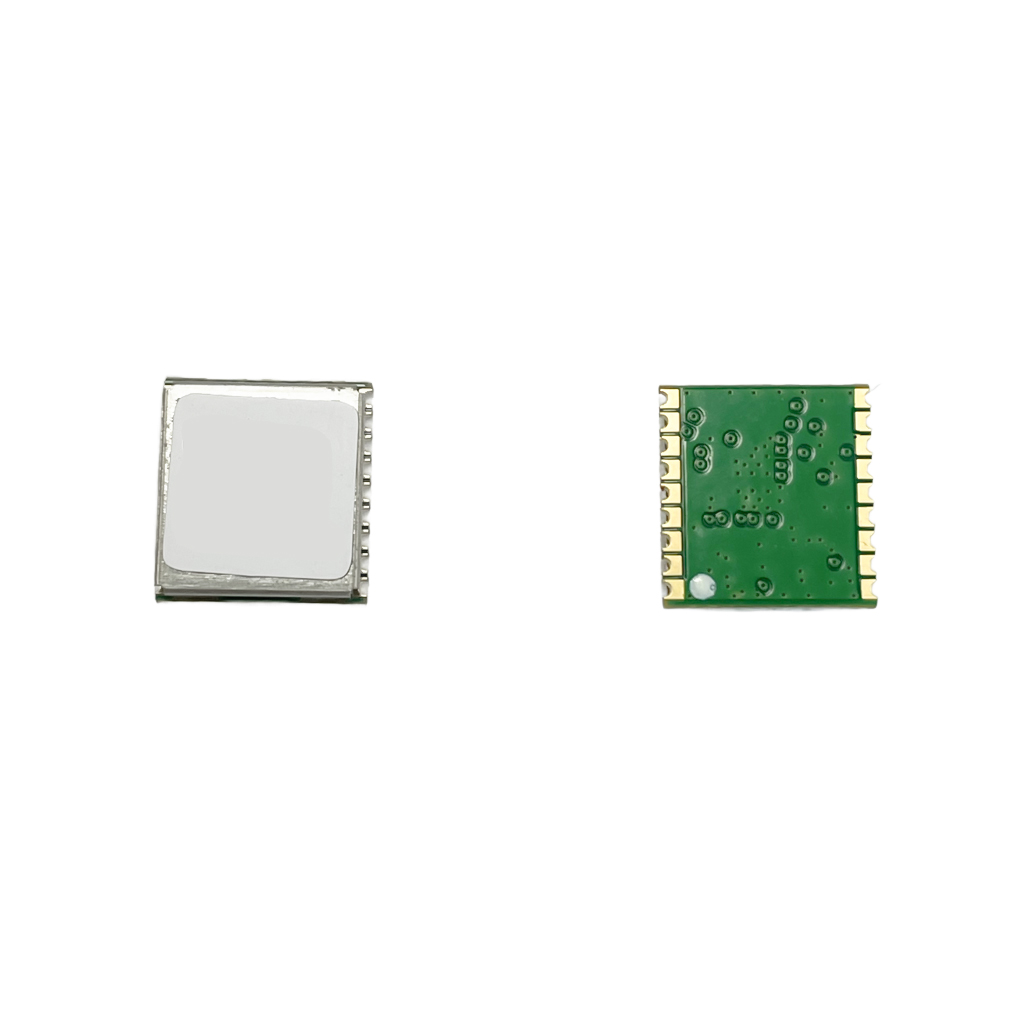

2. Physical characteristics
Type: 24 pin stamp holes
Dimensions: 16.0mm*12.2mm*2.4mm
Partition cover material: white copper
3. Power supply
Power supply: 3.3VDC±5%
Backup voltage: 1.8~3.6VDC
Power consumption: 21mA for external passive antenna, 35mA for external active antenna
4. Working environment
Humidity range: 5% to 95% non-condensing
Operating temperature: -20°C to 85°C
Storage temperature: -40°C to 85°C
