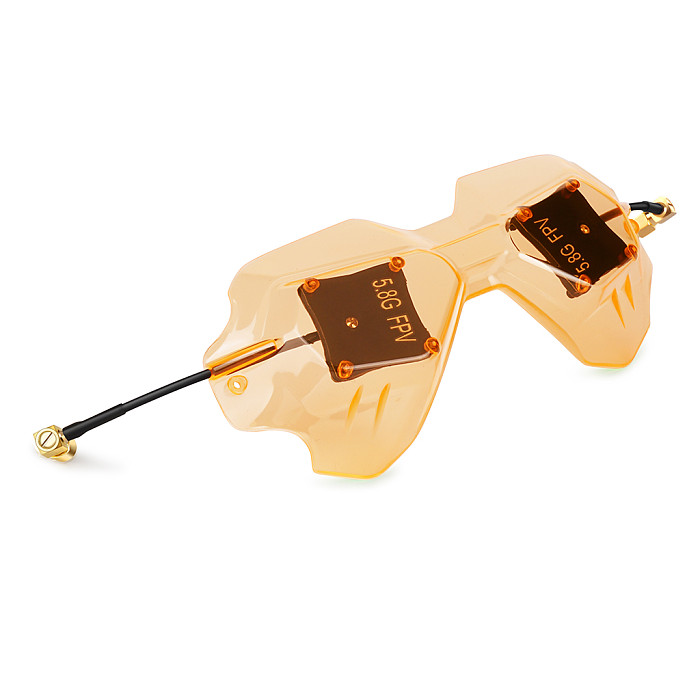

LHCXRC HD-02 Goggles Case Through Crosses MachineThe Machine Modified Antenna Set For HD V2 DJI DJI FPV Goggles

LHCXRC HD-02 Goggles Case Through Crosses MachineThe Machine Modified Antenna Set For HD V2 DJI DJI FPV Goggles Item NO.: F47979-A1 A2 A3 F47980-A1 A2 A3 F47981-A1 A2 A3

Write a Review
US$ 5.48
US$ 6.45 Save US$ 0.97 (15% Off)
Version
Only  Goggles shell With 5.8G panel antenna With Panel Antenna+ Cylindrical Antenna
Color
Black Green Orange
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • LHCXRC-HD-02 Goggles Case Through Crosses MachineThe Machine Modified Antenna Set For HD V2 DJI DJI FPV Goggles
Product Name LHCXRC HD-02 Goggles Case Through Crosses MachineThe Machine Modified Antenna Set For HD V2 DJI DJI FPV Goggles
Item NO. F47979-A1 A2 A3 F47980-A1 A2 A3 F47981-A1 A2 A3
Weight 0.09 kg = 0.1984 lb = 3.1747 oz
Category DIY RC Drone Accessories > antenna
Brand Other Brands
Creation Time 2022-07-14

LHCXRC-HD-02 Goggles Case Through Crosses MachineThe Machine Modified Antenna Set For HD V2 DJI DJI FPV Goggles

Product Features:
Specially designed for DJI high-definition digital FPV glasses, higher gain, more stable video transmission effect, better signal penetration for longer distances, high-gain directional and LHCP circularly polarized omnidirectional antenna, the shell is translucent black, Translucent green, translucent orange
Three color options PC injection-molded one-piece high-quality housing.

FOR DJI HD 2 Flat Panel Directional Antenna
Model: LHCXRC HD-02
Frequency range: 5.3GHz-6.0GHz
Gain: 8.6 dBiC
VSWR: <=1.3
Radiation Efficiency: 94%
Beam width: 75° H. 75° V.
Polarized: (LHCP) Left Hand Circularly Polarized
Interface: RP-SMA (Fits DJI Goggles directly, not to be used on standard SMA)
Weight: 31g

FOR DJI HD2 Cylindrical Antenna
Gain: 3.5dbic
Axle Ratio: 0.9
Frequency range: 5.3GHz-6.0GHz
Radiation Efficiency: 98%
Beam width: 360 degrees (omni-directional)
VSWR: <=1.5
Weight: 6.5g
Size: 20mm x 28mm
Interface: RP-SMA (custom long)
Polarization: Left Hand Circularly Polarized (LHCP)


Please note:

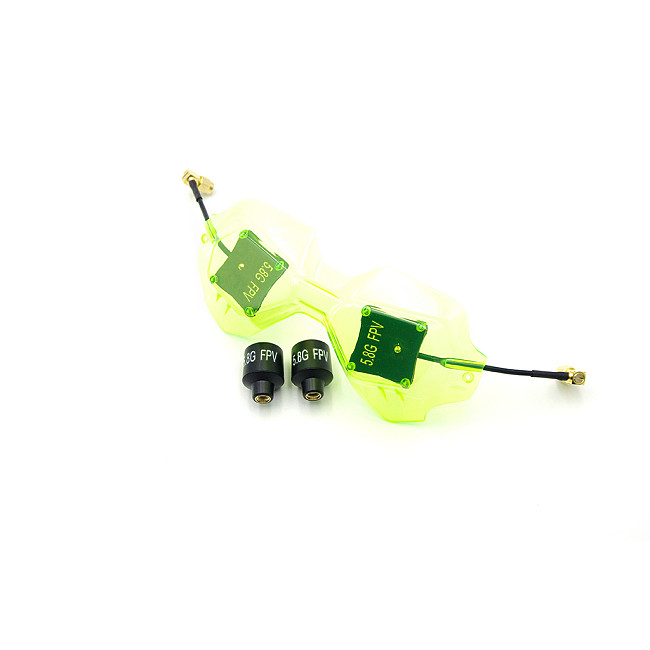

There are 3 versions: Only Goggles shell, With 5.8G panel antenna, With Panel Antenna+ Cylindrical Antenna are optional, please select the version you need.
There are three colors to choose from: Black, Green, Orange, please choose the color of your preferred case.
