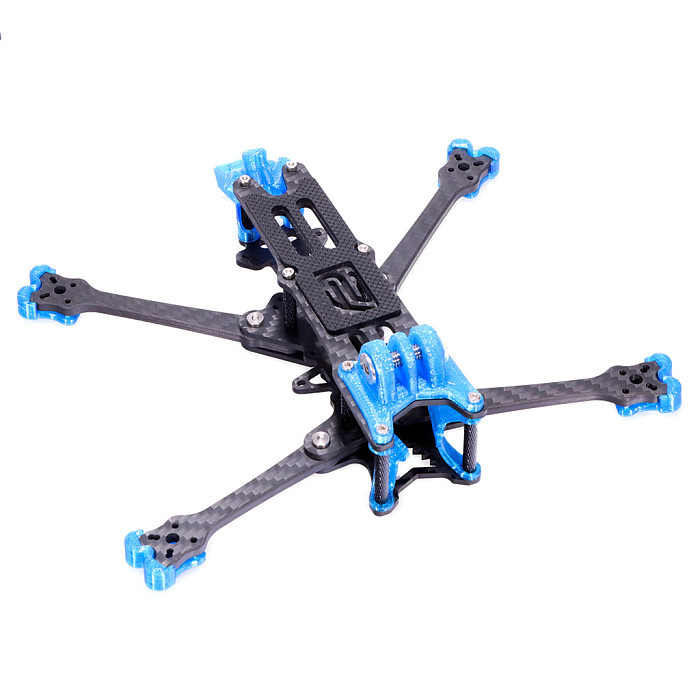

Long Range 4 LR4 FPV Frame Kit RC Drone FPV Racing for O3 Air Unit CADDX vista polar nebula pro RunCam Link Phoenix Item NO.: F51262

 Long Range 4 LR4 FPV Frame Kit RC Drone FPV Racing Quadcopter for D JI O3 Air Unit  CADDX vista polar nebula pro 1408 1507

Features:

Quick disassembly design.

Light weight, high strength, foldable arm.

FPV camera high-efficiency shock absorption.

Suitable for FPV camera of various sizes.

------------------------------------------

Specification:

Model: LR4-Voyager.

Wheelbase: 180mm.

Arm Thickness: 4MM.

Bottom Plate Thickness: 2mm.

middle plate Thickness：2mm.

Upper Plate Thickness: 2mm.

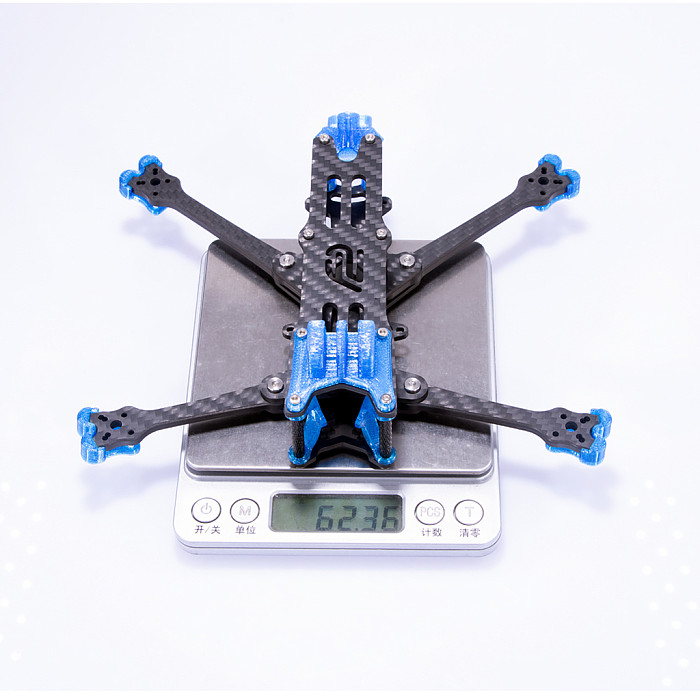

Weight: 62g（Different production batches will vary ）.

Material: 3K Carbon Fiber.

------------------------------------------

Aluminum column height：26 / 20mm.

FC Hole distance:  (front:25.5x25.5 /26.5*26.5 / 20X20MM) / (Rear:20X20 25.5x25.5).

Motor Hole distance: :9*9/12*12MM.

Suitable propeller: 4inch.

GPS bin size：17*12.5*5mm(BE122/BZ122)

Support camera: 14MM-22MM（DJIFPV series,Nano series, micro series, mini series FPV camera）.

------------------------------------------

Package list:

1 set Frame KIT, without any electronic equipment.
