LNA 0.5-4GHz Gain 60dB Low Noise 0.8dB Amplifier for Ham Radio GPS Beidou GLNSS WIFI Signal RF Receiver System HF VHF UHF FM SDR
-
Detail
- Product Name: LNA 0.5-4GHz Gain 60dB Low Noise 0.8dB Amplifier for Ham Radio GPS Beidou GLNSS WIFI Signal RF Receiver System HF VHF UHF FM SDR
- Item NO.: F52278
- Weight: 0.072 kg = 0.1587 lb = 2.5397 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2024-05-29
LNA 0.5-4GHz Gain 60dB Low Noise 0.8dB Amplifier for Ham Radio GPS Beidou GLNSS WIFI Signal RF Receiver System HF VHF UHF FM SDR
LNA 0. 5-4GHz gain 60dB low noise 0. 8dB GPS Beidou GLNSS amplifier
Satellite positioning amplifier (F=0. 5-4Ghz, G=60dB)
Product Applications:
This amplifier has the advantages of wide frequency range, high gain, small noise factor, etc.
It can be used as the front-end of RF receiving for satellite positioning,
increasing the communication distance and other places
where low noise and small signal RF amplification is needed!
Technical specifications
(1) Operating frequency: 0. 5-4GHz
(2) Operating voltage: 4.5-5.5V
3) Operating current: 280mA
3) Amplification gain: 60dB (5V power supply)
4) Maximum output: +22dBm @1dB compression point
5) Noise figure: 0.8dB (typical)
6）System impedance: 50 ohms
7) Product shell: CNC machining centre CNC milling
8) Connection form: SMA standard female head (external screw internal hole)

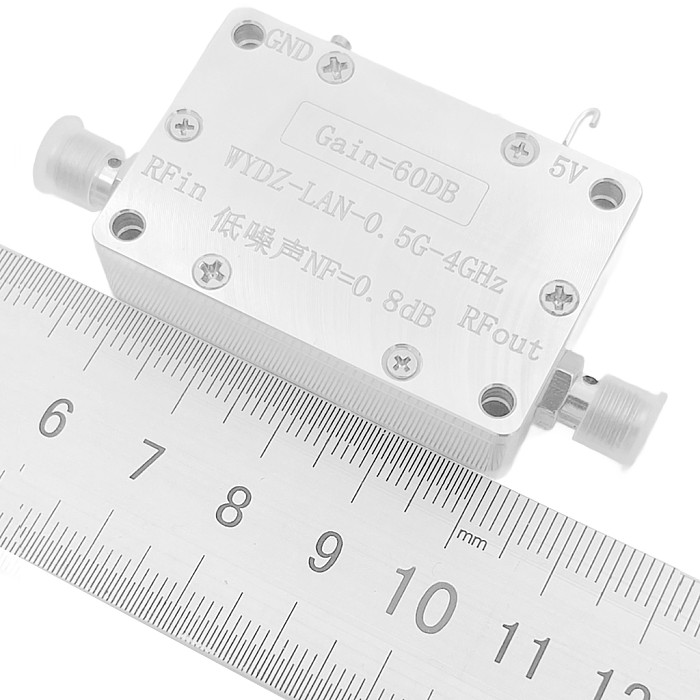

9）Exterior dimensions:45*30*12mm (excluding connectors)
10）Product weight:52g
