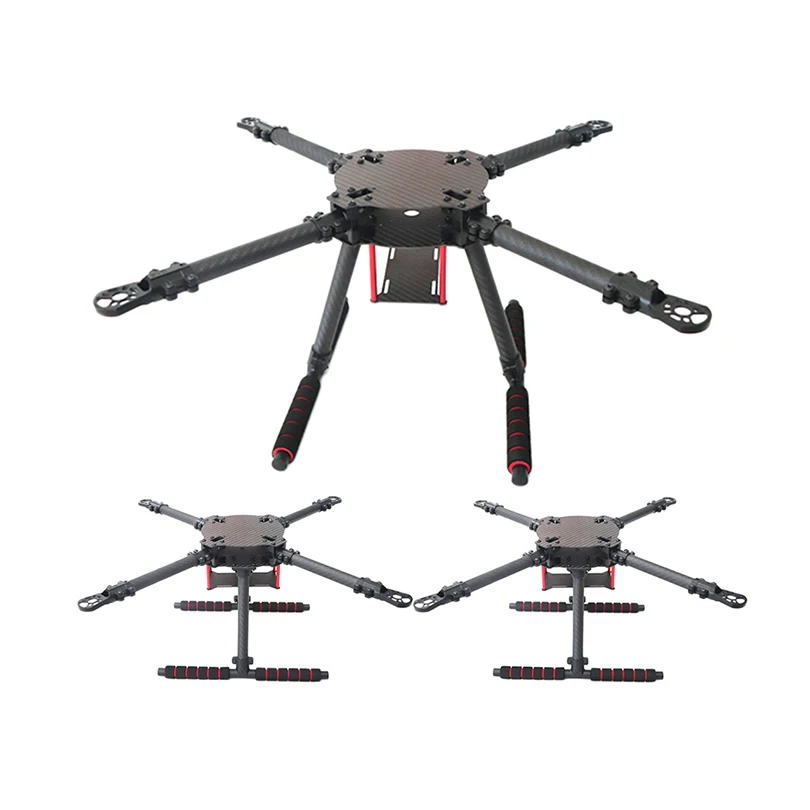

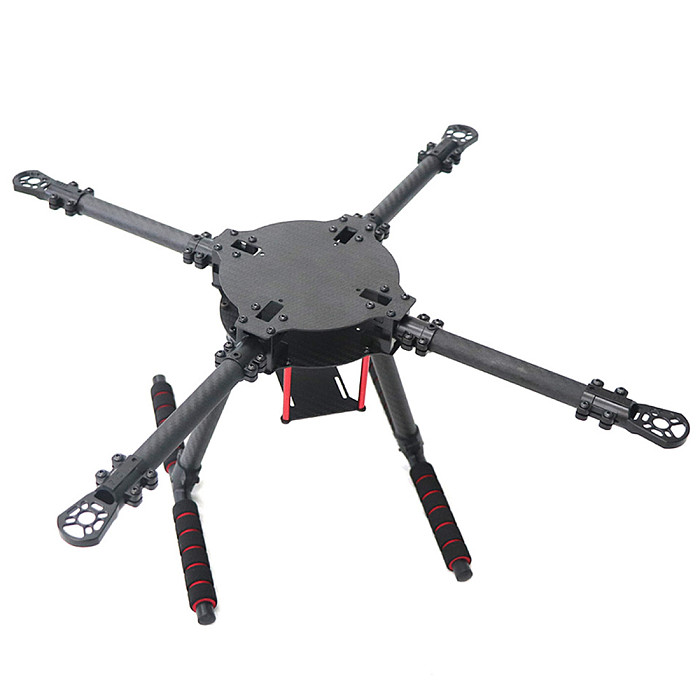

Copy| Product Name | LJI X4 PRO Upgraded 400 / 450 / 500 / 550mm Wheelbase Carbon Fiber 4-Axle Frame Support 2212/2216 Motor for RC Quadcopter Drone |
| Item NO. | F45840-D1F45840-D2F45840-D3F45840-D4 |
| Weight | 0.4 kg = 0.8818 lb = 14.1096 oz |
| Category | DIY RC Drone Accessories > Frame |
| Brand | JMT |
| Creation Time | 2021-12-21 |
Size of arm carbon tube:
X400-14*16*110MM
X450-14*16*135MM
X500-14*16*160MM
X550-14*16*185MM
Specification:

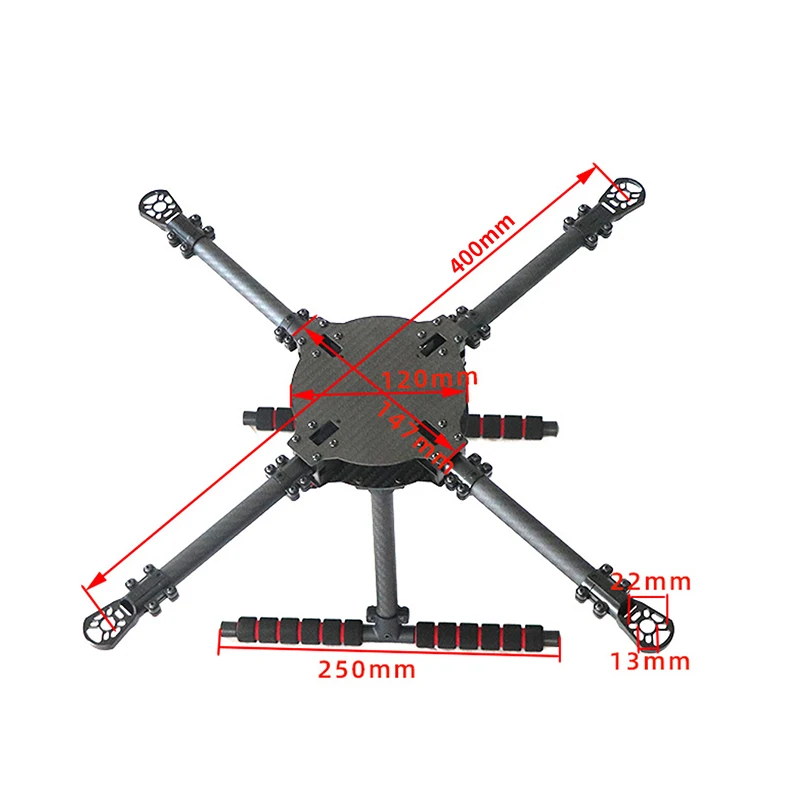

Product name: LII-X400PRO carbon fiber rack
Wheelbase: 400mm
Arm carbon tube: 14*16*110m
The height inside the rack: 30mm
Weight: about 360g
Upper board thickness: 1.5mm
Lower board thickness: 1.5mm
Motor mounting holes: 16*19mm
Recommended configuration:
Paddle: 8 inches
ESC: 30-40A
Motor: 2212/2216 series motor
Flight control: APM PIX DJI flight control
Battery: 3-4S 2200-5300MAH
Product name: LII-X450PRO carbon fiber rack
Wheelbase: 450mm
Arm carbon tube: 14*16*135m
The height inside the rack: 30mm
Weight: about 370g
Upper board thickness: 1.5mm
Lower board thickness: 1.5mm
Motor mounting holes: 16*19mm
Recommended configuration:
Paddle: 10 inches
ESC: 30-40A
Motor: 2212/2216 series motor
Flight control: APM PIX DJI flight control
Battery: 3-4S 2200-5300MAH
Product name: LII-X500PRO carbon fiber rack
Wheelbase: 500mm
Arm carbon tube: 14*16*160m
The height inside the rack: 30mm
Weight: about 380g
Upper board thickness: 1.5mm
Lower board thickness: 1.5mm
Motor mounting holes: 16*19mm
Recommended configuration:
Paddle: 12 inches
ESC: 30-40A
Motor: 2212/2216/Qunxi 3508
Flight control: APM PIX DJI flight control
Battery: 3-4S 2200-5300MAH

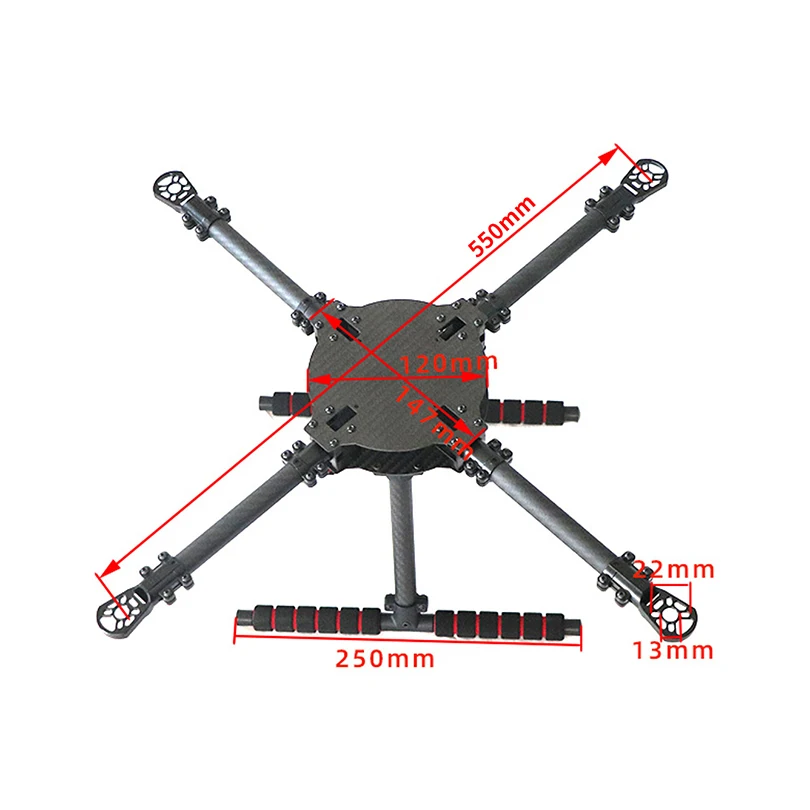

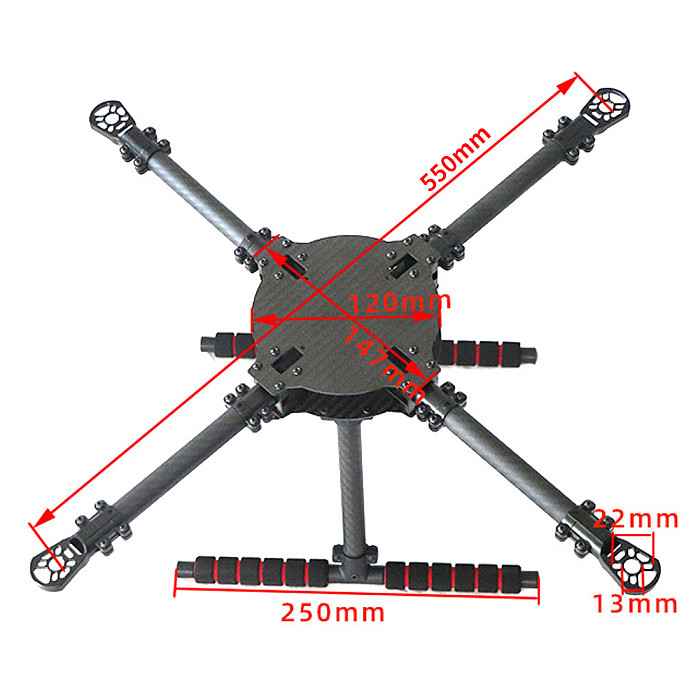

Product name: LII-X550PRO carbon fiber rack
Wheelbase: 550mm
Arm carbon tube: 14*16*185m
The height inside the rack: 30mm
Weight: about 390g
Upper board thickness: 1.5mm
Lower board thickness: 1.5mm
Motor mounting holes: 16*19mm
Recommended configuration:
Paddle: 13 inches
ESC: 30-40A
Motor: 2212/2216/Qunxi 3508
Flight control: APM PIX DJI flight control
Battery: 3-4S 2200-5300MAH
Packaged Include:
1PC X4 PRO Upgraded X400/450/500/550 Carbon Fiber 4-Axle Frame
