Home>DIY RC Drone Accessories>JX Servo PDI-HV5932MG 30KG High Torque Metal Tooth Digital Servo + 25T Steering Gear Arm for Drone RC Car RC Boat Robort

JX Servo PDI-HV5932MG 30KG High Torque Metal Tooth Digital Servo + 25T Steering Gear Arm for Drone RC Car RC Boat Robort Item NO.: F29318-A/F29318-B/F29319-A/F29319-B/F29320-A/F29320-B

Sold (10)

US$ 24.72 ~ US$ 27.47

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 27.47	US$ 26.10	US$ 24.72

Version: PDI-HV5932MG-120 PDI-HV5932MG-180 PDI-HV5932MG-360

Set: with Red Arm with Black Arm

Quantity: Stock ( 59999994 )

Estimate Shipping Cost

PDI-HV5932MG-180 ; Dead zone: 1μs
Maximum pulse width: 500-2500us (suitable for single-chip control board) ; Angle range: actual angle 172 ± 2 °
Motor: Hollow cup ; Cable: JR 265 mm (10.43in)
Speed (6.0V): 0.12sec/85° ; Speed (8.4V): 0.1sec/85°； Torque (6.0V): 25.2 kg.cm ; Torque (8.4V): 32.3kg.cm
Size: 40.5X20.5X36mm ; Output teeth: 25T (Futaba universal)

Product Name	JX Servo PDI-HV5932MG 30KG High Torque Metal Tooth Digital Servo + 25T Steering Gear Arm for Drone RC Car RC Boat Robort
Item NO.	F29318-A/F29318-B/F29319-A/F29319-B/F29320-A/F29320-B
Weight	0.121 kg = 0.2668 lb = 4.2681 oz
Category	DIY RC Drone Accessories
Brand	JX
Creation Time	2020-11-17

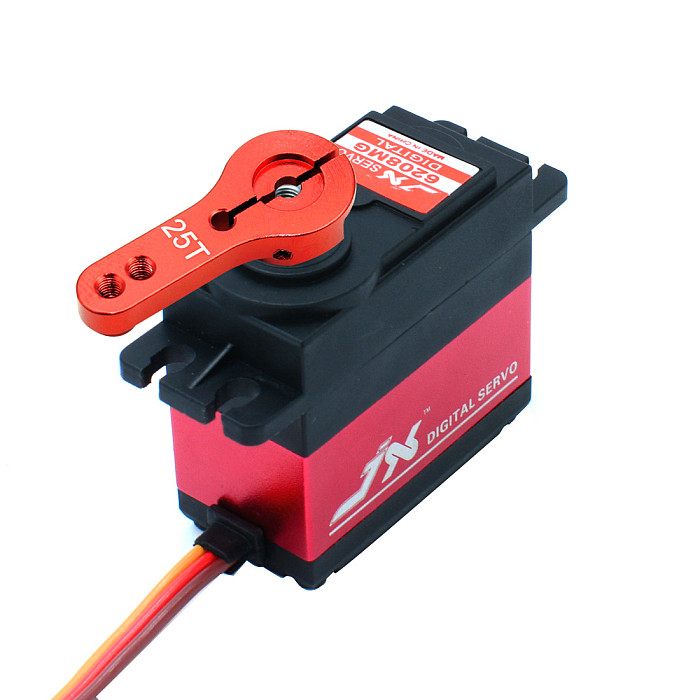

JX Servo PDI-HV5932MG 30KG 120°/180°/360° High Torque Metal Tooth Digital Servo + 25T Steering Gear Arm for Drone RC Car RC Boat Robort

Features:

High-voltage digital hollow cup standard steering gear
Taiwan high precision gear
Double ball bearing
CNC aluminum inner shell

PDI-HV5932MG-360° continuous transfer detailed specifications:
Dead zone: 1μs
Maximum pulse width: 500-2500us, pulse width is stopped at 1500us (suitable for remote control, MCU control board)
Angle range: 360° continuous turn
Motor: Hollow cup
Speed (6.0V): 73 rpm
Speed (8.4V): 102 rpm
Size: 40.5X20.5X36mm
Weight: 59g
Cable: JR 265 mm (10.43in)
Bearing: 2BB
Output teeth: 25T (Futaba universal)

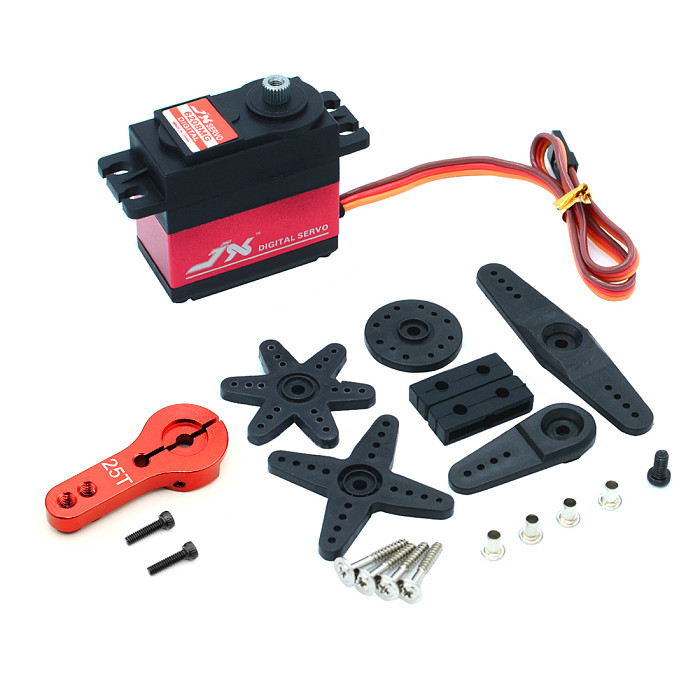

Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws

PDI-HV5932MG-180°Detailed specifications:
Dead zone: 1μs
Maximum pulse width: 500-2500us (suitable for single-chip control board)
Angle range: actual angle 172 ± 2 °
Motor: Hollow cup
Speed (6.0V): 0.12sec/85°
Speed (8.4V): 0.1sec/85°
Torque (6.0V): 25.2 kg.cm
Torque (8.4V): 32.3kg.cm
Size: 40.5X20.5X36mm
Weight: 59g
Cable: JR 265 mm (10.43in)
Bearing: 2BB
Output teeth: 25T (Futaba universal)
Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws

PDI-HV5932MG-120° Detailed specifications:
Dead zone: 1μs
Maximum pulse width: 900-2100us (suitable for remote control)
Maximum angle: 120°
Motor: Hollow cup
Speed (6.0V): 0.12sec/60°
Speed (8.4V): 0.1sec/60°
Torque (6.0V): 25.2 kg.cm
Torque (8.4V): 32.3kg.cm
Size: 40.5X20.5X36mm
Weight: 59g
Cable: JR 265 mm (10.43in)
Bearing: 2BB
Output teeth: 25T (Futaba universal)

Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws

Package list:

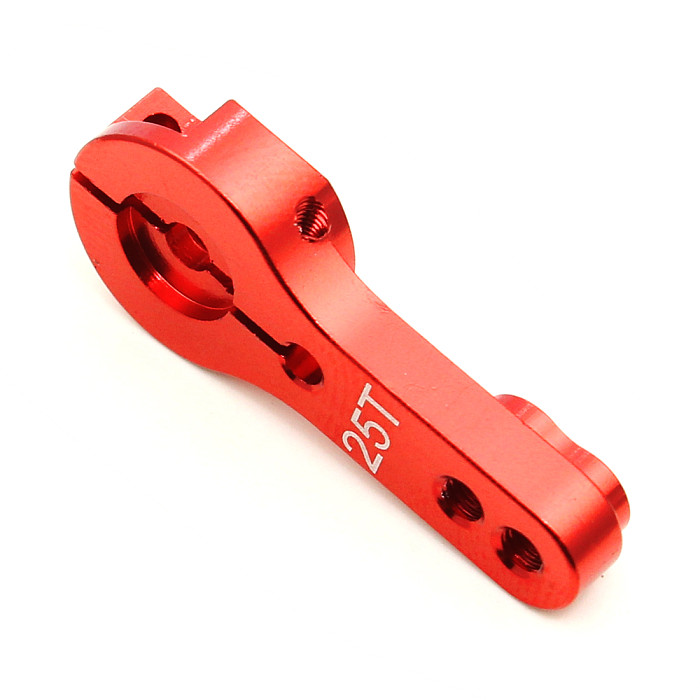

1pc 120°/180°/360°large torque metal gear digital servo + 1pc 25T red/black servo arm
