FEICHAO 915MHz Moxon 5dBi Long Range Antenna for Frsky R9M TBS Crossfire Jumper T16 / JMT Module Tuner Remote Control High Gain Antenna Item NO.: F38506-F38507

Name: FEICHAO 915MHz Moxon 5dBi Long Range Antenna for Frsky R9M TBS Crossfire Jumper T16 / JMT Module Tuner Remote Control High Gain Antenna
Brand: Feichao
SKU: F38506-F38507
Price: 6.13 USD
Availability: InStock

Write a Review Sold (8)

US$ 6.13

US$ 7.21 Save US$ 1.08 (15% Off)

Version

Quantity: Stock ( 19999990 )

Estimate Shipping Cost

Add to Cart

Product Name	FEICHAO 915MHz Moxon 5dBi Long Range Antenna for Frsky R9M TBS Crossfire Jumper T16 / JMT Module Tuner Remote Control High Gain Antenna
Item NO.	F38506-F38507
Weight	0.09 kg = 0.1984 lb = 3.1747 oz
Category	DIY RC Drone Accessories > antenna
Brand	Feichao
Creation Time	2020-05-07

FEICHAO 915MHz Moxon 5dBi Long Range Antenna for Frsky R9M TBS Crossfire Jumper T16 / JMT Module Tuner Remote Control High Gain Antenna

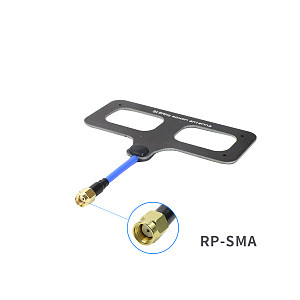

Item Name: Moxon 915 MHz Module Antenna
Frequency Range (MHz): 900-930
Bandwidth: (MHz) 30
Input Impendence (Ω): 50
Voltage standing wave ratio V.S.W.R: ≤1.5
Gain (dBi): 5
Polarization Type: Vertical
Lightning Protection: DC grounding
Power Capacity (w): 50

Antenna Length (mm): 110D * 120L
Radiator: Copper Cuprum
Connector Model : SMA Male / RP-SMA Male
Working Temp (℃): -40 ~ 60
Storage Temperature (℃): -20 ~ 40
Radome Color: Black
Weight (g): 18.5g
Compatible with modules: FrSky R9M / R9M Lite,TBS Crossfire Jumper / JMT Module Tuner
Note:The Moxon 915 MHz Module Antenna offers ~65% longer range over a standard dipole antenna. Polarization rests with the elements and thus it is best used when upright (vertical polarization).

Features:
High Gain
Small size

Long Range
