Home>DIY RC Drone Accessories>JX 13KG 15KG Large Torque Metal Standard Steering Gear servo For RC Helicopter Drone Robot Tank Car Parts

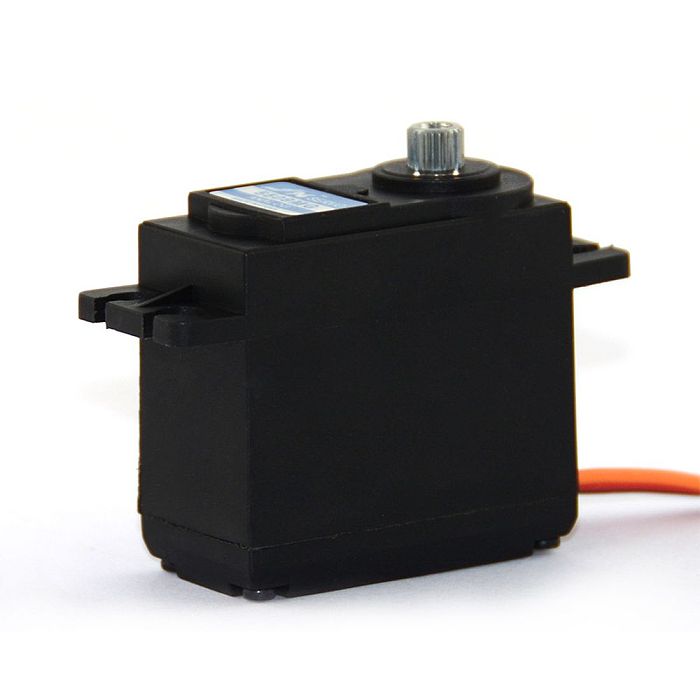

JX 13KG 15KG Large Torque Metal Standard Steering Gear servo For RC Helicopter Drone Robot Tank Car Parts Item NO.: F39840 F39841

Name: JX 13KG 15KG Large Torque Metal Standard Steering Gear servo For RC Helicopter Drone Robot Tank Car Parts
Brand: JX
SKU: F39840 F39841
Price: 6.16 USD
Availability: InStock

Write a Review Sold (13)

US$ 6.16

US$ 7.25 Save US$ 1.09 (15% Off)

Version: PS-5513MG/13KG PS-5515MG/15KG

Quantity: Stock ( 19999998 )

Estimate Shipping Cost

Add to Cart

Product Name	JX 13KG 15KG Large Torque Metal Standard Steering Gear servo For RC Helicopter Drone Robot Tank Car Parts
Item NO.	F39840 F39841
Weight	0.066 kg = 0.1455 lb = 2.3281 oz
Category	DIY RC Drone Accessories
Brand	JX
Creation Time	2020-07-21

JX 13KG 15KG Large Torque Metal Standard Steering Gear servo For RC Helicopter Drone Robot Tank Car Parts

PS-5513MG/13KG detailed specifications:

Dead zone: 7μs
Maximum pulse width: 900-2100us (suitable for remote control)
Maximum angle: 120°
Motor: iron core
Speed (4.8V): 0.20sec/60°
Speed (6V): 0.18 sec/60°
Torque (4.8V): 11.75kg.cm (163.21oz/in)
Torque (6V): 13.06 kg-cm (181.40 oz/in)
Size: 40.5X20.2X38mm/1.59X0.80X1.49 in
Weight: 55.6 g (1.96oz)
Connection cable: JR 265 mm (10.43in)
Bearing: 1BB

PS-5515MG/15KG detailed specifications:
Dead zone: 7μs
Maximum pulse width: 900-2100us (suitable for remote control)
Maximum angle: 120°
Motor: iron core
Speed (4.8V): 0.18 sec/60°
Speed (6V): 0.16 sec/60°
Torque (4.8V): 14.25 kg.cm (197.93 oz/in)
Torque (6V): 15.32 kg-cm (212.79 oz/in)
Size: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 55.6 g (1.96oz)
Connection cable: JR 265 mm (10.43in)

Bearing: 1BB

The package contains:
1xservo

1xservo spare parts set
