JMT SQX135 135mm Wheelbase Mini FPV Frame Kit Carbon Fiber CF Rack For DIY FPV Racing Drone Quadcopter 3 inch Props 1103/1104/1305 Motors

Copy and share this link on social network or send it to your friends

Copy

JMT SQX135 135mm Wheelbase Mini FPV Frame Kit Carbon Fiber CF Rack For DIY FPV Racing Drone Quadcopter 3 inch Props 1103/1104/1305 Motors Item NO: F28231

US$ 6.85 (10% Off)
US$ 7.61 Save US$ 0.76
Quantity:
Shipping Cost:
Estimate Shipping Cost
  • JMT SQX135 135mm Wheelbase Mini FPV Frame Kit Carbon Fiber CF Rack For DIY FPV Racing Drone Quadcopter 3 inch Props 1103/1104/1305 Motors
Product Name JMT SQX135 135mm Wheelbase Mini FPV Frame Kit Carbon Fiber CF Rack For DIY FPV Racing Drone Quadcopter 3 inch Props 1103/1104/1305 Motors
Item NO F28231
Weight 0.0500 kg = 0.1102 lb = 1.7637 oz
Category DIY RC Drone Kit / RC Drone Accessories > Frame
Brand JMT
Creation time 2019-04-08

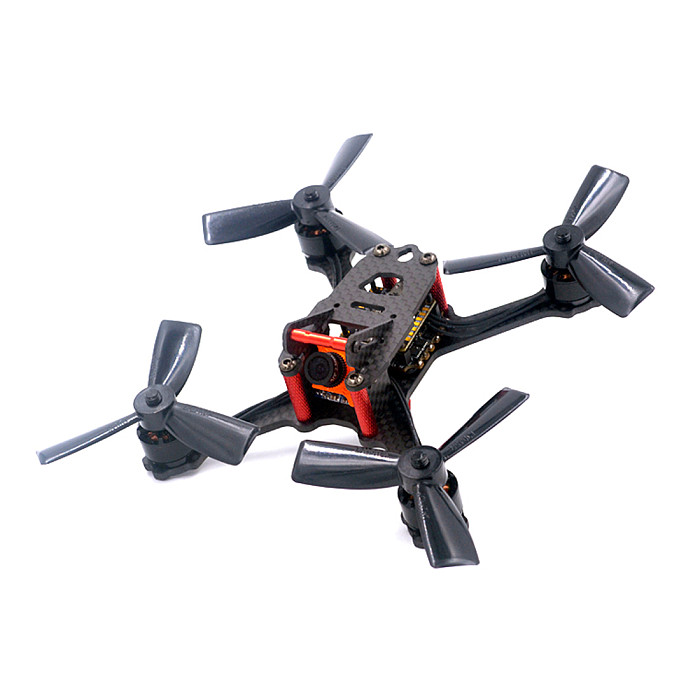

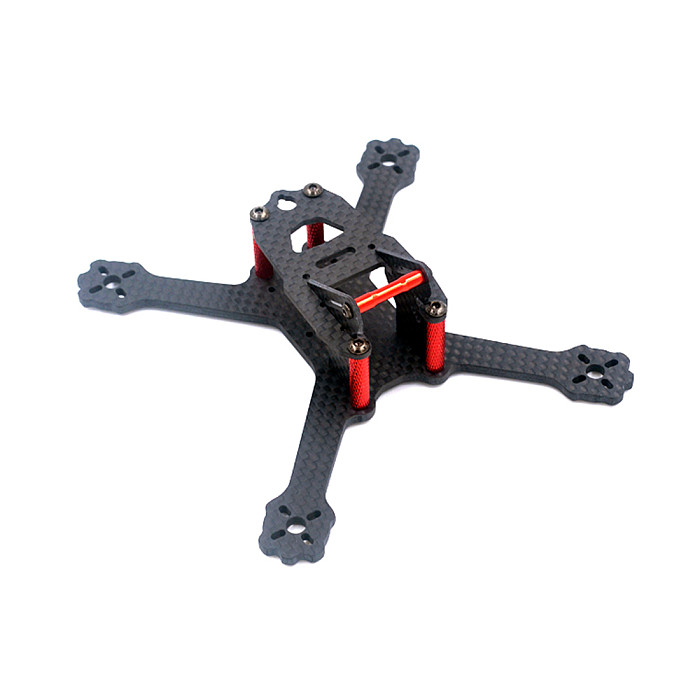

JMT SQX135 135mm Wheelbase Mini FPV Frame Kit Carbon Fiber CF Rack For DIY FPV Racing Drone Quadcopter 3 inch Props 1103/1104/1305 Motors

product features:
Long X structure, suitable for racing and free fancy flight competitions;
Support micro Swift, micro sparrow, mini camera or other lens;


Product parameters:
Wheelbase: 135mm;
Floor thickness: 3mm;
Upper plate thickness: 2mm;
Other board thickness: 1.5mm;
Weight: 30g;
Material: 3K carbon fiber;

Recommended accessories: (not included)
Flight control: F4/F3 or fly tower (hole spacing 20*20);
Motor: 11XX, 13XX...
ESC: 20-60A;
Propeller: up to 3 inches (2535, 30XX...);
Battery: 2/4S 500-800mah;

2019-08-28

Nice frame

Carbon fiber quality is basic compared to vx145. But it's really cheap, light and gets the job done. If I may suggest, buy the xt1408 with them and you have a pocket rocket on 4S.
