CopyProduct Name | JMT SIF4 F4 RC Flight Control w/ BEC 2A ESC BS-13A 13A 2-4S 4IN1 ESC + SIVTX-5840 25/100/200mW transmitter OSD Adjustment + XT30 Plug Pigtail Power Wire 100F Capacitor for Flytower FPV Racing Drone |
Item NO. | F30631-C |
Weight | 0.056 kg = 0.1235 lb = 1.9753 oz |
Category | DIY RC Drone Accessories > Flytower |
Brand | JMT |
Creation Time | 2019-09-09 |
JMT SIF4 F4 RC Flight Control w/ BEC 2A ESC BS-13A 13A 2-4S 4IN1 ESC + SIVTX-5840 25/100/200mW transmitter OSD Adjustment + XT30 Plug Pigtail Power Wire 100F Capacitor for Flytower FPV Racing Drone
Package Included:
1 x SI-F4 Flight Controller
1 x BS-13A 4 IN 1 ESC
1 x SIVTX-5840 VTX
1 x IPEX-2 5.8G Antenna
1 x XT30 Plug Pigtail Power Wire Cable 100F Capacitor

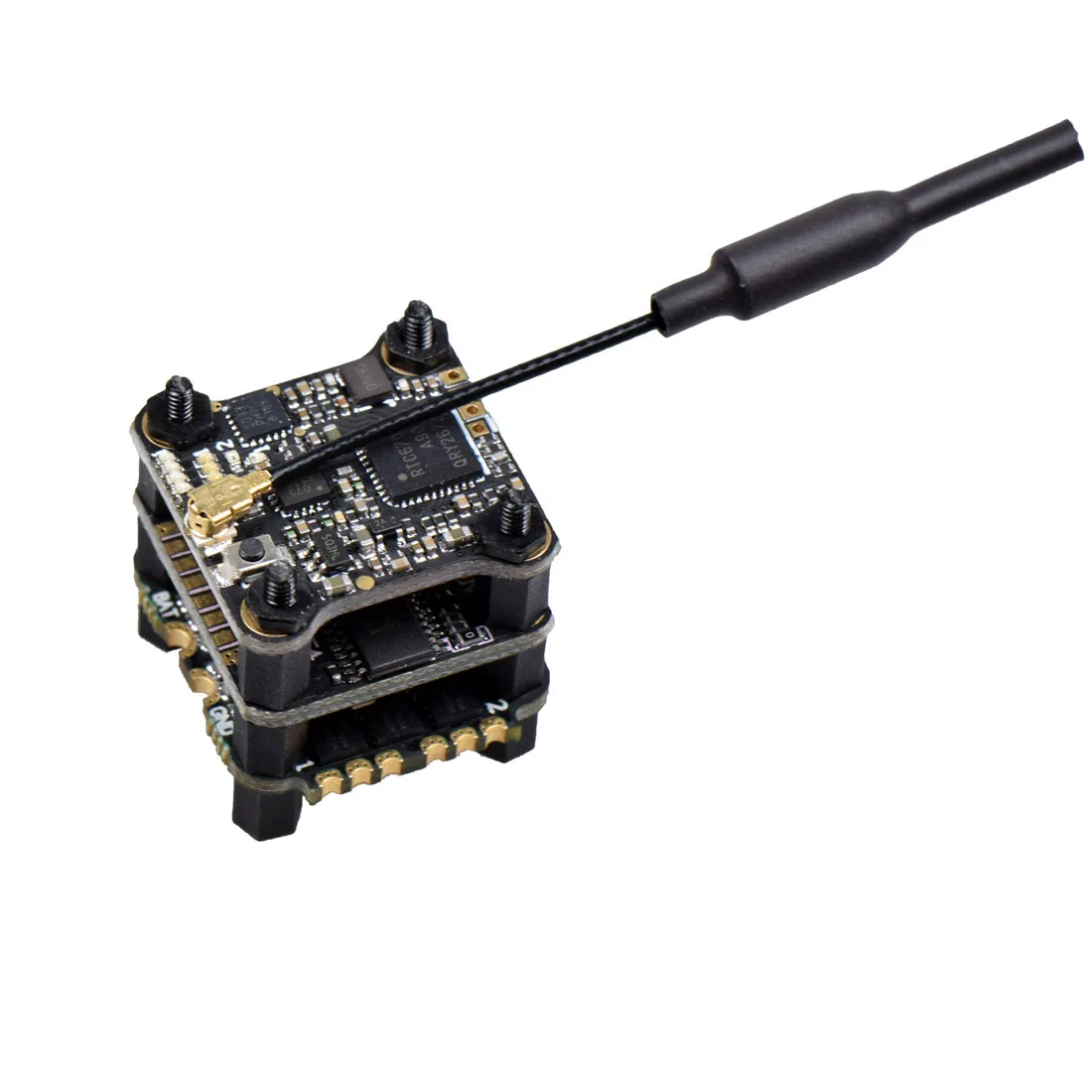

F4 Flytower:
Item name: SIF4 F4 Flytower
SI-F4 Flight Controller
CPU: STM32F411CEU6
Sensor: MPU6000 three-axis accelerometer / three-axis gyroscope
Power supply: 2-4S battery input
BEC: Built-in 5V/2A
Receiver: Support Sbus or serial RX interface, Spektrum 1024/2048, SBUS, IBUS, etc.
Buzzer interface
Support for programmable LED_Strip
Built-in voltage detection, alarm
Built-in OSD function, BF online adjustment
Dimensions: 20*20MM, screw hole distance 16*16MM, M2
BS-13A 4 IN 1 ESC
Input voltage: 2-4S LiPo/2-4S HV LiPo
BEC output: none
Single ESC continuous operating current: 13A*4 (maximum current: 15A 3 seconds)
Outline ESC size: 21*24mm (including pad and protruding point maximum size)
Screw hole distance 16*16MM, aperture 2MM
Weight: 2.9 grams
Firmware: BLHELI_S G_H_30_REV16_7.HEX
Support Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signals
SIVTX-5840 VTX
Input voltage: DC 4.5-5.2V
Input current: 200MW = 400 MA
Power switching: third gear 25MW, 100MW, 200MW
Signal channel: 40
Frequency switching: manual button / OSD (IRC Tramp) (also supported)
Dimensions: 20MM*20MM Pitch: 16*16MM, M2
Receiver configuration:
When SBUS/IBUS, DSM receiver input, please configure RX2 as input interface.
Factory firmware: betaflight_X.X.X_MATEKF411.HEX

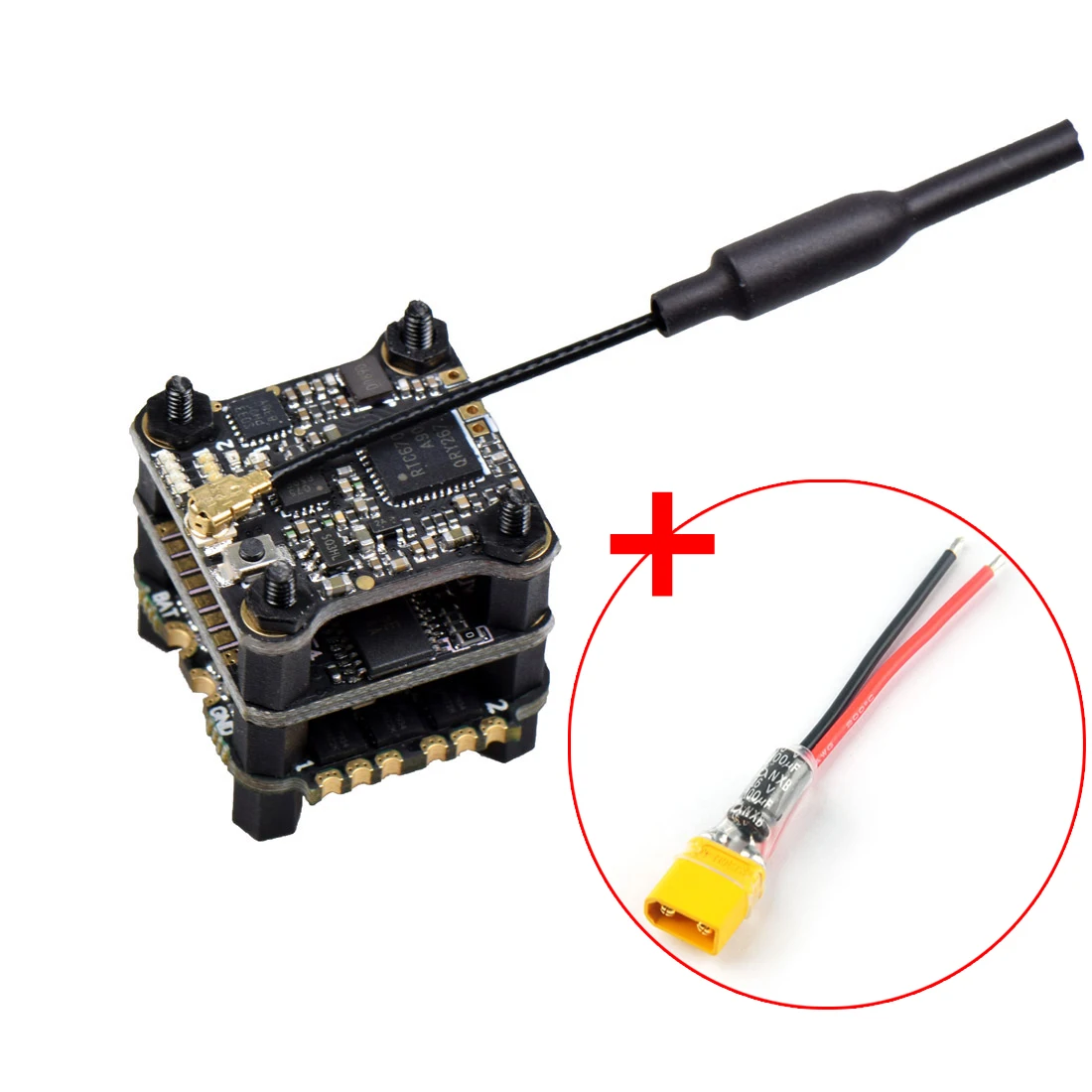

Pigtail Power Wire with 100μF Capacitor:
Item name: XT30 Plug Pigtail Power Wire with 100μF Capacitor
Wire length: 70mm(include xt30)
Height: 2.6 gram
