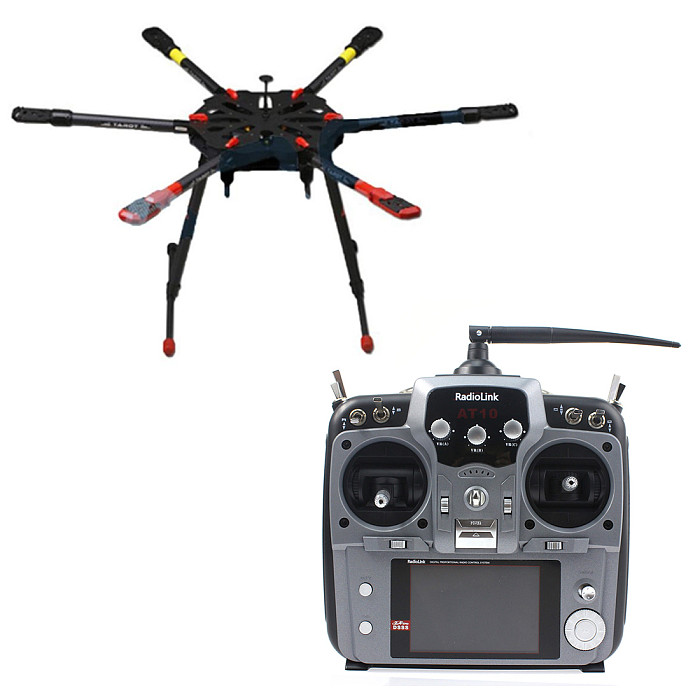

JMT Pro 2.4G 10CH 960mm RC Hexacopter Drone Tarot X6 Folding Retractable PIX PX4 M8N GPS ARF/PNF DIY Unassembly Kit

JMT Pro 2.4G 10CH 960mm RC Hexacopter Drone Tarot X6 Folding Retractable PIX PX4 M8N GPS ARF/PNF DIY Unassembly Kit Item NO.: F11283-A-F11283-B

Write a Review
US$ 602.53
US$ 708.86 Save US$ 106.33 (15% Off)
type
Hobbywing 40A ESc JMT 40A ESc
Customized Requirements
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name JMT Pro 2.4G 10CH 960mm RC Hexacopter Drone Tarot X6 Folding Retractable PIX PX4 M8N GPS ARF/PNF DIY Unassembly Kit
Item NO. F11283-A-F11283-B
Weight 7.58 kg = 16.7110 lb = 267.3766 oz
Category DIY RC Drone Accessories > DIY RC Drone Kit
Brand JMT
Creation Time 2017-07-26

JMT Pro 2.4G 10CH 960mm RC Hexacopter Drone Tarot X6 Folding Retractable PIX PX4 M8N GPS ARF/PNF DIY Unassembly Kit Motor ESC

Product is DIY Version, Unassembled Kit and NO Manual, Please take it into account before ordering.

If any Technical questions, Please message us but do not open dispute or leave negative feedback.

2 Versions optional, The difference devices are the Configuration of ESC .

1) Hobbywing XRotor Pro 40A ESC No BEC ;

2) JMT 40A Brushless ESC Speed Controller .

Note: The item do not include Battery!

We recommend that client to ready the 14.8-22.2V 4-6s  8000-15000mah batteries

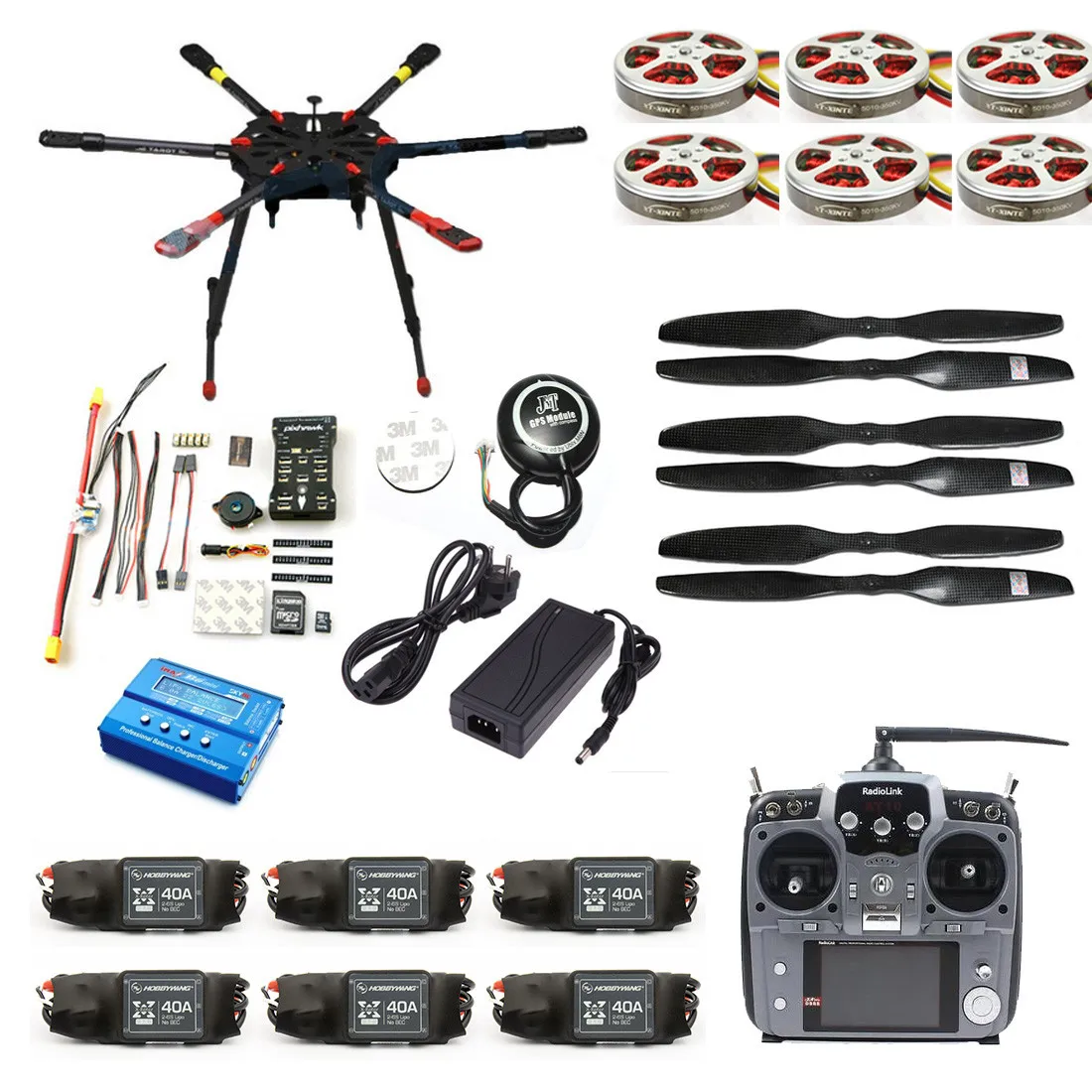

Package listing:
1x TAROT X6 Hex-Copter FPV Kit TL6X001 with Retractable Landing Skid
6x 350KV Brushless Disk Motor high Thrust With Mount

3x Tarot 18x5.5 3K Carbon Fiber Propeller CW CCW 1855 Props TL28228

6x Hobbywing XRotor Pro 40A ESC No BEC (Hobbywing 40A ESC set) OR JMT 40A ESC (JMT 40A ESC set)

1x Pixhawk PX4 Autopilot PIX 2.4.8 Flight Controller 32 Bit ARM

1x Mini M8N GPS Module NEO-M8N GPS
1x RadioLink AT10 2.4Ghz 10CH RC Transmitter with R10D Receiver
1x SKYRC Imax B6 60W Mini Professional Balance Charger
1x 12V5A AC 100-240V Converter Adapter (US/AU/UK/EU Plug optional)

1x Tool Set (Bag)



Frame:

Symmetrical motor wheel base: 960mm
Propeller: 18inch
Single arm length: 392mm
Single arm weight: 113g
Main plate diameter: 328mm
Net height of landing skids: 395mm
Battery: 15C/22.2V/10000-2000mAh
ESC: 40A/6S
Max power:4000W
Hovering power: 1800W
Hovering time: 18 Min
Working temperature: -10 40
Net weight: 2.0Kg
Gross weight: 2.7Kg



ESC:

---------------------Hobbywing-------------------------

Item Name  : Hobbywing XRotor-Pro-40A
Con.Current : 40A
Peak.Current (10s) : 60A
BEC: No
Lipo : 3S-6S
Parameter Option : DEO ( on/off )
Size and Weight :
Version A ( With Wire ) :  66x21.8x11mm ; 50g

-------------------JMT-------------------

1. Output: Continuous 40A, Burst 60A up to 10 Secs.
2. Input Voltage:Pentium-40A:2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.
3. BEC:Pentium-40A: 3A / 5V (Switch mode).
4. Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.(BLM: BrushLess Motor)
5. Size: 55mm (L) * 28mm (W) * 12mm (H).
6. Weight: Pentium-40A: 35g.

Motor:

1, the use of a hidden motor shaft design, more effective protection of the motor shaft.
2, the use of a new type of propeller design, performance is more stable, demolition is more convenient.
3, the use of the 0.2mm stator, the load temperature lower, increase in efficiency.
Excellent workmanship, quality assurance, energy saving high efficiency
KV:350 KV
Shaft diameters: 4 mm
Weight:about 105 g (with leads)





Remote Control System:
1.Frequency: 2.4GHz ISM band (2400MHz~2485MHz);
2.Modulation mode: QSPK;
3.Channel bandwidth: 5.0MHz;
4.Spread spectrum: DSSS;
5.Adjacent channel rejection: >38dBM;
6.Transmitter power: <100mW(PCB testing);<20dBm(3 meter air testing);
7.Operating Voltage: 8.6~15V;
8.Operating Current: <95mA;
9.Control distance: 800 meters ground;
10.Channel: 10 Channel,8~10 channel are customizable;
11.Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
12.Simulator model: under the simulator




Flight Controller:

- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide redundant power input and fault transfer function;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Provide automatic and manual mode;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;



Charger:

Operating voltage range: 11.0-18.0 Volt
Circuit power: Max .charge power 60W
Max .discharge power 5W
Charge current range: 0.1-6.0A
Discharge current range: 0.1-2.0A
Li Po/Li Fe/Li Ion Cells : 1-6S
NICD/NIMH cells: 1-15s
PB battery voltage: 2V- 20V
Net weight: 233g
Dimensions: 10.2×8.4×2.9cm



Caution for the battery:
Don't over-charge, or over-discharge batteries.
Don't put it beside the high temperature condition.
Don't throw it into fire.
Don't throw it into water.
