M.2 key M NVMe External Graphics Card Stand Bracket with PCIe3.0 x4 Riser Cable 25cm 50cm 32Gbs For ITX STX NUC VEGA64 GTX1080ti Item NO.: F29510/F29511/F29512/F29513

M.2 key M NVMe External Graphics Card Stand Bracket with PCIe3.0 x4 Riser Cable 25cm 50cm 32Gbs For ITX STX NUC VEGA64 GTX1080ti

Length is customizable,cable prices of different lengths are not the same,pls contact us if you need!

Brand: ADT

Product model: R3G series products

Product Name: Graphics card external adapter board extension cable

Wire length: 25cm, 50cm (other length bulk orders can be customized)

Graphics card compatibility: support for new graphics cards shipped after 2015 (old graphics cards shipped before 2014 are not supported)

Motherboard compatibility: Notebook, ITX/STX motherboard, NUC, only supports M.2 NVMe interface Does not support M.2 SATA interface, does not support M.2 WiFi interface, does not support M.2 WWAN interface

Power Description: The model that supports the power supply is DELL 12V/18A/220W power supply, or the standard ATX power supply. Please prepare or purchase the power separately.

Bandwidth speed: PCIe3.0x4 (32G/s)

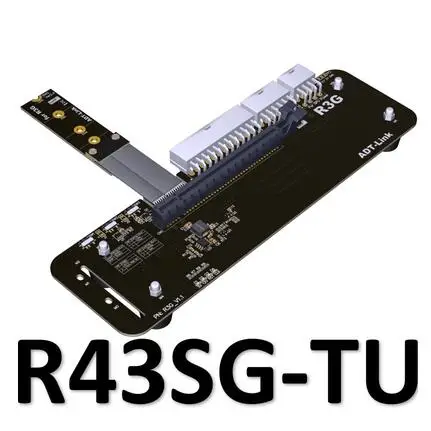

Model Description: R43SG (M.2 NVMe interface)

EMI Shielding with Conducting Polymer

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Cable Length Description:

R3G series cable length has 25 cm or 50 cm can be selected, the following is the line length of 50 cm. refer to the blue dimension of the figure below.

Power Supply Description:

Supporting power supply is DELL 8-pin 12V/18A/220W, or standard PSU power supply. The power supply should be prepared by the buyer or purchased separately.

Photo:

24P_ATX and 4P_CPU power input, 8P_GPU power output.

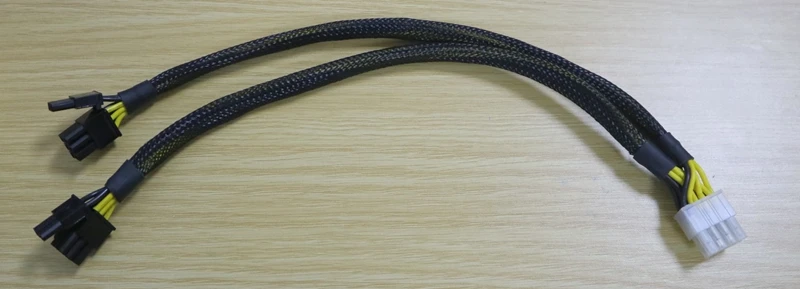

Product accessories, enclosed with the following graphics card power cord below

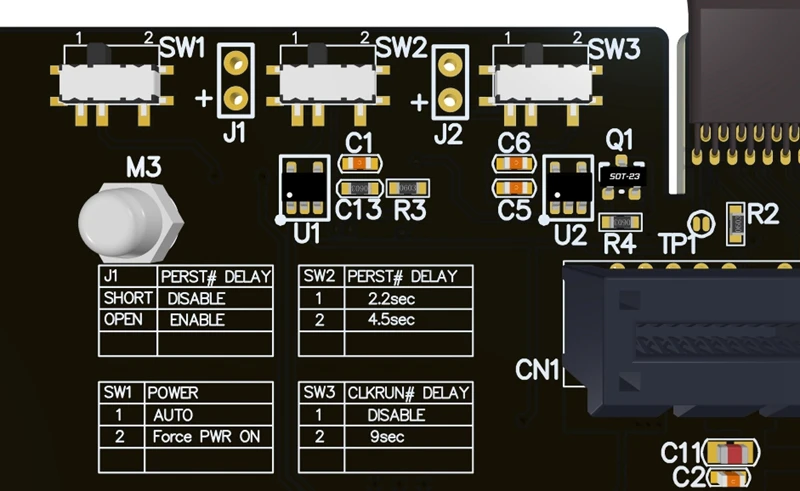

SW1, Power Forced Start Switch, 1 for automatic startup, 2 for forced startup, please cut to 1 for automatic startup.

SW2, PERST # signal delay switch, 1 delay 2.2 seconds, 2 delay 4.5 seconds, with eGPU software, for graphics card compatibility optimization, the current software does not support, please cut to 1

SW3, CLKRUN # signal delay switch, 1 is closed, 2 is delayed for 9 seconds, with eGPU software, for graphics card compatibility optimization, the current software does not support, please cut to 1

J1, PERST # signal delay switch, OPEN to open delay function, SHORT to close delay function, the current software does not support, please insert the jumper cap SHORT.

J2, CLKRUN_Capacitance Delay, currently the software does not support, only for R&D engineers plug in capacitance adjustment delay testing. It takes about 2.2 seconds to insert a 1uF capacitor, 5 seconds to insert a 2.2u capacitor, and so on.

Installation steps:

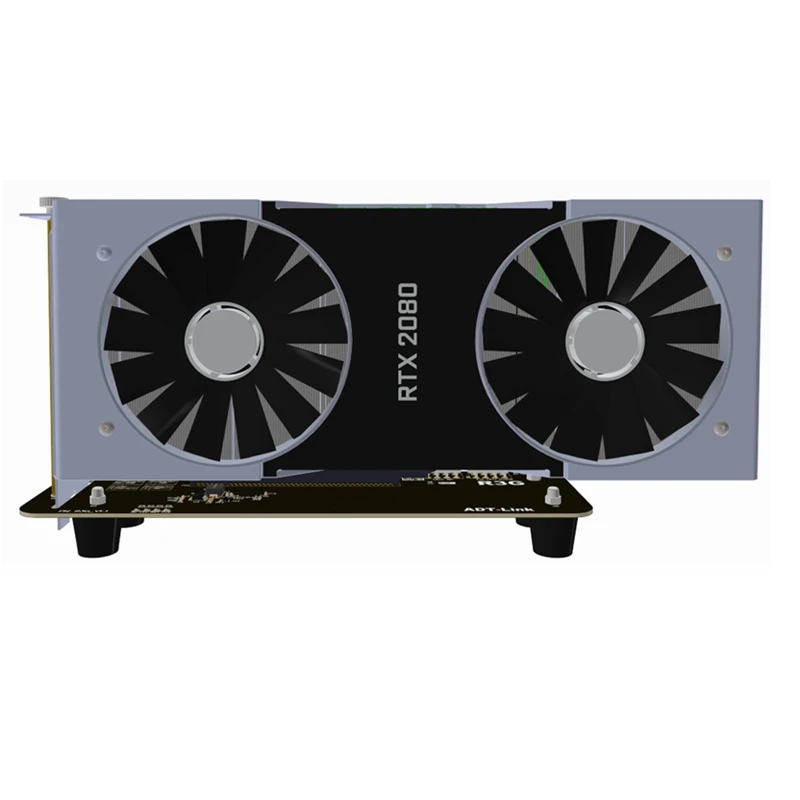

1. Install the hexagonal copper pillar and insert the graphics card into the PCIe x16 slot. The screw is tightened so that the graphics card will not shake or fall off.

2. Install ATX power supply or DELL power supply, including graphics card power cord should also be connected, after installed, DELL power supply will light orange lights.

3. You can plug in the M.2 cable when the computer is off. After power on, the ATX power supply will automatically start the fan to turn. If you use the DELL power supply, the green light will turn on. At this time, the R3G board will turn on two green lights. The system will recognize the card automatically. Please install the graphics card driver. The installation of the driving process may prompt the computer to restart.

4. finish.
