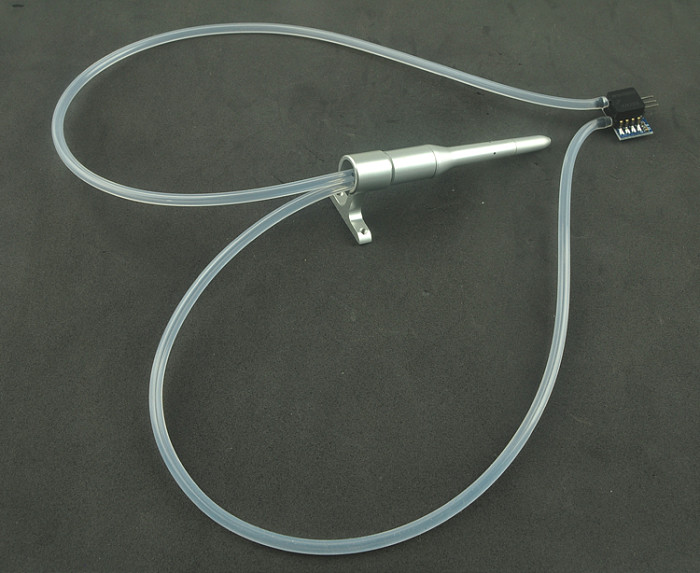

JMT PT60 APM PX4 Airspeed Tube Pitot Tube Pipe Digital Airspeed Meter For DIY Fixed Wing FPV UAV Drone

JMT PT60 APM PX4 Airspeed Tube Pitot Tube Pipe Digital Airspeed Meter For DIY Fixed Wing FPV UAV Drone Item NO: F26128/F26129/F26130

US$ 10.72 (10% Off)
US$ 11.91 Save US$ 1.19
Version:
Single airspeed tube Airspeed tube + APM airspeed meter Airspeed tube + PX4 airspeed meter
Remark:
Customized Requirements
Shipping Cost:
Estimate Shipping Cost
Quantity:
  • JMT PT60 APM PX4 Airspeed Tube Pitot Tube Pipe Digital Airspeed Meter For DIY Fixed Wing FPV UAV Drone
Specifications
Product Name JMT PT60 APM PX4 Airspeed Tube Pitot Tube Pipe Digital Airspeed Meter For DIY Fixed Wing FPV UAV Drone
Item NO F26128/F26129/F26130

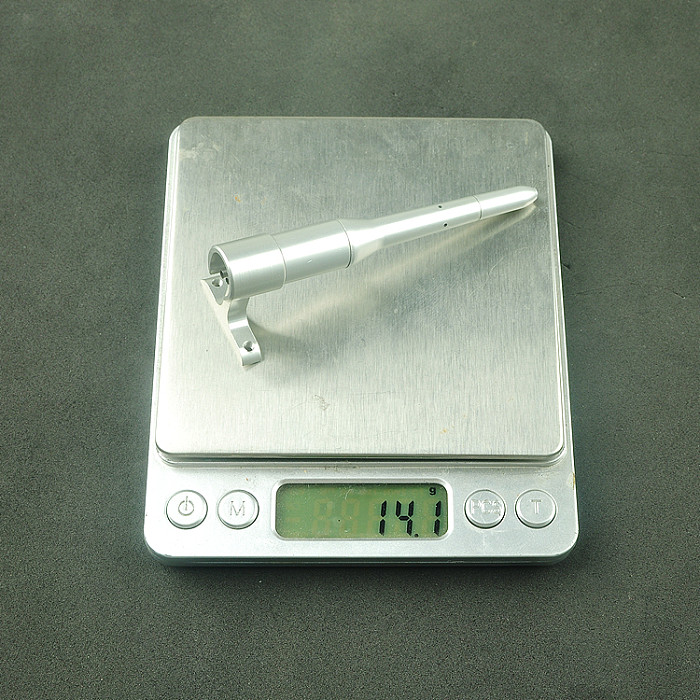

Weight 0.0300 kg = 0.0661 lb = 1.0582 oz
Category RC Toy Drone
Brand JMT
Creation time 2018-09-28

Detail

JMT PT60 APM PX4 Airspeed Tube Pitot Tube Pipe Digital Airspeed Meter For DIY Fixed Wing FPV UAV Drone


Differential Pressure Sensor board.
The MPXV7002 series piezoresistive transducer in the small outline package (SOP) is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This patented, single element transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure.

The MPXV7002 is designed to measure positive and negative pressure. In addition, with an offset specifically at 2.5V instead of the conventional 0V, this new series allows to measure pressure up to 7kPa through each port for pressure sensing but also for vacuum sensing (refer to the transfer function in the data sheet for more detailed information). Features: -2 to 2 kPa (-0.3 to 0.3 psi). 0.5 to 4.5 V Output
