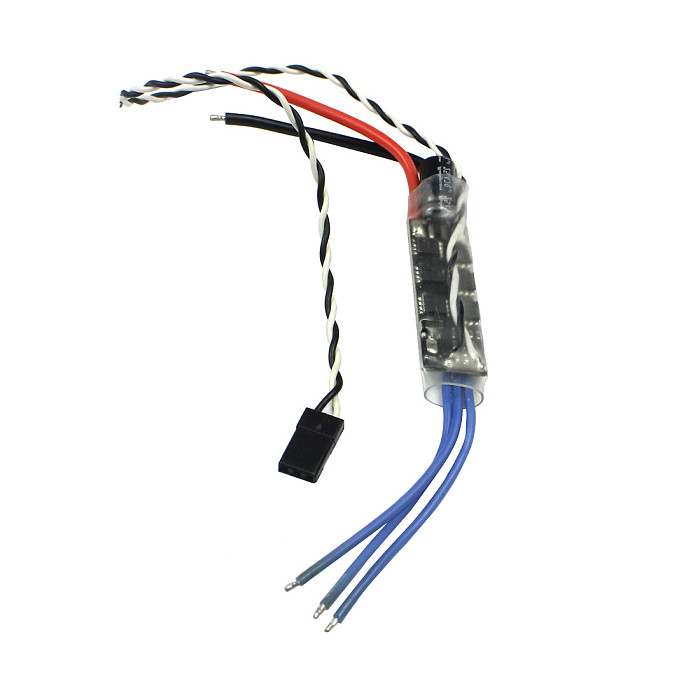

JMT BLHeli 30A Brushless ESC SimonK 30A 2-4S Brushless ESC Speed Controller For RC Quadcopter F450 F550 Drone Model
-
Detail
- Product Name: JMT BLHeli 30A Brushless ESC SimonK 30A 2-4S Brushless ESC Speed Controller For RC Quadcopter F450 F550 Drone Model
- Item NO.: F44623
- Weight: 0.035 kg = 0.0772 lb = 1.2346 oz
- Category: DIY RC Drone Accessories > ESC
- Brand: JMT
- Creation Time: 2021-09-08
JMT BLHeli 30A Brushless ESC SimonK 30A 2-4S Brushless ESC Speed Controller For RC Quadcopter F450 F550 Drone Model
Suitable for PWM, PPM signal input has faster response and better linearity. Make your multi-axis flight more stable, can be among the ranks of high response, the effect is obvious, stable as a rock,
It can be easily put into the multi-axis pipe. The PCB copper thickness has been specially thickened, and the heat generation is small, so there is no need to worry about heat dissipation.
Feature:
1). This hardware and SimonK or blheli firmware provide you with a perfect solution for multiple rotors;
2). Highest efficiency 100% N-FET design
3). The crystal oscillator has the highest accuracy (temperature will not affect the PWM operating range like other cheap ESCs);
4). Ultra-high refresh rate, the input signal is unbuffered, and the response speed exceeds 490Hz
5). 16KHz motor frequency, which makes the motor respond the fastest and run quietly
6). Super simple, no programming is required except for the throttle range;
7). Suitable for remote control helicopters and four-axis aircraft.
PCB size: 50MM*13MM (60MM*13MM including main capacitor)
Weight: 23g
Operating voltage: 2-4S Lipoly
Response: 20-500Hz
Firmware: simonk / blheli The system is locked in the best state. The parameters cannot be set through the computer connection
Working current: 30A
Maximum current: 40A
BEC: NO
