JMT 169mm Wheelbase 4 Inch LR4 Long Range Frame Kit for FlyFox No.15 FPV Racing RC Drone

JMT 169mm Wheelbase 4 Inch LR4 Long Range Frame Kit for FlyFox No.15 FPV Racing RC Drone Item NO.: F43610-F43611-F43612-F43613-F43614

Write a Review
US$ 3.12
US$ 3.67 Save US$ 0.55 (15% Off)
Version

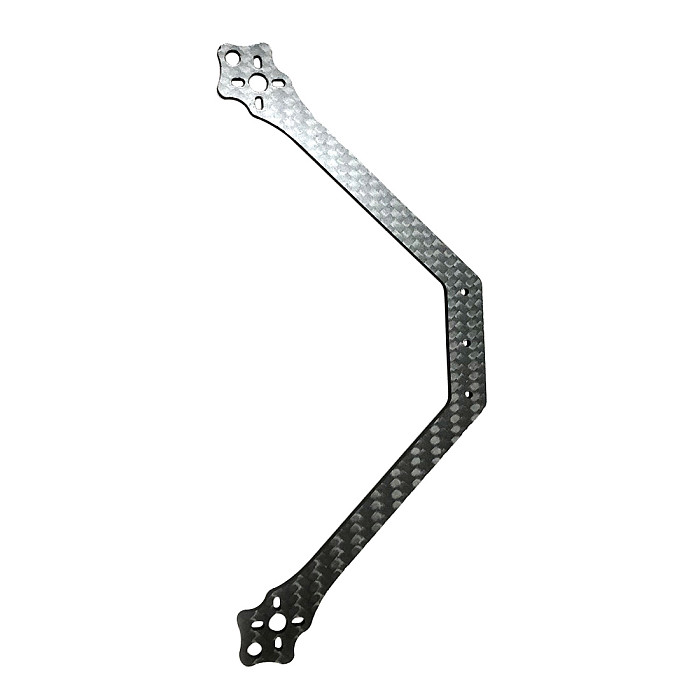

for Normal Version for Standard Version for Deluxe Version Forearm Rear arm
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name JMT 169mm Wheelbase 4 Inch LR4 Long Range Frame Kit for FlyFox No.15 FPV Racing RC Drone
Item NO. F43610-F43611-F43612-F43613-F43614
Weight 0.06 kg = 0.1323 lb = 2.1164 oz
Category DIY RC Drone Accessories
Brand jmt
Creation Time 2021-04-29

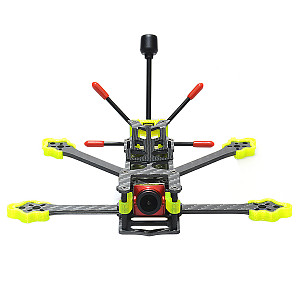

JMT 169mm Wheelbase 4 Inch LR4 Long Range Frame Kit for FlyFox No.15 FPV Racing RC Drone


Notice: Only Empty frame kit in pacakge. fc, esc, vtx, camera, antenna are not included.


Introduction:

Flyfox No.15, It is designed for Long Range, Max. support 4 inch propeller. Empty Frame only 40g, compatible with 16-20-25-30.5mm flight controller.

Add the lipo battery on the top plate, concentrating the center of gravity, which is good for flying. Flight time can get 25 mins,

taking example as VTC6 4S 3000mAh battery.


Description:

Brand Name: JMT

Model:  NO.15 LR4

Item Name: 16mm Wheelbase 4 Inch Long Range Frame Kit

Optional Version: Normal Version / Standard Version / Deluxe Version

Wheelbase: 169mm
Material: Carbon Fiber
Bottom Plate Thickness: 2mm

Upper Plate Thickness: 2mm

Side Plate Thickness: 2mm

Arm Plate Thickness: 3mm

Net Weight: 40g/  45g / 50g


Recommend Parts: ( NOT Included)

Flight Controller: 16x16/ 20x20/ 26x26/ 30.5x30.5mm F4/ F7 Flight Controller

Brushless ESC:

Brushless Motor: 11xx / 12xx/ 14xx/ 15xx Series Motor ( 9-12mm Hole)

Propeller: 40XX 4 Inch Propeller

GPS: BN-180 /BN-220

FPV Camera: 19-20mm Width


The following Parts are Compatible: ( NOT Included)

FC ESC & VTX: 20x20mm Flywoo GOKU HDF4 EVO F4 FC AIO 20A BL_S 2-6S ESC & 5.8G 25-600mW VTX Stack

Brushless Motor: SPCMAKER Galloping G1505 1505 3450KV 3-6S Brushless Motor

Propeller:  4 Pairs Gemfan Hurricane 4024 2-Blade 1.5mm Shaft Propeller

GPS: Beitian Dual BN-220 GPS GLONASS Antenna Module

FPV Camera: Caddx Ratel 1/1.8'' Starlight HDR OSD 1200TVL FPV Camera

Lipo Battery: GEPRC VTC6 18650 4S 14.8V 3000mAh Lionpack Battery


Package Included:

Normal Version:

1x 169mm Empty Frame Kit


Standard Version:

1x 169mm Empty Frame Kit

4x Motor Protective Cover


Deluxe Version:

1x 169mm Empty Frame Kit

4x Motor Protective Cover

1x GPS & Antenna Fixing Mount
