ISDT UC4 18W 4X1.5A 1S MINI Smart Battery Charger With Type C Input PH2.0 Output for LiPo/LiHv Battery

ISDT UC4 18W 4X1.5A 1S MINI Smart Battery Charger With Type C Input PH2.0 Output for LiPo/LiHv Battery Item NO.: F33387

5.0
(1)
Write a Review
US$ 17.84
US$ 20.99 Save US$ 3.15 (15% Off)
Sold Out

Copy and share this link on social network or send it to your friends

Copy
Product Name ISDT UC4 18W 4X1.5A 1S MINI Smart Battery Charger With Type C Input PH2.0 Output for LiPo/LiHv Battery
Item NO. F33387
Weight 0.035 kg = 0.0772 lb = 1.2346 oz
Category DIY RC Drone Accessories > Charger
Brand iSDT
Creation Time 2019-11-18

ISDT UC4 18W 4X1.5A 1S MINI Smart Battery Charger With Type C Input PH2.0 Output for LiPo/LiHv Battery



Specification:

Brand: iSDT
Type: Charger
Input Type: USB Type-C
Input Voltage: 5-9V
Input Max Power: 18W
Output Max Voltage: 4.2V
Output current; 0.1A-1.5A/slot
Support battery: MCPX (4.2V),Lipo-1S*4

UC4 indicator meaning:

Red: battery voltage over 4.4V or charge abnormality
Green: Full Charged
orange with single flicker: normal charging with capacity not more than 40%
orange with couple flicker: normal charging with with 40%-70% of the capacity
orange with triple flicker: normal charging with with 70%-99% of the capacity
Light off: No battery inserted.

Protection:

overvoltage protection
overcurrent protection
overheat protection
battery reversed polarity protection
charge capacity limitation

Three gear for charger current:

0.5A-white light indicator-single flicker
1A-green light indicator-coupon flickers
1.5A-green light indicator-triple flicker

Packaging Included:

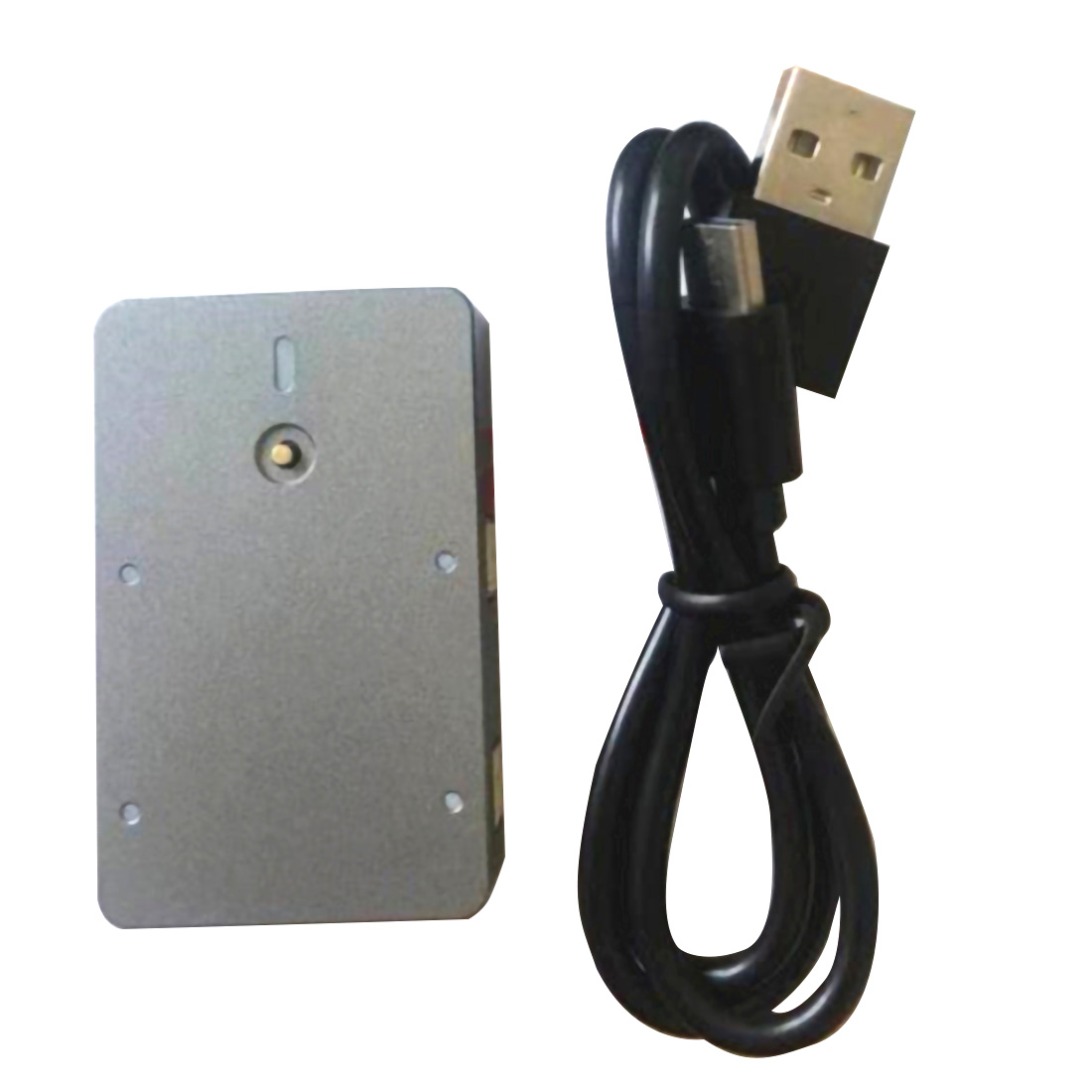

1X ISDT UC4 Charger
