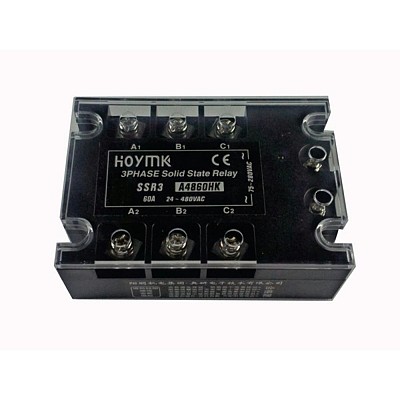

Hoymk SSR3-A4860HK 60A 3 Phase Solid State Relay AC-AC SSR3 A4860HK
Product Features:
1,TRIAC Output,Zero Voltage Opens, Zero Current Turnoff;
2,Input Signal Compatible with TTL and COMS Digital Logic Circuits;
3,Optical Isolation between the Input Loop and Output Loop;
4,Light Emitting Diode Indicates Working State;
5,Dielectric Strength 2500V between Input-Output;
6,High Performance, Widely Used, High Reliability of Generic Products
7,100% Load Current Aging Test.Through European Union CE
Certification, International ISO9000 Certification, National 3C
Certification.
Specifications:
Control: AC-AC
Load Current:60A
Load Voltage: 480VAC.660VAC.1200VAC
Control Voltage: 70-280VAC
Control Current :AC12mA
State Drain Current: 10mA
State Buck :1.8VAC
Off Time: 10mS
Dielectric Strength: 2500VAC
Insulation Resistance: 1000M/500VDC
Work Instructions: LED
Weight: 450G
Safety Precautions :
1 , Must be Used when the load current is higher than 10A is
mounted on a heat sink or metal base plate with the corresponding
cooling effect , and coated with thermal grease between the SSR Heat
bottom mounting surface , 40A above plus fan forced cooling or water .
2 , Using the AC inductive load , high transient voltages and inrush
current is applied to the output, which may cause the solid state relay
conduction or damaged, usually require access at the output voltage with
a specific clamping voltage control devices, such as double Zener diode
or varistor (MOV). Rated voltage varistor is recommended to take a
1.6-1.9 times ;
3, The control close to the minimum load current is small current
load shall load a dummy load resistor in parallel to reduce the leakage
current compared to the output of the load high residual voltage.
4, In order to avoid the temperature exceeds the allowable value of
solid-state relays , considering the cooling effect of the application
should be designed and installed position , only when two or more solid
state relays mounted side by side , you should leave appropriate
spacing.
5 , The parallel between the output may not be more than just the
use of solid-state relays , in an attempt to increase the output
current. However, output can be used in tandem in order to apply a
higher operating voltage.
6, When using more than just a solid state relay when shared
control power inputs that can be used in tandem can also be used in
parallel .
7 , Capacitive load caution this piece , please select the capacitive load dedicated solid state relays.
