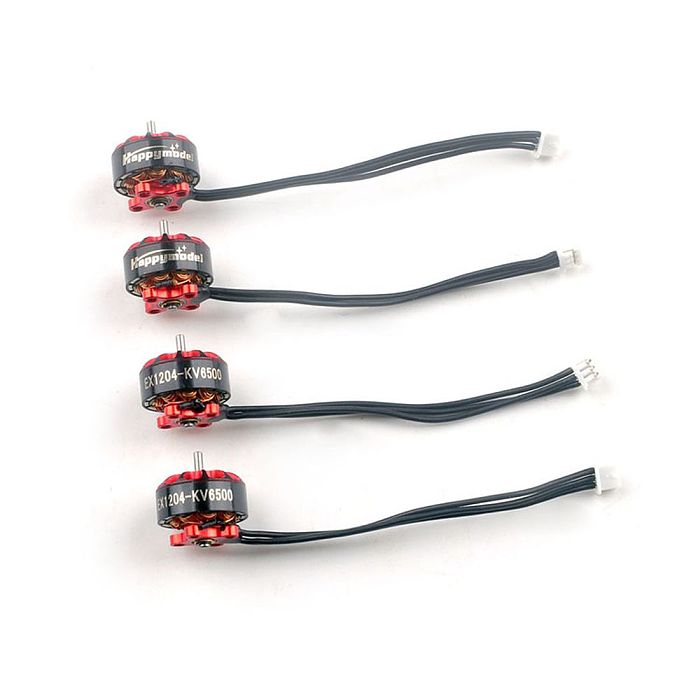

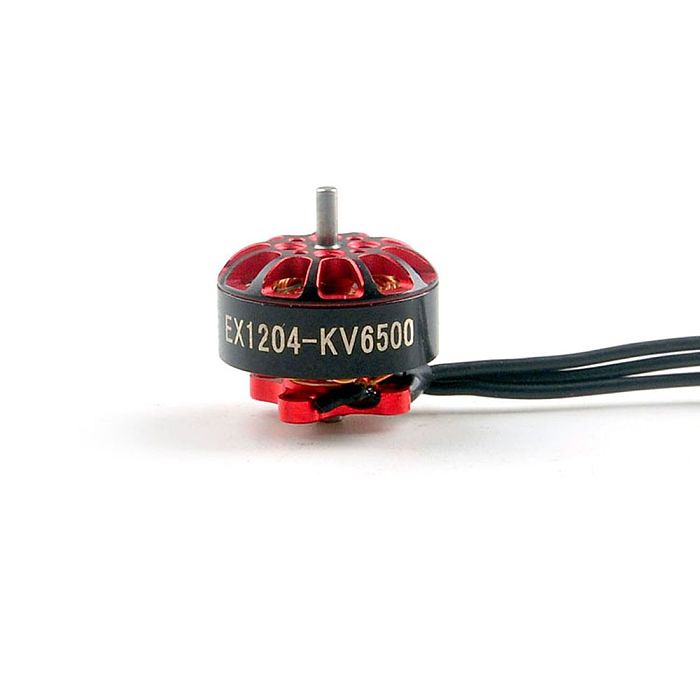

Happymodel EX1204 1204 5000KV 6500KV 2-4S CW CCW Brushless Motors 1.5mm Shaft for FPV Racing Drone 3 Inch Toothpick Quadcopter

Copy and share this link on social network or send it to your friends

Copy

Happymodel EX1204 1204 5000KV 6500KV 2-4S CW CCW Brushless Motors 1.5mm Shaft for FPV Racing Drone 3 Inch Toothpick Quadcopter Item NO: F38823 F38824 F38825 F38826

US$ 11.50
PCS:
1PCS 4PCS
KV Value:
5000kv 6500kv
Version:
CW CCW
Quantity:
Shipping Cost:
Estimate Shipping Cost

Product Name Happymodel EX1204 1204 5000KV 6500KV 2-4S CW CCW Brushless Motors 1.5mm Shaft for FPV Racing Drone 3 Inch Toothpick Quadcopter
Item NO F38823 F38824 F38825 F38826
Weight 0.03 kg = 0.0661 lb = 1.0582 oz
Category DIY RC Drone Accessories > Motor
Brand Happymodel
Creation time 2020-05-22

Happymodel EX1204 1204 5000KV 6500KV 2-4S CW CCW Brushless Motors 1.5mm Shaft for FPV Racing Drone 3 Inch Toothpick Quadcopter

1.5mm motor output shaft, line length 60mm
The black wire (plug marked with red dots) is used with Crazybee series flight control for CW steering (can be reversed in BLHELI)
The black wire (plug without red dot) is used with Crazybee series flight control. It is CCW steering (can be reversed in BLHELI)

Mode: EX1204
KV option: KV5000 or KV6500
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:4mm
Inner Shaft Diameter:Φ2mm

Outer Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ15mm*16.2mm
Weight(g):5.9g
No.of Cells(Lipo):

KV5000 support 2-4s

KV6500 support 2-3s
