Happymodel DiamondF4 FR Flight Control CrazybeeF4FR ELRS SPI/Frsky SPI RX DIY RC Drone Item NO.: F47300-D1 F47300-D2

Name: Happymodel DiamondF4 FR Flight Control CrazybeeF4FR ELRS SPI/Frsky SPI RX DIY RC Drone
SKU: F47300-D1 F47300-D2
Price: 69.74 USD
Availability: SoldOut
Rating: 1 (1 reviews)

1.0

(1)

Sold (37)

US$ 69.74

Sold Out

Product Name	Happymodel DiamondF4 FR Flight Control CrazybeeF4FR ELRS SPI/Frsky SPI RX DIY RC Drone
Item NO.	F47300-D1 F47300-D2

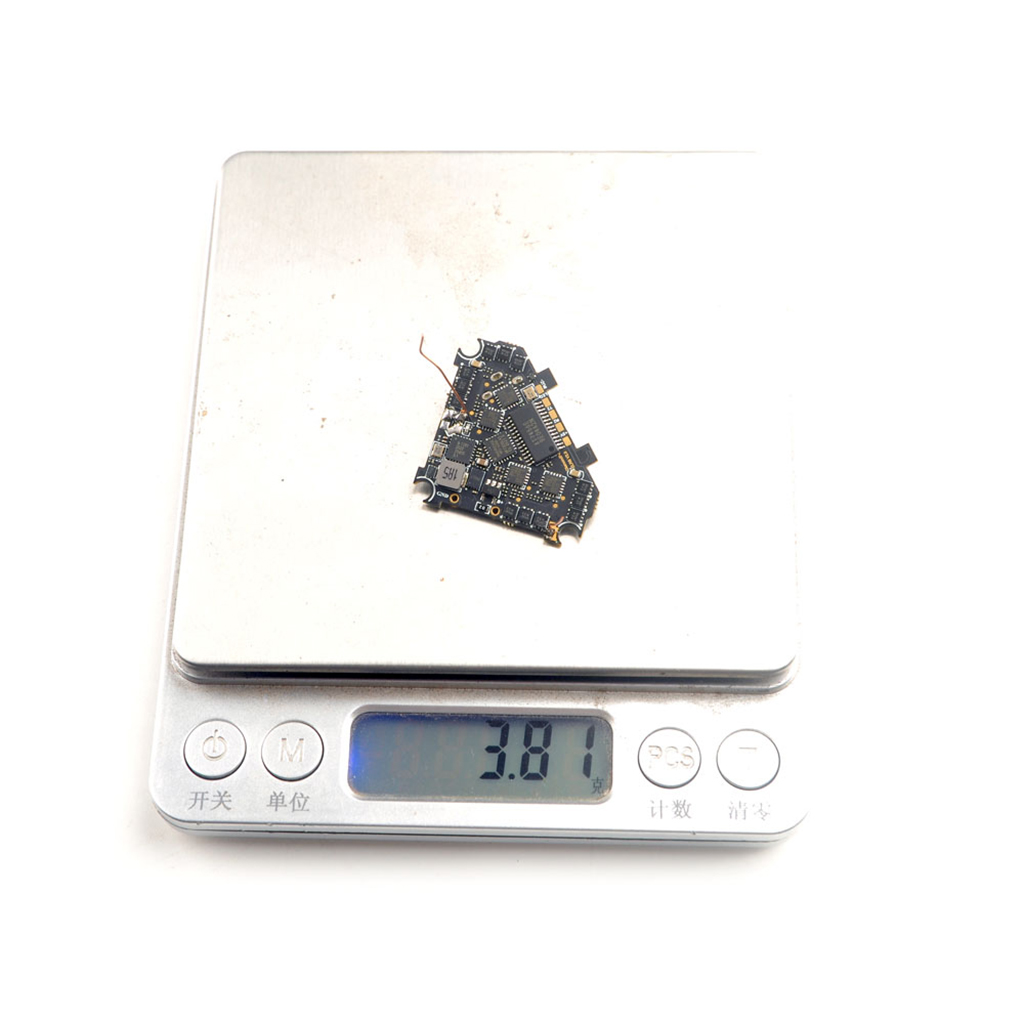

Weight	0.05 kg = 0.1102 lb = 1.7637 oz
Category	DIY RC Drone Accessories
Creation Time	2022-06-14

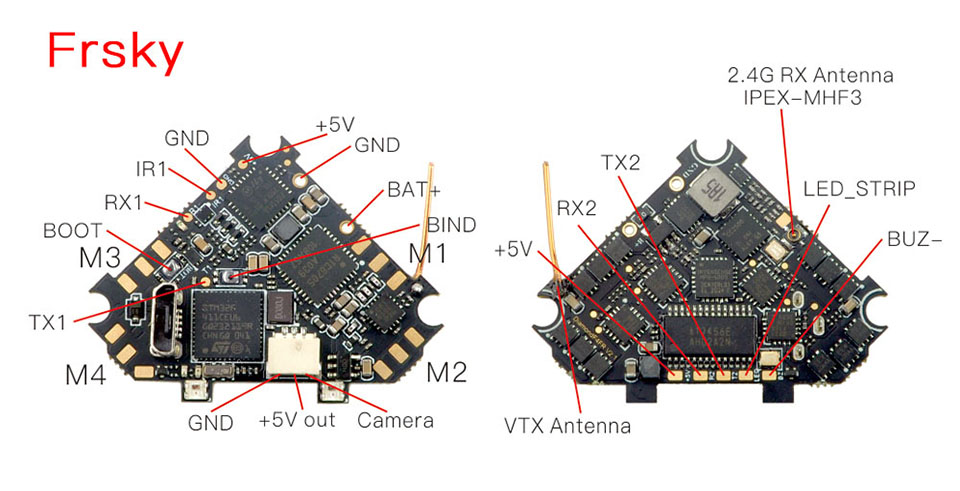

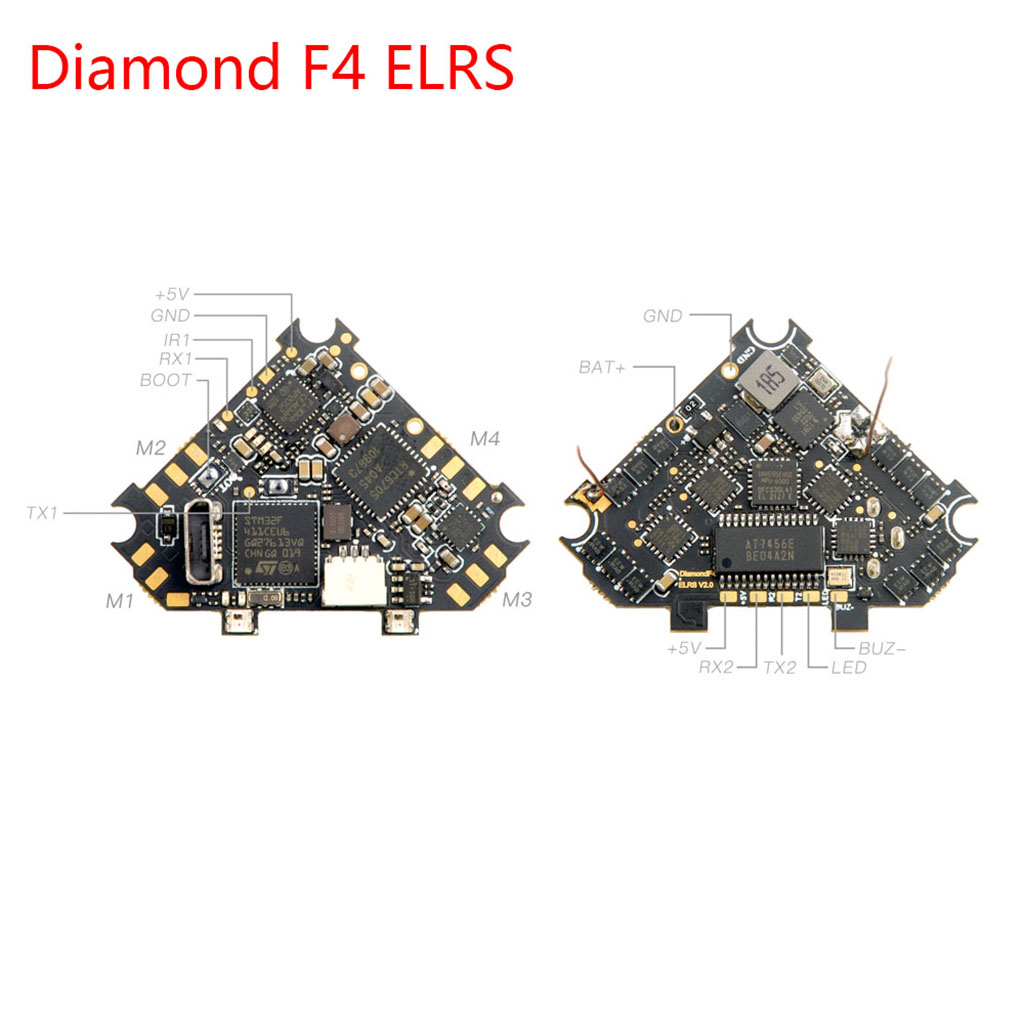

Flight controller	(ELRS SPI RX version)DiamondF4 ELRS FC Firmware target: CrazybeeF4SX1280 (Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection) Original whoop size compatible Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G OPEN VTX Built-in SPI ELRS V2.0/Frsky receiver Built-in 5V 1A BEC
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_8.HEX Default protocol: DSHOT600
Onboard ELRS V2.0 receiver Version	Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenna : Enameled copper wire antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn’t flash separately ExpressLRS firmware
Onboard Frsky SPI D8 receiver Version	SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 modelChannels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
Onboard 5.8g OPENVTX	Firmware version: OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw)
