Happymodel 1s Series Lipos Balance Charging Board 1.5A Max with For XT60 Plug Connector Tinywhoop Mobeetle6 Item NO.: F47440

Specification:

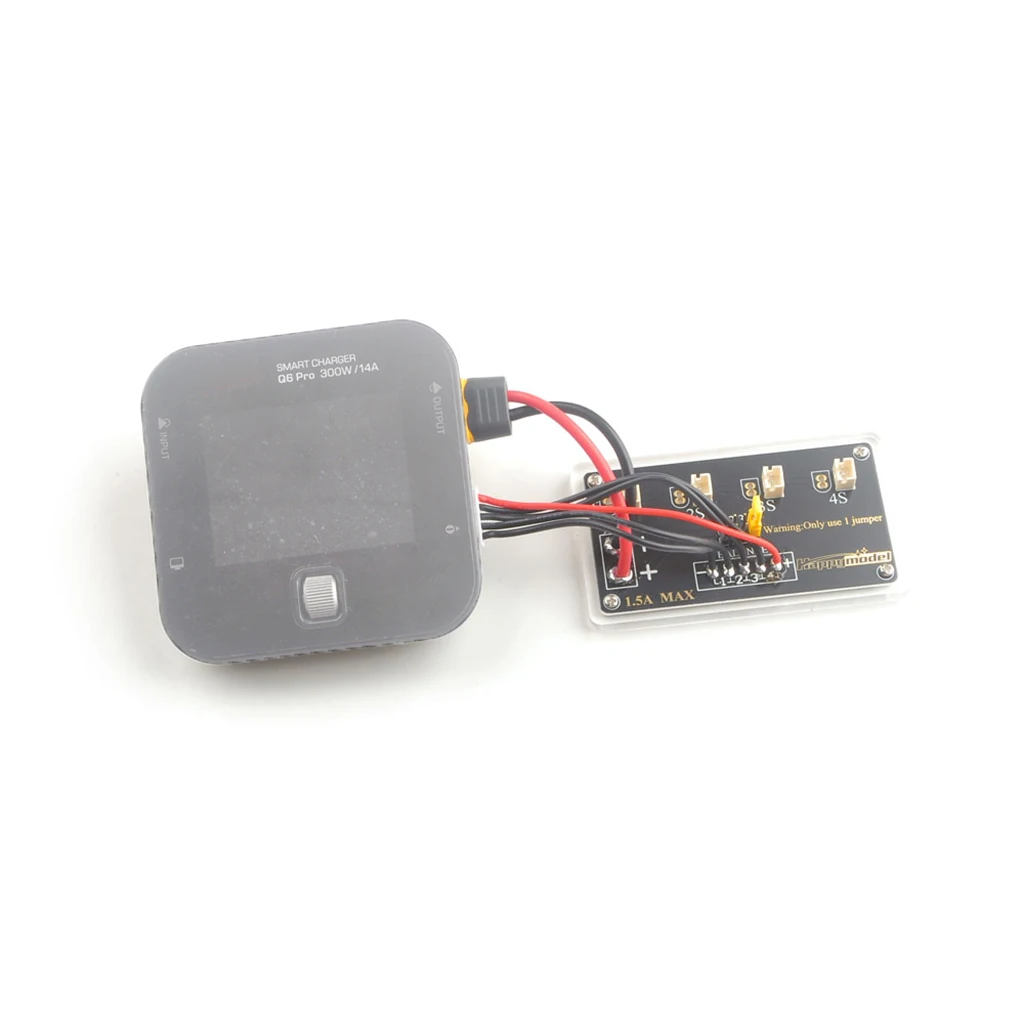

Connection to the charger in XT60 + 4S balancing plug

Max amperage: 1.5A

Supports up to 4 1S lipos simultaneously

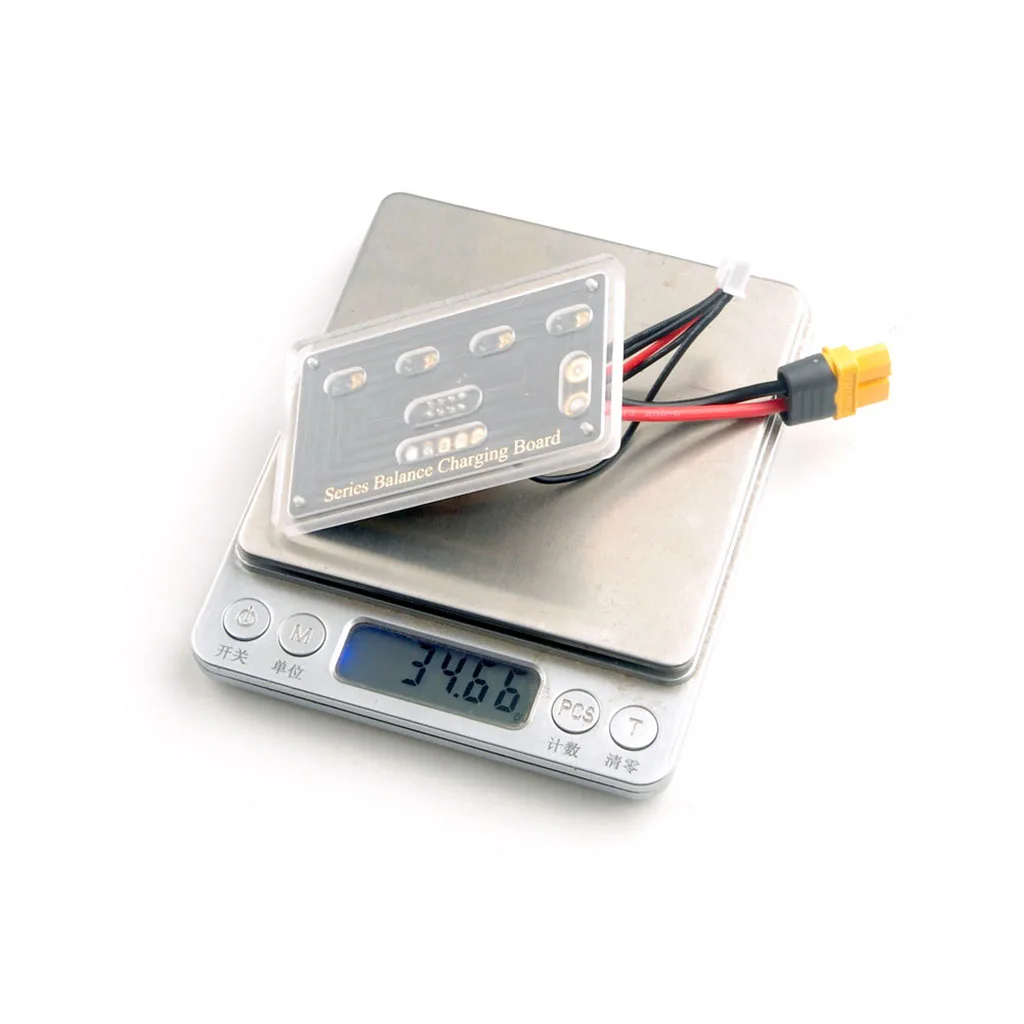

Weight: 35g

Dimensions: 81 * 46 * 20mm

Selection of the number of elements to be detected using the jumper (included)

Connector:

1x XT60H-F

1x JST-XH 4S1P

4x PH2.0

Note: Be careful to always load identical Lipos with an equivalent discharge.

If you charge 4 batteries at the same time, please insert the jumper cap into the position of number "4"; if you charge 3 batteries at the same time, please insert the jumper cap into the position of number "3", and so on.
