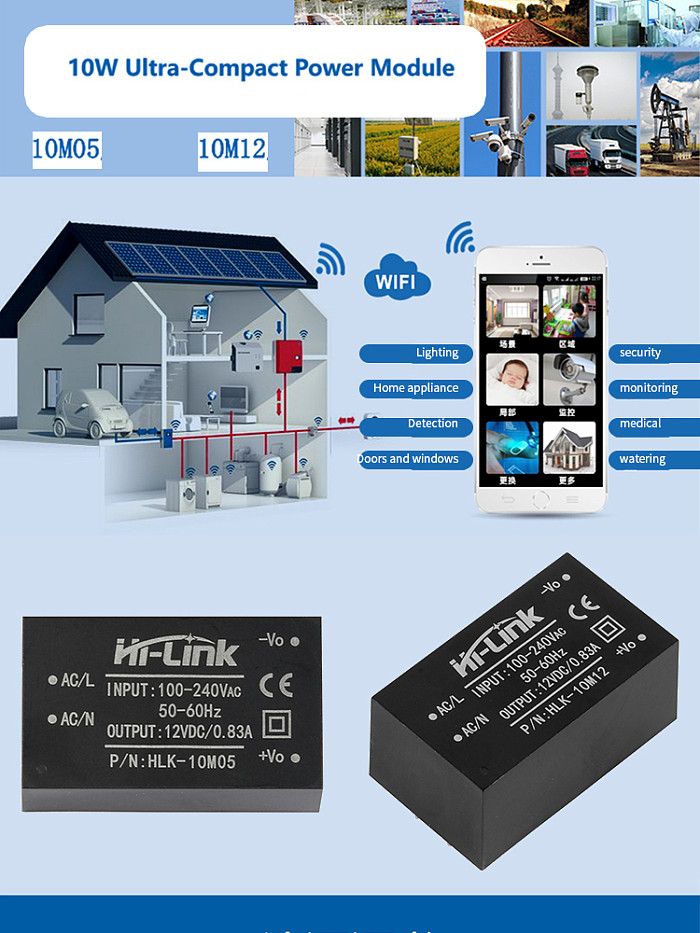

  • HI-LINK HLK-10M12 AC-DC 220V to 12V 10W Intelligent Household Switch Isolated Power Supply Module

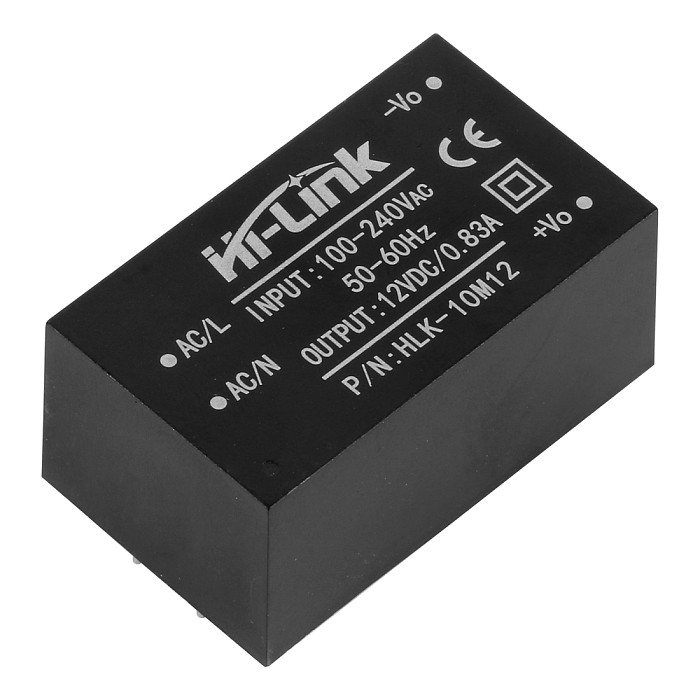

Product Name HI-LINK HLK-10M12 AC-DC 220V to 12V 10W Intelligent Household Switch Isolated Power Supply Module
Item NO F30297-F30298
Weight 0.0450 kg = 0.0992 lb = 1.5873 oz
Category Toy and Hobbies
Brand HI-LINK
Creation time 2019-07-17

HI-LINK HLK-10M12 AC-DC 220V to 12V 10W Intelligent Household Switch Isolated Power Supply Module


Product Features:
1. ultra-thin, subminiature
2. Full voltage Input (90 ~ 245 vac)
3. Low ripple and low noise
4. Output Overload protection against short circuit Functions
5. High efficiency and power density
6. Product design to meet the cem and safety tests Requirements
7. Low power consumption, green environmental protection, no load loss <0.1 W
Aging and
8.100% load test
9. Meet the requirements of UL, CE, if you want to do the certification, you have to add the external circuit, please leave us your mail address, we will send you the schema of this part.
10. The quality guarantee period of 1 year.
2. environmental conditions
Technical indicators: single bit
Operating temperature: -20-60 + degree
Storage temperature: + 80-40 degrees
Relative Humidity: 5-95%
Cooling way: natural cooling
Atmospheric pressure: 80-106Kpa
Altitude: 2000 M or less
Vibration
Vibration Coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min. Each along the X, Y, Z axes
3. The electrical characteristics

10M12 输出图

4. Security features:
4.1 Product design to meet the requirements of UL, CE safety certification.
4.2 electromagnetic compatibility and safety
The input design uses UL 0.5A insurance;
PCB board made of double-sided copper clad panels is 94-where V0 fire resistance level;
Safety standards in accordance with UL1012 EN60950, UL60950
Insulation voltage i / p-o / P: 2500 vac
Insulation resistance I / p-o / P> 100 m Ohms / 500 VDC 25 degrees 70% hr
Conduction and radiation in line with en55011, EN55022 (CISPR22)
Electrostatic discharge IEC / EN 61000-4-2 level 4 8 kv / 15 kv
Radio frequency immunity IEC / EN 61000-4-3 is in the application
4.3 design temperature safety
At normal temperature on our power capacitor, the main converter as well as the surface temperature does not exceed 90 degrees; the biggest
The maximum temperature of the hull surface does not exceed 60 degrees;
5. Dimension
尺寸
