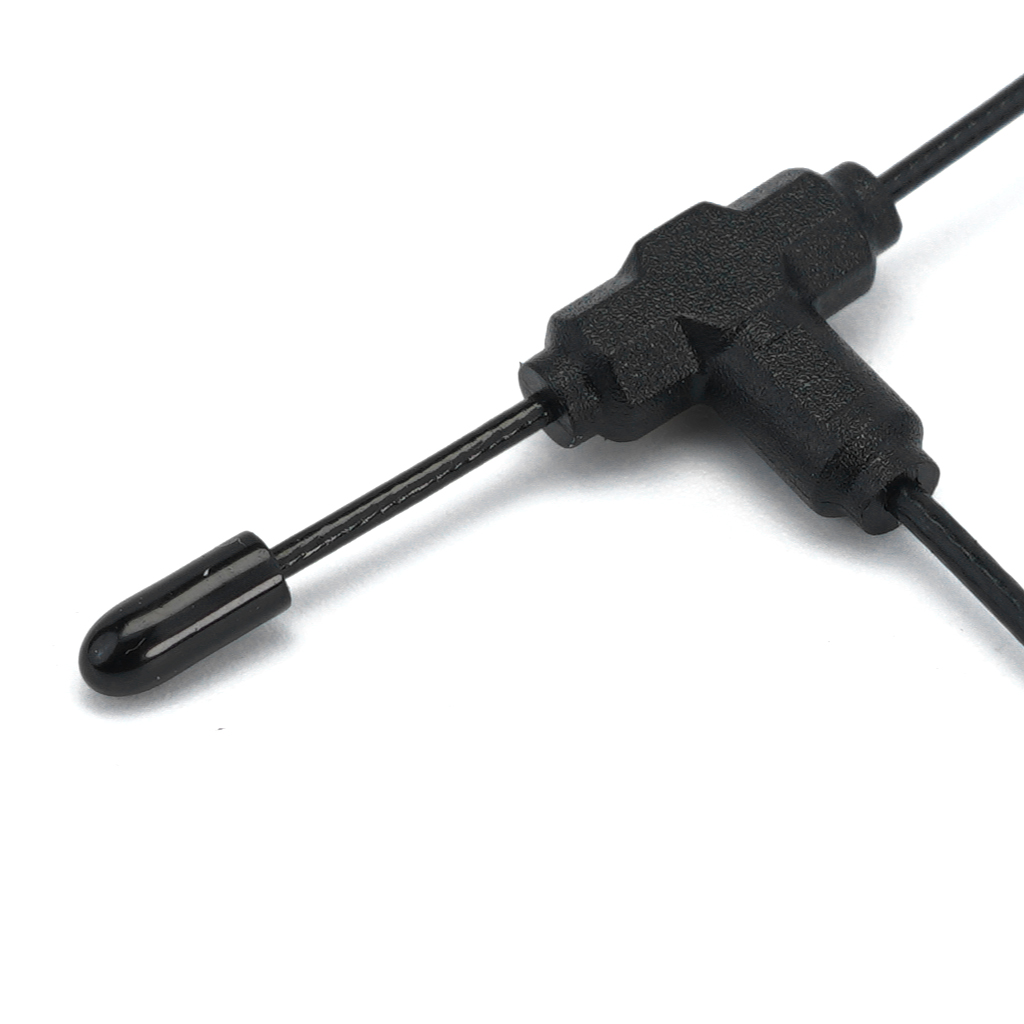

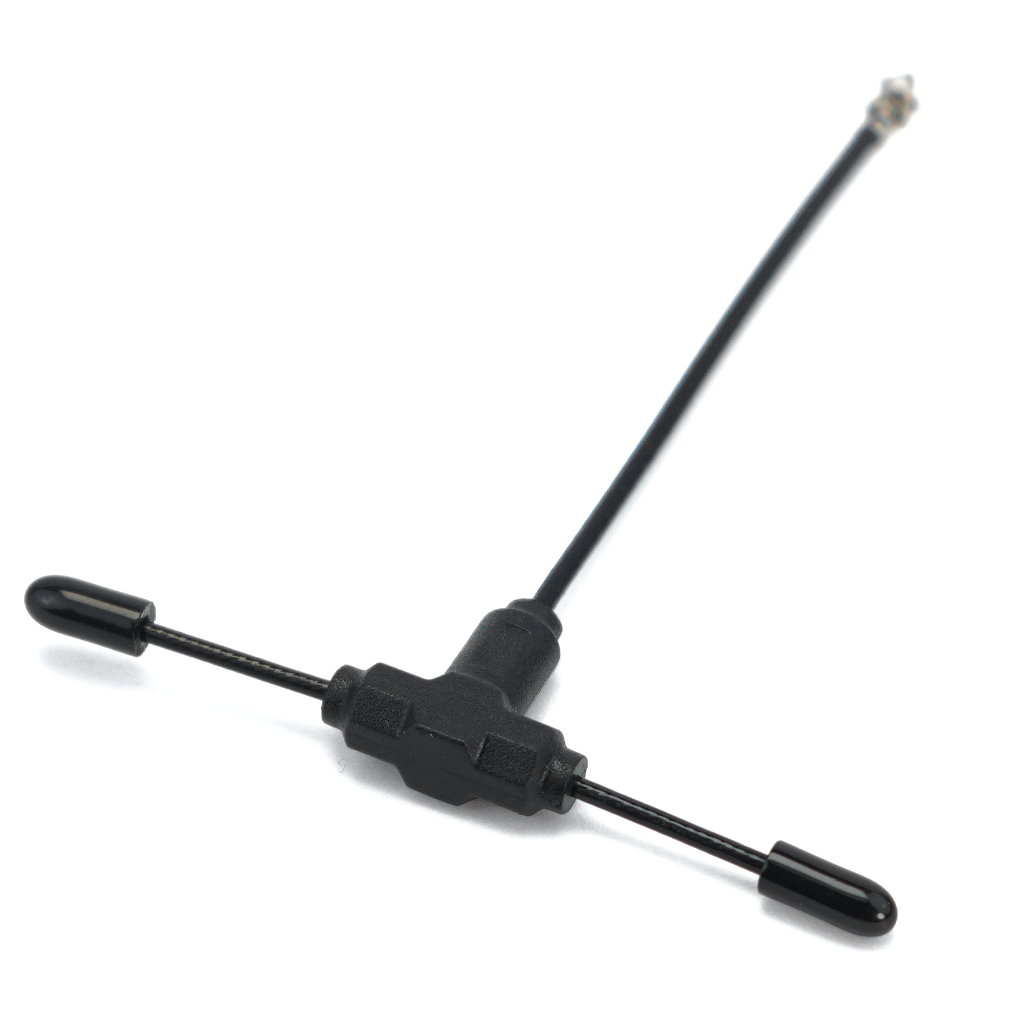

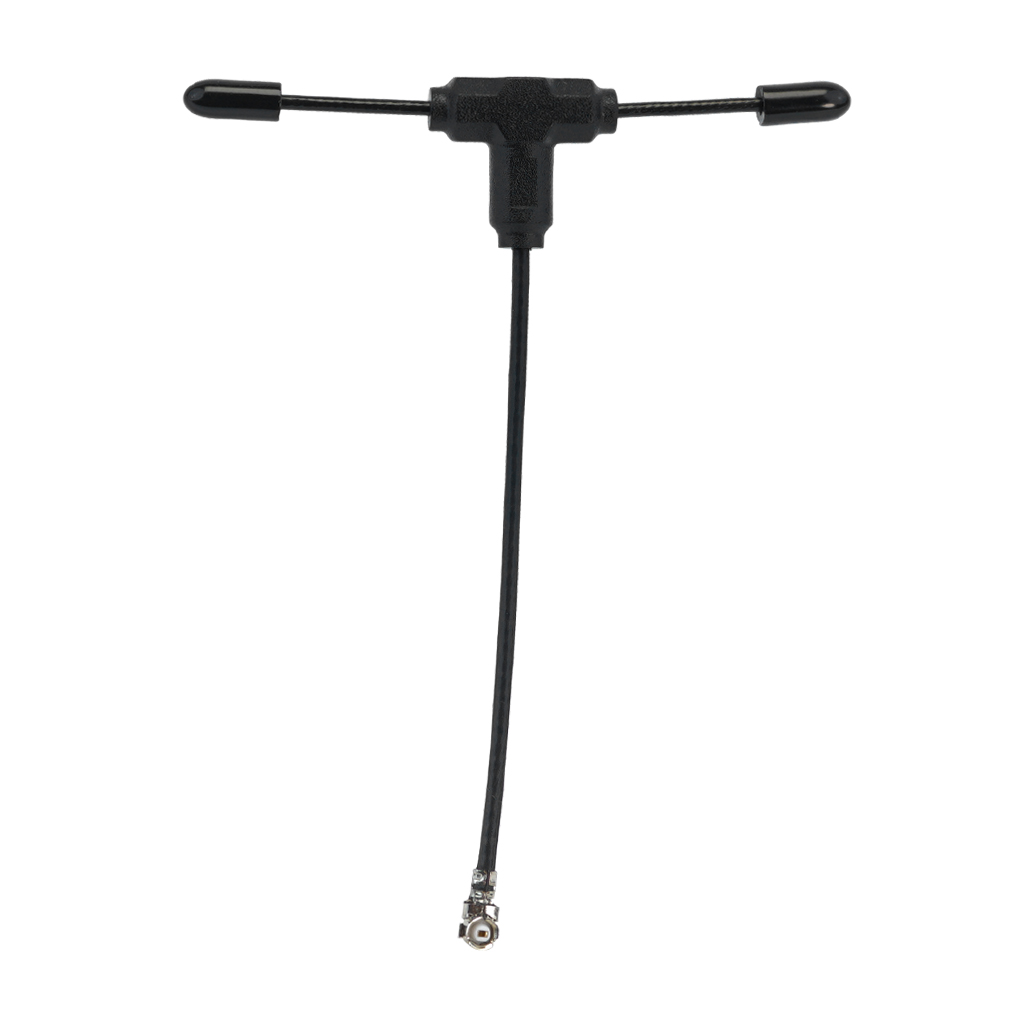

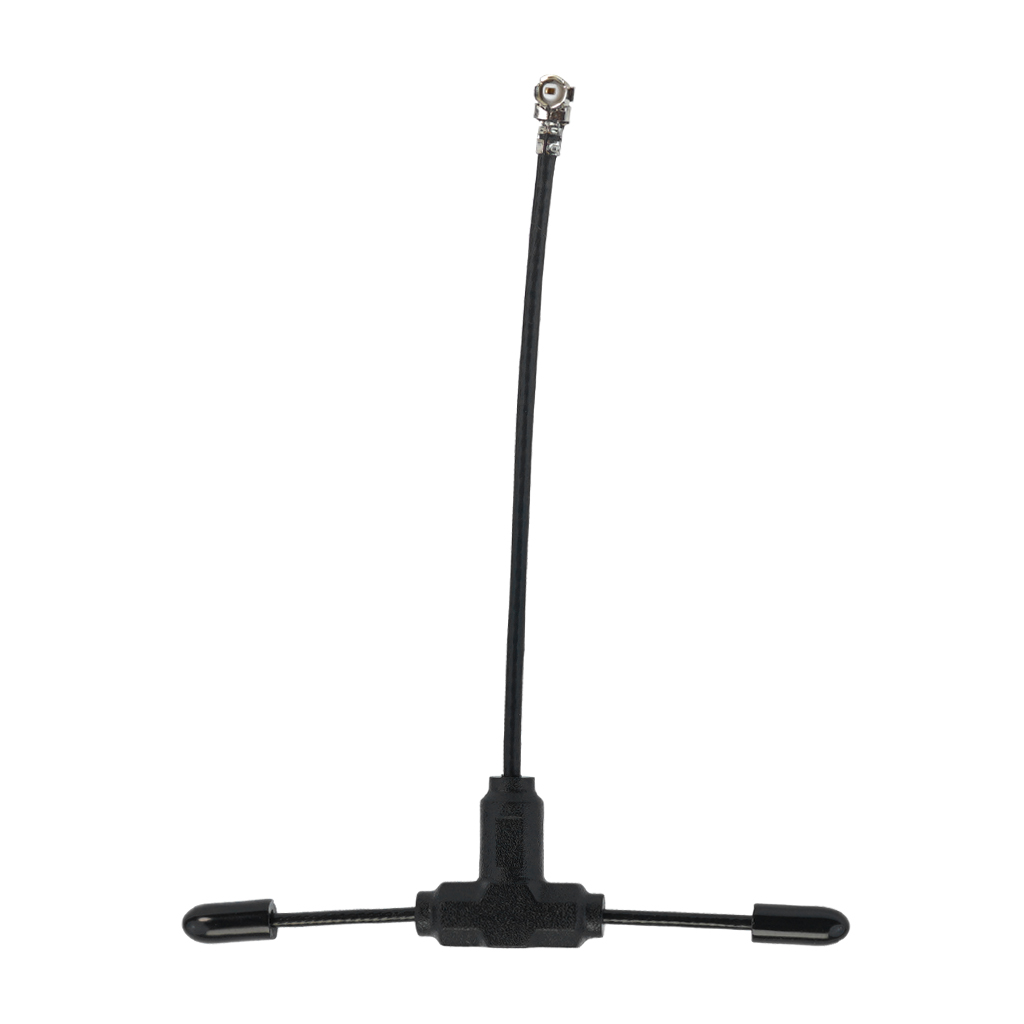

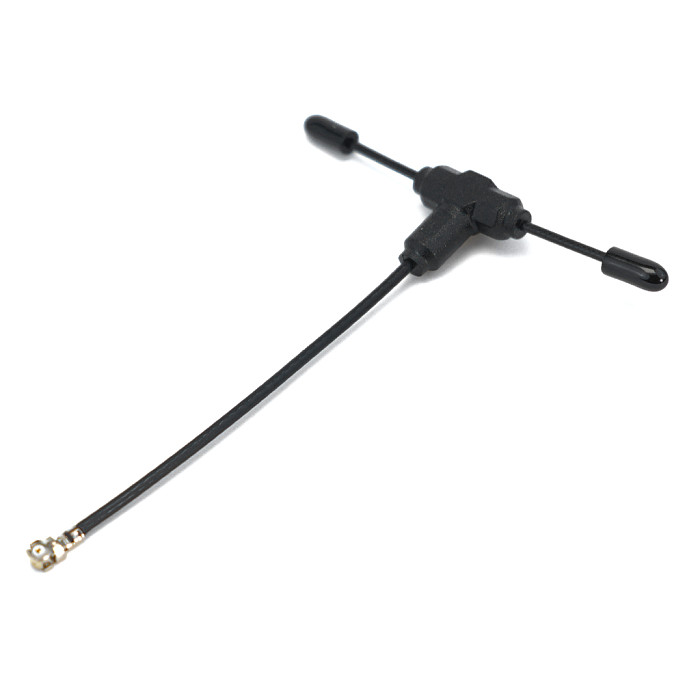

60mm ELRS 2.4G T-Type Omnidirectional Steel Wire Antenna High Gain Long Range FPV Drone Antenna

US$ 1.79

Color

Estimate Shipping Cost

Detail
- Product Name: 60mm ELRS 2.4G T-Type Omnidirectional Steel Wire Antenna High Gain Long Range FPV Drone Antenna
- Item NO.: F55455-A1 F55455-A2
- Weight: 0.01 kg = 0.0220 lb = 0.3527 oz
- Category: Toy and Hobbies
- Brand: JMT
- Creation Time: 2026-05-20
- 60mm ELRS 2.4G T-Type Omnidirectional Steel Wire Antenna High Gain Long Range FPV Drone Antenna
60mm ELRS 2.4G T-Type Omnidirectional Steel Wire Antenna High Gain Long Range FPV Drone Antenna

2.4G T-Type Antenna

Frequency Range (MHz): 2400-2485

Bandwidth (MHz): 85

Input Impedance (Ω): 50

VSWR: ≤1.5

Gain (dBi): 2.5

Polarization Type: Vertical Omnidirectional

Lightning Protection: DC Grounding

Power Capacity (W): 50

Mechanical Specifications

Antenna Feeder Length (mm): 80-220mm, customizable

Radiator Material: Copper

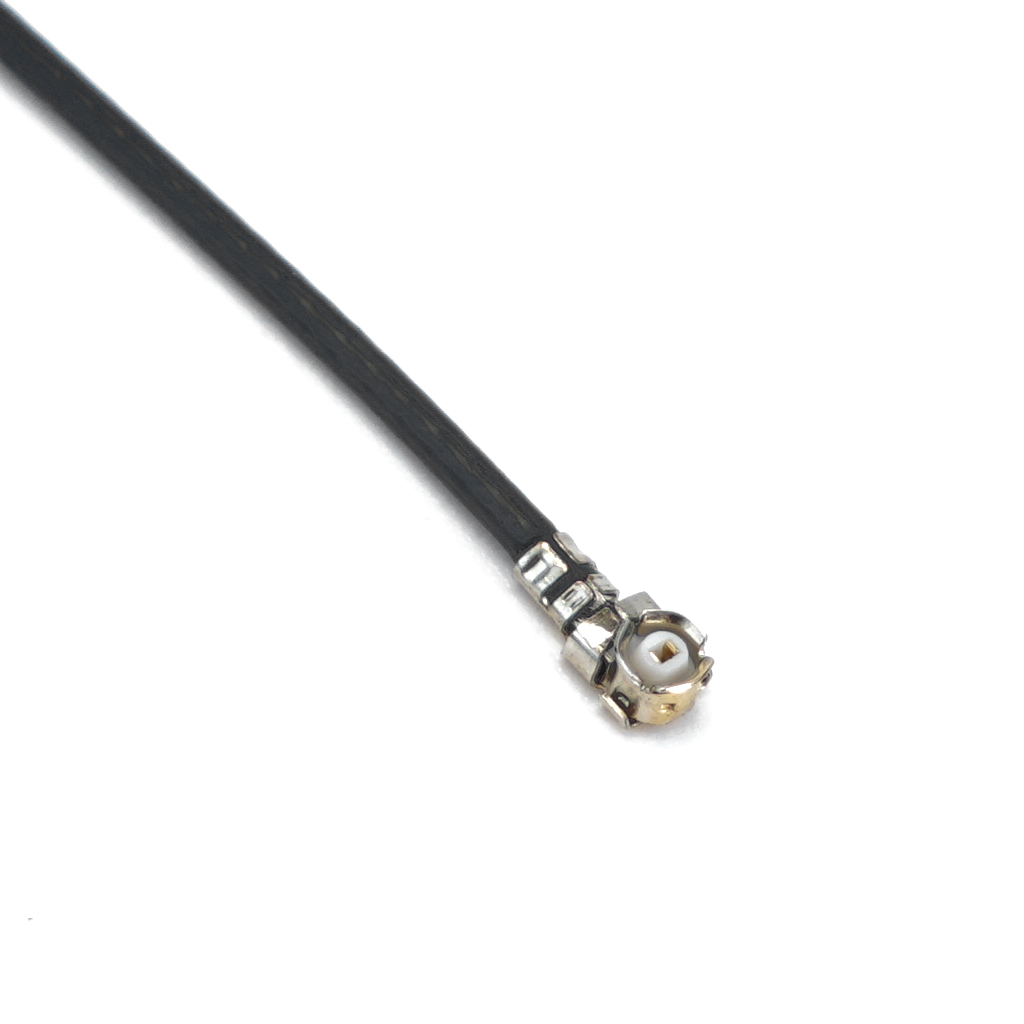

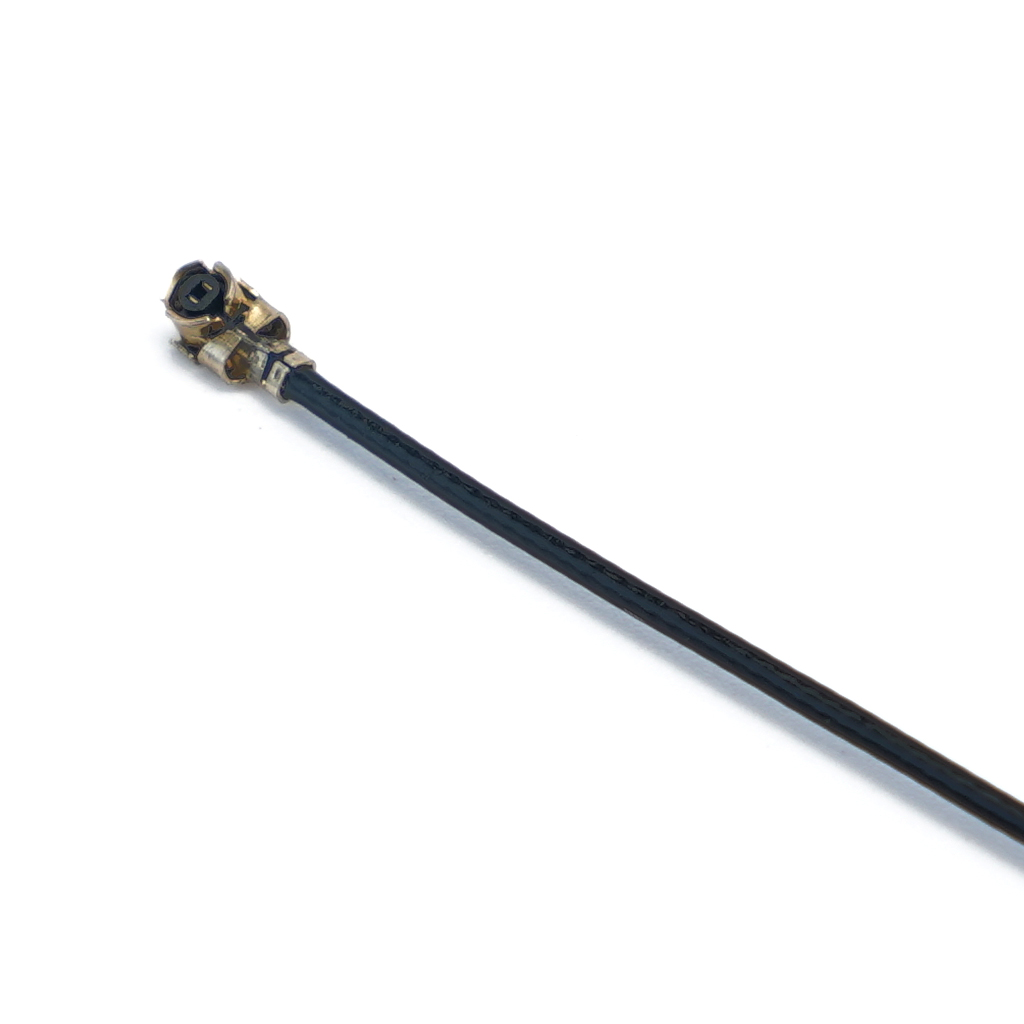

Connector Type: IPEX1 / SMA, customizable

Working Temperature (℃): -40 ~ 60

Storage Temperature (℃): -20 ~ 40

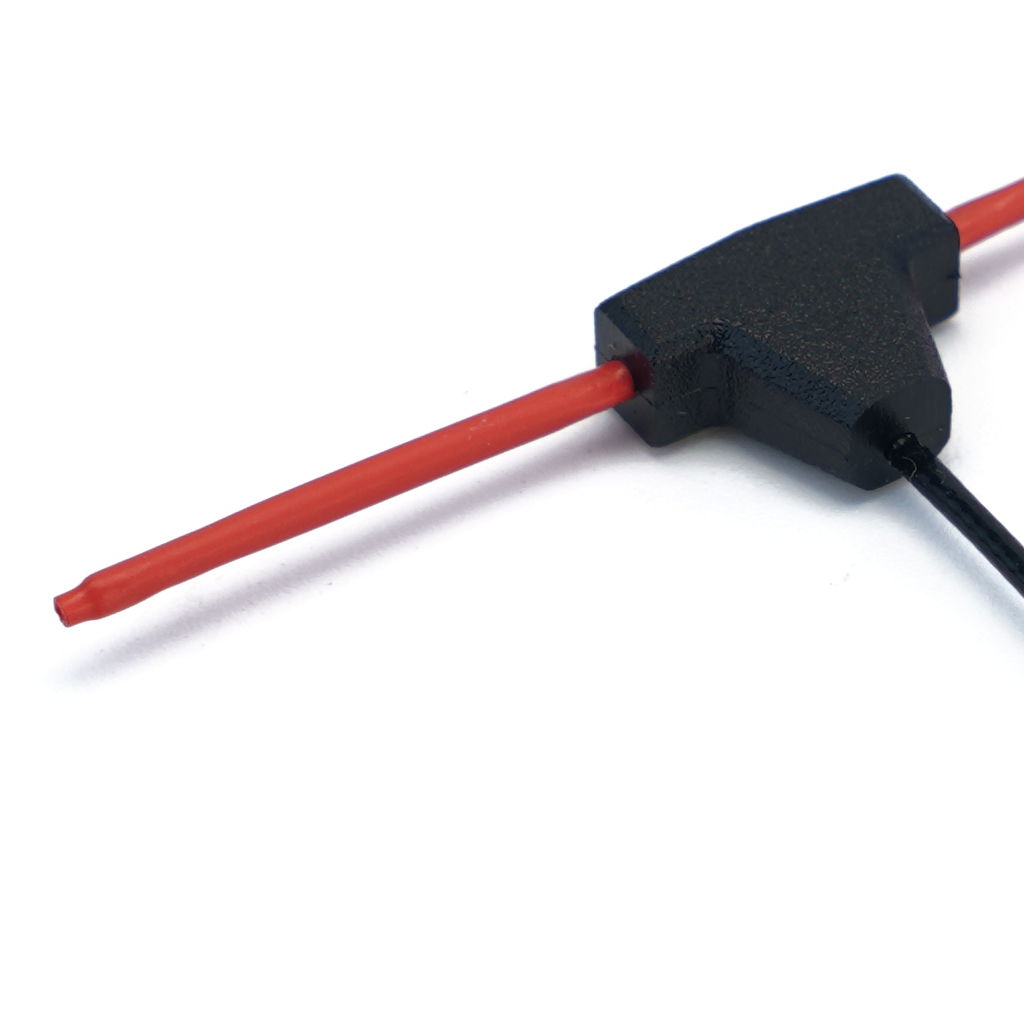

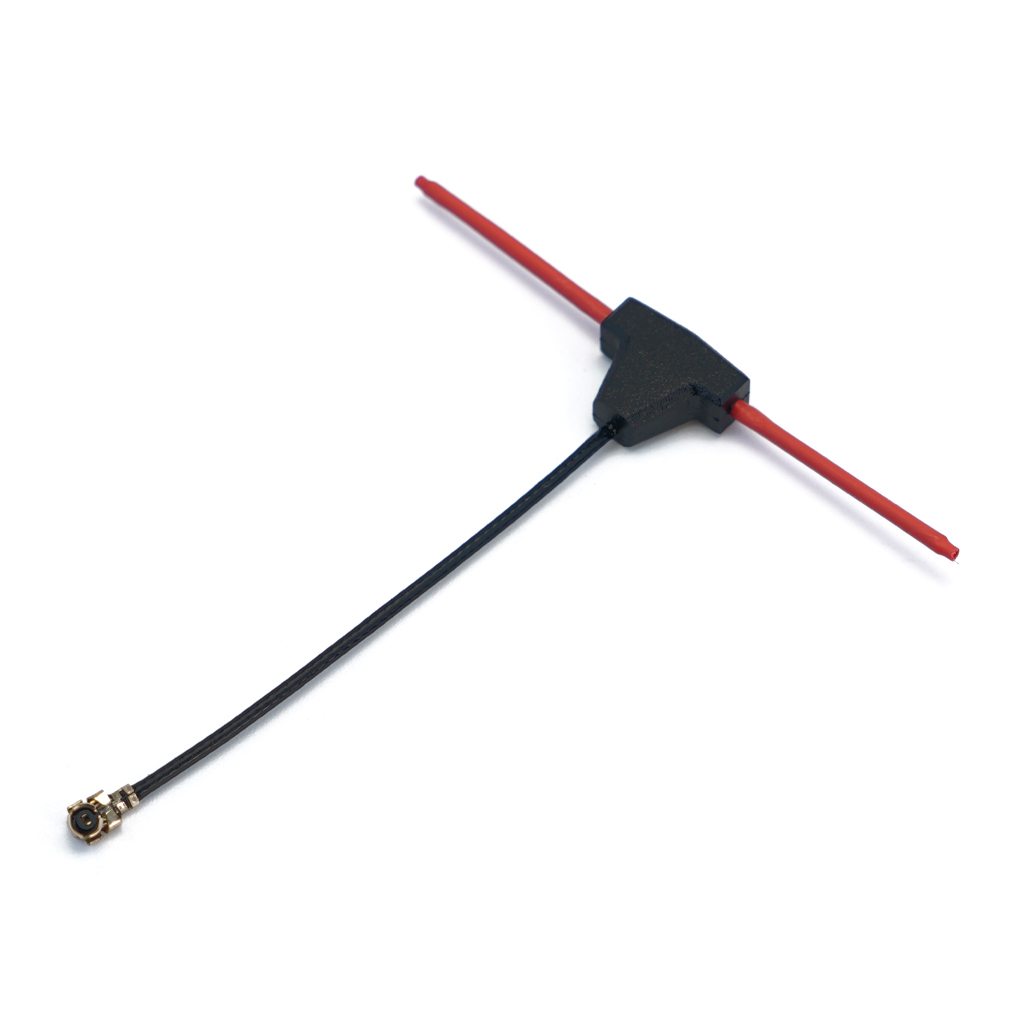

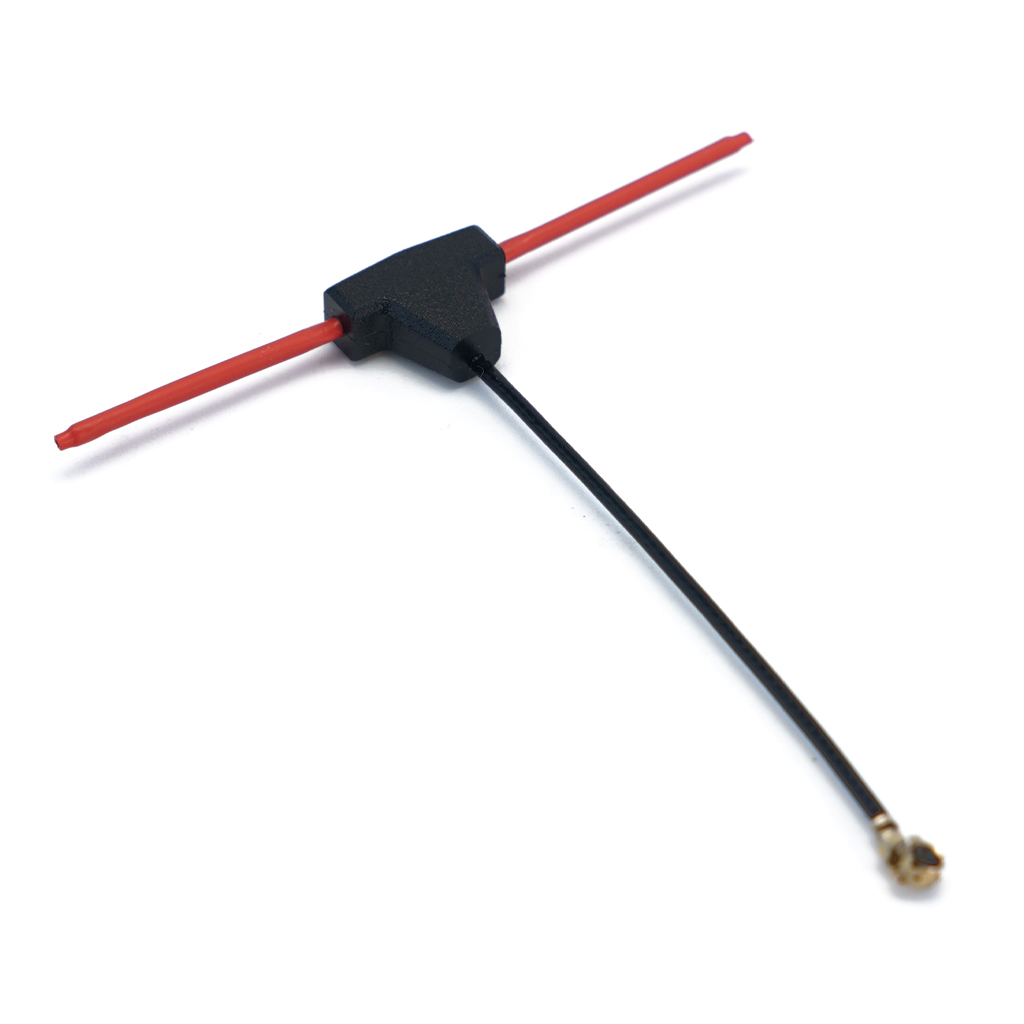

Radome Color: Black/Red

Weight (g): 1.8g
