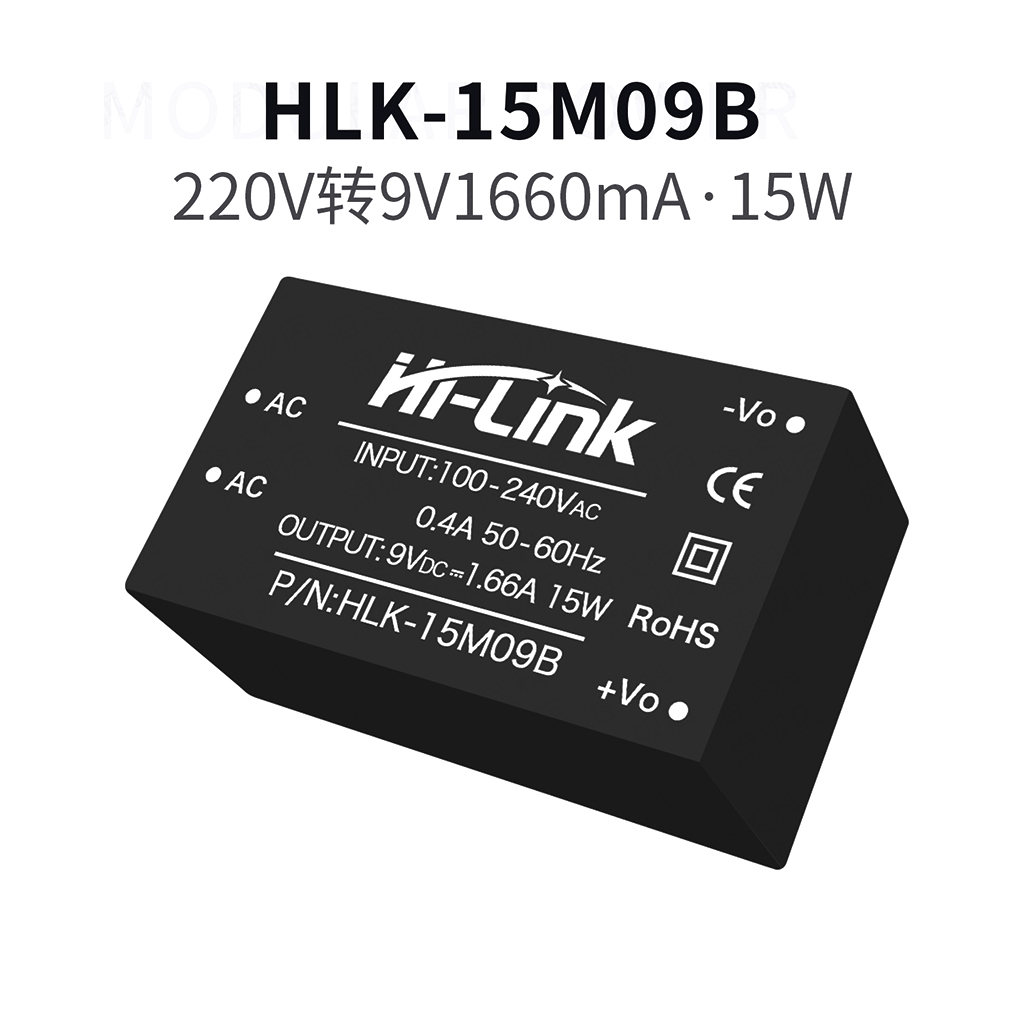

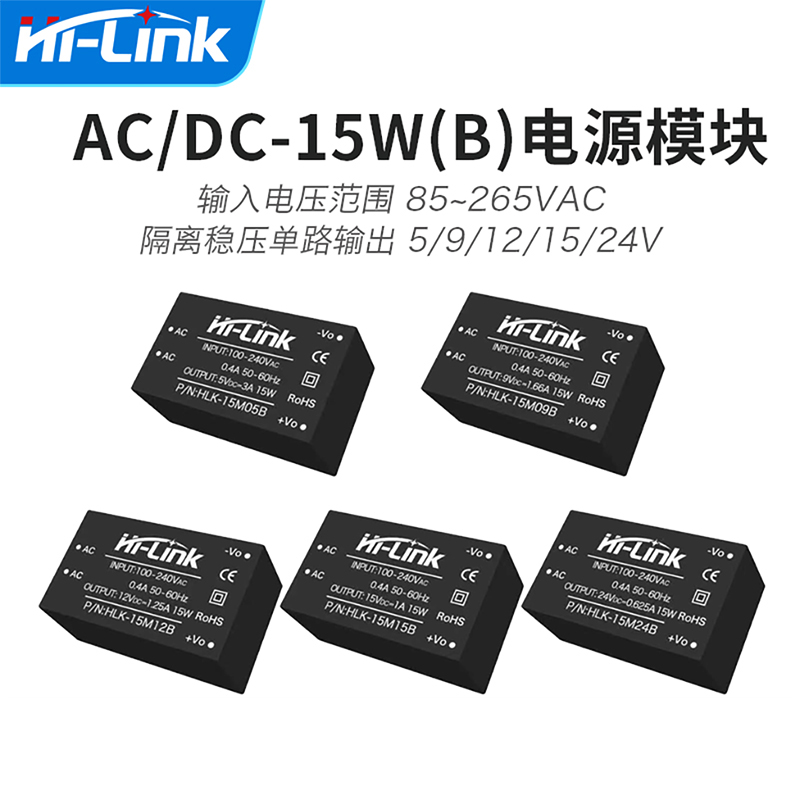

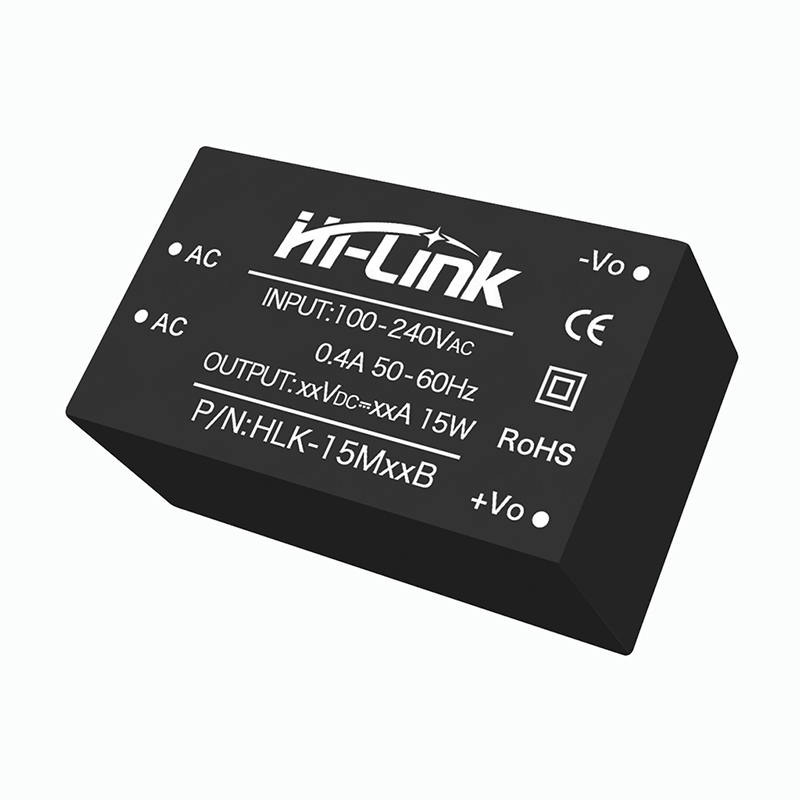

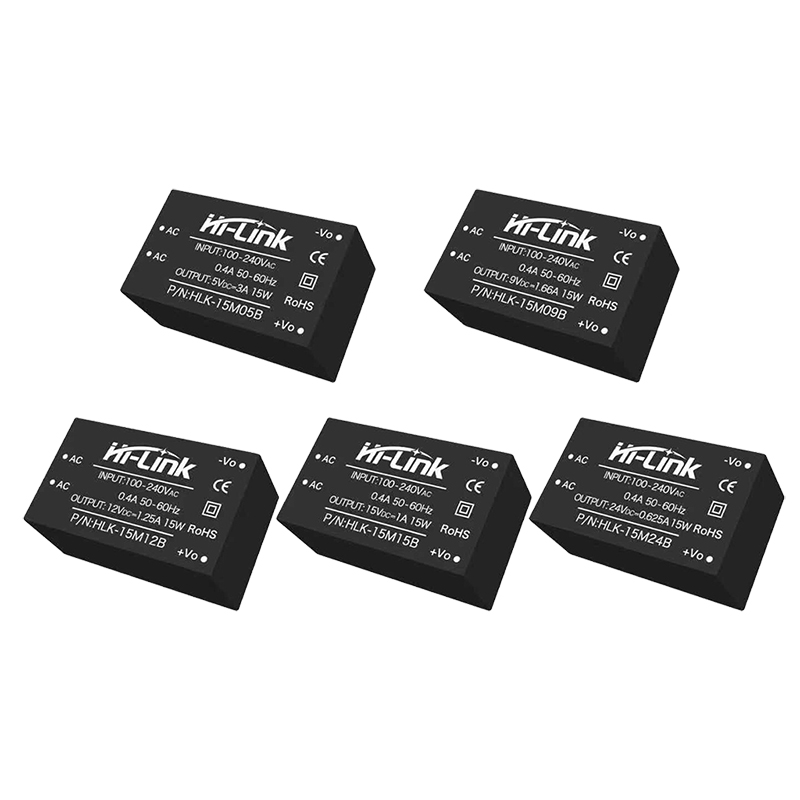

HI-LINK ACDC step-down isolated power module

US$ 3.22

Version

Estimate Shipping Cost

Detail
- Product Name: HI-LINK ACDC step-down isolated power module
- Item NO.: F54787-D1 D2 D3 D4 D5
- Weight: 0.03 kg = 0.0661 lb = 1.0582 oz
- Category: Industrial Technology
- Brand: HI-LINK
- Creation Time: 2025-11-05
- HI-LINK ACDC step-down isolated power module
HI-LINK ACDC step-down isolated power module

Product Features
Global universal input voltage 85-265VAC
Input/output isolation withstand voltage 3000VAC
Low power consumption, green environmental protection, no-load loss<0.1W
Low ripple, low noise, high efficiency, and high power density
High reliability, long-life design, continuous working time>100000 hours
Fully enclosed plastic casing, compliant with UL94V-0 grade
Good output short circuit and overcurrent protection with self recovery capability
Using high-quality environmentally friendly waterproof thermal conductive adhesive for sealing, dustproof, moisture-proof, vibration proof, flame retardant, meeting the IP65 standard for waterproof and dustproof
Complies with UL/CE/EMC and safety testing requirements
Applied in medical, industrial control, power, instrumentation, communication, railway and other
fields.

Environmental conditions ENVIRONMENT CONDITION
Working temperature: -25 ° C~+60 ° C
Storage temperature: -40 ° C~~+80 ° C
Relative humidity: 5~95% RH
Heat dissipation method: natural cooling
Atmospheric pressure: 80~106Kpa
Altitude: ≤ 2000m
Vibration: Vibration coefficient 10~500Hz, 2G10
Min./1cycle, 60min.each a-long X, Y, Z axes meet the transportation requirements of second-class highway
Electrical characteristics
Input characteristics (room temperature test)
Rated input voltage: 100-240VAC
Input voltage range: 85-265VAC/120-350VDC
Maximum input current: ≤ 0.3A
Input surge current: ≤ 34A
Input slow start: ≤ 550mS
Long term reliability: MTBF ≥ 100000H
Recommended external fuse: 1A/250VAC (slow melting)
output characteristic
Voltage regulation rate: ± 0.5%
Load adjustment rate: ± 0.5%
Power on/off overshoot amplitude: ≤ 5% Vo
Output ripple&noise: ≤ 100mVp-p
