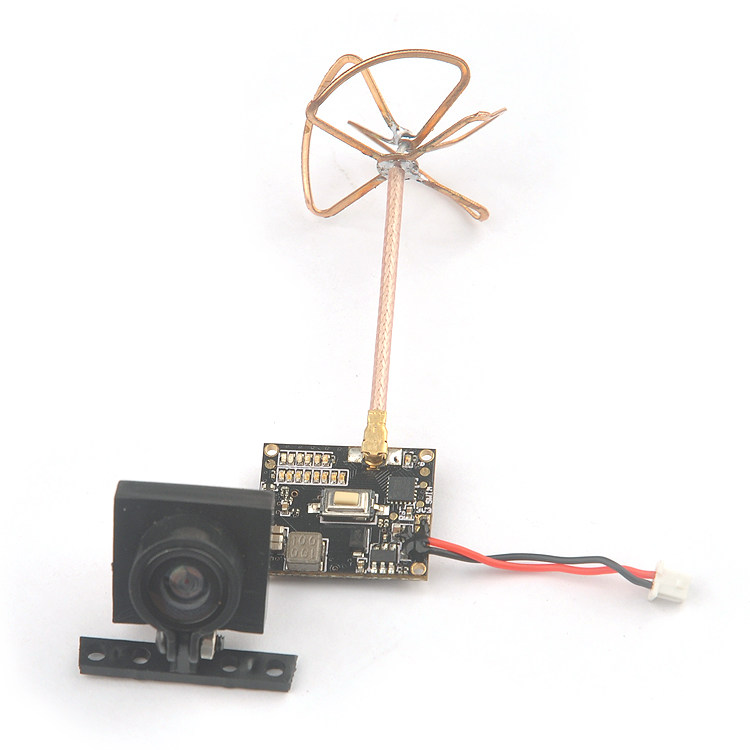

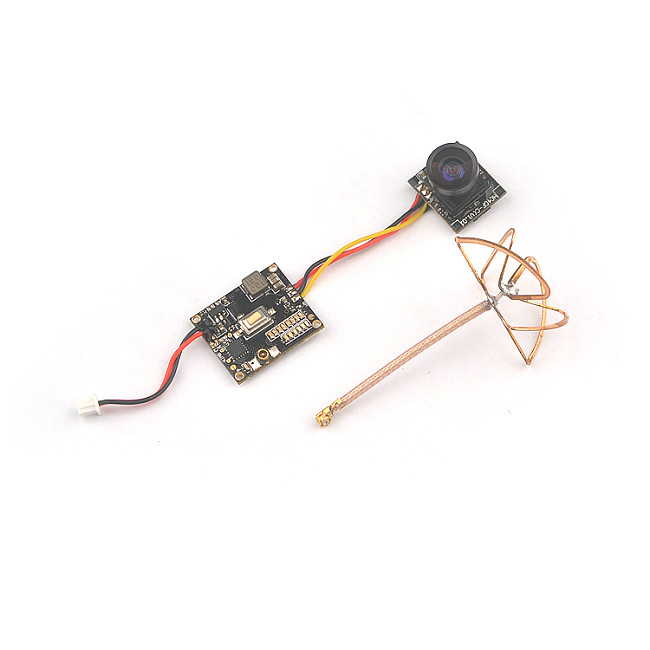

HC48E 5.8G 48CH 25mw 200mw Switchable VTX Integrated 600tvl FPV Camera 2s-4s Item NO.: F22155

Name: HC48E 5.8G 48CH 25mw 200mw Switchable VTX Integrated 600tvl FPV Camera 2s-4s
Brand: XT-XINTE
SKU: F22155
Price: 19.24 USD
Availability: InStock
Rating: 4 (1 reviews)

4.0

(1)

Sold (9)

US$ 17.31 ~ US$ 19.24

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 19.24	US$ 18.28	US$ 17.31

Quantity: Stock ( 9999991 )

Estimate Shipping Cost

Add to Cart

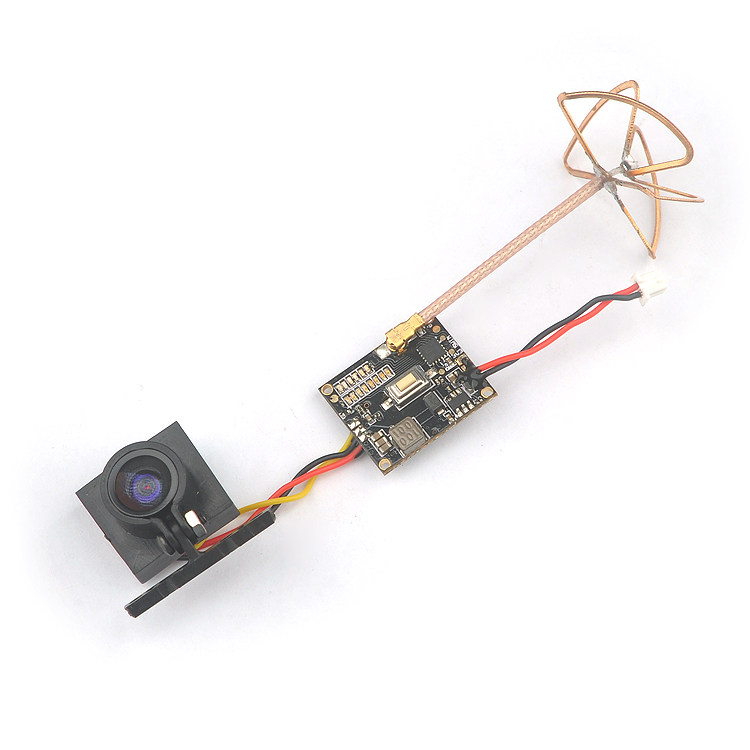

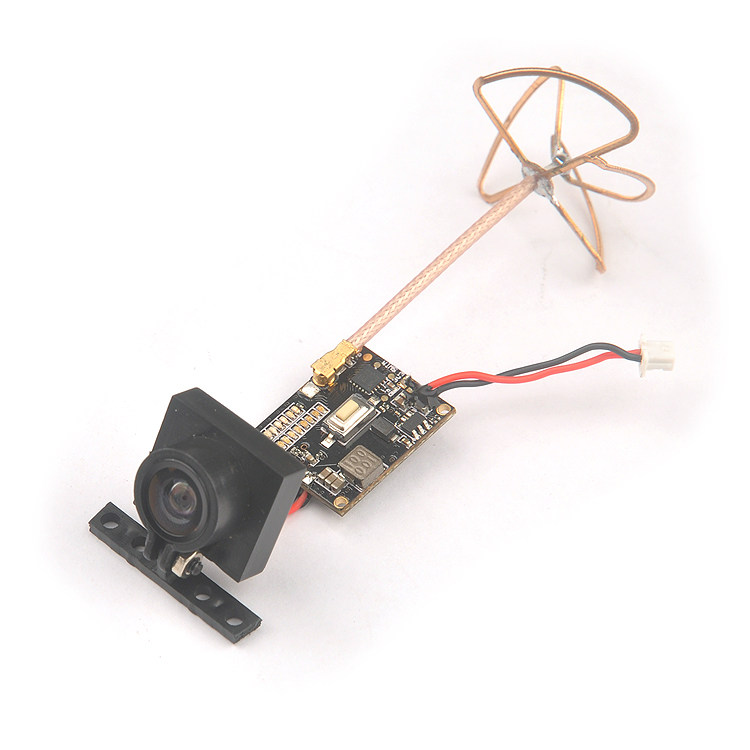

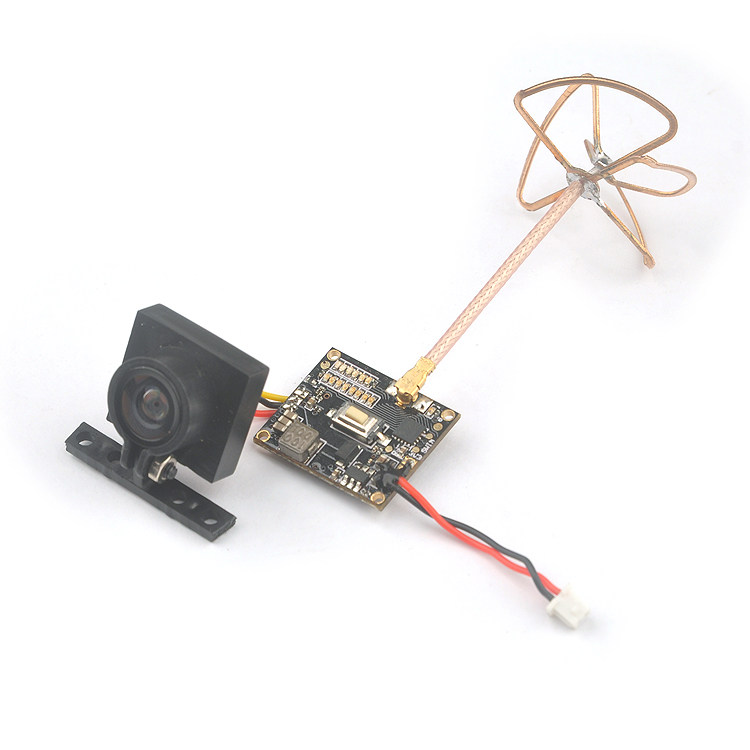

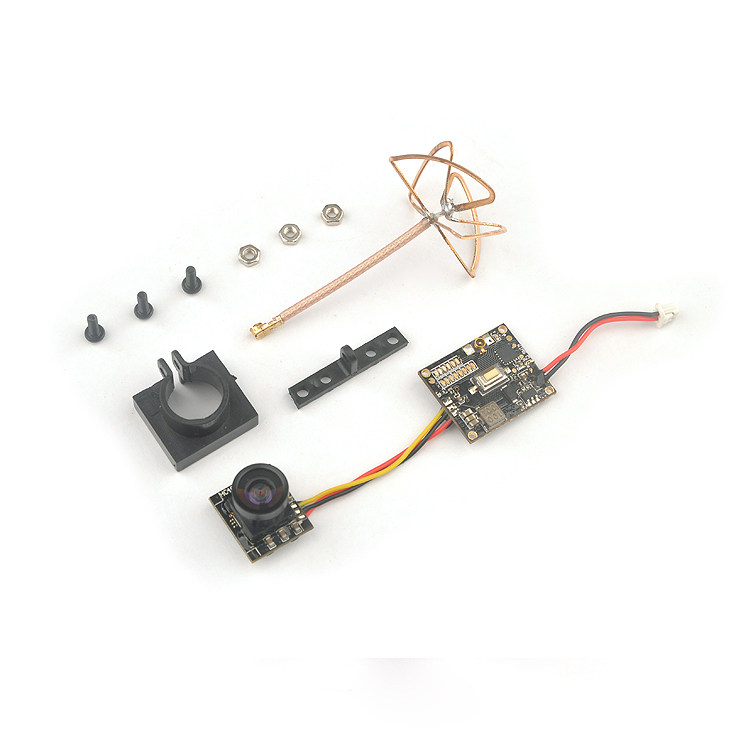

HC48E 5.8G 48CH 25mw/200mw switchable VTX & 600tvl FPV Cam 2s-4s
Item name: FPV Camera & VTX
Item model; HC48E
Output power: 25mw/200mw Switchable
Input power: 7v~16.8v(2s-4s lipo)

Product Name	HC48E 5.8G 48CH 25mw 200mw Switchable VTX Integrated 600tvl FPV Camera 2s-4s
Item NO.	F22155
Weight	0.0473 kg = 0.1043 lb = 1.6685 oz
Category	DIY RC Drone Accessories
Brand	XT-XINTE
Creation Time	2017-08-25

Item name: FPV Camera & VTX
Item model; HC48E
Output power: 25mw/200mw Switchable
Input power: 7v~16.8v(2s-4s lipo)
Output Characteristic:
25mw 6V 150MA±40MA
200mw 6V 350MA±50MA
Input Impedance 75Ω
Peak Deviation: 1.2MHz
Frequency control:PLL
Frequency Stability: ±100KHz (Typ.)
Frequency precision:±200KHz (Typ.)

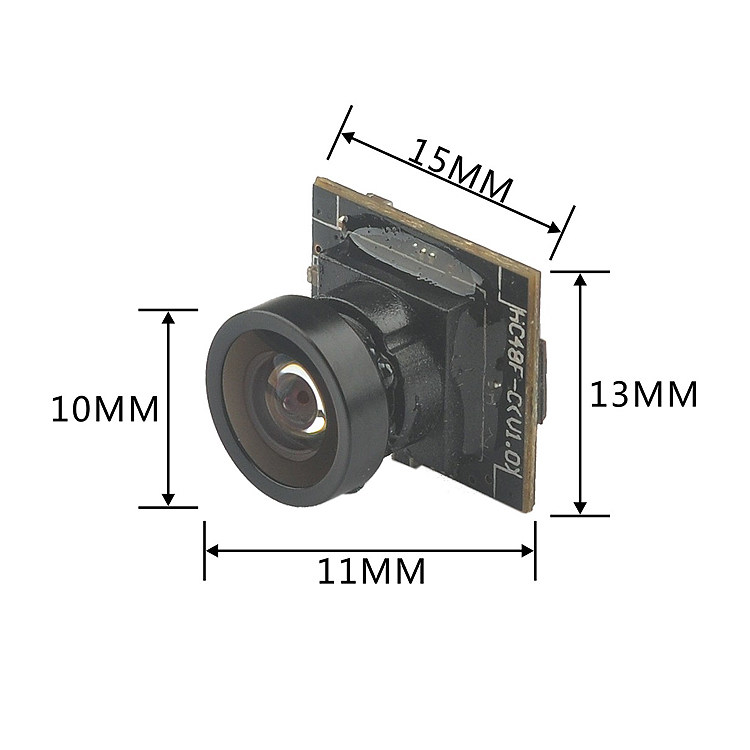

Camera resolution:600TVL
Sensor: PAL:720X540/NTSC:640X480 1/4” CMOS

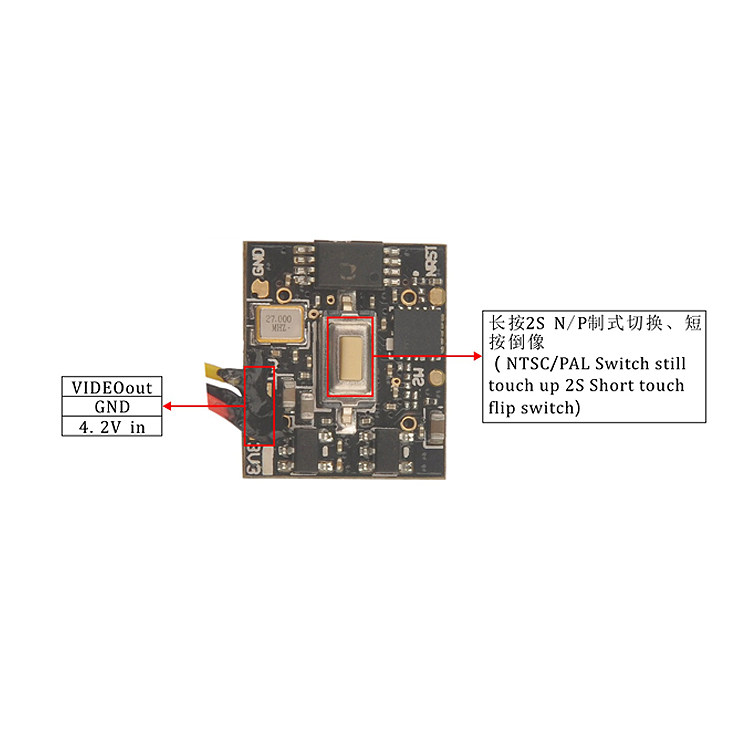

Video system: PAL / NTSC (transform freely)
Field of view: H:120°/V:100°

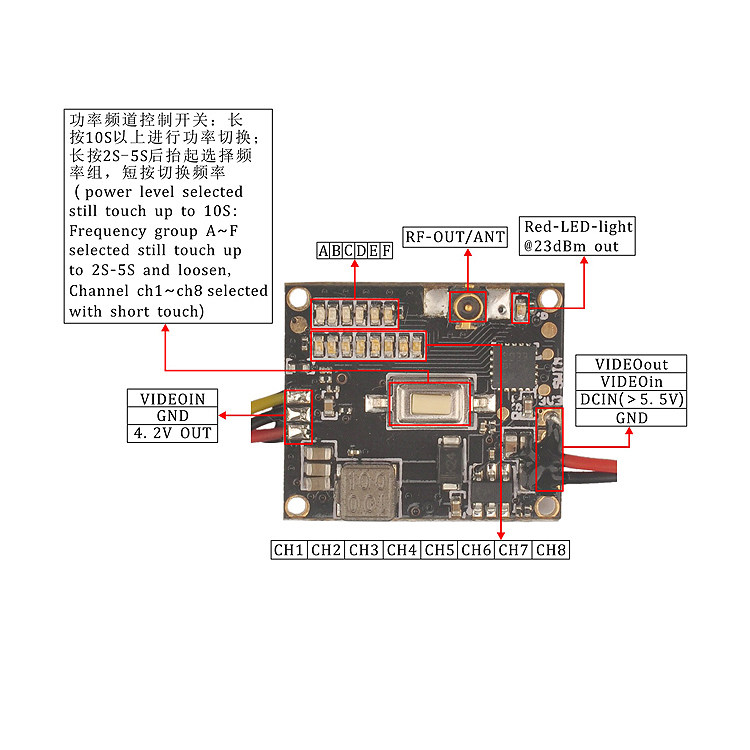

Frequency: 5.8GHz 6 bands 48 channels（include RACE Band）
Frequency band: 5362~5945MHz
Weight: 3.5g without antenna

2019-01-17

r****e

the vtx is a 2s. i used the camera which will take a 1s battery. i just connected the camera to a vtx03 today. works great . i will probably connect the 2s vtx to a 2s camera. works good
