Home>DIY RC Drone Accessories>GEPRC MATEN-5.8G 2.5W VTX PRO 72CH Aluminum Alloy Numerical Control Shell Auxiliary Heat Dissipation For Drone Quadcopter FPV

GEPRC MATEN-5.8G 2.5W VTX PRO 72CH Aluminum Alloy Numerical Control Shell Auxiliary Heat Dissipation For Drone Quadcopter FPV Item NO.: F52542

US$ 99.81

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	GEPRC MATEN-5.8G 2.5W VTX PRO 72CH Aluminum Alloy Numerical Control Shell Auxiliary Heat Dissipation For Drone Quadcopter FPV
Item NO.	F52542
Weight	0.03 kg = 0.0661 lb = 1.0582 oz
Category	DIY RC Drone Accessories
Brand	GEPRC
Creation Time	2024-06-28

GEPRC MATEN-5.8G 2.5W VTX PRO Aluminum Alloy Numerical Control Shell Auxiliary Heat Dissipation Drones Accessories

Model：GEPRC-MATEN 5.8G 2.5W VTX PRO

Size：36.3×36.3×12.6mm

Mounting hole：20x20mm(M2)、30.5×30.5mm(M2)

Output power：25mW/200mW/600mW/1600mW/2500mW/Pit mode

Frequency：5.8G

All Categories

GEPRC MATEN-5.8G 2.5W VTX PRO 72CH Aluminum Alloy Numerical Control Shell Auxiliary Heat Dissipation For Drone Quadcopter FPV Item NO.: F52542

Model：GEPRC-MATEN 5.8G 2.5W VTX PRO

Size：36.3×36.3×12.6mm

Mounting hole：20x20mm(M2)、30.5×30.5mm(M2)

Output power：25mW/200mW/600mW/1600mW/2500mW/Pit mode

Frequency：5.8G

Channel：72CH

Input voltage：DC7-36V（2-8S Battery）

Output voltage：5V@600mA

Protocol：IRC Tramp

Antenna interface：MMCX

Cable interface：SH1.0 6pin

Video format：PAL/NTSC

Microphone: Built in microphone

Weight：17g

Feature

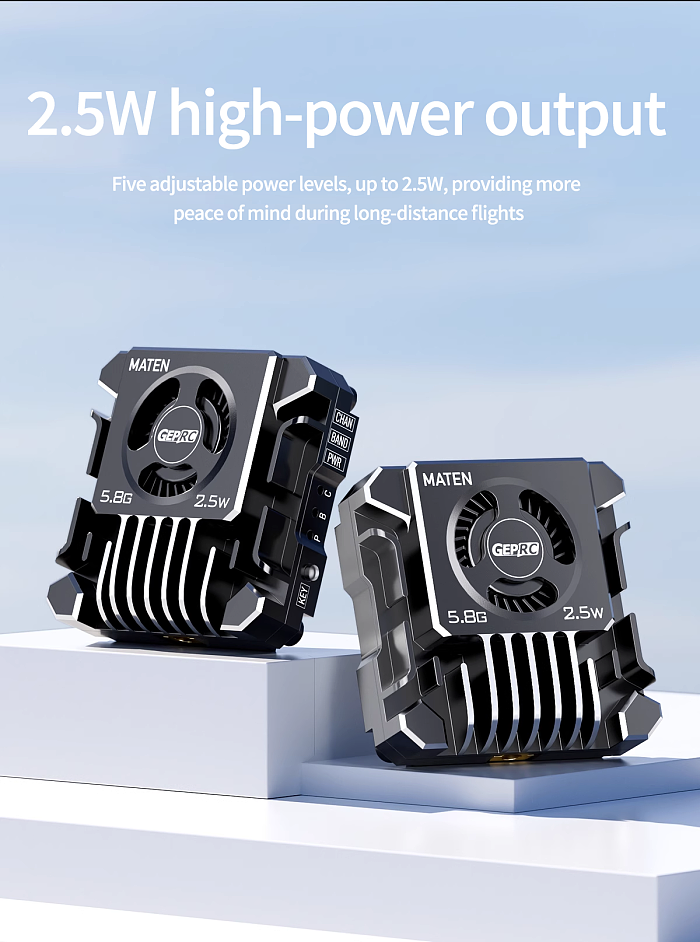

Five levels of adjustable power, up to 2500mW, suitable for long distance flight

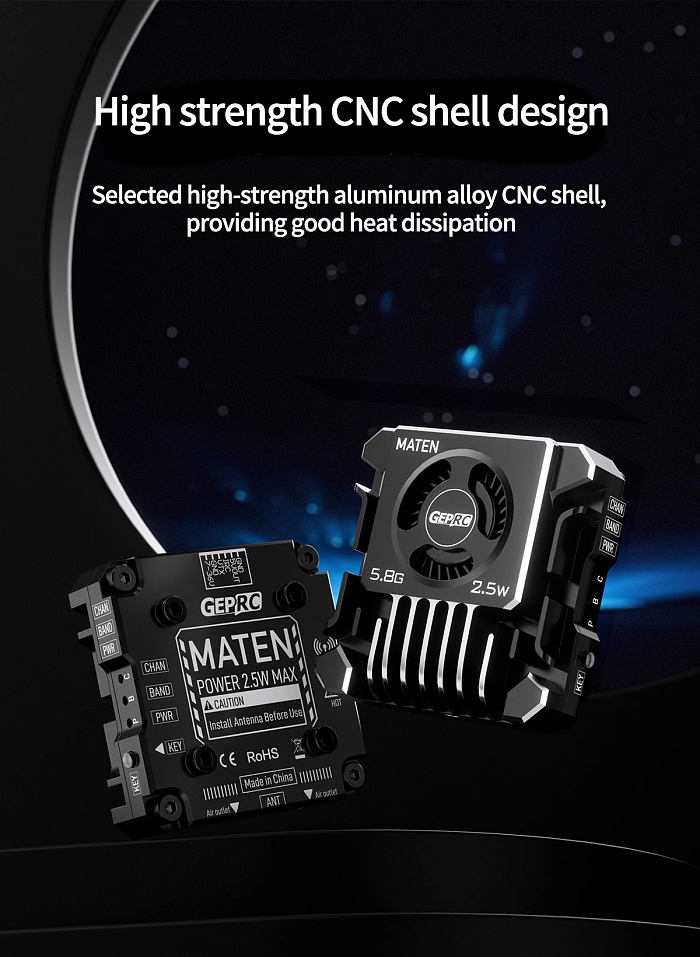

Selected high strength aluminum alloy CNC shell, auxiliary heat dissipation

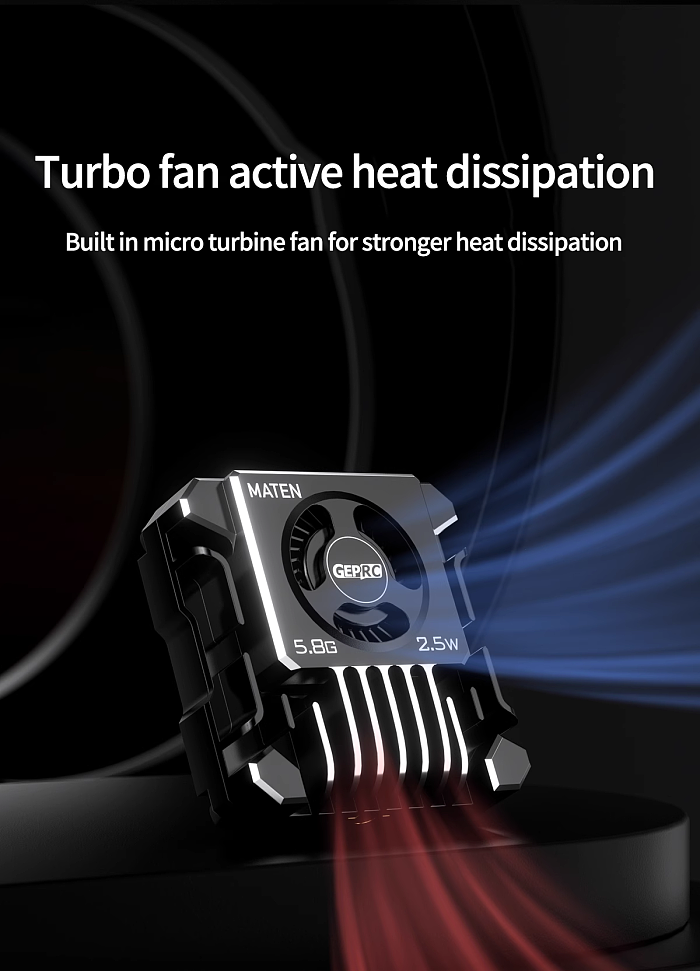

The built-in micro turbofan actively dissipates heat

Wide voltage input, Supports 7V-36V Voltage input.

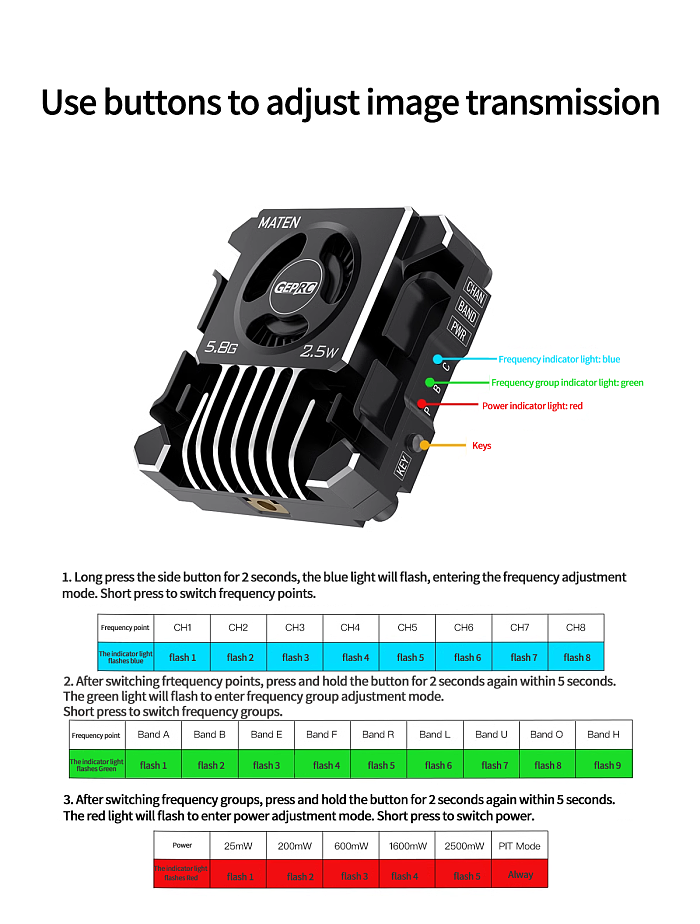

One function buttons, three indicator lights, easy to control.

VTX control protocol is IRC Tramp,supports OSD parameter adjustment.

Temperature control protection function that can prevent high temperature burning

VTX built in microphone,Real-time transmission of Drone’s sounds.

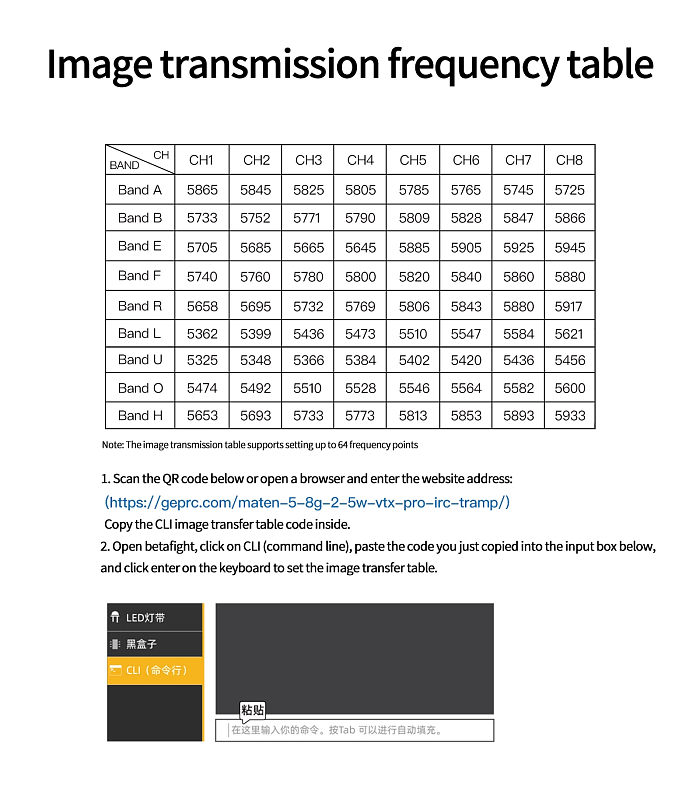

supports 72 transmission channels

**Support 2020mm and 30.530.5mm installation hole position**

Includes

1 x MATEN-5.8G 2.5W VTX PRO

1 x MMCX Copper tube antenna

1 x MMCX to SMA（Internal foramen）connector

1 x sh1.0 6P Connecting cable

**6 x M2*5 screw**

**4 x M2*12 screw**
