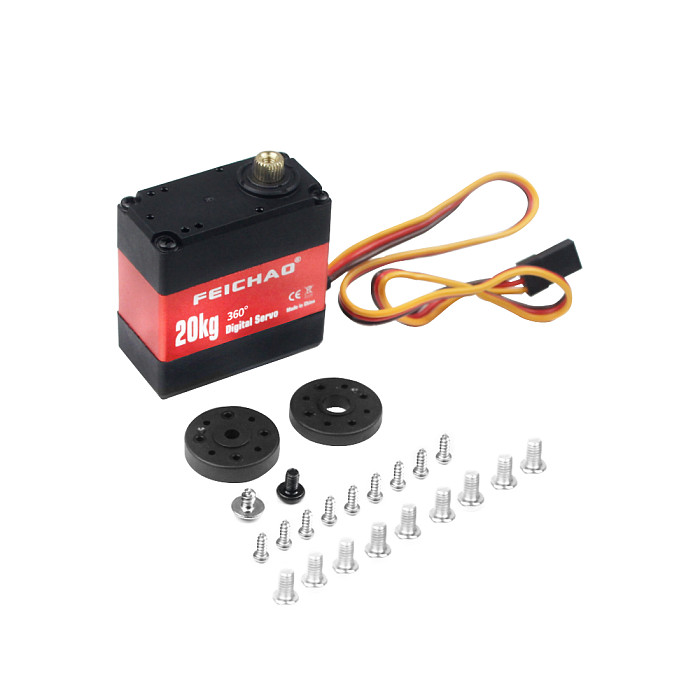

FEICHAO 20kg 180/270/360 Degree Robot Dual-axis Servo 6.0-7.4V Metal Gear PWM Digital Servo for Robot DIY Servo Excellent

FEICHAO 20kg 180/270/360 Degree Robot Dual-axis Servo 6.0-7.4V Metal Gear PWM Digital Servo for Robot DIY Servo Excellent Item NO.: F40450 F40451 F40452

Write a Review
US$ 5.96
US$ 6.48 Save US$ 0.52 (8% Off)
Version
180 Degree 270 Degree 360 Degree
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name FEICHAO 20kg 180/270/360 Degree Robot Dual-axis Servo 6.0-7.4V Metal Gear PWM Digital Servo for Robot DIY Servo Excellent
Item NO. F40450 F40451 F40452
Weight 0.078 kg = 0.1720 lb = 2.7514 oz
Category DIY RC Drone Accessories > Servo
Brand FEICHAO
Creation Time 2020-08-26


FEICHAO 20kg 180/270/360 Degree Robot Dual-axis Servo 6.0-7.4V Metal Gear PWM Digital Servo for Robot DIY Servo Excellent

20KG dual axis steering gear, metal tooth high torque robot steering gear, dual axis digital steering gear



Product parameters:

Product size: 40 * 20 * 40.5mm

Product speed: 0.16 sec / 60 ° 7.4V

Closed rotor torque: 15 kg / cm 6V; 17 kg / cm 7.4 V

Operating voltage: 6-7.4V

No-load current: 100mA

Product line length: 30cm



PWM pulse width type adjustment angle, the period is 20ms, the pulse width level 0.5ms ~ 2.5ms, duty cycle corresponds to the steering gear angle range of 0 ° ~ 180 °, and it is linear. Our steering gear controller adopts the value of 500 ~ 2500 corresponding to the range of 0.5ms ~ 2.5ms duty cycle of the departure angle of the steering gear control, so that the precision of the steering gear control be 3us, and the control precision can reach 0.3 degree in the 2000 pulse width range.



Note: To avoid binding when using the steering gear, locking means that the output shaft of the steering gear is artificially or mechanically prevented from rotating normally.

Because the locked rotor will cause the internal current of the steering gear to increase by more than 7 times, the increase in temperature will cause the steering gear to burn out.



Packing list:

1x20KG servo
