Frog 218mm Racer Drone BNF Frsky D16 Mini RX / PNP Set Betaflight F4 Pro V2 BLHeli-s 30A 5.8G VTX 700TVL Camera FPV Quadcopter

Frog 218mm Racer Drone BNF Frsky D16 Mini RX / PNP Set Betaflight F4 Pro V2 BLHeli-s 30A 5.8G VTX 700TVL Camera FPV Quadcopter Item NO.: F21375-C/F21375-D

Write a Review
US$ 146.11
US$ 158.81 Save US$ 12.70 (8% Off)
Version
BNF Frsky D16 RX PNP No Battery
Customized Requirements
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Frog 218mm Racer Drone BNF Frsky D16 Mini RX / PNP Set Betaflight F4 Pro V2 BLHeli-s 30A 5.8G VTX 700TVL Camera FPV Quadcopter
Item NO. F21375-C/F21375-D
Weight 0.7 kg = 1.5432 lb = 24.6918 oz
Category DIY RC Drone Accessories > Motor
Brand JMT
Creation Time 2018-10-17

Frog 218mm Racer Drone BNF Frsky D16 Mini Receiver / PNP Set Betaflight F4 Pro V2 BLHeli-s 30A 5.8G 25/200/400mW VTX 700TVL Camera FPV Quadcopter

Note: This is the Unassembly Version, We will help client to weld and connect some parts,In case the item is damaged due to the welding and connection errors. But client also still need to assemble and debug the item. If Client need more help, Please feel free to message us, we will do our best to provide technical support.
If you want to change the configuration of the product, please tell us your idea, we will give you suggestion and quote.

BNF with Frsky D16 Mini Receiver and Lipo Battery & Charger:
1 x TransTec Frog 218 frame kit
1 x Mini 700TVL Camera
1 x Betaflight OmniF4 Pro(V2) flight controller
1 x Flight Control Insulating Sheet
4 x HobbyWing XRotor Micro BLHeli-s 30A ESC
1 x Power Hub PDB XT60 Power Distribution Board
4 x 2306 2400kv Brushless motor
1 x FX400R Frsky D16 Mini Receiver with smart port Telemetry Micro TX
1 x VTX 48CH 5.8G 25/100/200/400mW
4 x 5045 3-blade propeller
1 x 11.1V 1500MAH 40C XT60 Lipo Battery
1 x IMAXRC B3 pro Charger (EU/US Plug Optional)

1x 5V Buzzer Alarm Beeper
1 x Other accessories


PNP without  Receiver and Lipo Battery & Charger:
1 x TransTec Frog 218 frame kit
1 x Mini 700TVL Camera
1 x Betaflight OmniF4 Pro(V2) flight controller
1 x Flight Control Insulating Sheet
4 x HobbyWing XRotor Micro BLHeli-s 30A ESC
1 x Power Hub PDB XT60 Power Distribution Board
4 x 2306 2400kv Brushless motor
1 x VTX 48CH 5.8G 25/100/200/400mW
4 x 5045 3-blade propeller
1x 5V Buzzer Alarm Beeper
1 x Other accessories


Specification:
Item name: Frog 218 FPV Racing Drone
Frame kit: Frog (full 3K carbon plate plus 7075 aluminum alloy CNC)
Wheelbase: 218 mm
Camera: 700TVL Camera

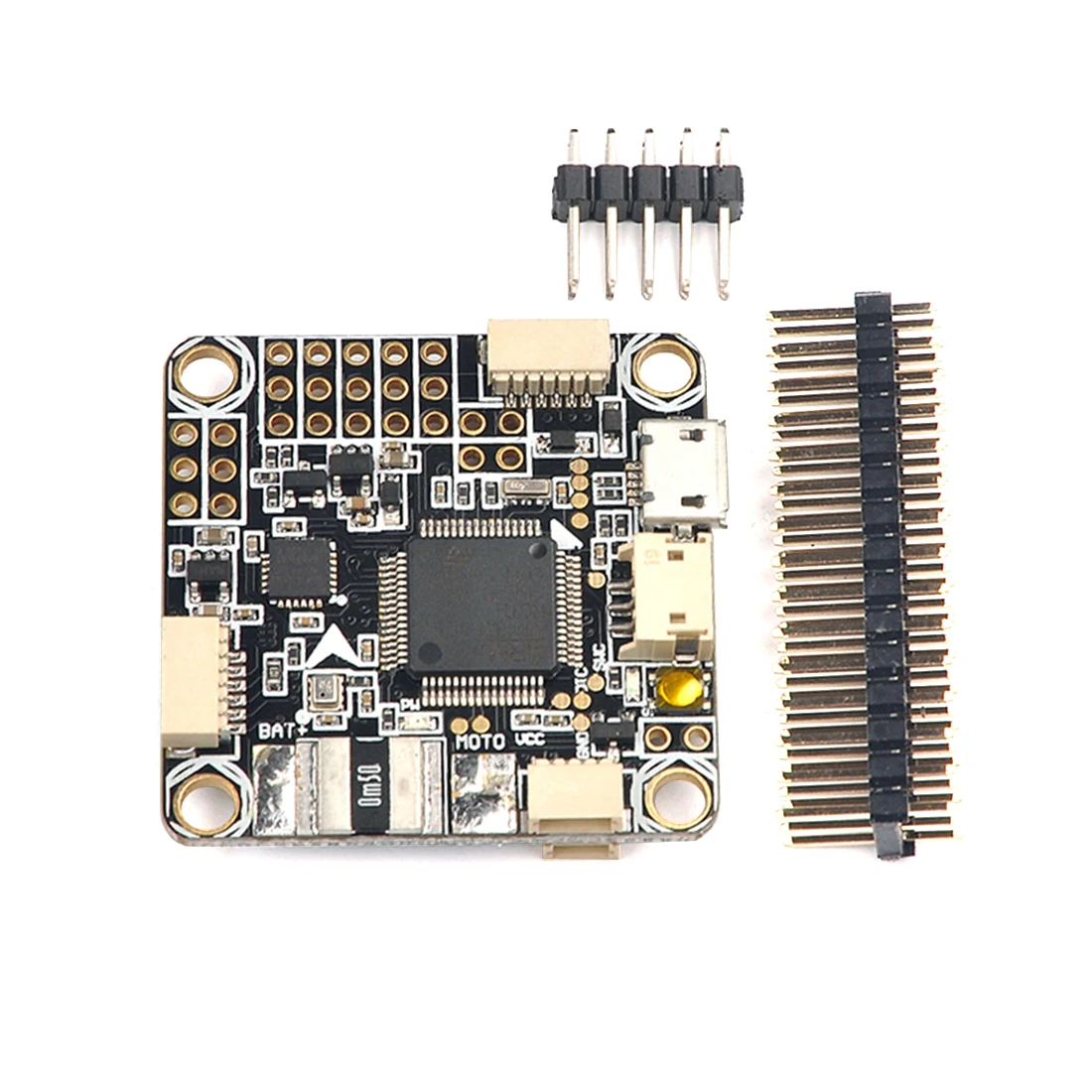

Flight Control: Betaflight OmniF4 Pro(V2) Built-in OSD/BEC
ESC: BLHELI_S 30A Dshot600
VTX: 48CH 5.8G 25/100/200/400mW adjustable
Motor: 2306 2400kv
Propeller: 3-Blade 5045
Drone Weight: about 383g Unassembly, without battery
Flight Time: About 10min (The specific flight duration depends on the movement of your flight)
Flight control Parameter adjustment software: Betaflight
Official website address :https://github.com/betaflight/betaflight-configurator

Function:
1. The aircraft has ascend, descend, forward, backward, left sideward fly, right sideward fly hover, left turn, right turn,self-stable, semi-stable, first-angle flight, buzzer in the air. It has been set before the goods), (manual mode ---
 caution for beginner and other modes need to be set by yourself).
2. Remote Controller is optional according your request.
3.The aircraft body is made of high-strength and low-weight carbon fiber board, which is resistant to falling and durable.
4. The first perspective of racing flight (caution for beginner).

Q&A
1. Can the frame be used with other motors and ESCs? Can the propellers be changed?
A: Of course, we recommend motor 2300kv-2400kv, ESC 20A-30A, Propellers 4 inch-5 inch.
2. Can I use a larger capacity battery?
A: Our ESC support voltage is 3-4s, the recommended maximum capacity is 2200mah.
3. I don't like the remote control you are equipped with. Can I change the remote control? A: Yes, after you change the remote control, we will also set up all the auxiliary flight modes for you. We will inform you of the gear position information.


Warning:
1. When using the charger, do not charge the charger with 2S and 3S batteries at the same time.
2. Do not modify any parameters and wiring without knowing the flight control and remote control. Item do not include Remote Controller, So that we can not debug and calibrate the flight control and ESC in advance, Client need to confirm the relate setting according to your remote controller. More questions, Please feel free to message us.
3. Turn on the remote control before powering the aircraft. After the flight is over, unplug the power supply and turn off the remote control to prevent accidents.
4. This aircraft is not recommended to fly indoors. It is recommended to fly in an open space to avoid flying in places where people and disturbances are present.


More Pictures:


Frame:


Receiver:
FX400R Frsky D16 Mini Receiver with smart port Telemetry Micro TX Compatible 2.4G SBUS Output
Dimension: 29mm*15mm*6mm
Weight:3g
SBUS output only
Work Mode : D16
Channels : SBUS CH1-CH16
Smart port ready
Operating Range: About 1000 meter
Operating voltage: 5V





aeProduct.getSubject()aeProduct.getSubject()



Other Spare Parts, If you have any questions about them, Please feel free to message us
