Foxeer Predator 5 Mini Nano Micro/full case racing FPV Camera switchable Super WDR OSD 4ms Latency Upgraded Foxeer Predator V3

US$ 43.77

Version

Estimate Shipping Cost

Detail
- Product Name: Foxeer Predator 5 Mini Nano Micro/full case racing FPV Camera switchable Super WDR OSD 4ms Latency Upgraded Foxeer Predator V3
- Item NO.: F41725 F41726 F41728 F41729 F41730 F41733 F41740
- Weight: 0.025 kg = 0.0551 lb = 0.8818 oz
- Category: DIY RC Drone Accessories > Camera
- Brand: Foxeer
- Creation Time: 2020-10-27

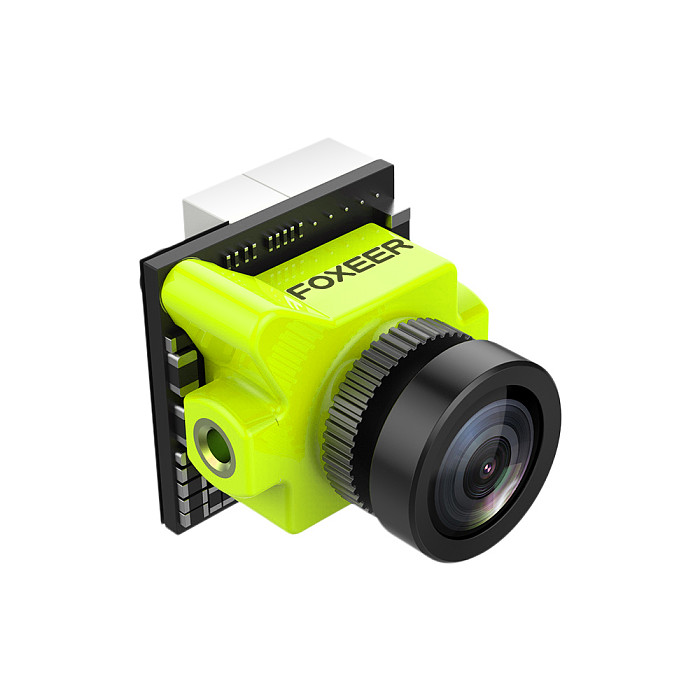

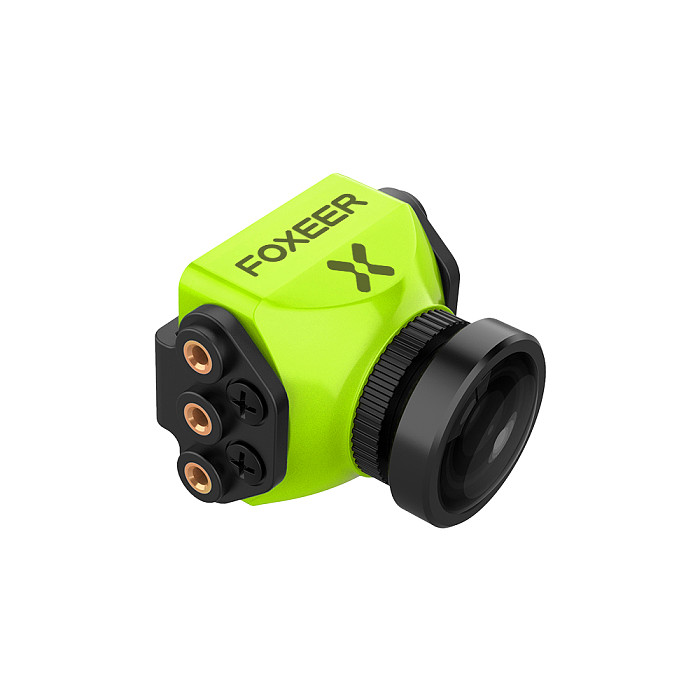

Foxeer Predator 5 Mini Nano Micro/full case racing FPV Camera switchable Super WDR OSD 4ms Latency Upgraded Foxeer Predator V3

Brand: Foxeer

Model:Micro Predator V5

Color:Red/Black/Green/Blue

Input：4.5-40V

OSD：Yes

Horizontal Resolution:1000TVL

Signal System:PAL / NTSC switchable（4:3/16:9 switchable）

WDR：super WDR function

■ Crosshair alignment

■Image flip function

SensorType：Sony 1/3"CMOS Sensor

Scale：4：3(default) /16： 9 Switchable

Tv System：PAL(default) /NTSC Switchable

Resolution：1000TVL

Shutter Speed：PAL 1/25~1/10000sec； NTSC 1/30~1/10000sec

Video Output：CVBS Analog Signal

FOV：1.8mm：FOV-H：115°FOV-D：150°

2.5mm：FOV-H：105°FOV-D：130°

Shutter Speed：Auto

Minimum Ilumin ation：0.01Lux

WhiteBalance：Auto

DNR：3DNR2DNR

WDR：Super WDR

DAY/NIGHT：Auto/Color/B&W

Flight OSD：Voltage/Cam Title/Time/CrossHair

Mode：DAY I CLOUDY/Night/LED

Fast Mode Switch：Long Press Right Button to switch among DAY/CLOUDY/Night/LED

Input Voltage：4.5V~20V

Language：ENGLISH/DEUTSCH/FRANCAIS/PY CC KNN/PORTUGUES/ESPANOL/中文

Working Temperature：-10°~50°CRH 90%MAX

Working Humidity：20~80%

Storage Temperature：-20°~70C

Consumption：50mA±15%@DC12V115mA±15%@DC5V

Dimension：22*22mm； 28*22mm(Add Bracket

Weight：12g(Exclude cable)

Package:

1*Predator V5

1*OSD board

1*servo cable

1*2pin OSD cable

1*bracket

12*bracket screw

6*screw gasket
