ADT-Link PCI-E x8 Extension Cable Pcie Riser Extender w SATA Cable for RTX3060 ETH Mining PCI Express 3.0 x8 Gen3 64G/bps Adapter Cable

Brand: ADT-Link

Product model: R8 series products

Product name: PCI-E adapter board extension cable

Cable length: 3~100cm (supports customization of cable length, different lengths of cables have different prices. If you need other lengths, please contact customer service to change the price before paying.)

Bandwidth speed: PCIe 3.0x8 gen3; 64G/bps

Adapted graphics card: GTX1080 high-end graphics card, board, fireprow7100, radeonprowx5100, quadroK1200 professional graphics card.

Restrictions on use: It is only for professional engineers to purchase. It is not suitable for general use. Ordinary buyers should not buy.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in large quantities after testing and verifying that they are correct.

Friendly reminder: There are many compatibility problems with this product. Incorrect assembly or improper operation will burn your equipment. Only designated by professional engineers to purchase. This product is a customized product and cannot be returned or exchanged. Please consider and confirm clearly before placing an order for purchase.

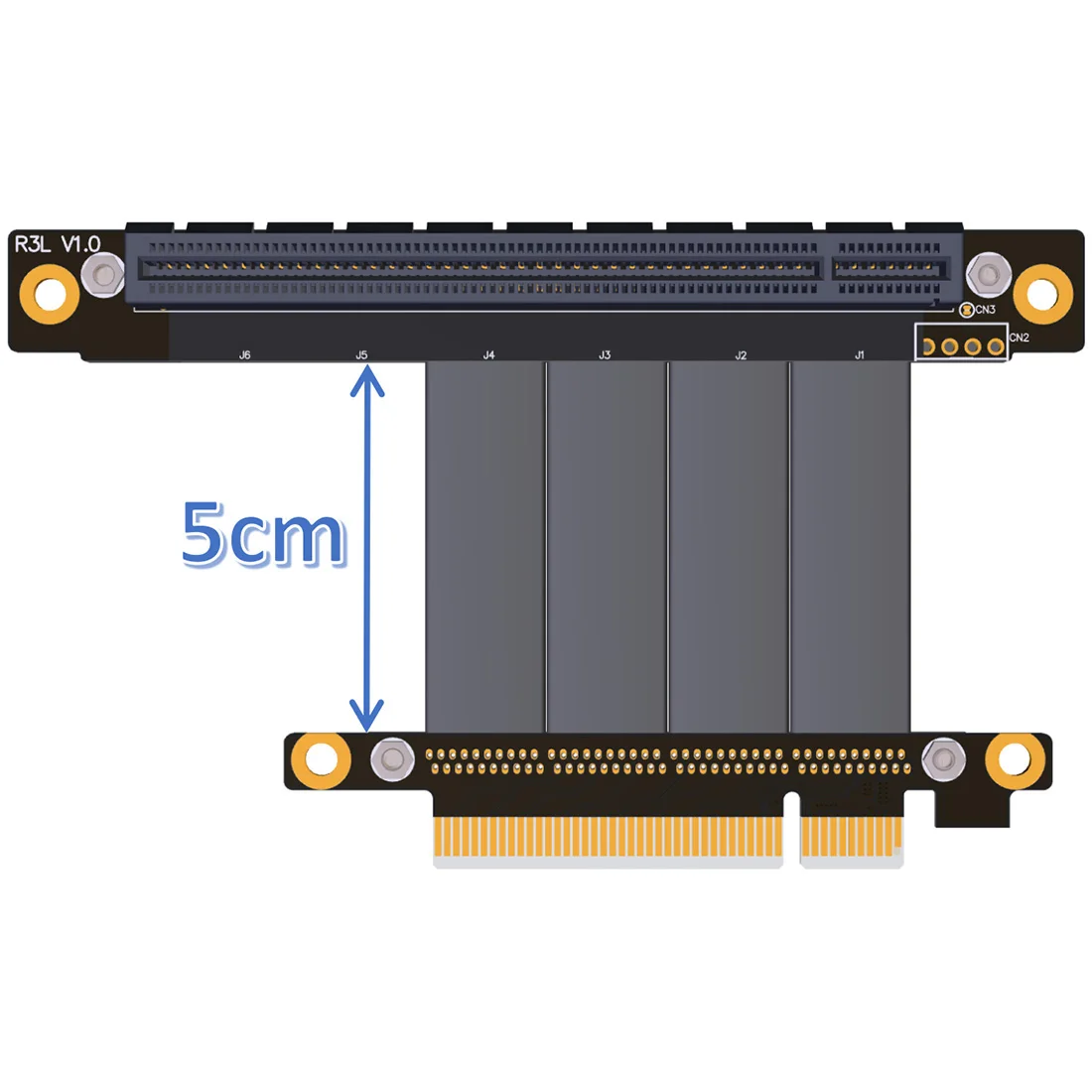

Wire length description:

The length of the wire refers to the part of the visible wire, excluding PCB and connectors.

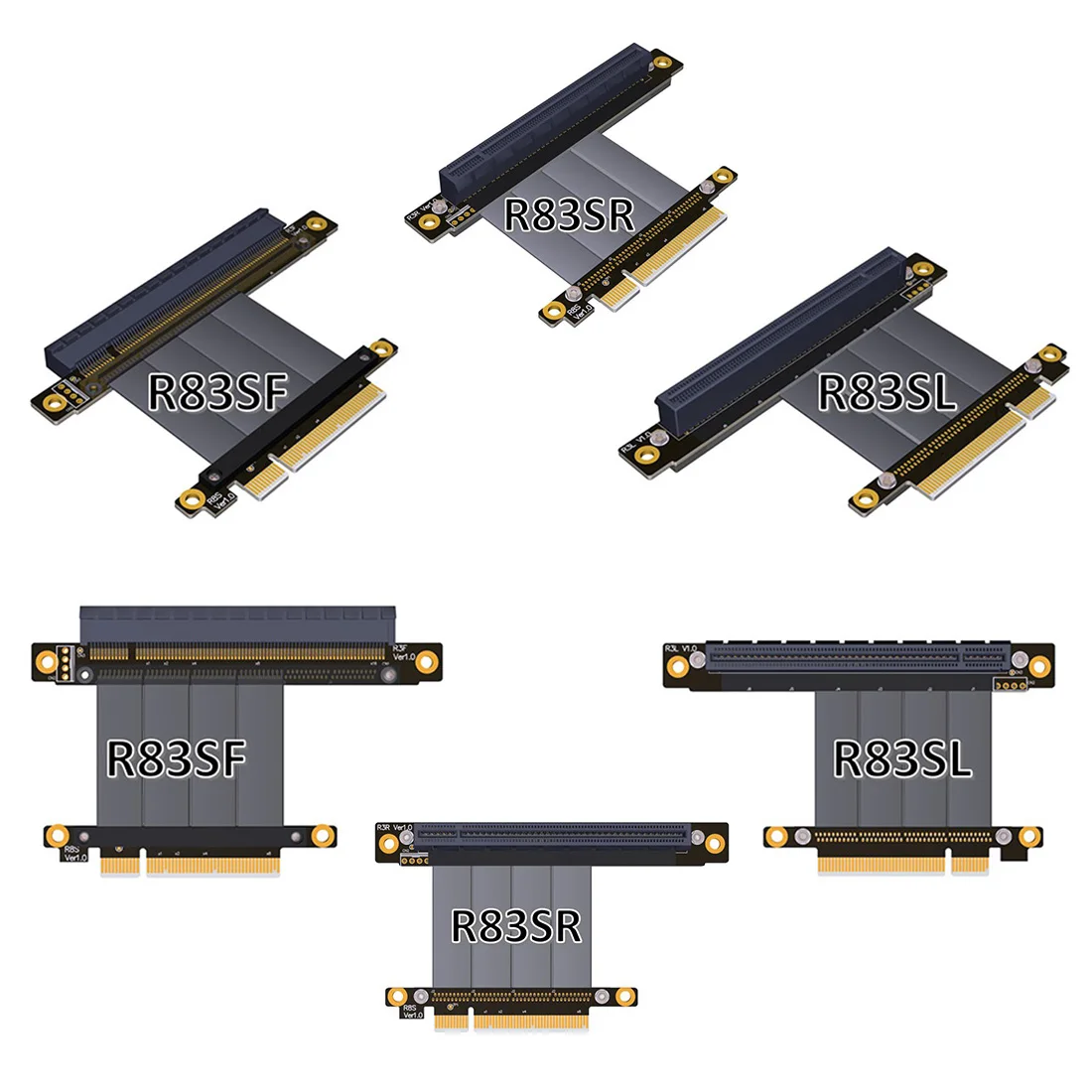

Note: Model R83SF-PW is suitable for ETH mining with more than RTX3060 graphics cards.

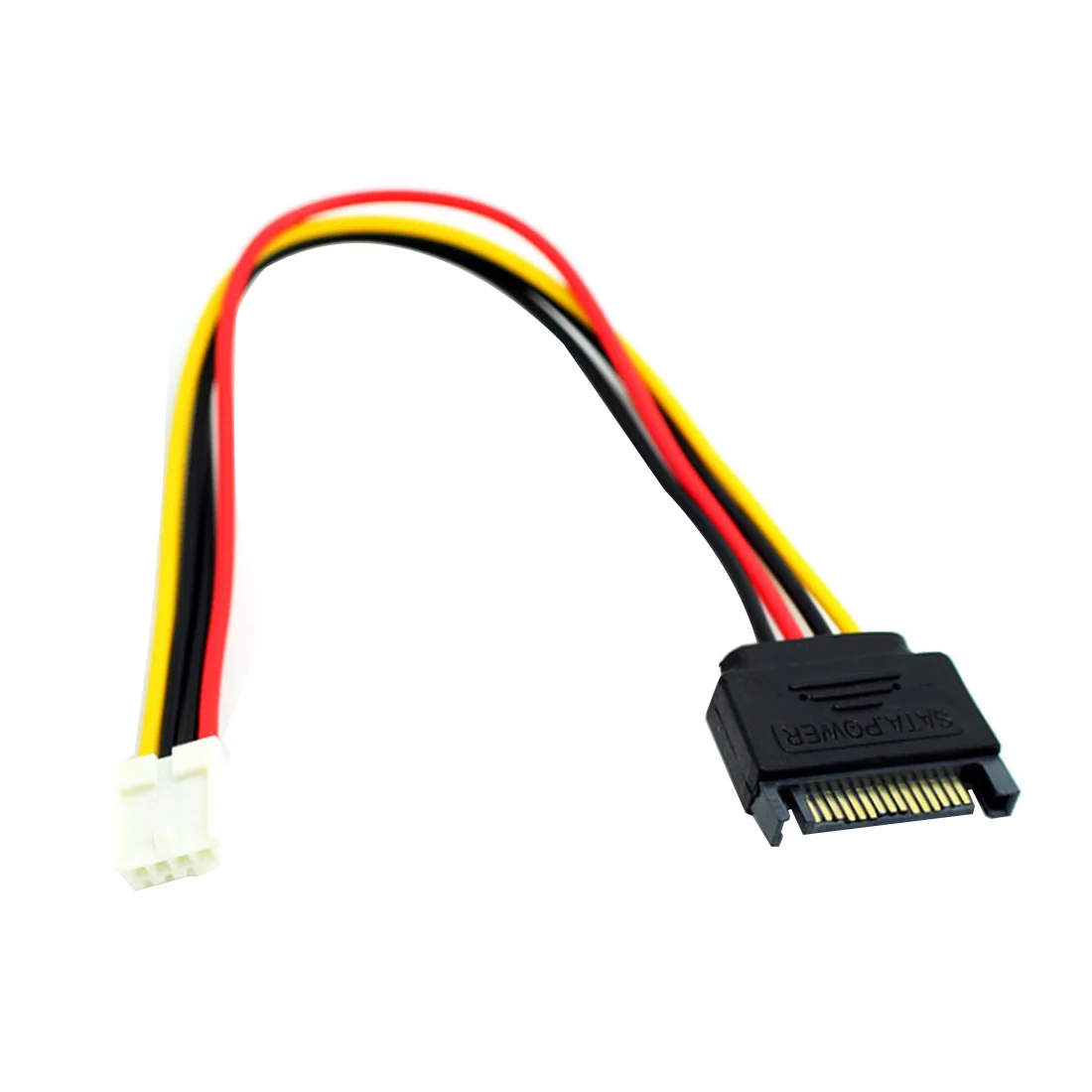

Multi-card mining buyers please note that the external power supply of the mining extension cable is to solve the problem of insufficient power supply for the motherboard and reduce the burden on the motherboard. If your motherboard has PCIe to enhance the power supply, then our extension cable can not be connected to the power supply.

Product advantages:

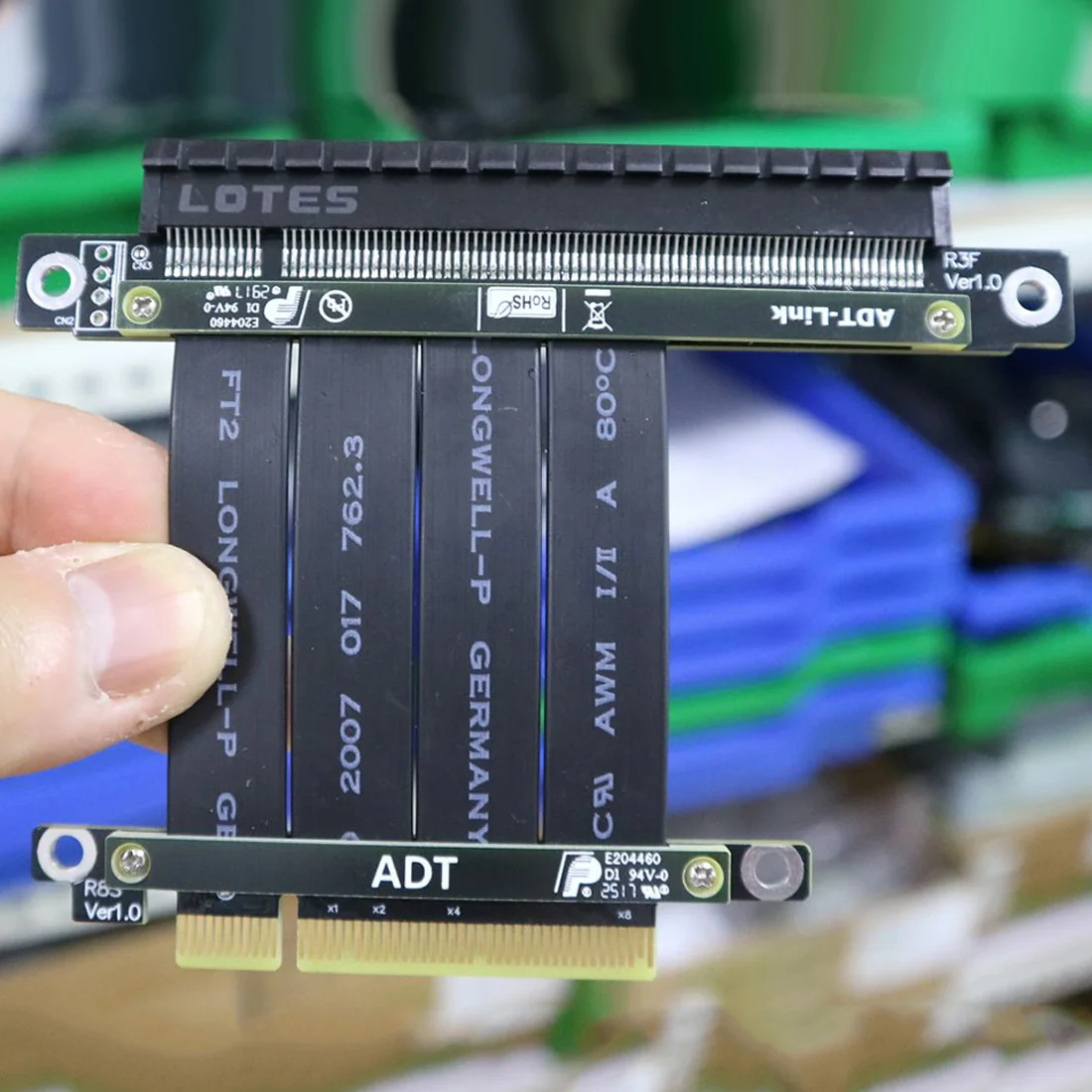

1. Wire advantage, use German patented imported wire, use Taiwan imported Lotes connector, high frequency support PCIe 3.0 8G/bps stable transfer

2. The line length advantage, from 1 cm to 10 meters can be customized. The cable impedance is low, and the cable length within 60 cm can stably support PCIe3.0 full speed. Our store has measured that using a 10 meter cable can still transmit stably at a speed of 2.5G/bps.

3. Differential signal has no via hole design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable

4. The PCB uses high-quality materials with high frequency and low resistance. The PCB is made of high-quality materials. The PCB uses high-TG plates. The thickness of the copper material is thickened to 1oz. The gold finger has sufficient gold plating content and the gold-plated foot has good electrical conductivity, which can reduce oxidation and rust resistance caused by increased resistance. The blue screen of death problem.

5. The wire used in the product is very durable. Use PCB gaskets with a thickness of 3mm to protect the metal welding points, and lock the screws and hexagonal nuts to fasten the product. The product is strong and reliable, resistant to pulling, anti-interference, and will not break the wire. The nail drop problem.

6. Choose the high-quality connector of Taiwan Lotes company, the connector opening design, in addition to x16, you can also insert x1 x8 x16 board, the board hardware compatibility is stronger,

7. The PCB is short and fat design, which will not get stuck to the graphics card. The fat and long design makes the board easier to install and reduces the chance of damage

Summary of technical issues:

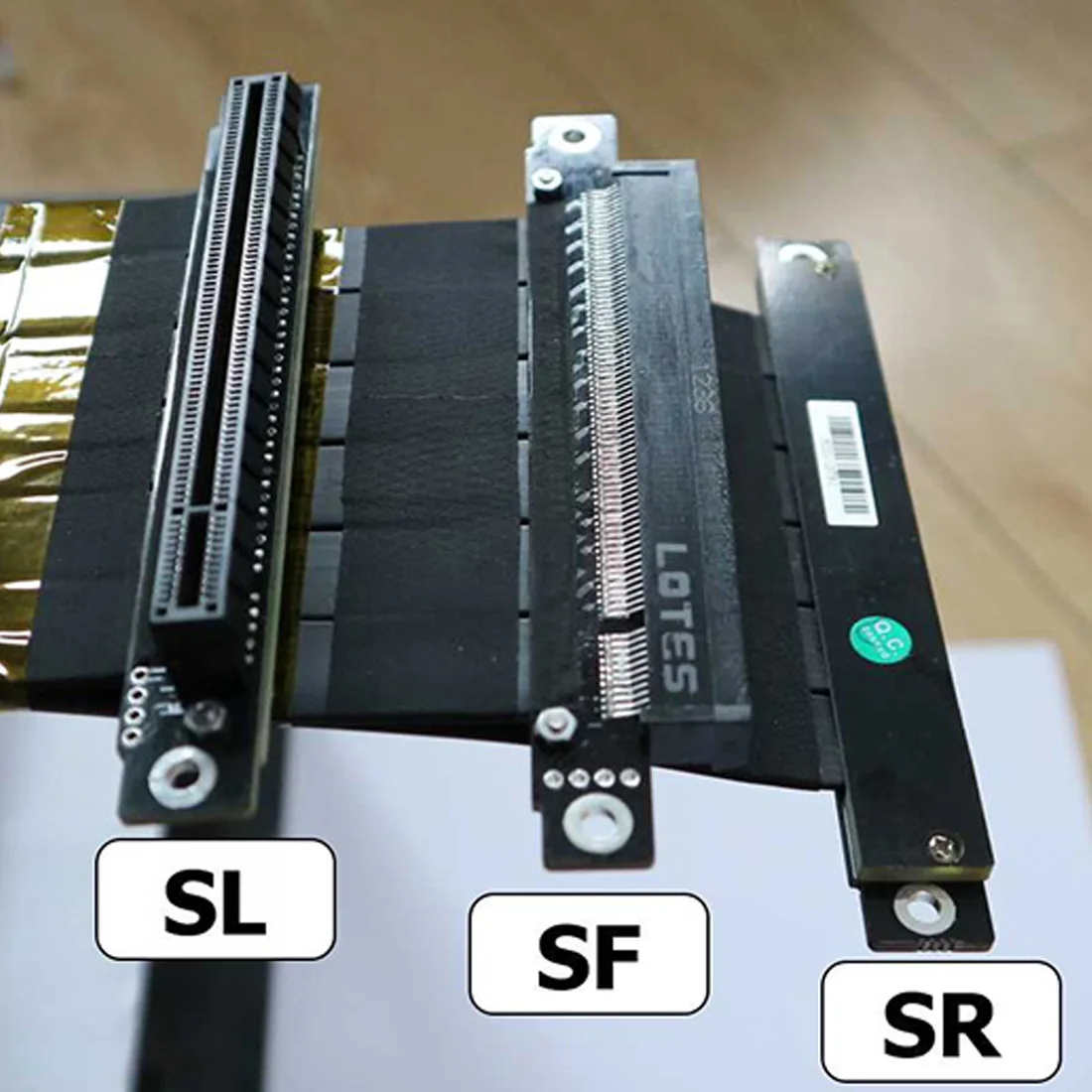

The extension direction of the extension line is 90 degrees to the left (SL), 180 degrees to the horizontal (SF), and 270 degrees to the right (SR). What is the difference?

Below: SL = upright, SF = splint, SR = inverted.

SL: The PCIe connector and the PCB board are rotated 90 degrees vertically.

SF: PCIe connector and PCB board are rotated 180 degrees horizontally.

SR: The PCIe connector and the PCB board are turned upside down by 270 degrees.
