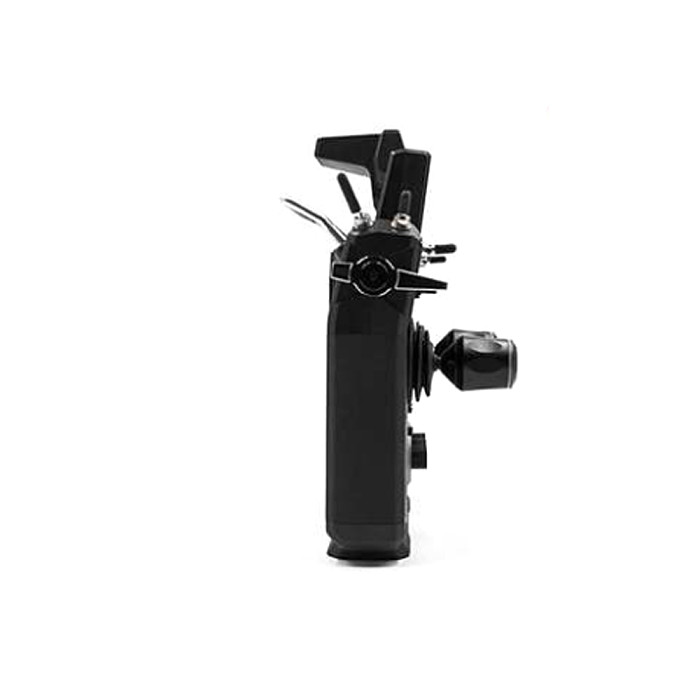

FLYSKY PL18EV Paladin 2.4G 18CH 5D Hall Sensor Gimbals AFHDS3 Radio Transmitter 3.5Inch TFT Touch Screen Model for RC Model Car

US$ 599.99

Version

Customized Requirements

Estimate Shipping Cost

Detail
- Product Name: FLYSKY PL18EV Paladin 2.4G 18CH 5D Hall Sensor Gimbals AFHDS3 Radio Transmitter 3.5Inch TFT Touch Screen Model for RC Model Car
- Item NO.: F45274-D1 F45274-D2
- Weight: 1.25 kg = 2.7558 lb = 44.0925 oz
- Category: RC Toy Drone > FullSpeed
- Brand: Flysky
- Creation Time: 2021-10-13
FLYSKY PL18EV Paladin 2.4G 18CH 5D Hall Sensor Gimbals AFHDS3 Radio Transmitter 3.5Inch TFT Touch Screen Model for RC Model Car

Specification:
Brand:FlySky
Product Model:PL18EV
Product Name:Paladin EV
Channels:18
Adaptable receivers:all AFHDS 3 receivers
Model Type:engineering vehicles, simulation ship etc.
RF:2.4GHz
RF Power:< 20 dBm
2.4GHz Protocol:AFHDS 3
Distance:>500m (open without interference ground)
Channel Resolution:4096
Battery:1S (3.7V) * 4300mAh (built-in)
Charging Interface:Micro USB/wireless charging
Charging Time:4h@5V*2A/7h@5V*2A (wireless charging)
Life time:>5.5h (standard accessories)
Low Voltage Warning:< 3.65V
Antenna Type:Dual antenna
Display:HVGA 3.5 TFT，320*480
Language:Chinese and English
Simulator:USB Simulator
Data Interface:USB、Non-standard interface（USART）、PHJACK（PPM）
Temperature Range:-10℃—+60℃
Humidity Range:20%-95%
Online Update:Yes
Color:black
Size:214mm*120mm*196 mm
Weight:1006g
Certiﬁcation:CE，FCC ID：N4ZFT1800
Model Type:FGr12B
PWM Channels:12
RF:2.4GHz ISM
2.4GHz Protocol:AFHDS 3
Distance:>500m（open without interference ground）
Antenna Type:Single antenna
Power:3.5v-9V
RSSI:Yes
Data Interface:i-BUS/S.BUS/PPM/PWM
Temperature Range:-10℃—+60℃
Humidity Range:20%-95%
Online Update:Yes
Size:37mm*25mm*17.5mm
Weight:11.2g
Certiﬁcation:CE，FCC ID:N4ZFGR12B
Features:
PL18EV is an 18-channel transmitter dedicated to engineering vehicles, equipped with 2.4GHz AFHDS 3 (third-generation automatic frequency hopping digital system). The standard conﬁguration is an FGr12B receiver!
AFHDS3 (third-generation automatic frequency hopping digital system) is a newly developed digital wireless system. It is compatible with single antenna bidirectional real-time data packet transmission and data stream transmission. With the advantages that come with the WS2A wireless system and the new 2.4GHz chip, the system can dynamically set: number of channels, channel resolution, range, anti-interference requirements and latency to meet the needs of diﬀerent users.
Hardware highlights:
Rocker type: 5D Hall waterproof rocker + 2 levers
The third rocker: one on the left and one longitudinal centering lever
Other controls: 6 gear switches (the length of the gear is not the same as the reset, accessories can be modified) + 3 knob keys + 2 self-locking buttons + 8 fine-tuning buttons (two-way buttons)
Display screen: 3.5-inch TFT color screen, 320*480 dot matrix, LCD white backlight, capacitive touch screen
Vibration/sound alarm: adjustable vibration intensity + different alarm sounds and real voice ic alarm and prompt sound
Other accessories: The flagship version comes standard with a bracket with hand rest + shoulder strap
Charging: Support Mirco USB and QI wireless charging
Battery: Built-in 4300mAh high-capacity lithium battery
Software highlights:
Number of channels: 18 ratio channels
Dual model control: support
Data backup and setting sharing and storage capacity: Fusi remote control butler realizes model data backup and sharing. The remote control can store 20 sets of models
Upgrade: USB connected to the computer through the Fusi remote control butler, software network upgrade
Additional functions: timer, logic switch, simulator
Custom function + control All channels can be customized function + custom allocation control and fine-tuning
Unique model function: double ratio curve + delay function + 20 groups of customizable mixing control + track mixing control function
Note:
1. Please understand the product might have some colour difference due to different monitors and scenes.
2. Please allow slight deviation for the measurement data.
Package Included:
Standard Version:
1x PL18EV transmitter
1x FGR12B receiver
1x Micro USB cable
1x LOGO sticker 1 (pure logo)
1x LOGO sticker 1 (with other designs)
1x PL18 body sticker
1XPL18EV Quick Operation Guide
Ultimate Edition:
1x PL18EV transmitter
1X FGR12B
1XFGr8B receiver + cable
1x wireless charging dock
1x Quick Operation Guide
1XChannel development line
1XThickened handle
1x Micro USB cable
3x Toggle switch rubber cover
1x tray (with hand rest)
1x Tray strap
1x LOGO sticker 1 (pure logo)
1x LOGO sticker 1 (with other designs)

1x PL18 body sticker
