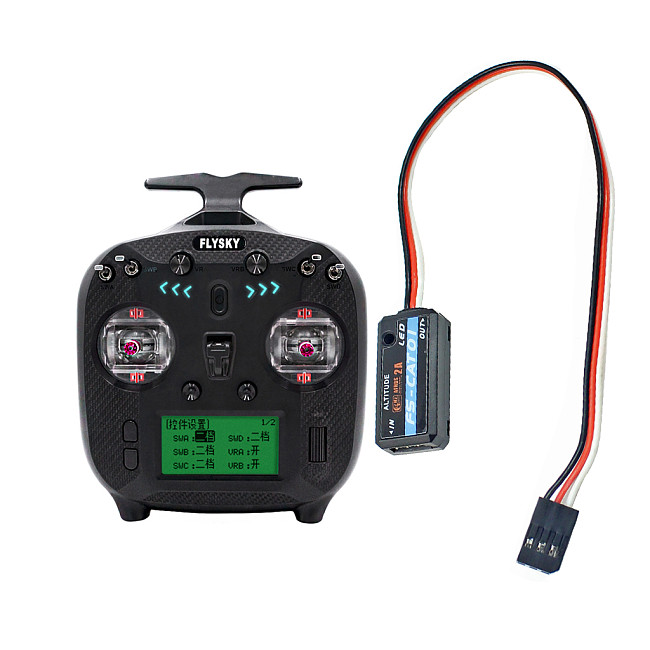

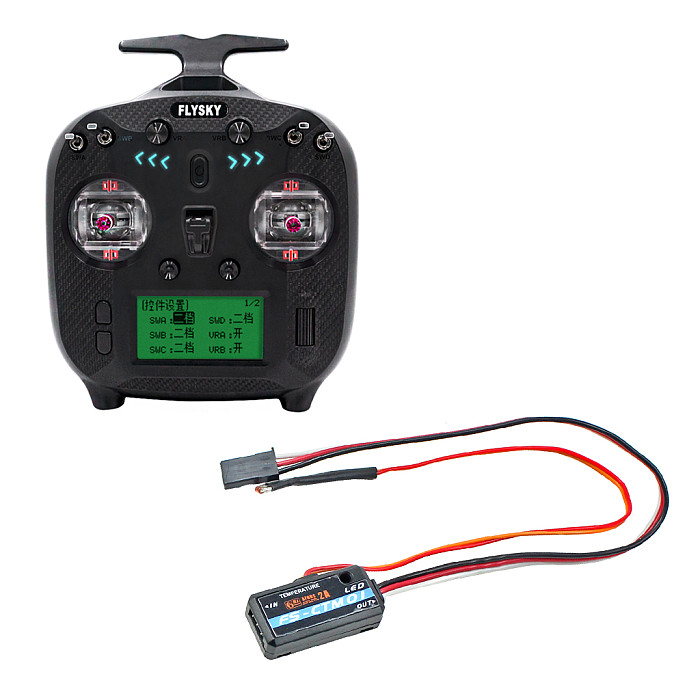

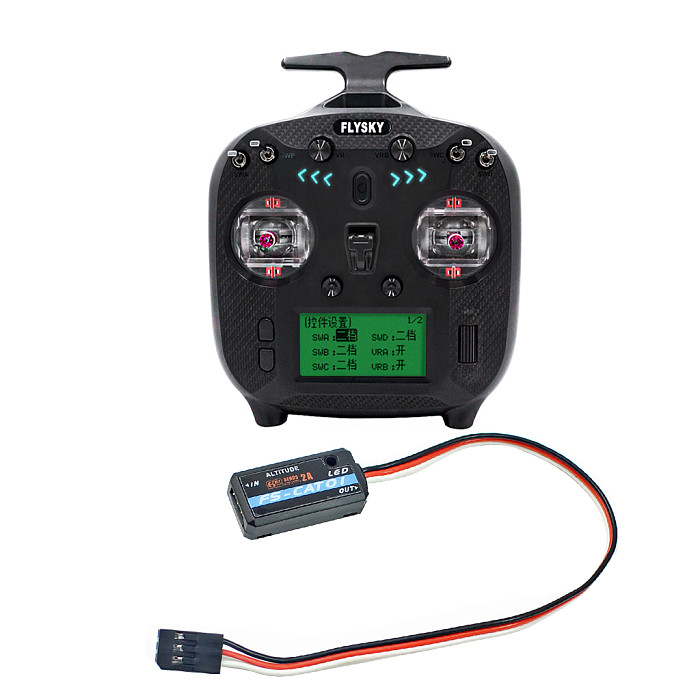

FLYSKY FS-ST8 RC Transmitter 2.4GHz Remote Controller ANT Protocol wi/ FS-SR8 Receiver 8CH +FS-CEV 1000M Remote Control Distance

US$ 72.99

Color

Add to Cart

Estimate Shipping Cost

Detail
- Product Name: FLYSKY FS-ST8 RC Transmitter 2.4GHz Remote Controller ANT Protocol wi/ FS-SR8 Receiver 8CH +FS-CEV 1000M Remote Control Distance
- Item NO.: F47110 F47110-A--F47110-F
- Weight: 0.5 kg = 1.1023 lb = 17.6370 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2022-05-13
FLYSKY FS-ST8 RC Transmitter 2.4GHz Remote Controller ANT Protocol with FS-SR8 Receiver 8CH +FS-CEV04 FS-CPD01 FS-CPD02 FS-CTM01 CVT01 Temperature Telemetry Data Module 1000M Remote Control Distance

Notice:All the Version comes with FS-SR8 Receiver

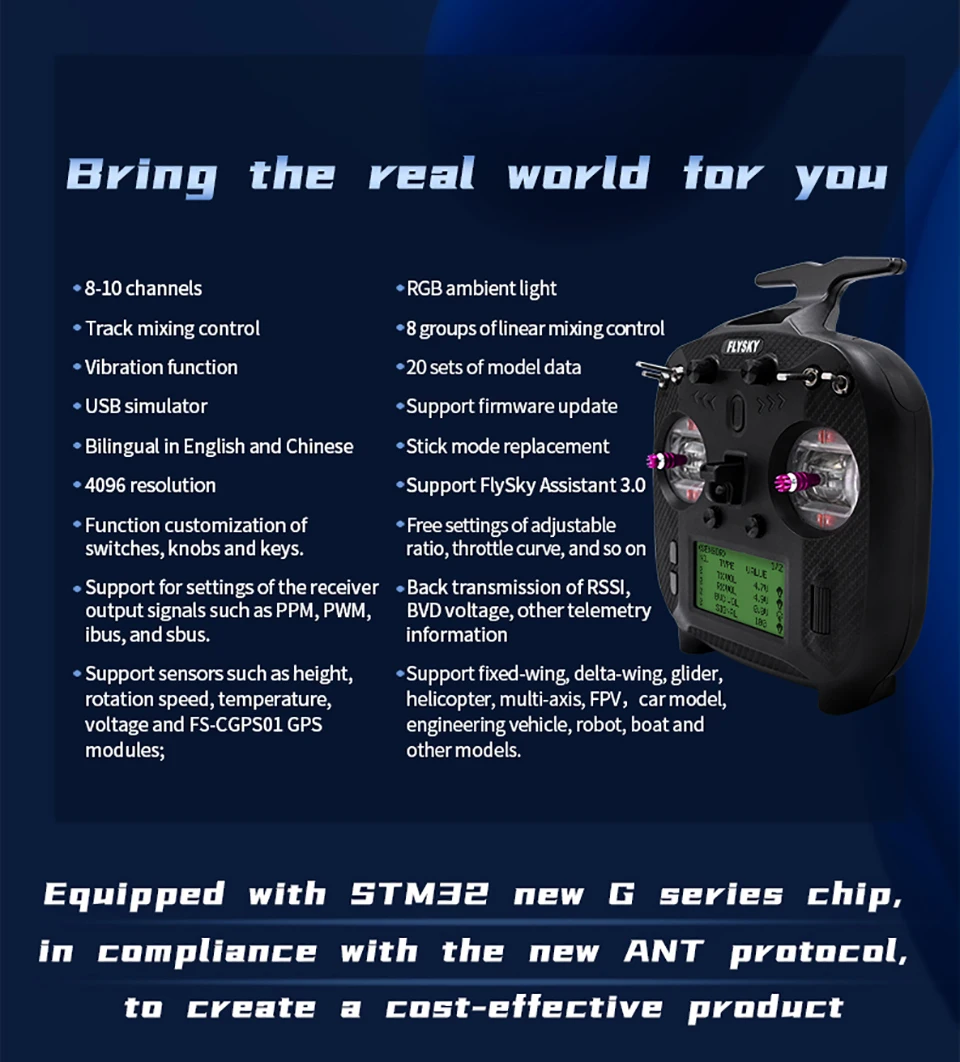

Digital proportional radio control system.
The RX SET(receiver setting) menu provides a number of function setting
menus to allow you to set up the receiver system in all aspects.
User-friendly design for each operation and handling.
With lightweight and portable size, it is easy and convenient to carry and use.
Ergonomics, comfortable hand feel, not easy to sweat.

Specifications:
Brand: FLYSKY

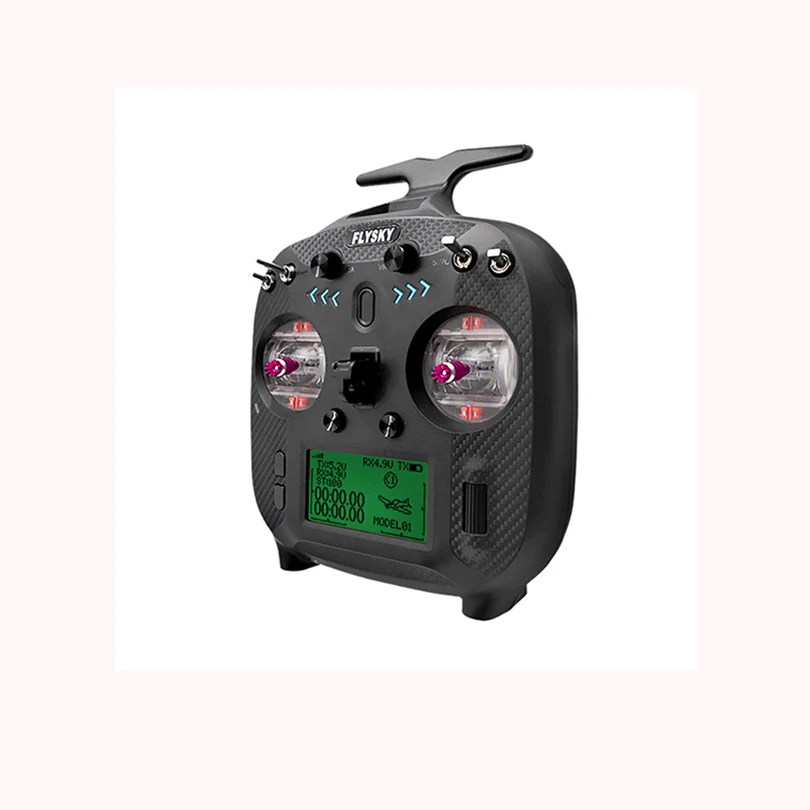

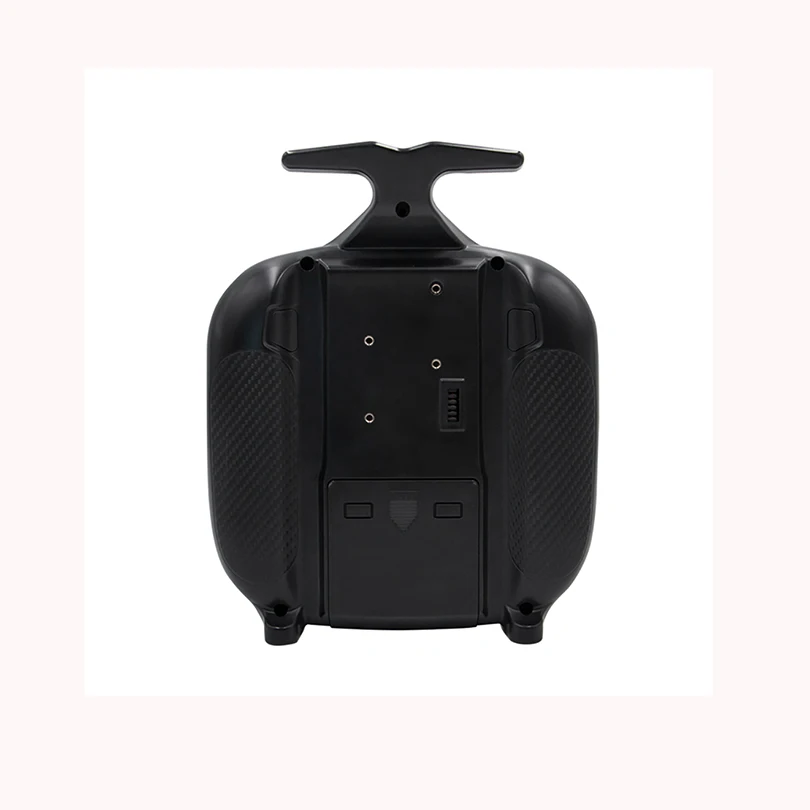

Product Model: FS-ST8
Channels: 8-10
Adaptive Receiver: FS-SR8 ( Adapts Receiver with ANT Protocol )
Model Type: Helicopters, Gliders, Delta-wing Airplanes, Multicopters, Engineering vehicles, Robots, Cars or Boats, etc.
RF: 2.4GHz ISM
Maximum Power: < 20dBm (e.i.r.p.) （EU）
2.4GHz Protocol: ANT
Distance: >1000m（Air distance without interference）
Channel Resolution: 4096

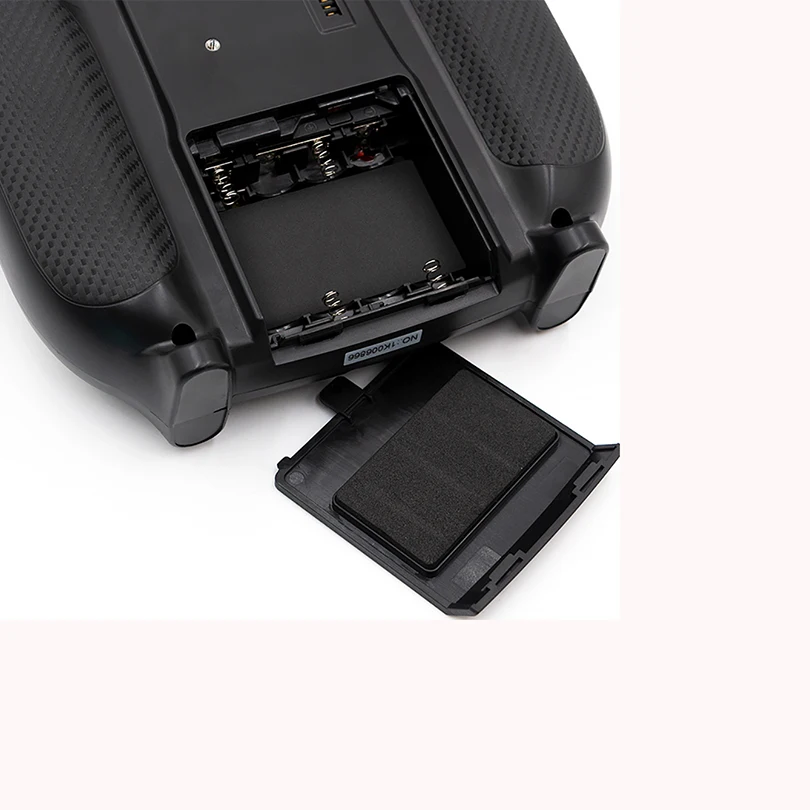

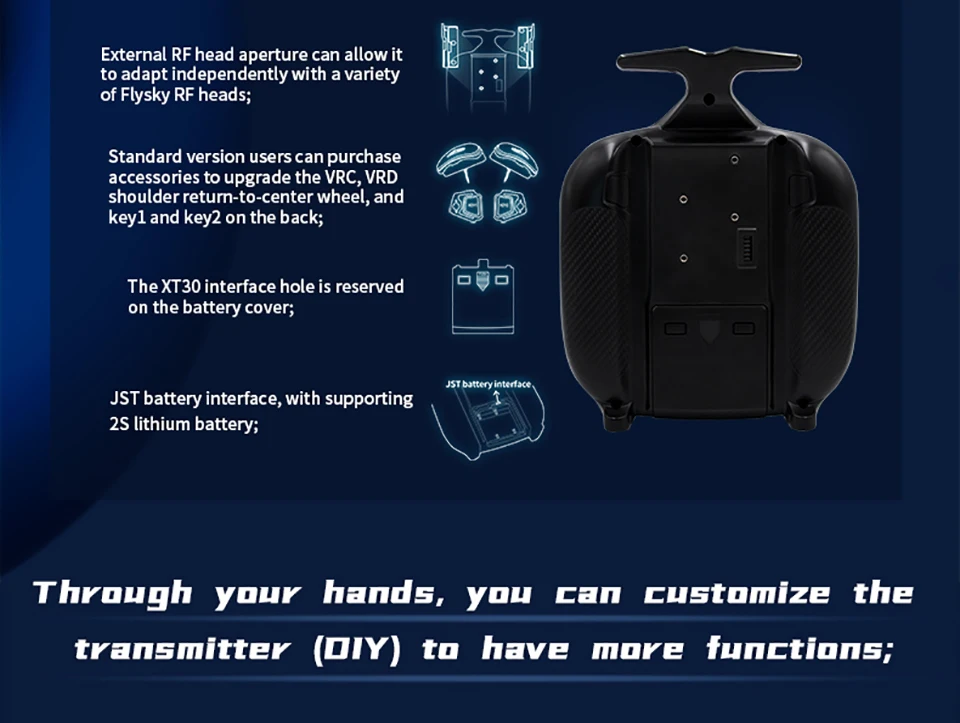

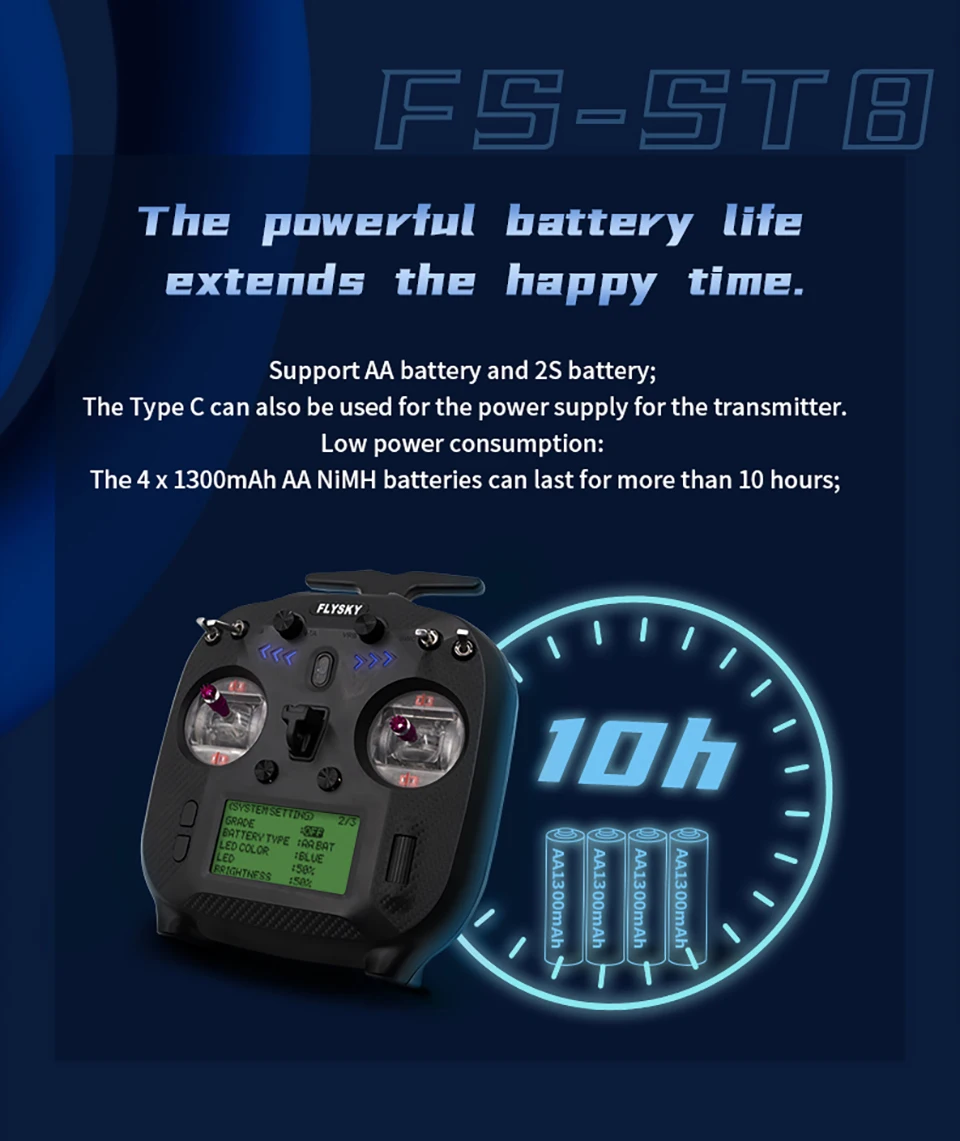

Battery: 1.5AA*4 / 2S Lipo（JST）
Charging Interface: NO
Data Output: PWM/PPM/i-BUS/S.BUS
Low Voltage Warning: AA battery: <4.2V/ Lipo battery: <7.2V
Antenna Type: Built-in double antennas
Display: 128*64 LCD (Black and white Dot Matrix Screen)
Temperature Range: -10℃ ~ +60℃
Humidity Range: 20% ~ 95%
Languages: Chinese, English
Online Update: Yes
Color: Black
Size: 176*210.9*82.5mm
Weight: 420g

Product Model: FS-SR8
Adaptive Transmitter: FS-ST8 (Adapts Transmitter with ANT Protocol )
Adaptive Models: Helicopters, Gliders, Delta-wing airplanes, Multicopters, Engineering Vehicles, Robots, Cars or Boats, etc.
Numbers of Channel: 8
Maximum Power: < 20dBm (e.i.r.p.) （EU）
RF: 2.4GHz ISM
2.4GHz Protocol: ANT
Distance: >1000m (Air Distance without Interference）
Antenna Type: Two Antennas
Input Power: 3.5~9V/DC
Data Output: PWM/PPM/i-BUS/S.BUS
Online Update: Yes
Temperature Range: -10℃ ~ +60℃
Humidity Range: 20% ~ 95%
Size: 44.8*26.6*11.3mm

Package Information:
Package Size: 23.5*25.5*9.5cm
Package Weight: 661g

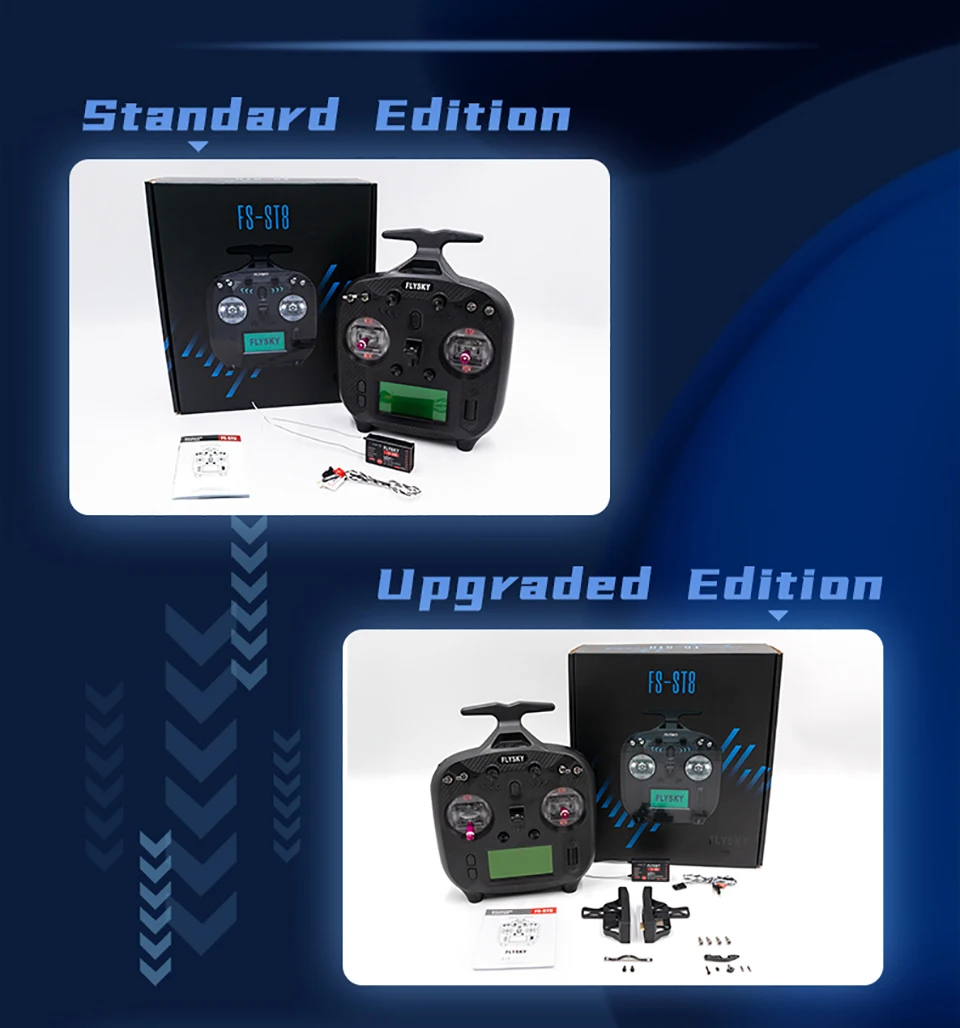

Package List:
1* Transmitter
1* Receiver
2* User Manual

Flysky AFHDS2A TELEMETRY Module (FS-CEV04, FS-CPD01, FS-CPD02, FS-CTM01, FS-CVT01)
Compatible Receiver: iA4B(directly), iA6B(directly), iA10(need conversion cable)

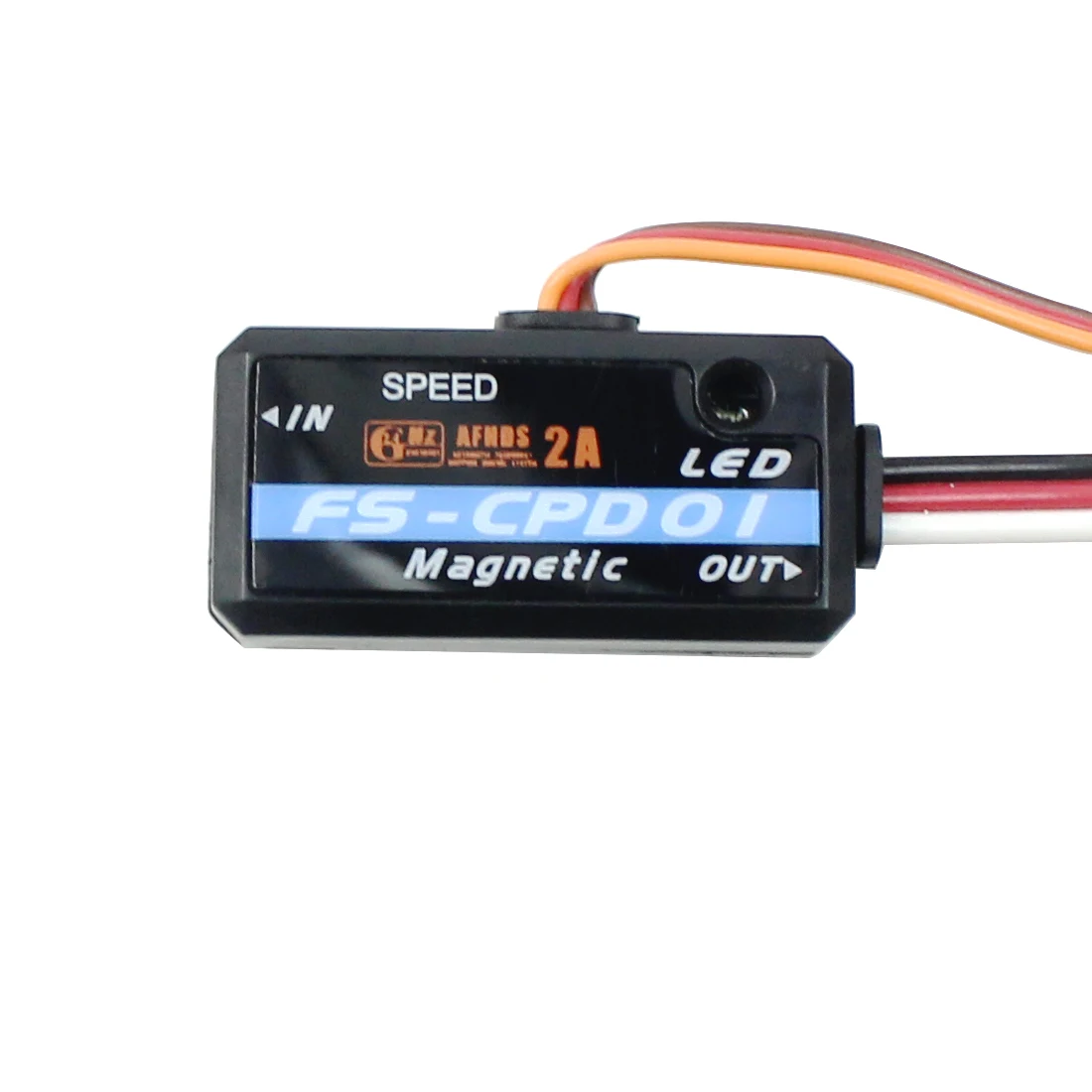

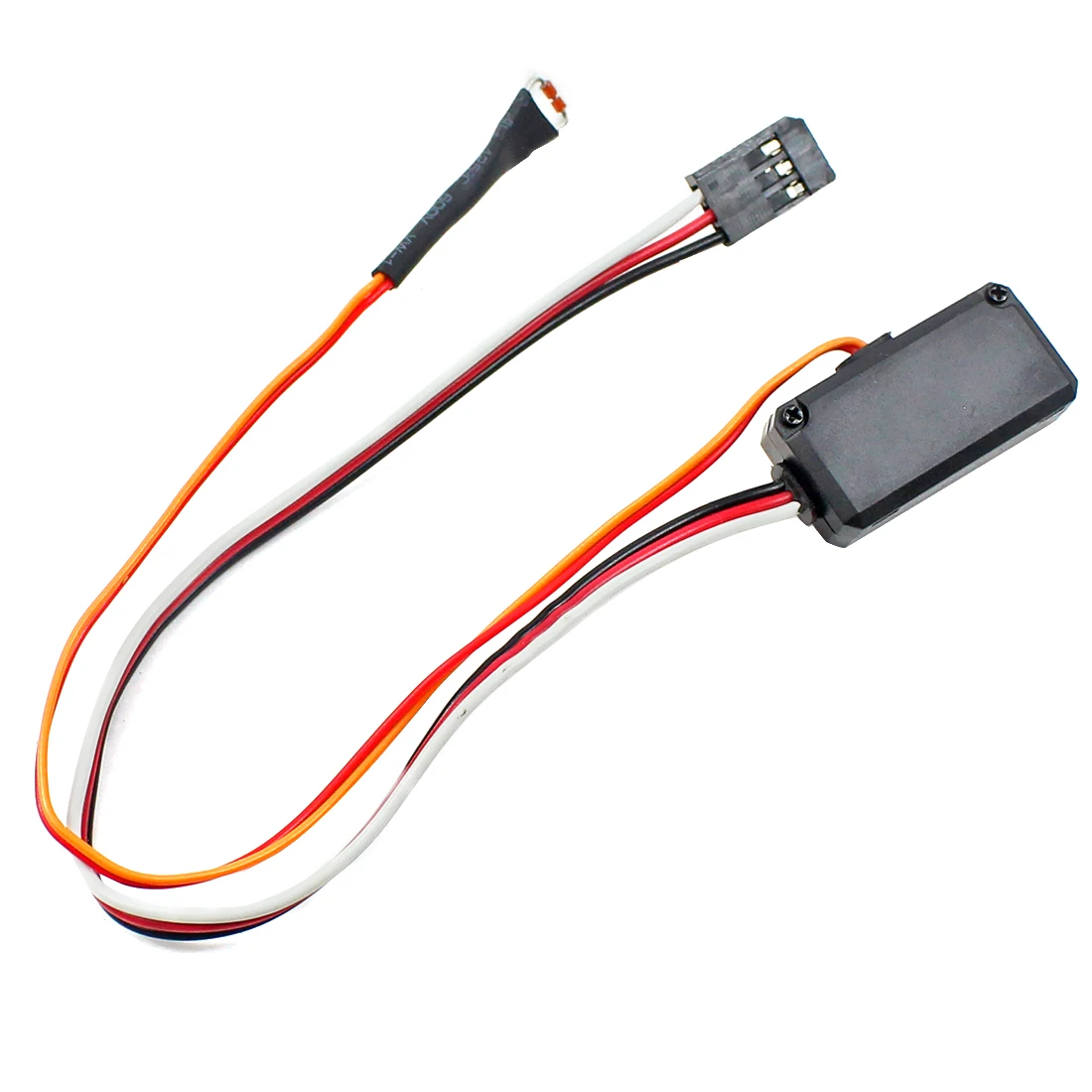

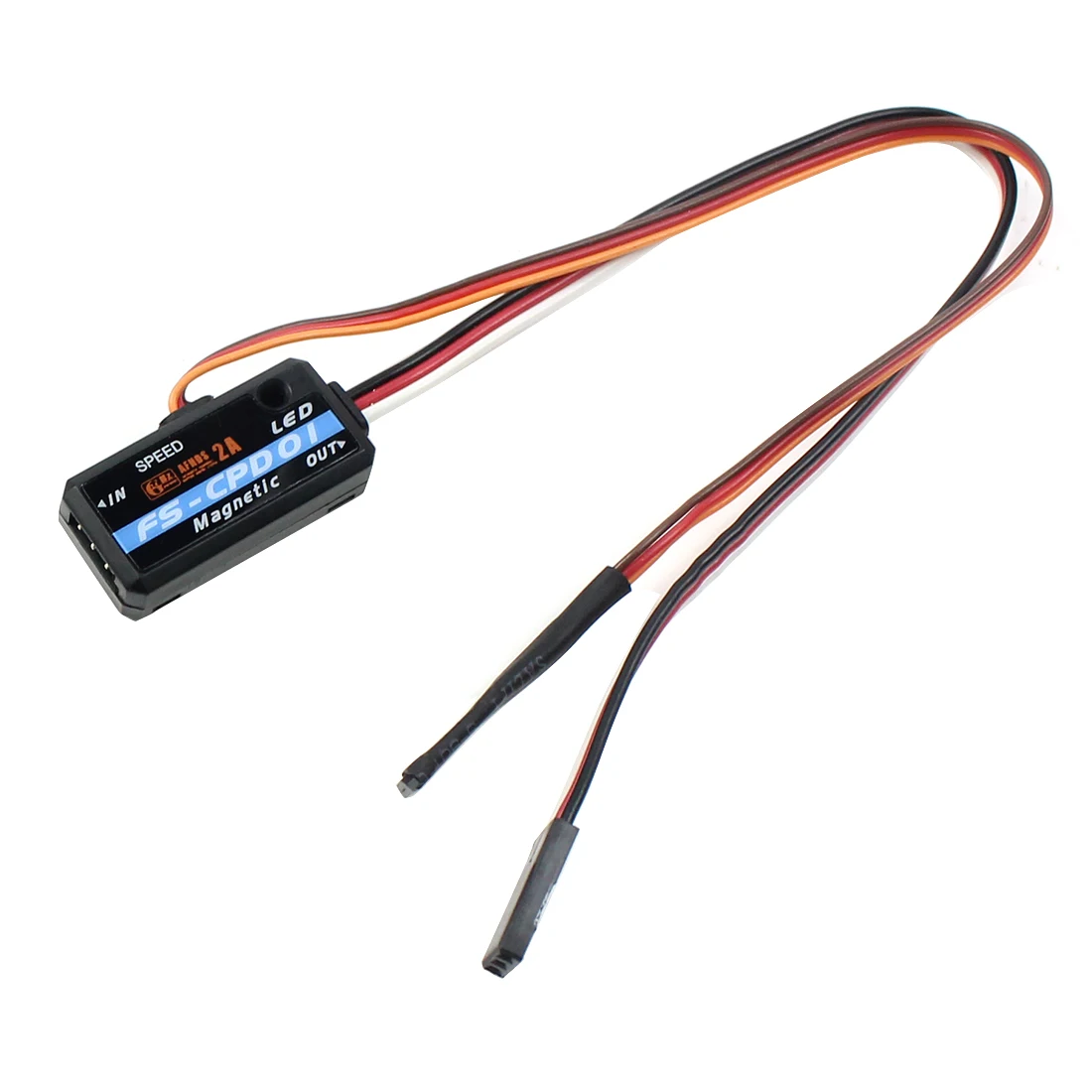

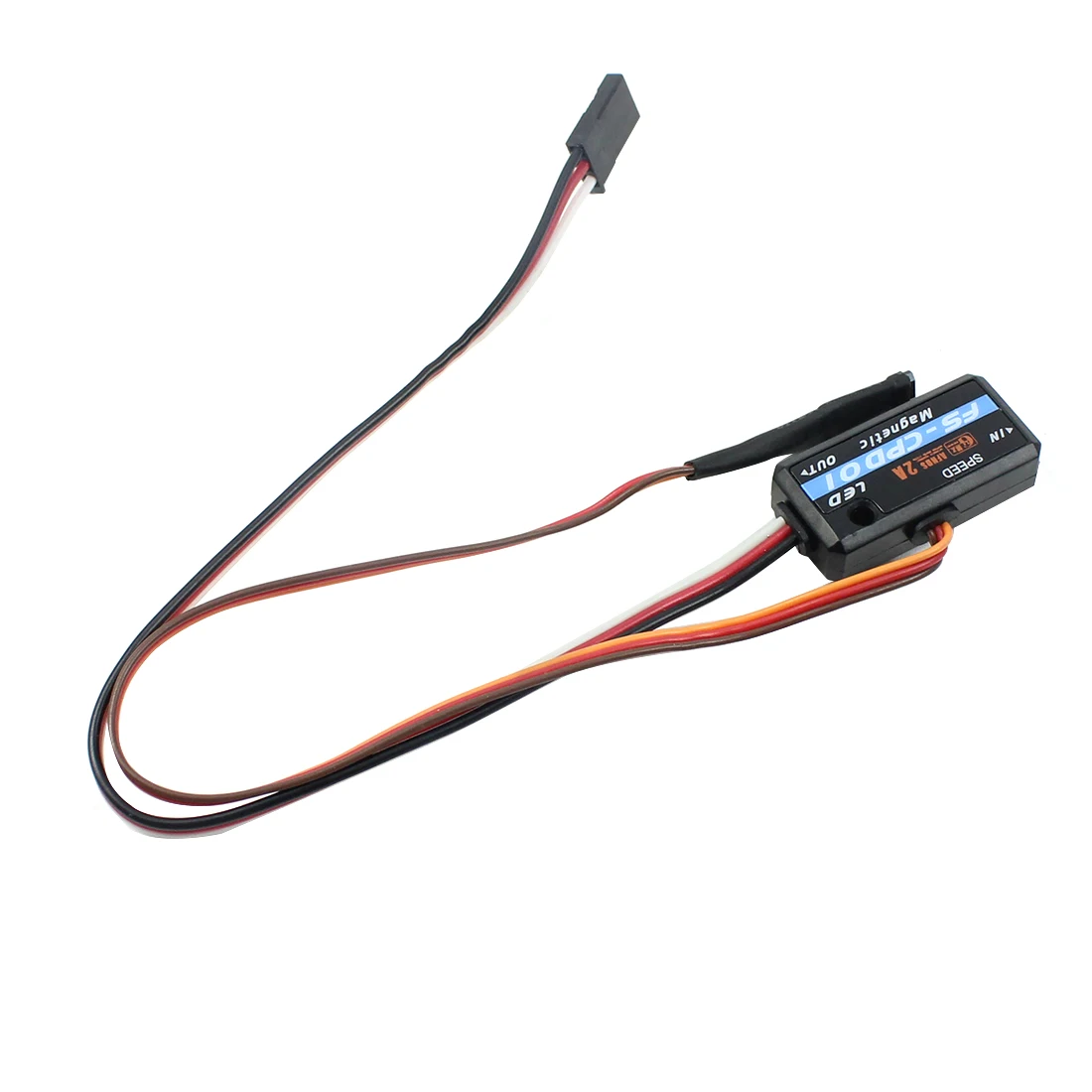

FS-CPD01 RPM Telemetry [magnetic] module
Monitor range of speed 60000RPM/mins
Power: 4.0-6.5V DC
Weight: 6.6g
Size: 31*15*8.5mm

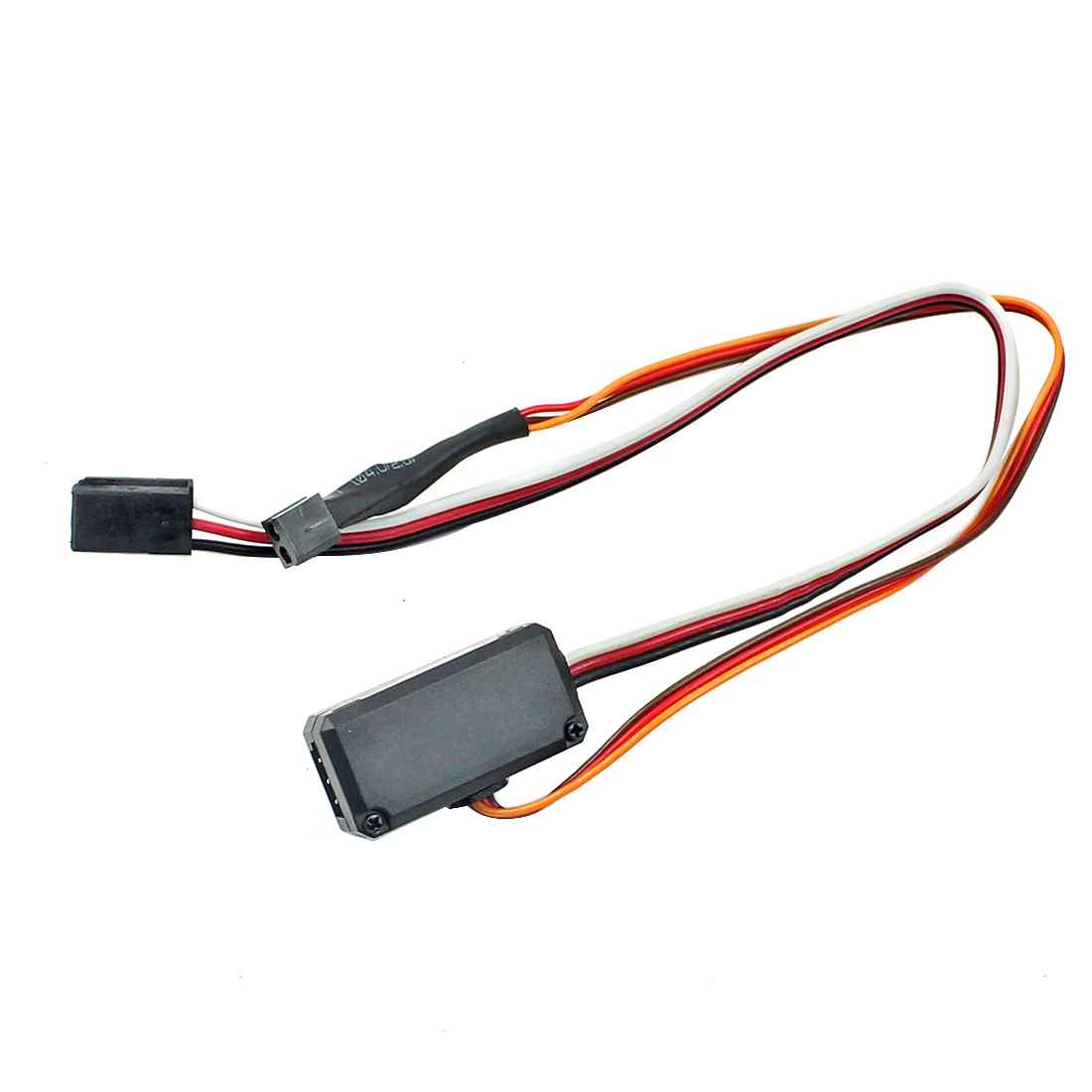

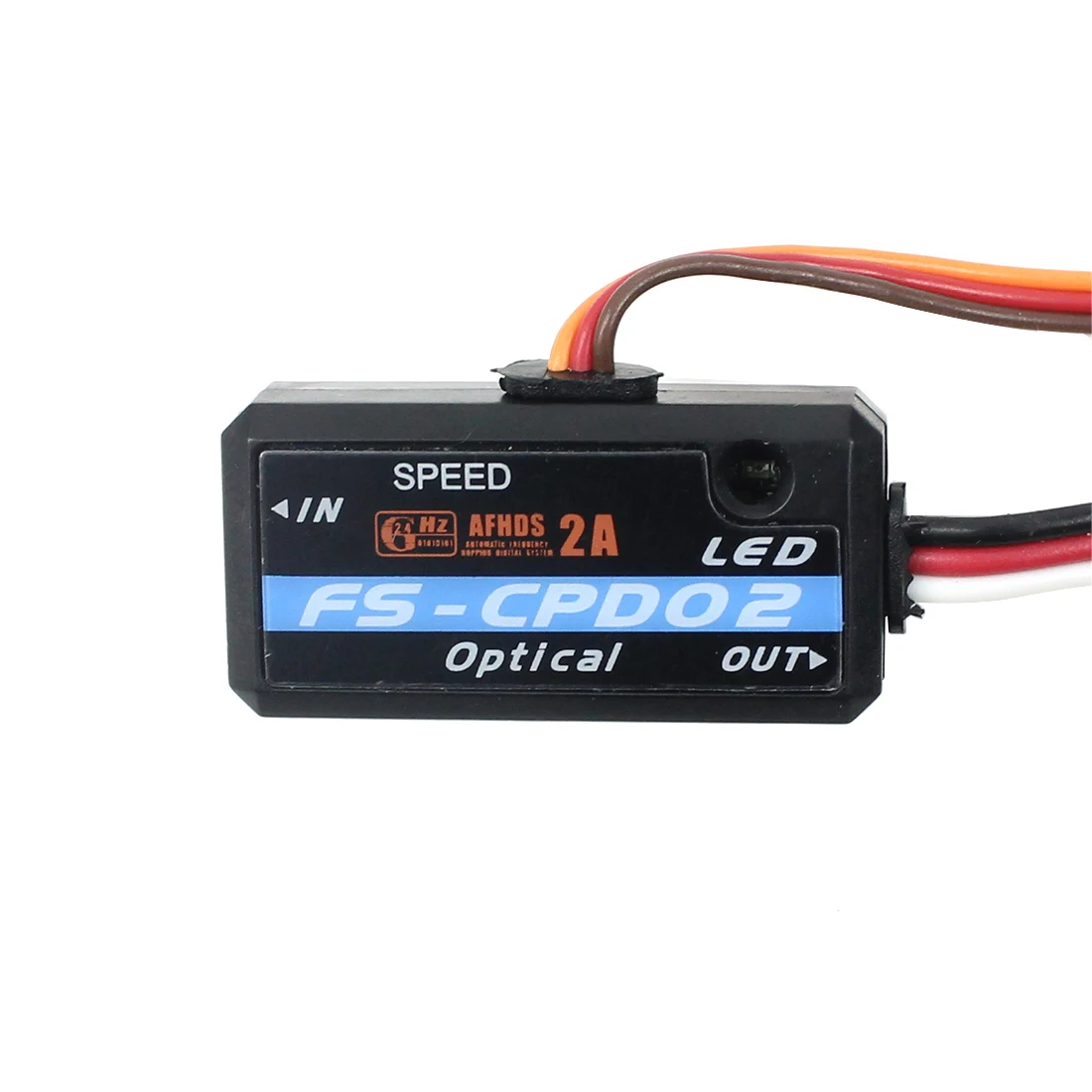

FS-CPD02 RPM Telemetry [Photo Induction(optical)] module
Monitor range of speed 60000RPM/mins
Power: 4.0-6.5V DC
Weight: 6.8g
Size: 31*15*8.5mm

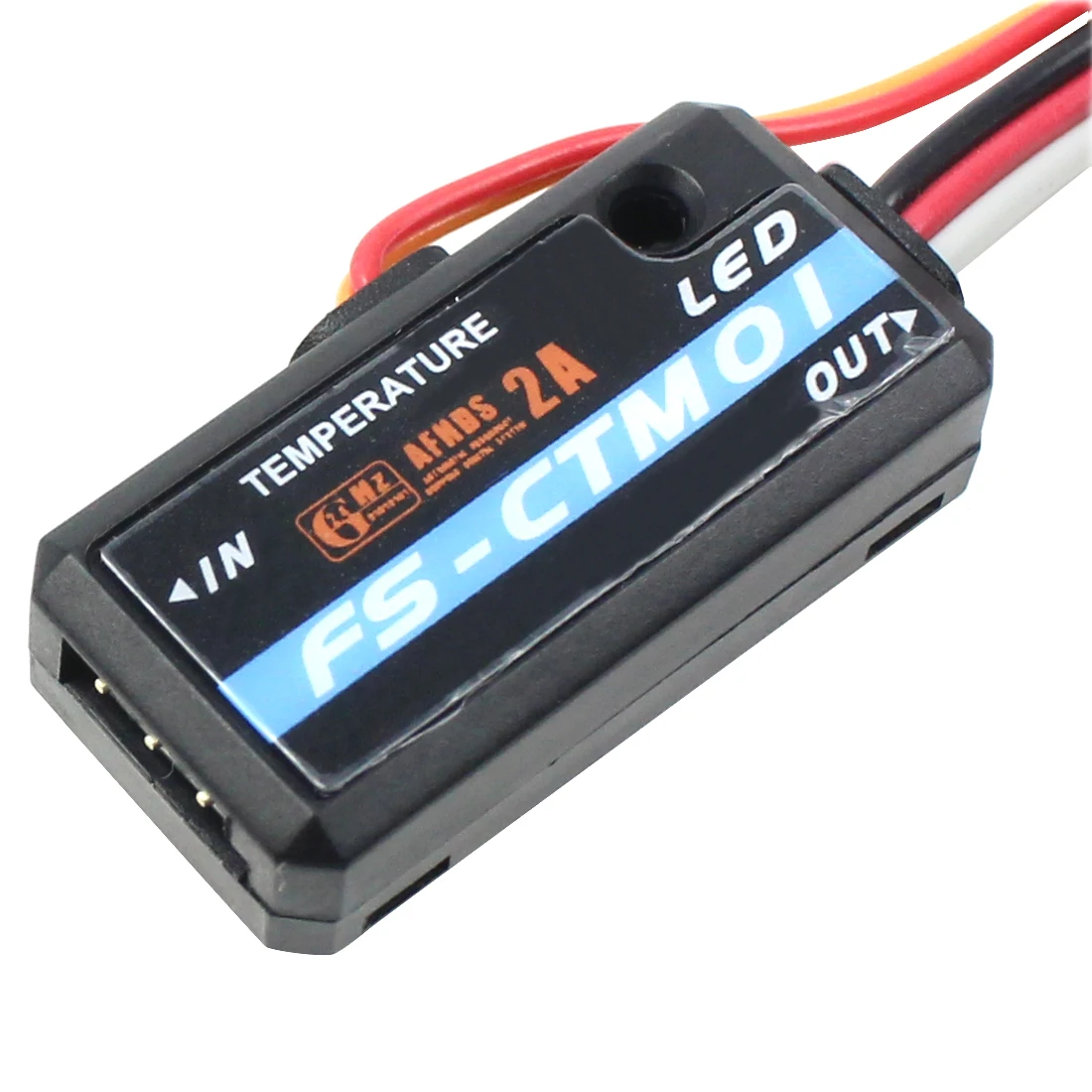

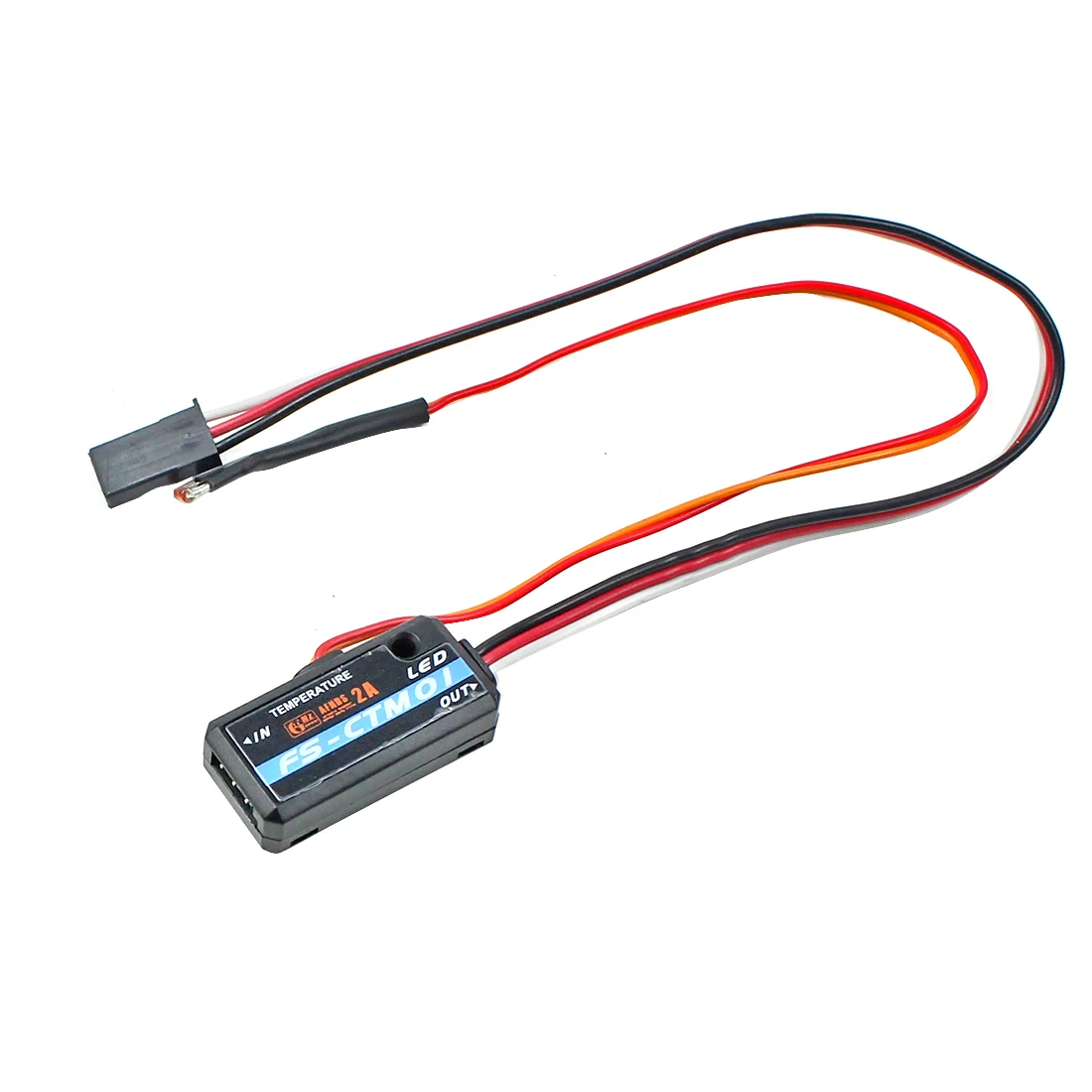

FS-CTM01 Temperature acquisition module
Monitor range of temperature: -40-250°C
Power: 4.0-6.5V DC
Weight: 6.8g
Size: 31*15*8.5mm

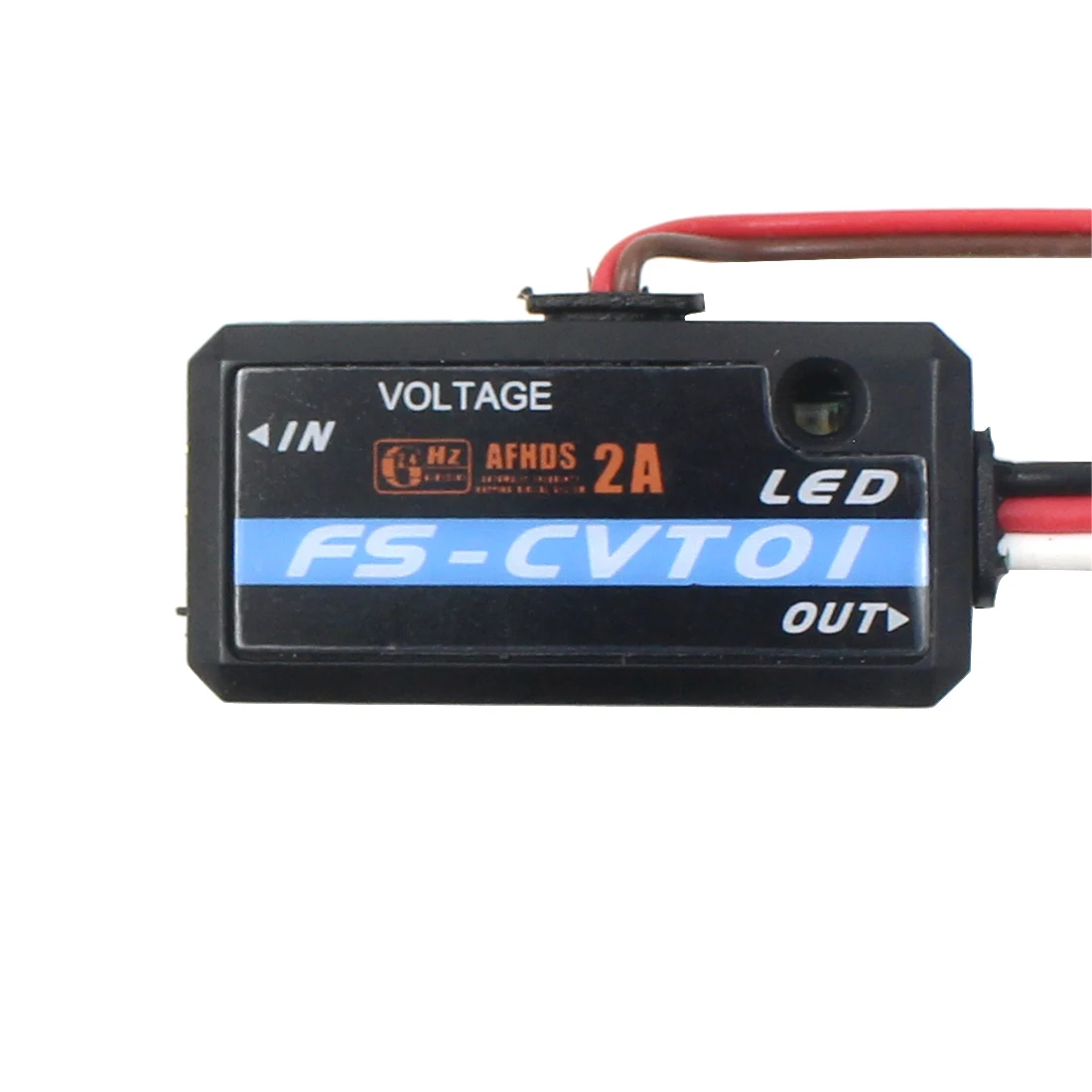

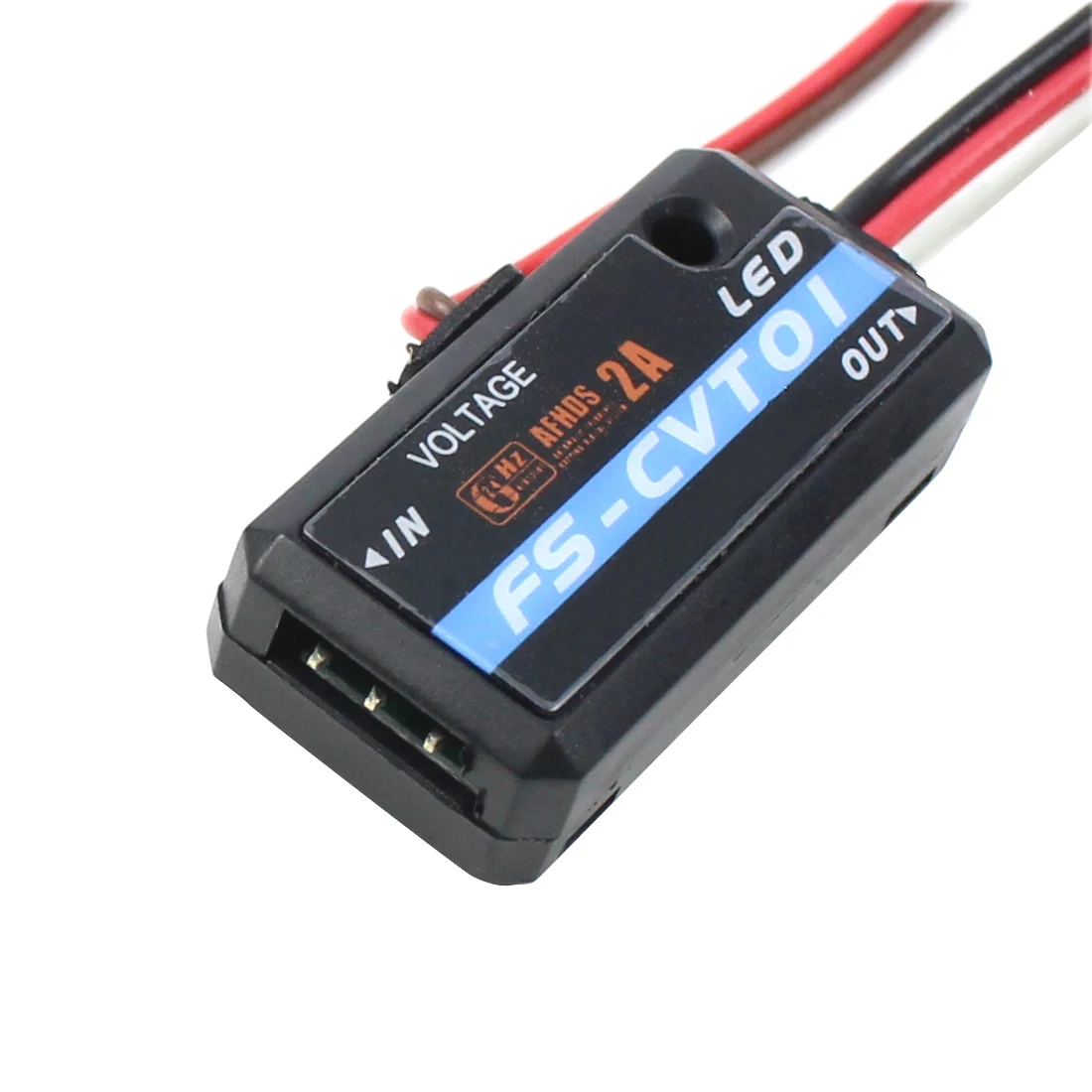

FS-CVT01 Voltage acquisition module
Monitor range of Voltage: 0-100V DC
Power: 4.0-6.5V DC
Weight: 6g
Size: 31*15*8.5mm

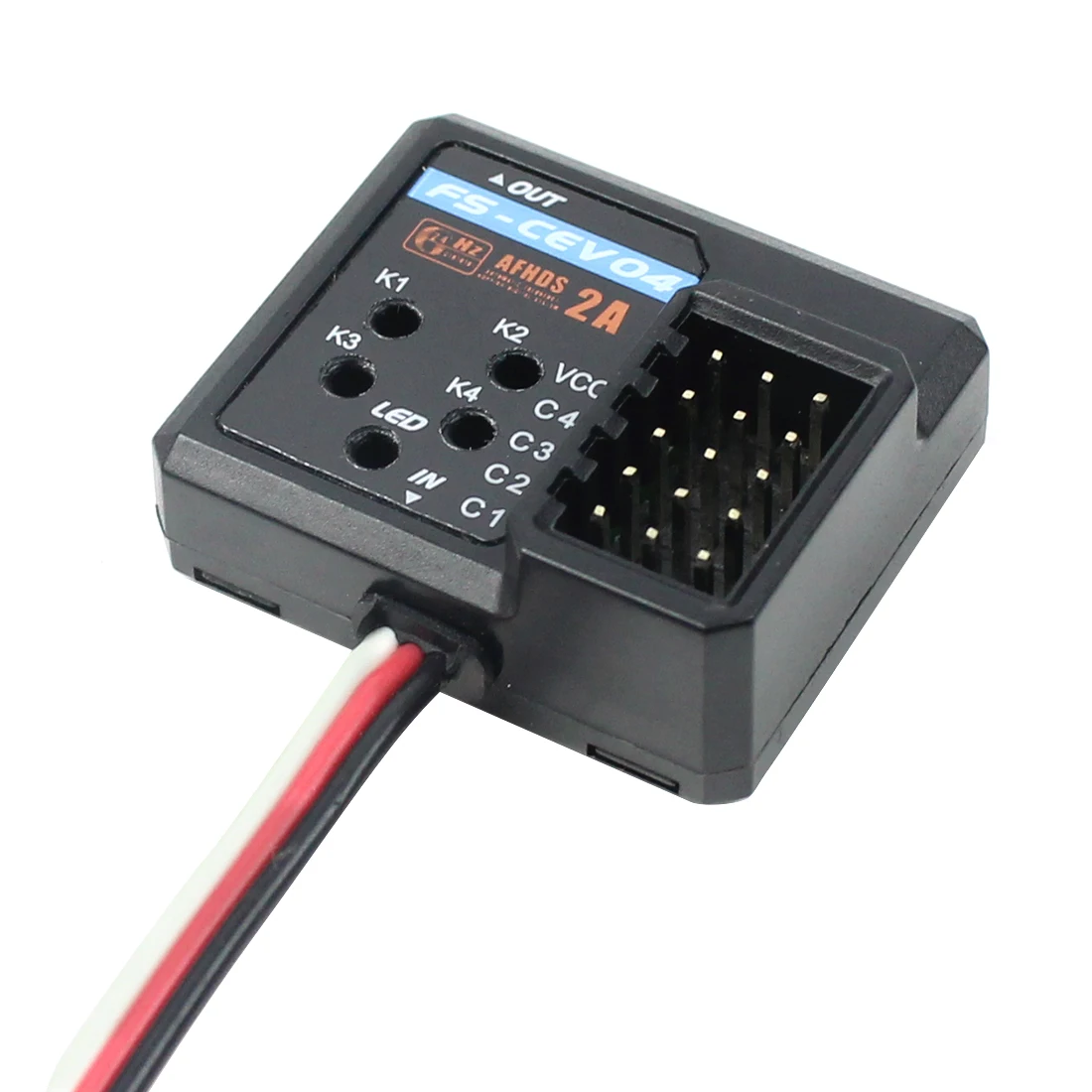

FS-CEV04 i-BUS Serial bus receiver
Channels: 4
Weight: 8.1g
Power: 4.0-6.5V DC
Size: 30*25.6*13mm
i-BUS PORT: yes
