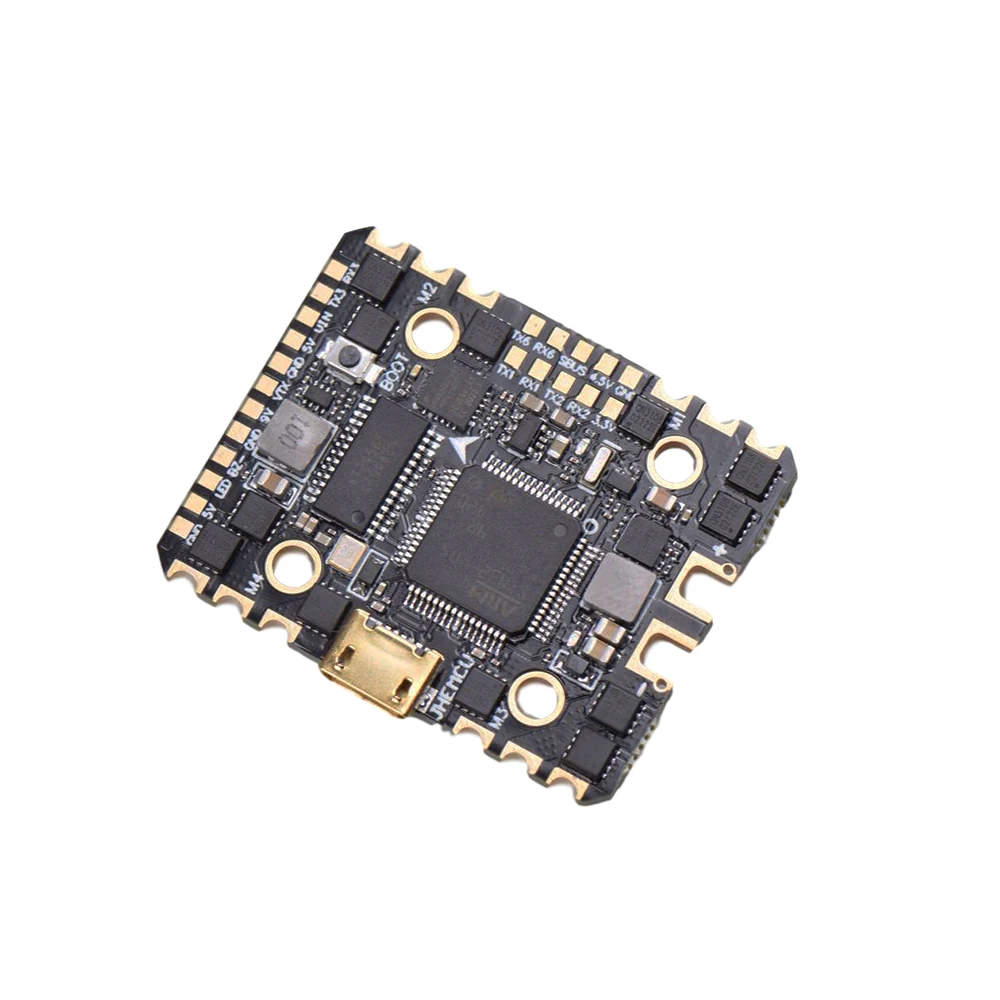

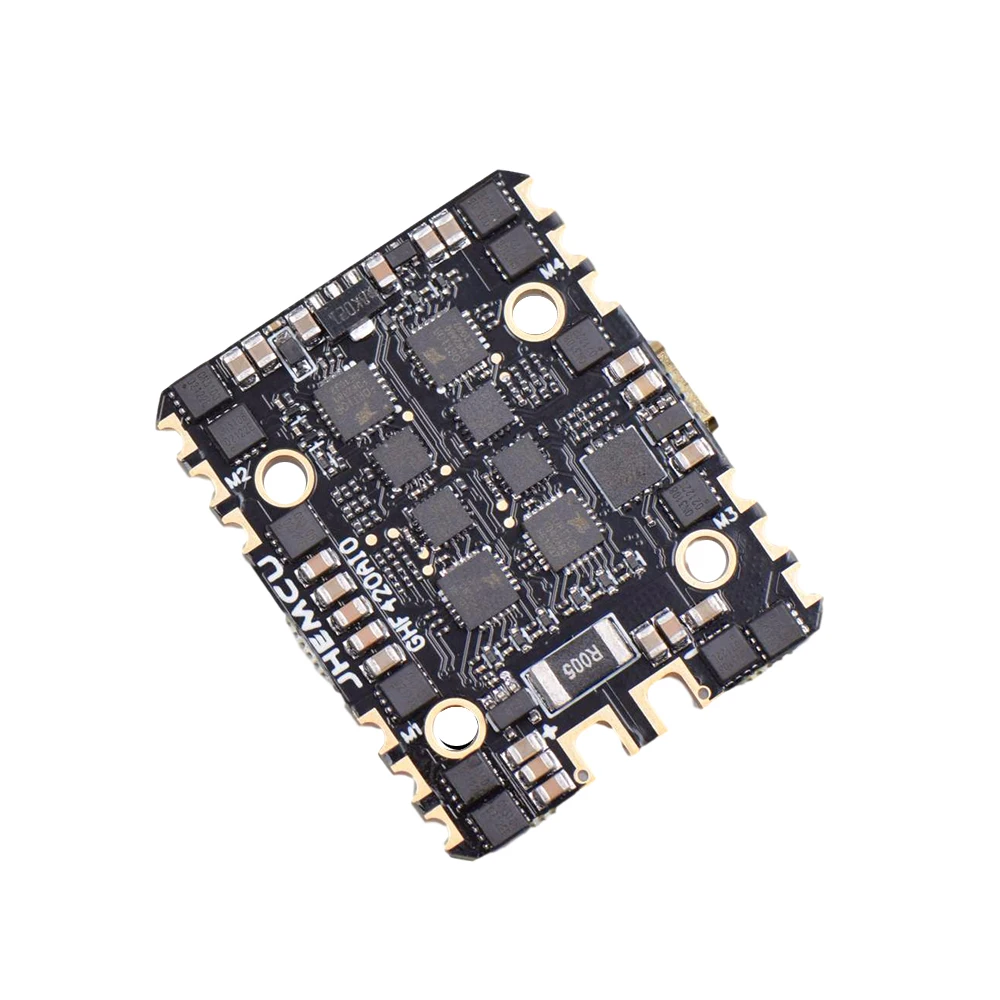

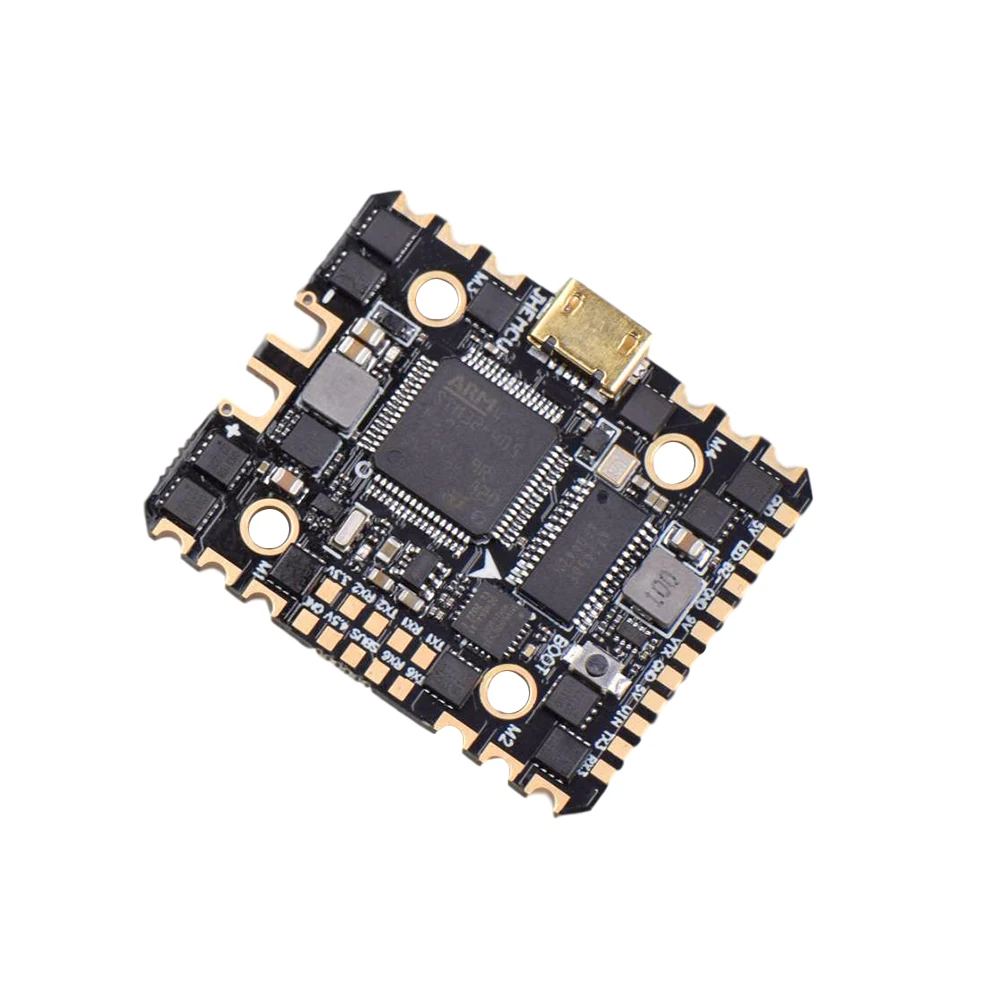

FEICHAO GHF420AIO F4 OSD Flight Controller Built in 20A / 35A BLheli_S 2-6S 4in1 a Brushless ESC for RC Drone First Person View Racing Drone

Specification:

Brand Name: FEICHAO

Model: GHF420AIO-20A / 35A

Item name: Integrated 20A / 35A 4in1 ESC F4 OSD Flight Controller

Size: 30x37.5mm

Mounting hole: 20x20mm

Weight: 7.9g

CPU: STM32F405RGT6

MPU: MPU6000 (SPI)

Firmware: Betaflight BETAFLIGHTF4.HEX

Integrated OSD Betaflight (AT7456E)

BEC output (two): 9V / 2A, 5V2.5A

USART: UART1, UART2, UART3, UART6

Receiver; SBUS, IBUS, DSM2, DSMX, PPM, TBS (UART6)

Blackbox: 8MB

Built-in current sensor

Support WS2812 LED

Bell: 5V BZ-

Input voltage: 2-6S Lipo

ESC current: 20a / 35A

Firmware: BLHELI_S GH-30.HEX

-Support PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600

Package Included: Metal Melting Torch Mini Gold Furnace Graphite

1x F4 FC AIO 20A / 35A ESC Board

2x 18AWG Power Cable

1x XT30 plug connector

4x anti-vibration ball

1 electrolytic capacitor 470UF / 35V
