FEICHAO GHF411AIO Pro F4 OSD Flight Controller Integrated 25A / 35A BLheli_S 2-6S 4in1 Brushless ESC For Toothpick First Person View Racing Drone

FEICHAO GHF411AIO Pro F4 OSD Flight Controller Integrated 25A / 35A BLheli_S 2-6S 4in1 Brushless ESC For Toothpick First Person View Racing Drone Item NO.: F41222 F41223

Write a Review
US$ 39.94
US$ 46.99 Save US$ 7.05 (15% Off)
Sold Out

Copy and share this link on social network or send it to your friends

Copy
Product Name FEICHAO GHF411AIO Pro F4 OSD Flight Controller Integrated 25A / 35A BLheli_S 2-6S 4in1 Brushless ESC For Toothpick First Person View Racing Drone
Item NO. F41222 F41223
Weight 0.043 kg = 0.0948 lb = 1.5168 oz
Category DIY RC Drone Accessories
Brand FEICHAO
Creation Time 2020-09-28

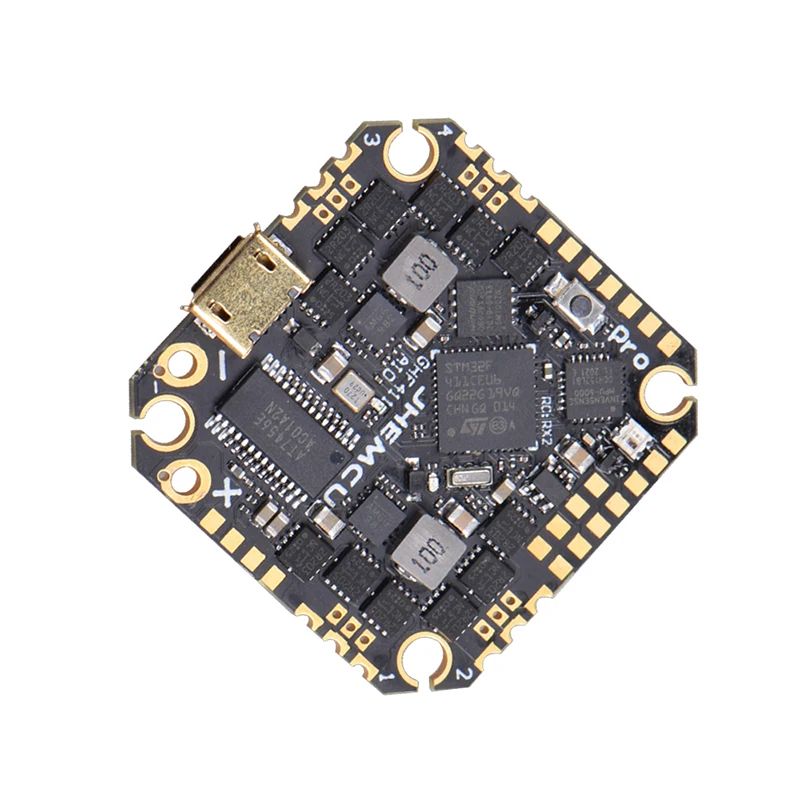

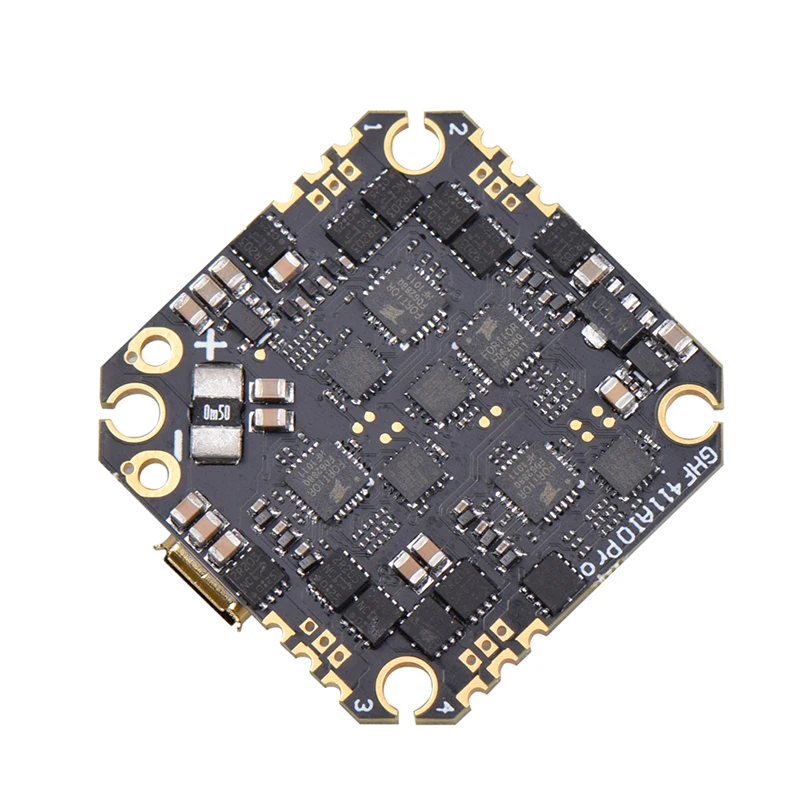

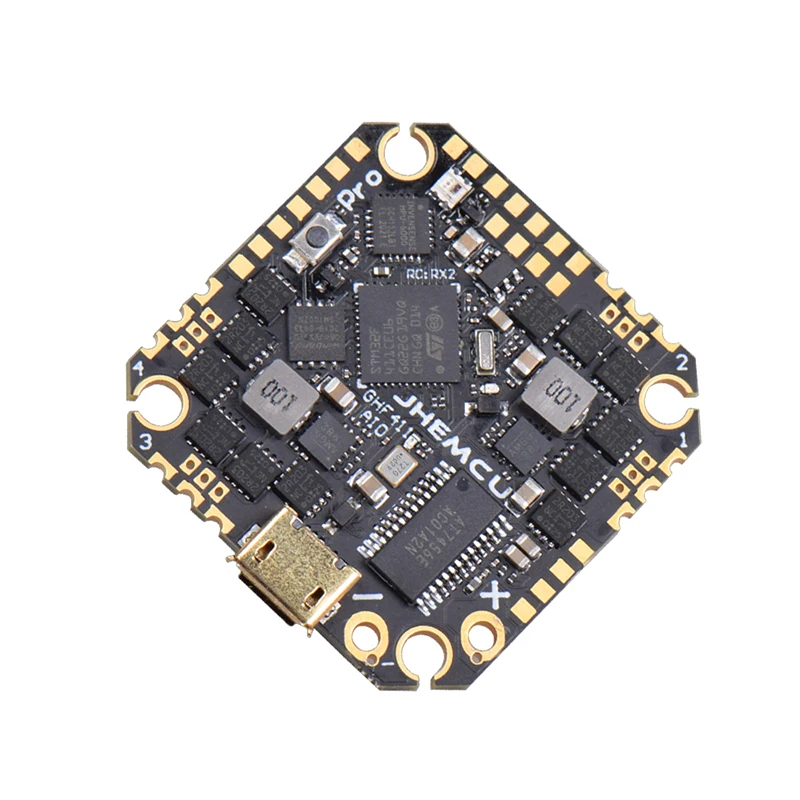

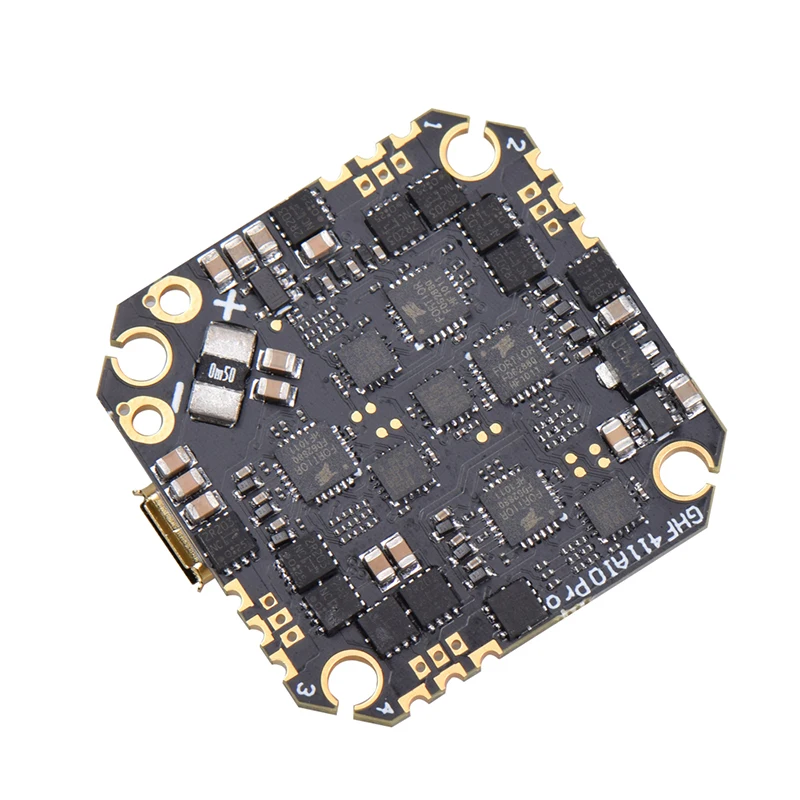

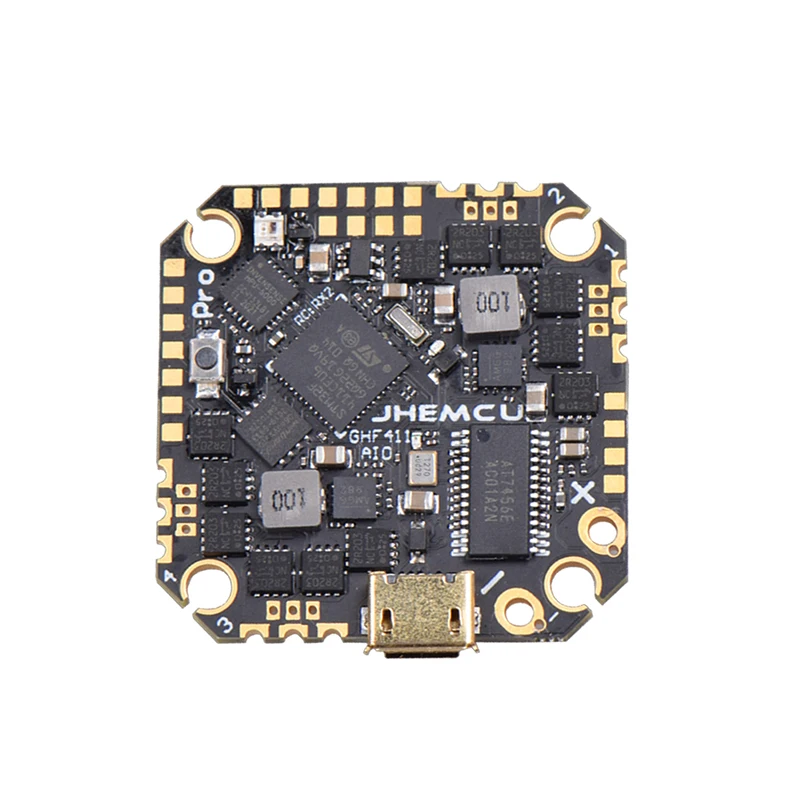

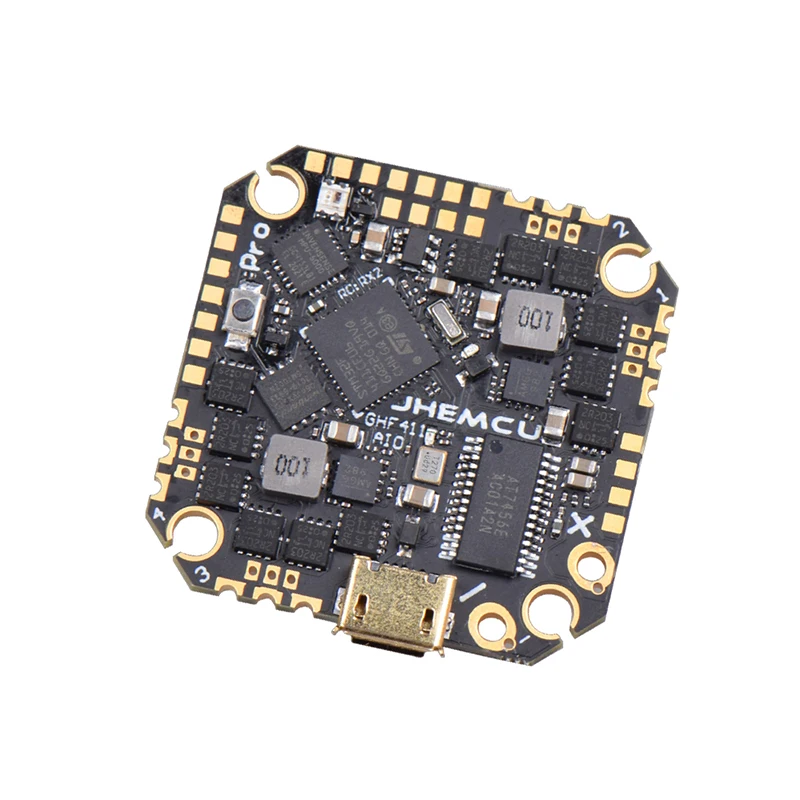

FEICHAO GHF411AIO Pro F4 OSD Flight Controller Integrated 25A / 35A BLheli_S 2-6S 4in1 Brushless ESC For Toothpick First Person View Racing Drone

Specification:

Brand Name: FEICHAO

Model: GHF411AIO Pro

Item name: Integrated 25A / 35A 4in1 ESC F4 OSD Flight Controller

Size: 32.5x32.5mm

Mounting hole: 25.5x25.5mm

Weight: 7.3g

CPU: STM32F411CEU6 (100MHZ)

MPU: MPU6000 (SPI)

Firmware: Betaflight JHEF411

Integrated OSD Betaflight (AT7456E)

BEC output (two): 9V / 2A, 5V2.5A

USART: UART1 ... UART2

Receiver; SBUS, IBUS, DSM2, DSMX, TBS (UART2)



Blackbox: 8MB

Built-in current sensor

Support WS2812 LED

Input voltage: 2-6S Lipo

ESC current: 25a / 35A

Firmware: BLHELI_S GH-30.HEX

-Support PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600

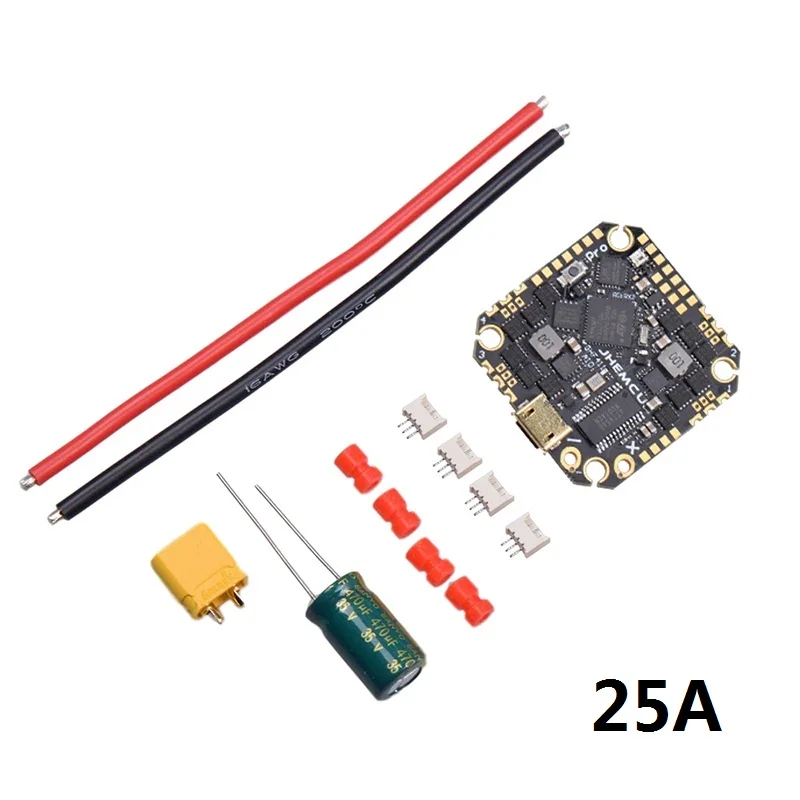

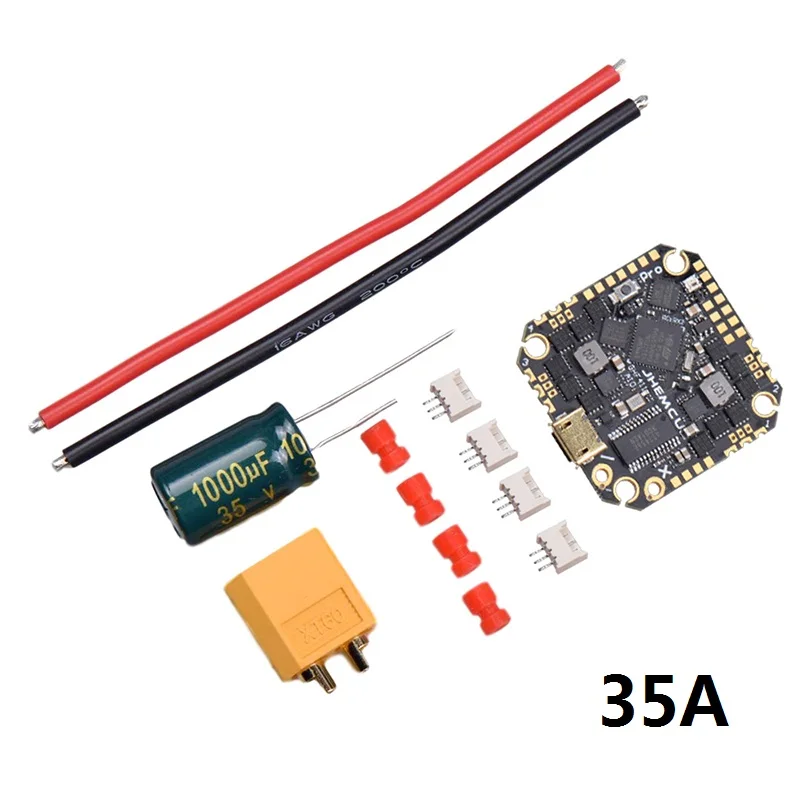

Package Included: Metal Melting Torch Mini Gold Furnace Graphite

1x F4 FC AIO 25A / 35A ESC Board

2x Power cord (35A-14AWG, 25A-16AWG)

1x plug connector (35A-XT60 ... 25A-XT30)

4x 1.25mm connector for Motor (Plug and Play)

4x anti-vibration ball

1 electrolytic capacitor (25A-470UF / 35V, 35A-1000UF / 35V)




GHF411AIO Pro 接线 图 .jpg
