FEICHAO 10pcs 714 Micro Motor DC High Speed Motor Diy Production for Airplane Model Toy Propeller Motor Item NO.: F43059-A1 F43059-A2

US$ 3.28

Version

Quantity: Stock ( 19999998 )

Product Name	FEICHAO 10pcs 714 Micro Motor DC High Speed Motor Diy Production for Airplane Model Toy Propeller Motor
Item NO.	F43059-A1 F43059-A2
Weight	0.035 kg = 0.0772 lb = 1.2346 oz
Category	Toy and Hobbies > DIY Motor Parts
Brand	FEICHAO
Creation Time	2021-02-27

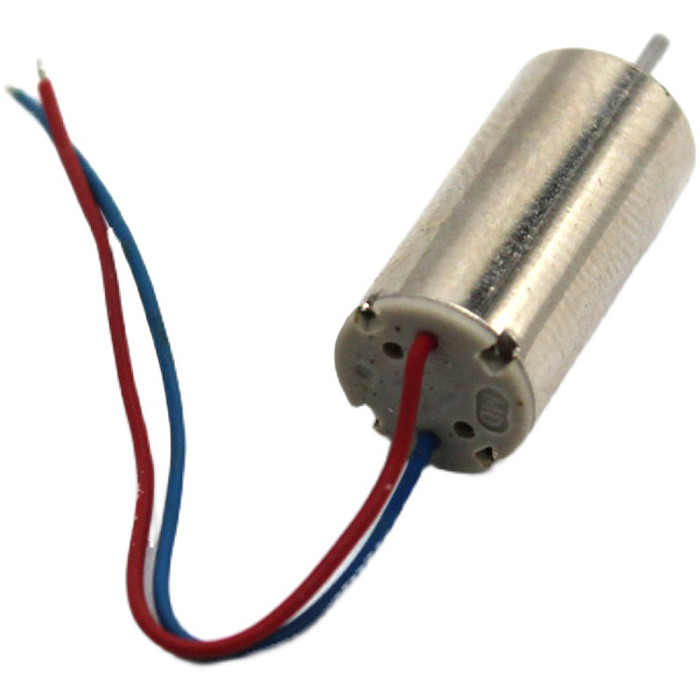

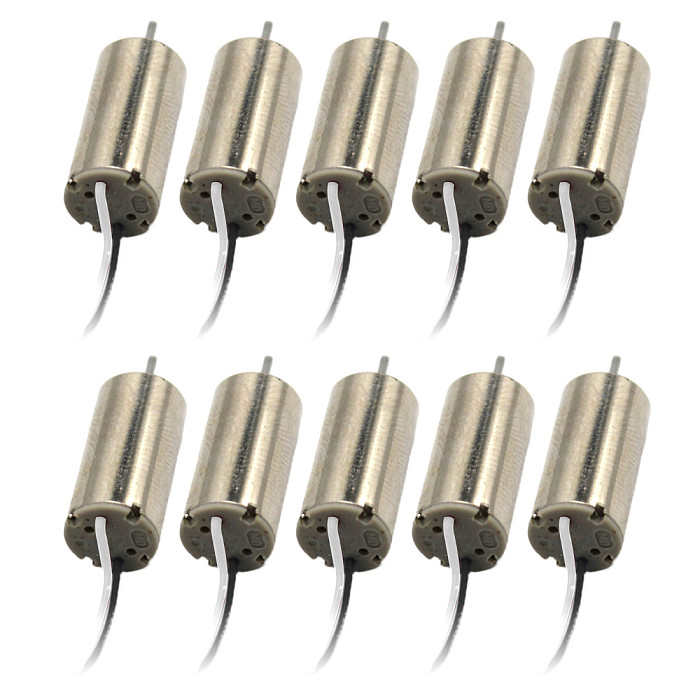

FEICHAO 10pcs 714 Micro Motor DC High Speed Motor Diy Production for Airplane Model Toy Propeller Motor

The diameter of the 714 motor and the 716 motor are the same, but a little shorter and lighter than the length of the 716. It is suitable for making small aircraft, fixed-wing aircraft, paper airplanes, and quadcopters.

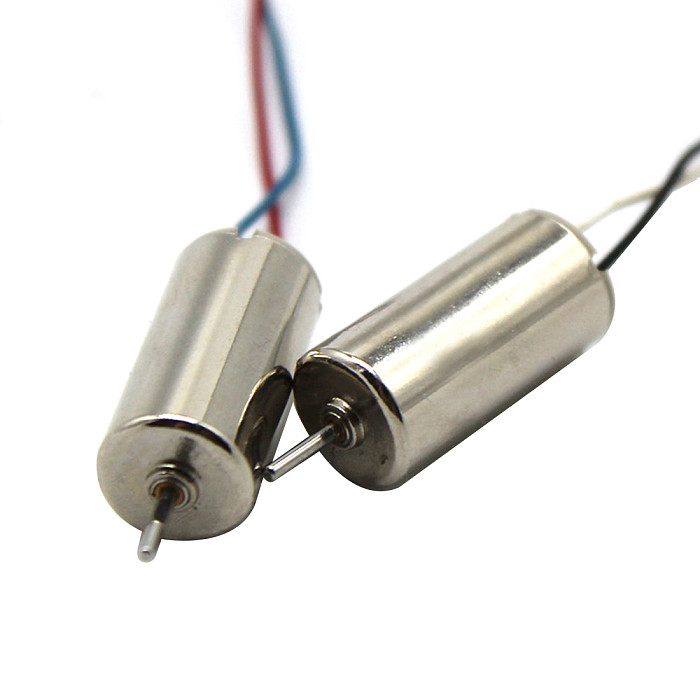

The parameters of the red-blue line and the black-and-white line are the same, and the direction of power-on rotation is different (but the positive and negative poles can be changed to realize the positive and negative conversion, so the actual use is the same).

Small size, light weight, high speed, suitable for 0.7mm propeller (link)

[Diameter]: 7mm

[Length]: 14mm

[Axis length]: 4mm

[Shaft diameter]: 0.75mm

[Line length]: about 40mm

[Voltage]: 3.7V

[Speed]: about 55000 rpm

[Weight]: about 2.2 grams
