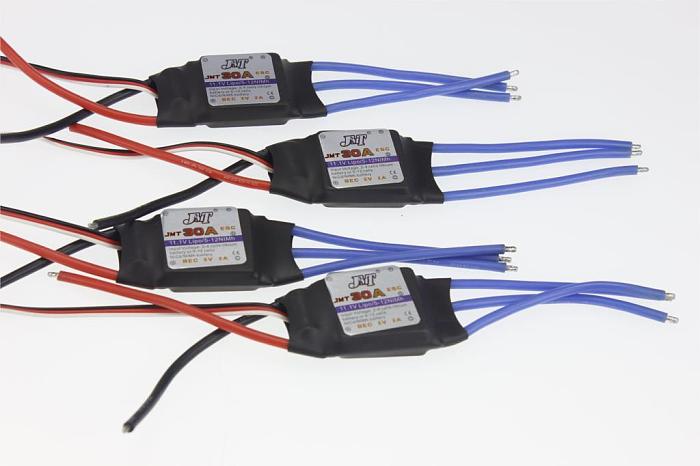

F00177-4 4Pcs xt-xinte 30A Brushless ESC Speed Controller For DIY FPV RC Quadcopter DJI F450 Multi-Rotor Aircraft Helico Item NO.: F00177-4

4Pcs/Set JMT 30A Brushless ESC Speed Controller For DIY FPV RC Quadcopter DJI F450 Hexacopter Multi-Rotor Aircraft Trex 450 Helicopter

• This ESC have the English instruction with PDF, if you want it, please contact me directly.
• Before producing, the manufacturer have set up the program, the ESC do not need additional program.

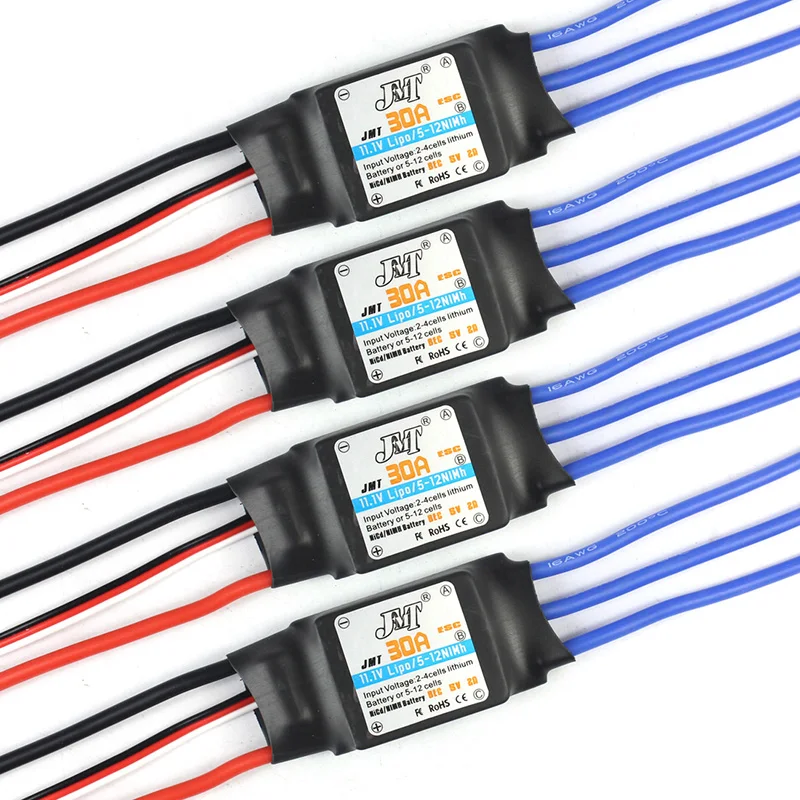

 JMT 30A Brushless ESC Speed Controller For RC RC Quadcopter Hexacopter Multi-Rotor Aircraft

Specification:

weight: 25 g

Input voltage:2-4S

Working current:30A

BEC output: 5V 3A

Quantity: 4 pcs

2  Features

2.1 Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.

2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.

2.3 Programmable Items:        Brake Setting: brake enabled / brake disabled.        Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).        Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.        Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.        Start Mode: normal / soft / very soft.        Timing: low / medium / high.        Reset:  reset  all  the programmable items to their default settings.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

3   Advantages

3.1 Military standard capacitor of extreme low resistance increases the ability of prevention of unwanted RF noise during flying.

3.2 Extreme low resistance PCB is helpful for getting a super current endurance capability.

3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
