Dual 5.8G Antennas Super High Gain 6DBi 5.2GHz-6.0GHz Anti-Jamming Receiver Transmitter for FPV
-
Detail
- Product Name: Dual 5.8G Antennas Super High Gain 6DBi 5.2GHz-6.0GHz Anti-Jamming Receiver Transmitter for FPV
- Item NO.: F54398
- Weight: 0.03 kg = 0.0661 lb = 1.0582 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2025-07-07
Dual 5.8G Antennas Super High Gain 6DBi 5.2GHz-6.0GHz Anti-Jamming Receiver Transmitter for FPV
Specifications:
5.8G antenna reinforcement, image transmission is more guaranteed
5.2-6GHz 6dBi

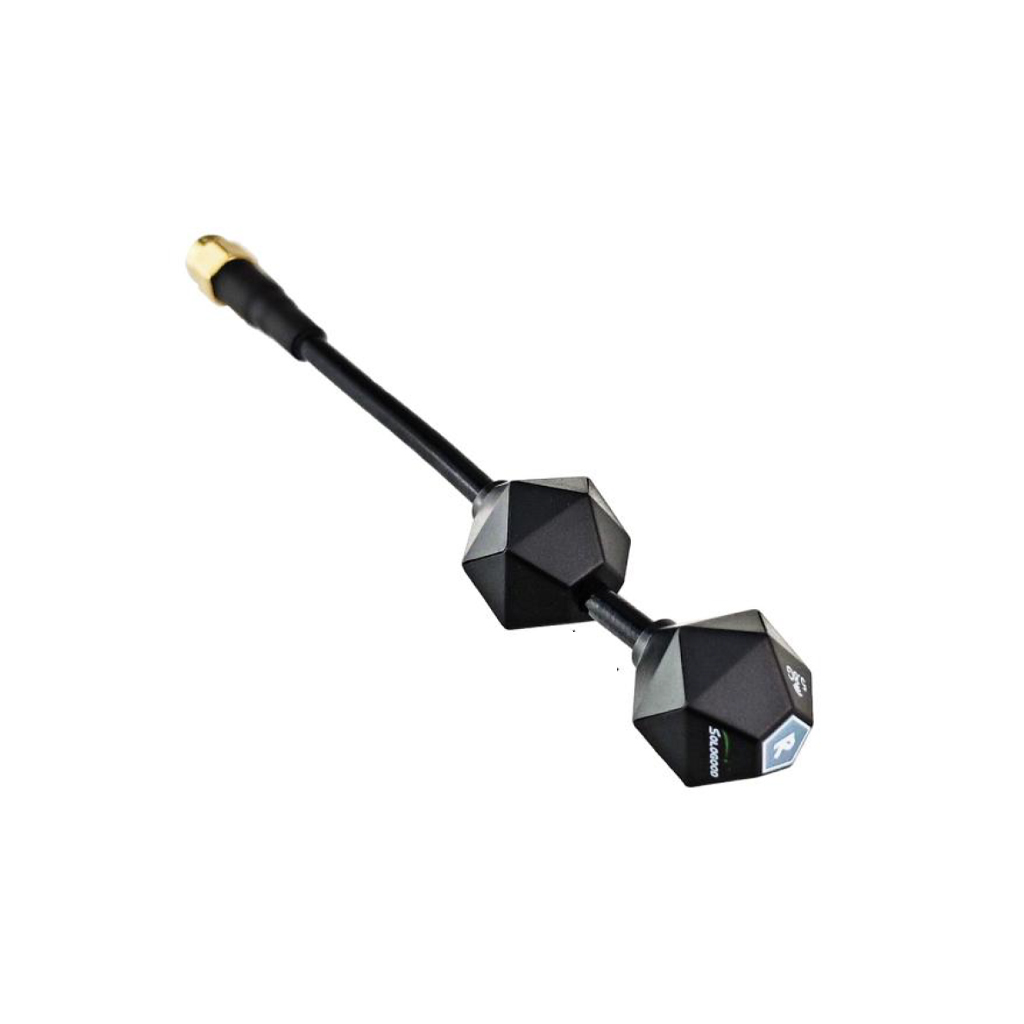

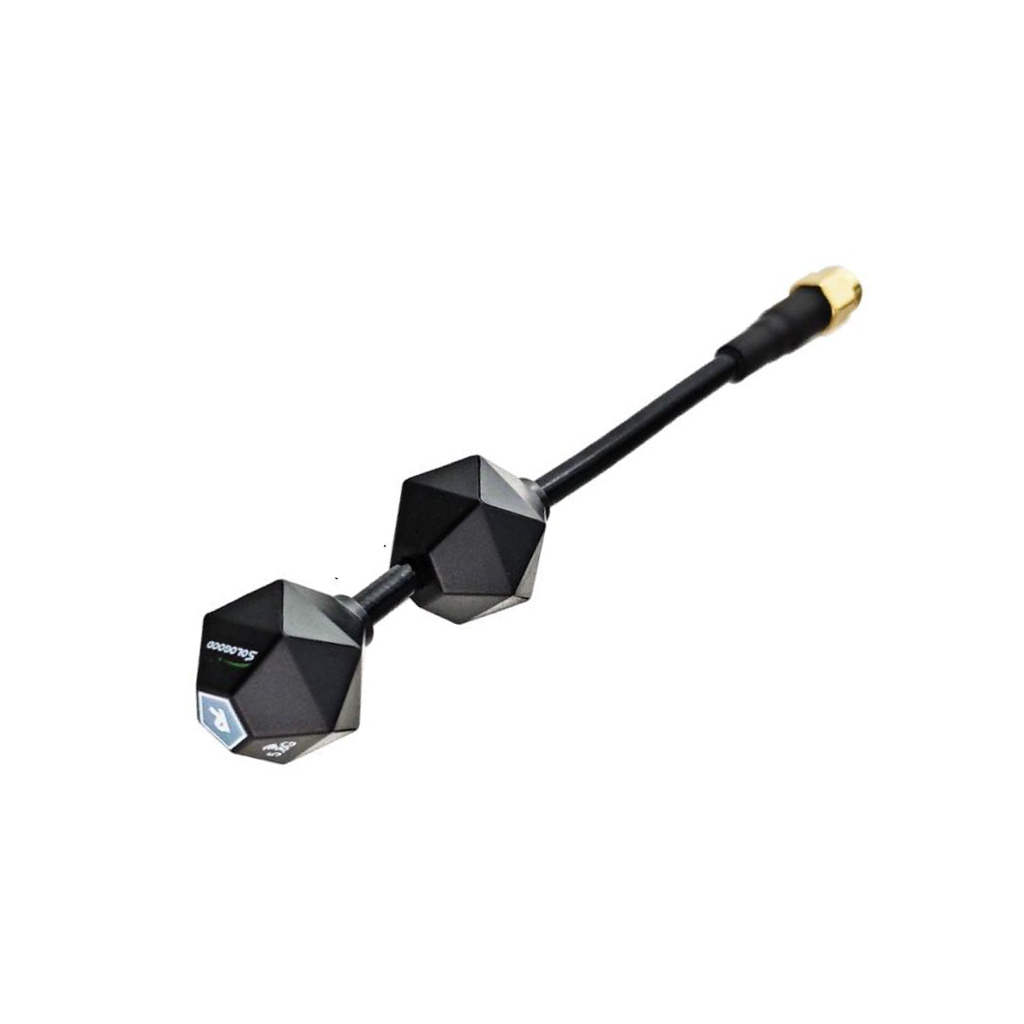

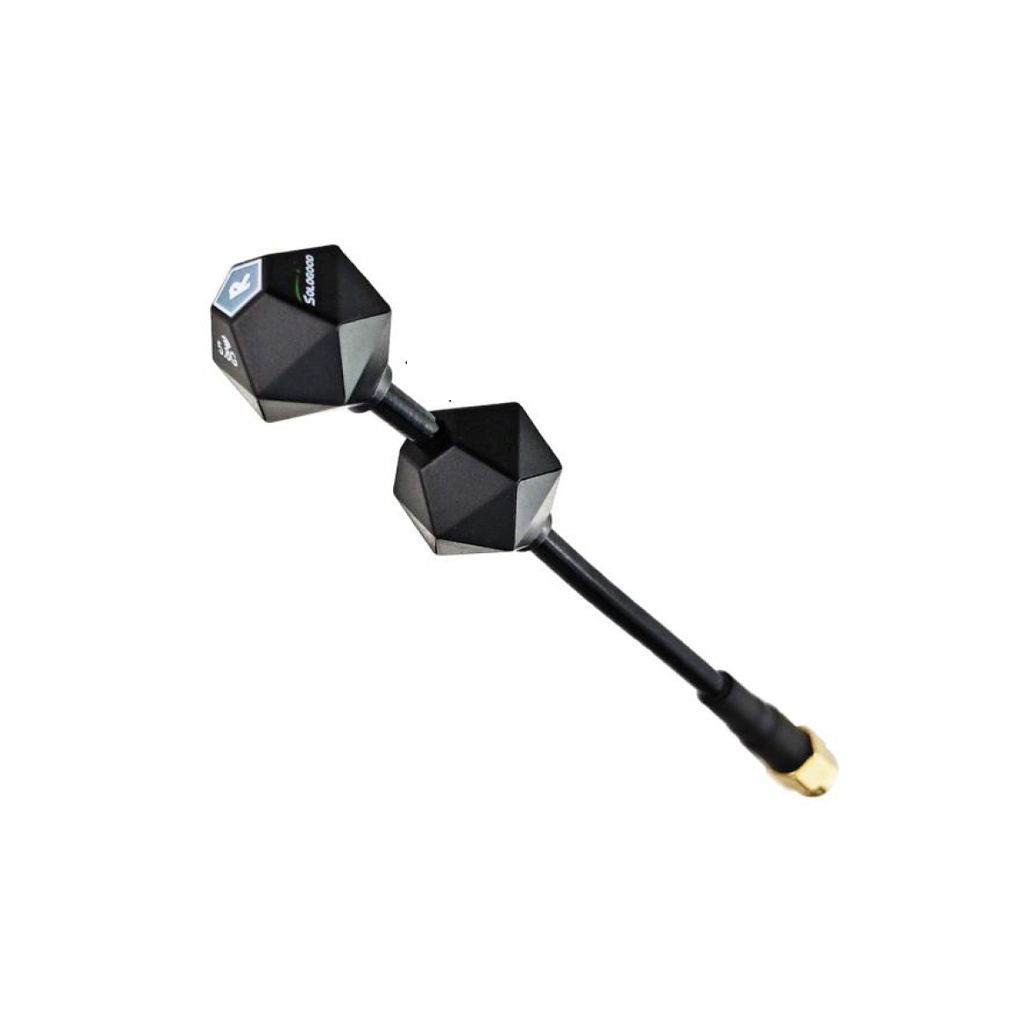

Dual 5.8G Mushroom Head
Right-Handed Polarization RHCP
High Gain 6Dbi
Universal Transmitter/Receiver

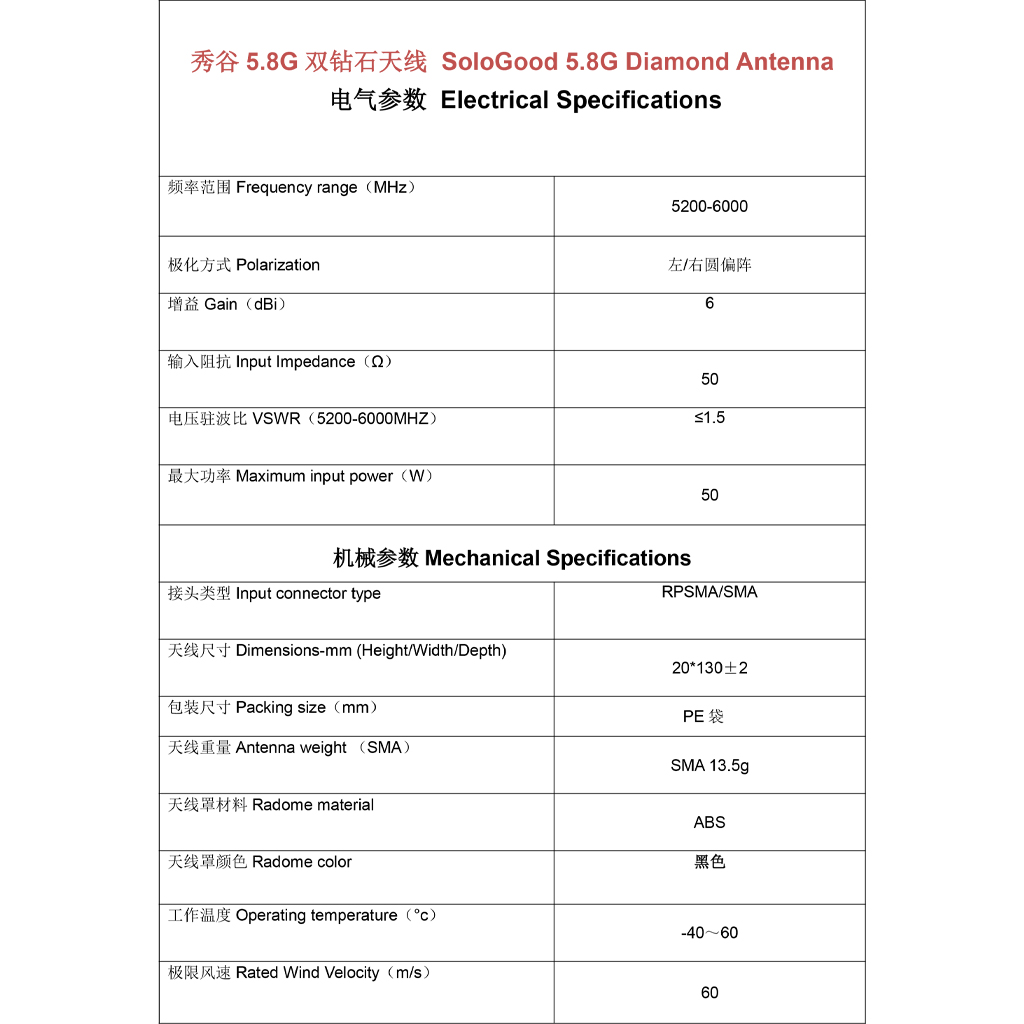

5.8G Dual Diamond Antenna SoloGood 5.8G Diamond Antenna
Electrical Specifications Electrical Specifications
Frequency range (MHz) : 5200-6000
Polarization mode Polarization ：Left/Right Circular Polarization
Gain Gain (dBi ) ：6

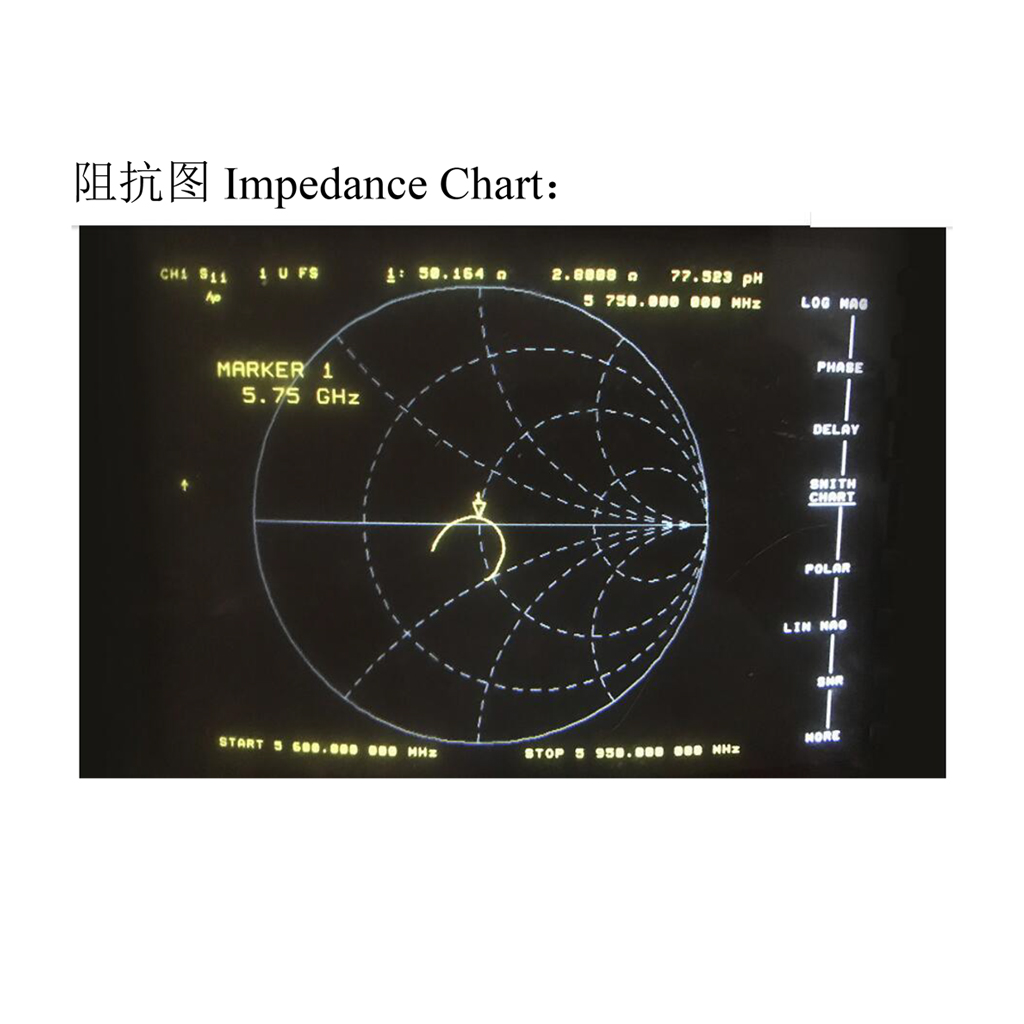

Input Impedance Input Impedance (Q) ：50

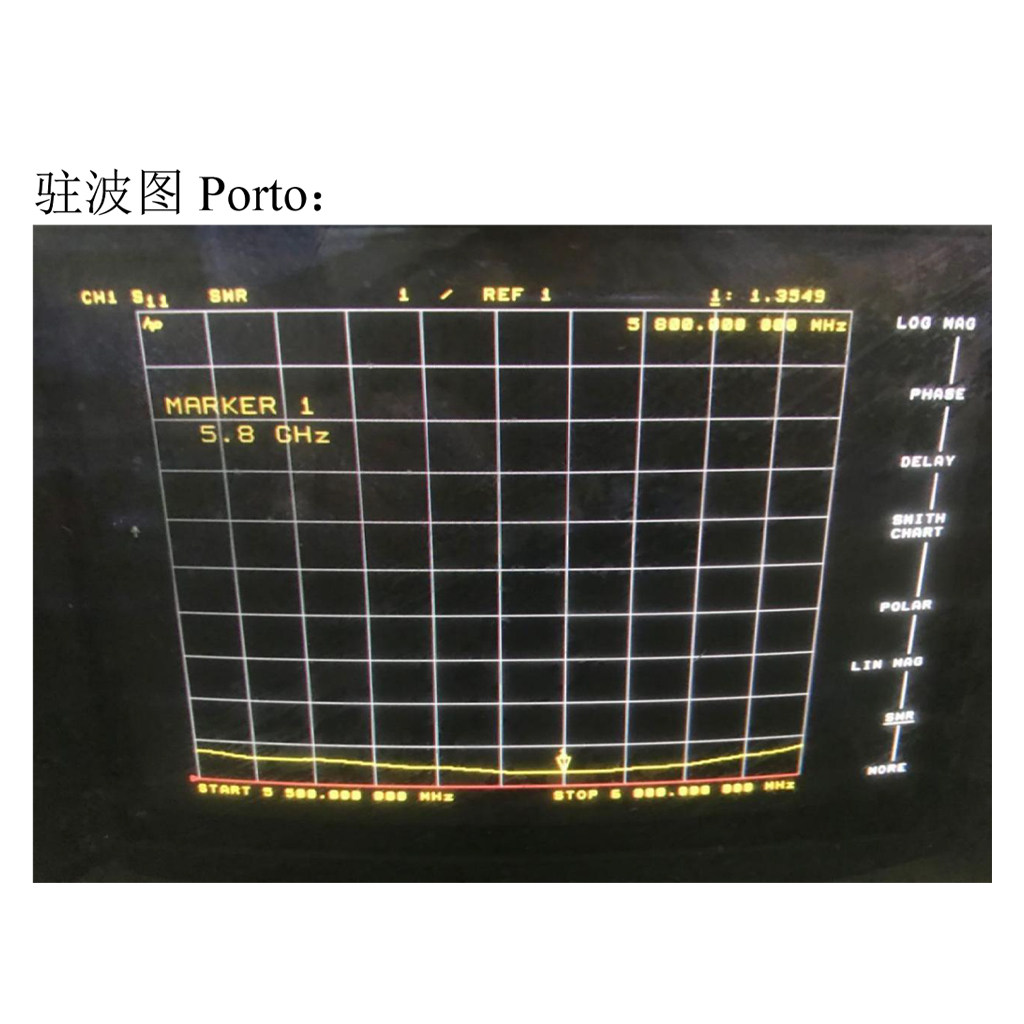

Voltage Standing Wave Ratio VSWR(5200-6000MHZ)：≤1.5
Maximum input power (W) ：50
Mechanical Specifications Mechanical Specifications
Connector type Input connector type ：RPSMA/SMA

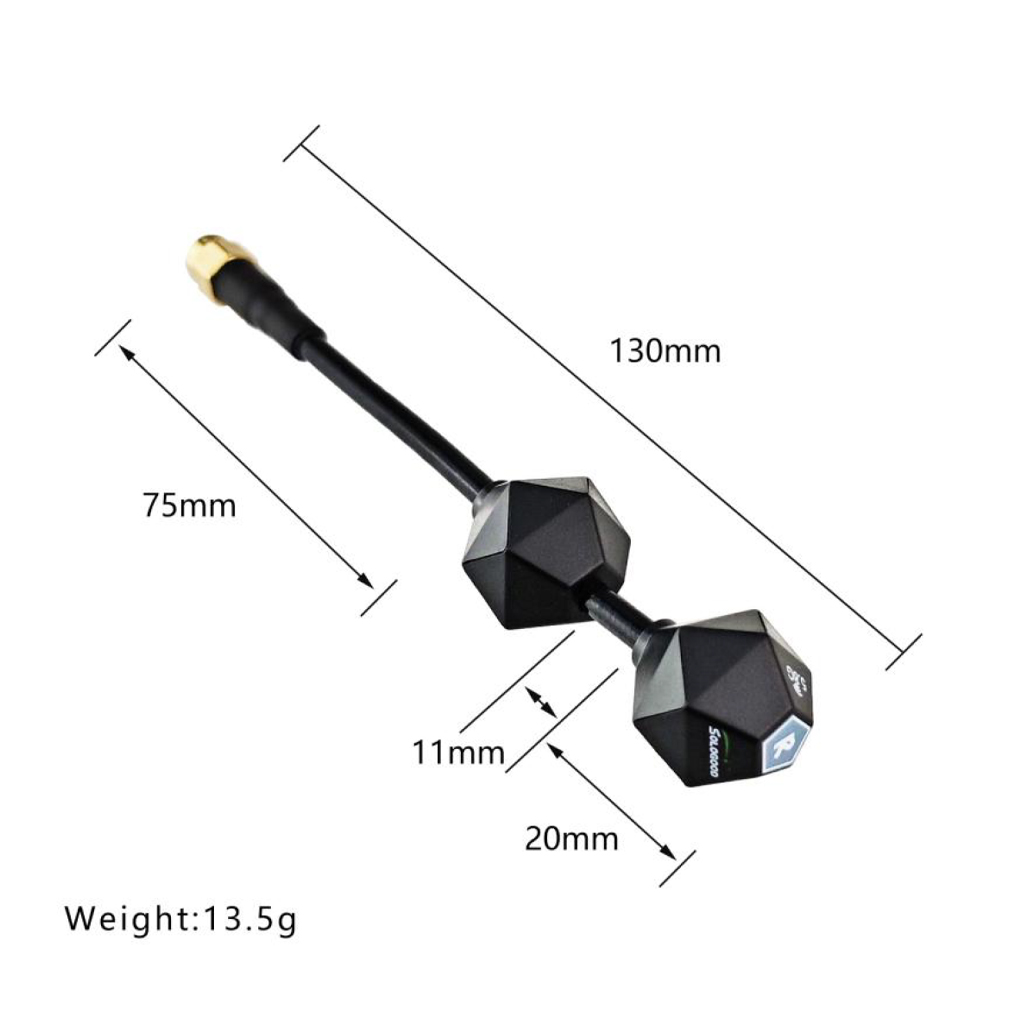

Antenna size Dimensions-mm(Height/Width/Depth) ：20*130±2
Packing size (mm)：PE bag
Antenna weight Antenna weight t(SMA) ：SMA 13.5g
Antenna cover material Radome material ：ABS
Antenna cover color Radome color ：Black
Operating temperature Operating temperature (°c) :-40~60
Limit wind speed Rated Wind Velocity (m/s) :60
