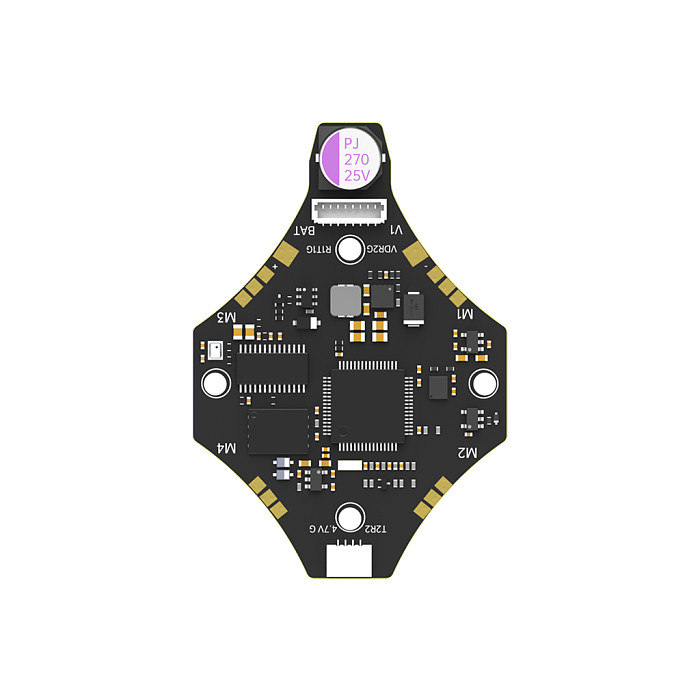

Defender 25 F7 AIO OSD Chip HD VTX Smartaudio / IRC Tramp VTX protocol supported
-
Detail
- Product Name: Defender 25 F7 AIO OSD Chip HD VTX Smartaudio / IRC Tramp VTX protocol supported
- Item NO.: F49413-D1 F49413-D2
- Weight: 0.05 kg = 0.1102 lb = 1.7637 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2023-01-07
Compability1. This AIO without OSD Chip, it made for Defender 25 HD VTX only.
2. Bigger size than the BLITZ Whoop BGA F7 AIO.
DescriptionThis is new generation F7 AIO designed for Defender 25. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc. Lightweight, minimum size, minimum work. Solder your motor wires on and let's go!
HighlightsPass-through DJI O3 and Caddx Vista/Polar Connector
MCU: STM32F745, 216MHz
Gyro: ICM42688P
OSD: NO
Blackbox: 32MB Onboard Flash
Gyro: DPS310
Weight: 12.8g±0.2g
FC SpecificationsMCU: STM32F745
Gyro: ICM42688P
Blackbox: 32MB Onboard Flash
BEC output: 5V 2.5A
WS2812 LED Strip: Yes
Buzzer: Yes
Barometer: DPS310
Connector: SH1.0 to Type-C adapter
OSD: N/A (HD VTX version)
FC Firmware：IFLIGHT_BLITZ_F7_AIO
Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 32.5*32.5mm
Input voltage: 2-6S, support LIHV battery
Smartaudio / IRC Tramp VTX protocol supported
ESC SpecificationsESC MCU: STM32G071
Driver: FD6288
Input voltage: 2-6S Support LIHV battery
Output current: 20A, peak value 30A (10 seconds)
ESC firmware: IFLIGHT_BLITZ_G071_01
Current sensor: ratio 200 (1/10mV/A)
BEC: NO
ESC Telemetry: Yes（PCB routed, set UART6 for telemetry）
Bidirectional DShot: Yes
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
Package included1 x Defender 25 BLITZ F7 AIO
2 x Capacitor 470uF/35V (Onboard)
1 x XT30U Male 18AWG cable 70mm
1 x 1.0-7P cable 50mm-28mm
1 x 1.0-7P cable 50mm
4 x M2 silicon grommets
8 x M2*12mm screws
8 x M2 Transparent Nylon Nut
10 x 0.8mm black Heat shrink tube 10mm
