GEP-MK5 Propeller Accessory Base Quadcopter Frame FPV Freestyle RC Racing Drone Mark5 Item NO.: F49372-A1/A2/A3A4

Sold (5)

US$ 27.59 ~ US$ 30.66

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 30.66	US$ 29.13	US$ 27.59

Color: Blue Black Red Green

Quantity: Stock ( 39999991 )

Estimate Shipping Cost

Product Name	GEP-MK5 Propeller Accessory Base Quadcopter Frame FPV Freestyle RC Racing Drone Mark5
Item NO.	F49372-A1/A2/A3A4
Weight	0.21 kg = 0.4630 lb = 7.4075 oz
Category	DIY RC Drone Accessories
Creation Time	2023-01-09

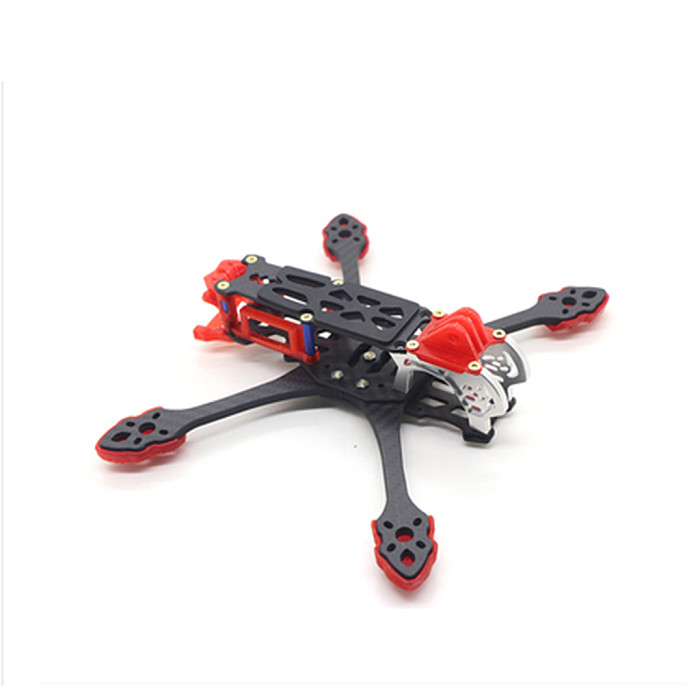

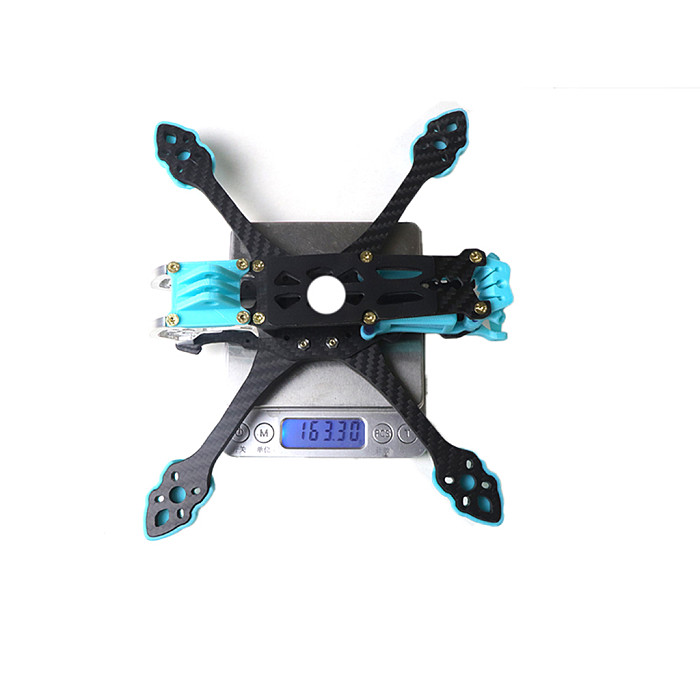

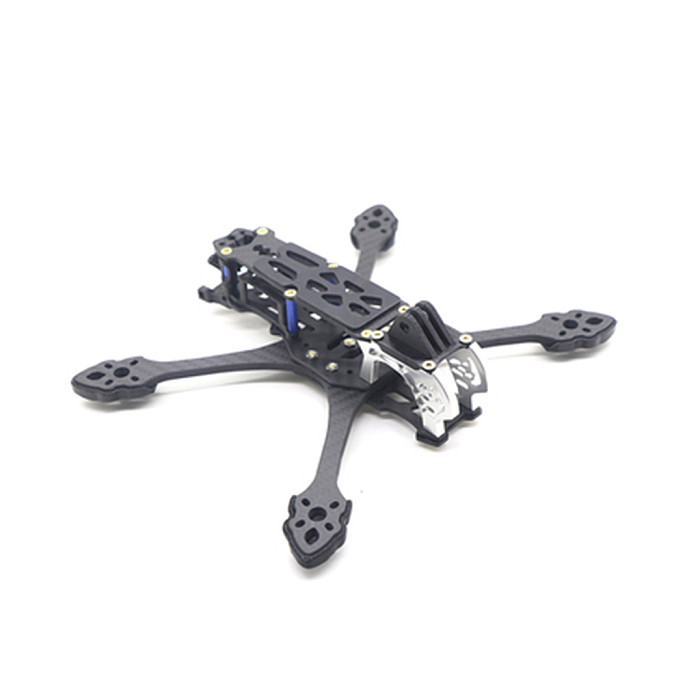

GEP-MK5 O3 Frame Frame Parts Propeller Accessory Base Quadcopter Frame FPV Freestyle RC Racing Drone Mark5

MAK4 HD 5 inch parameters

Name: MAK4 HD 5
Frame
Type: H type

Maximum supported blade: 5inch

Wheelbase: 225mm

Size: 138*176mm

Weight: approx. 122g (including print)

Thickness of top/floor/side panels: 2.5mm

Plywood/protection plate thickness: 2mm

Arm thickness: 5mm

MAK4 HD 6 inch parameters

Name: MAK4 HD 6
Frame
Type: H type

Maximum supported blade: 6inch

Wheelbase: 260mm

Size: 162*203mm

Weight: approx. 130g (including print)

Thickness of top/floor/side panels: 2.5mm

Plywood/protection plate thickness: 2mm

Arm thickness: 5mm

MAK4 HD 7 inch parameters

Name: MAK4 HD 7 frame
Type: H type

Maximum supported blade: 7inch

Wheelbase: 2950mm

Dimension: 193*223mm

Weight: approx. 140g (including prints)

Thickness of top/floor/side panels: 2.5mm

Plywood/protection plate thickness: 2mm

Arm thickness: 5mm
