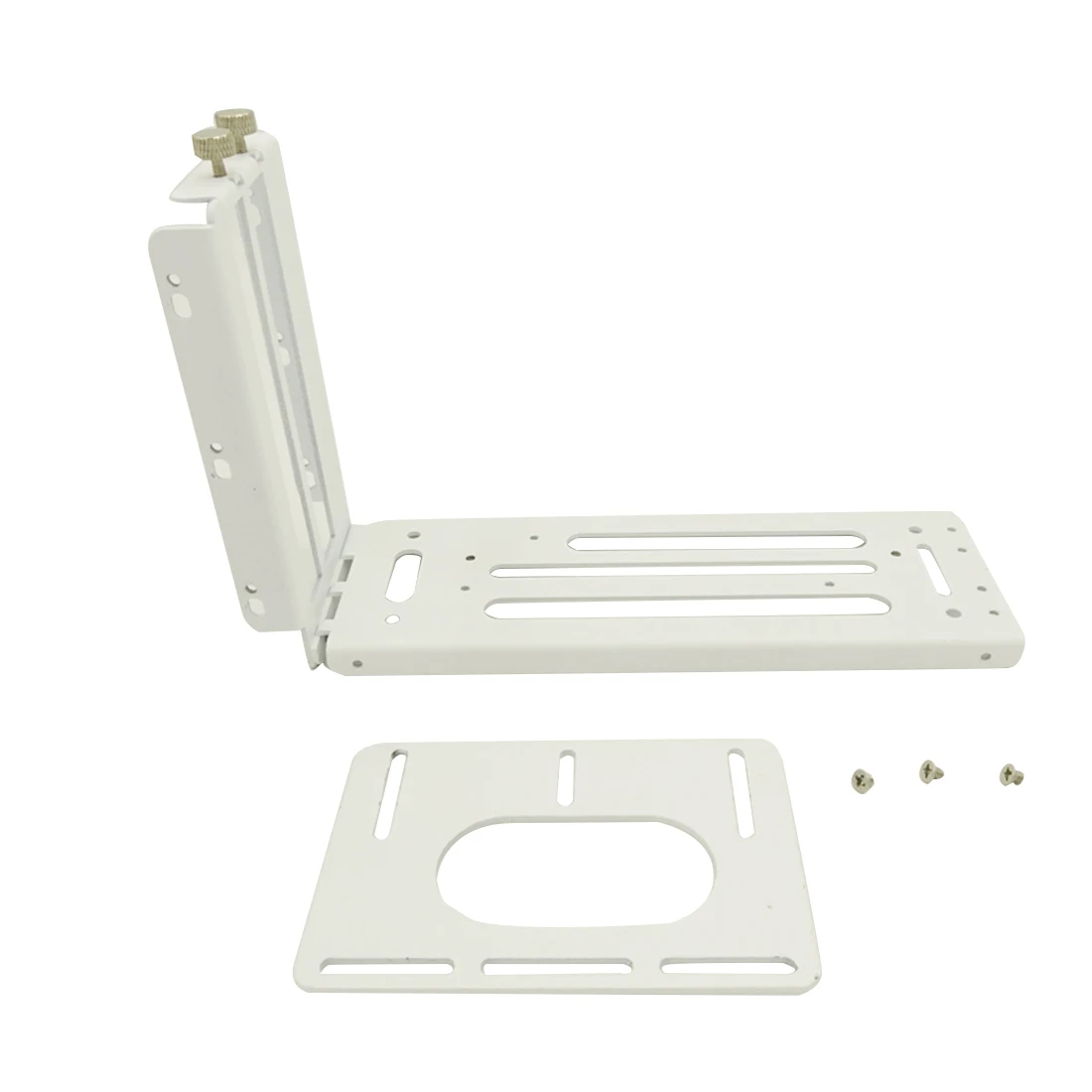

DIY Metal Vertical Graphics Card Holder Bracket Mount kickstand/base With Magnetic for ATX Chassis Graphics Extension Cable

Bracket manual:

Application: Used to fix the graphics card, it needs to be used with the graphics card extension cable, and the graphics card is external.

Scope: Support the chassis with more than 6 side baffles, or the chassis has enough space for the graphics card to stand upright.

Features: With magnetic attraction, it can be attached to the chassis. The side baffle is adjustable left and right, enough space for HDMI-compatible, DP, VGA cable installation.

Supports a chassis with a fully detachable graphics card baffle.

installation steps:

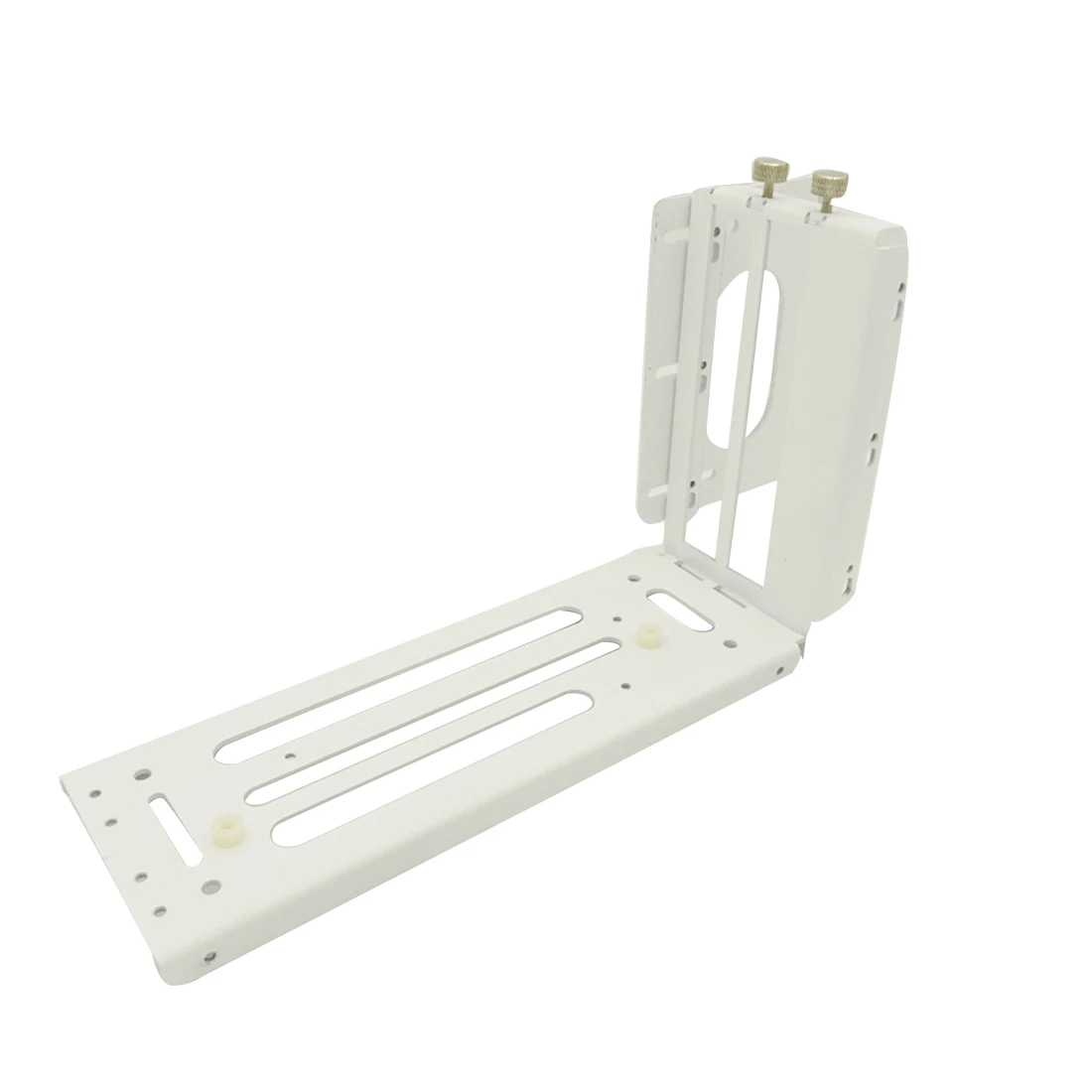

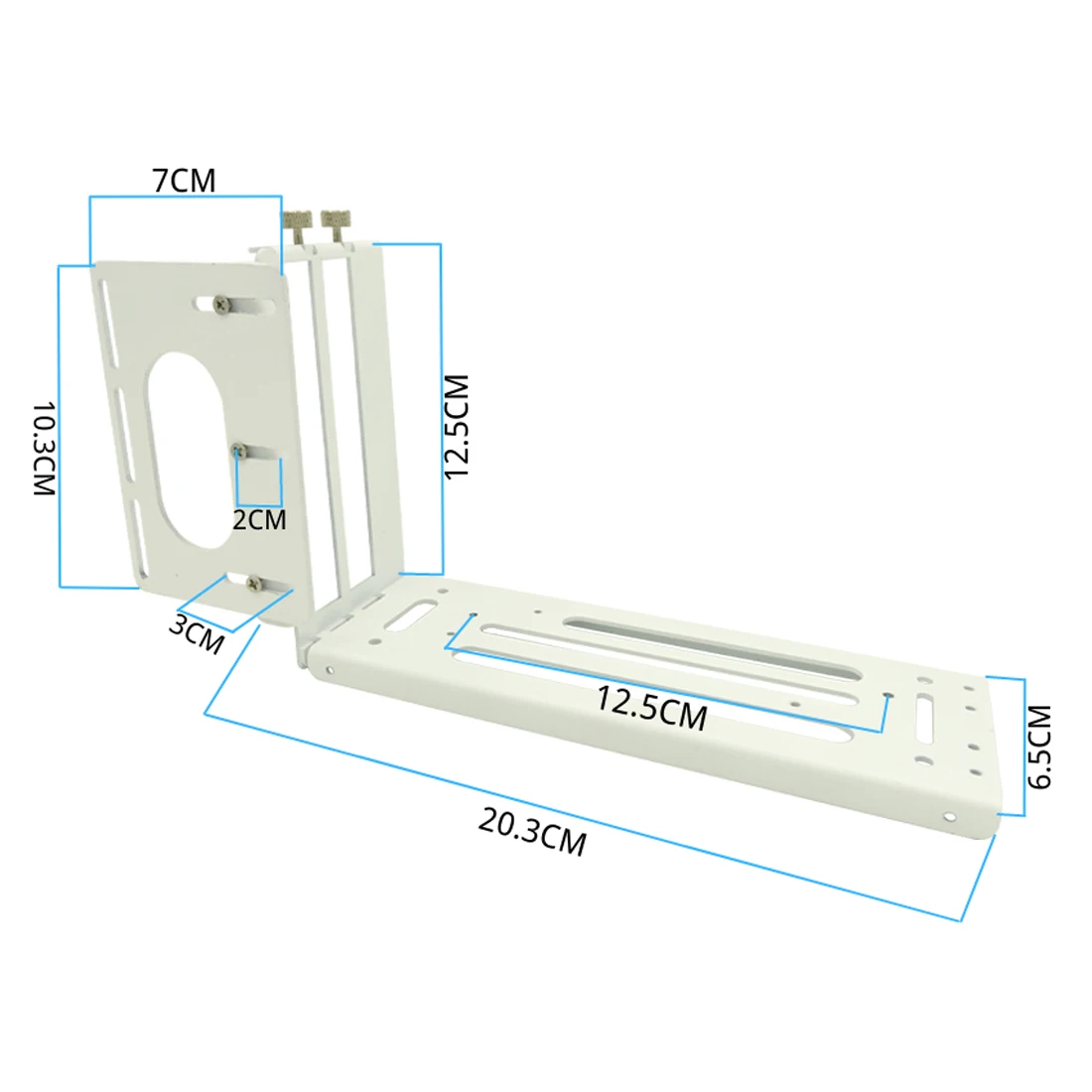

1. Put the two white washers of the accessory kit on the 12.5cm holes of the base respectively.

2. Place the right-angle graphics card extension cable on the white washer and lock it on the base with screws.

3. Lock the side baffle, place it in the chassis, and fix the bracket side baffle to the side baffle of the chassis.

4. Plug in the graphics card, plug in the video cable, and adjust the position.
