Home>Computer Accessories>(DIEWU) Gigabit Switch 8-Port 2.5G+2-Port 10g Gigabit Ethernet Switch Non Management Switch 2.5G Network Divider TXE296

(DIEWU) Gigabit Switch 8-Port 2.5G+2-Port 10g Gigabit Ethernet Switch Non Management Switch 2.5G Network Divider TXE296 Item NO.: F53422-D1 F53422-D2

US$ 59.72

Version: US Version EU Version

Quantity: Stock ( 19999998 )

Estimate Shipping Cost

Product Name	(DIEWU) Gigabit Switch 8-Port 2.5G+2-Port 10g Gigabit Ethernet Switch Non Management Switch 2.5G Network Divider TXE296
Item NO.	F53422-D1 F53422-D2
Weight	2024 kg = 4462.1562 lb = 71394.4990 oz
Volume	1 CBM
Category	Computer Accessories
Brand	DIEWU
Creation Time	2024-11-01

(DIEWU) Gigabit Switch 8-Port 2.5G+2-Port 10g Gigabit Ethernet Switch Non Management Switch 2.5G Network Divider TXE296

Description:

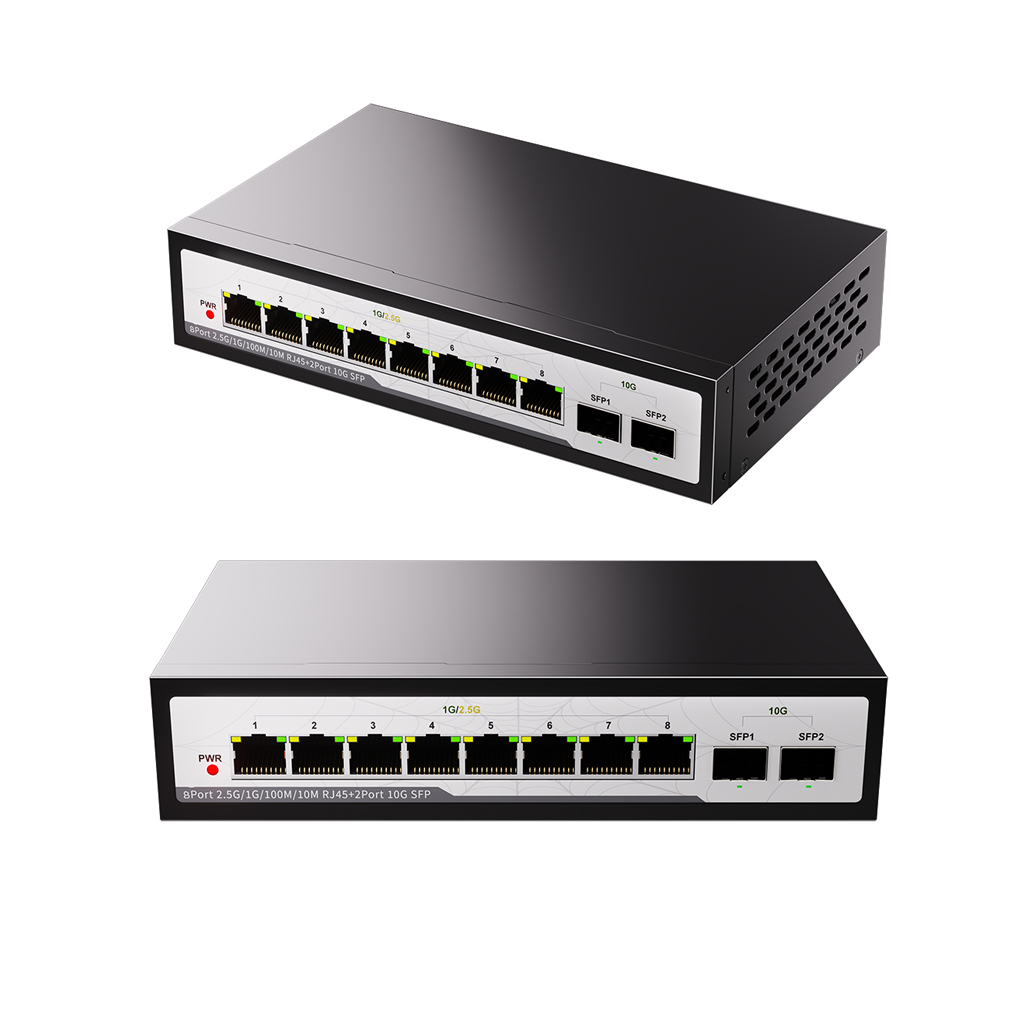

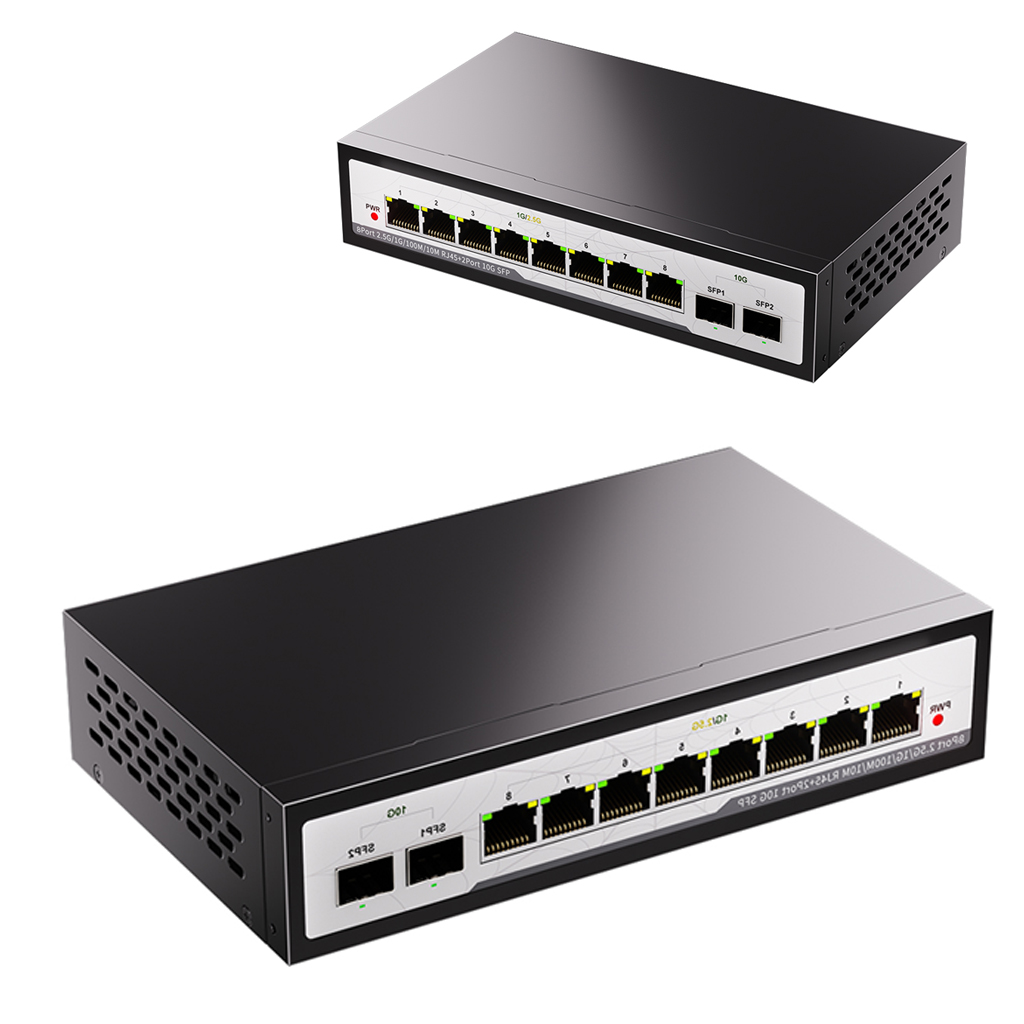

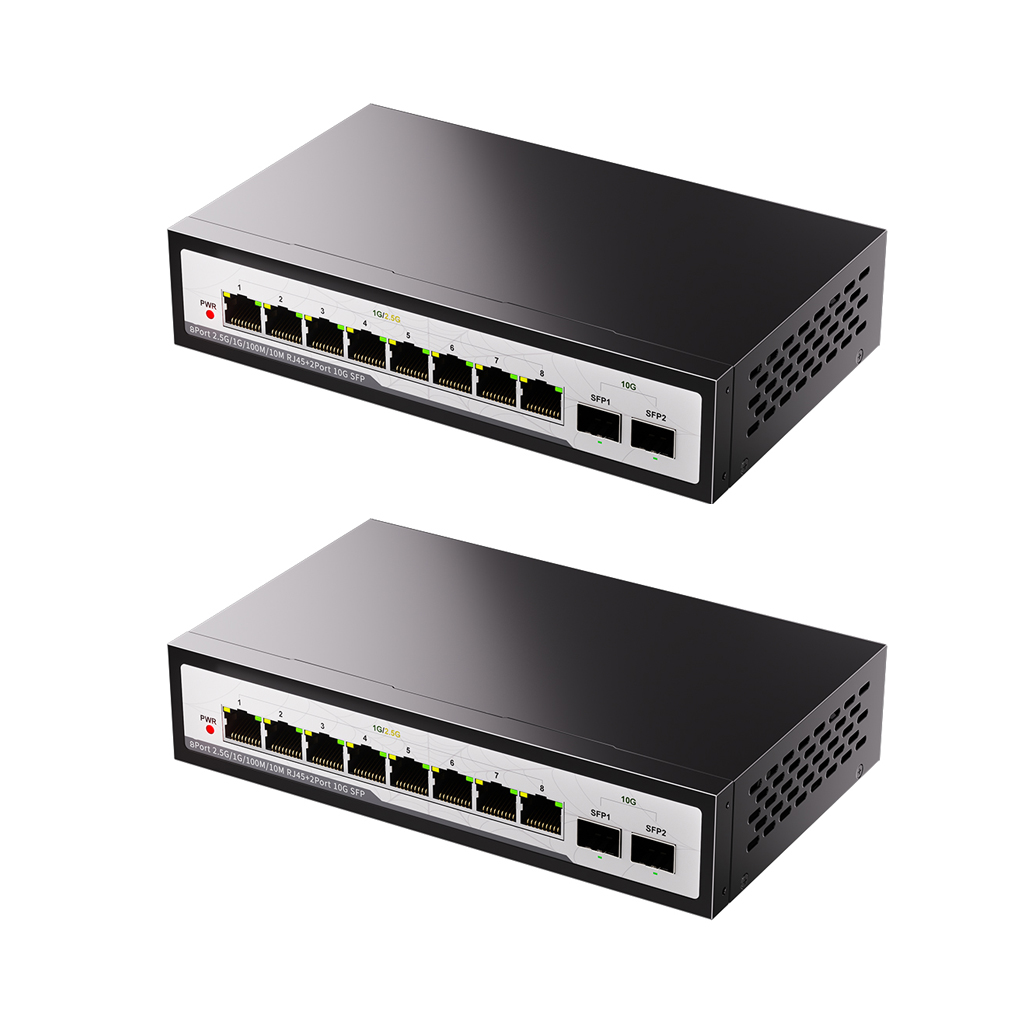

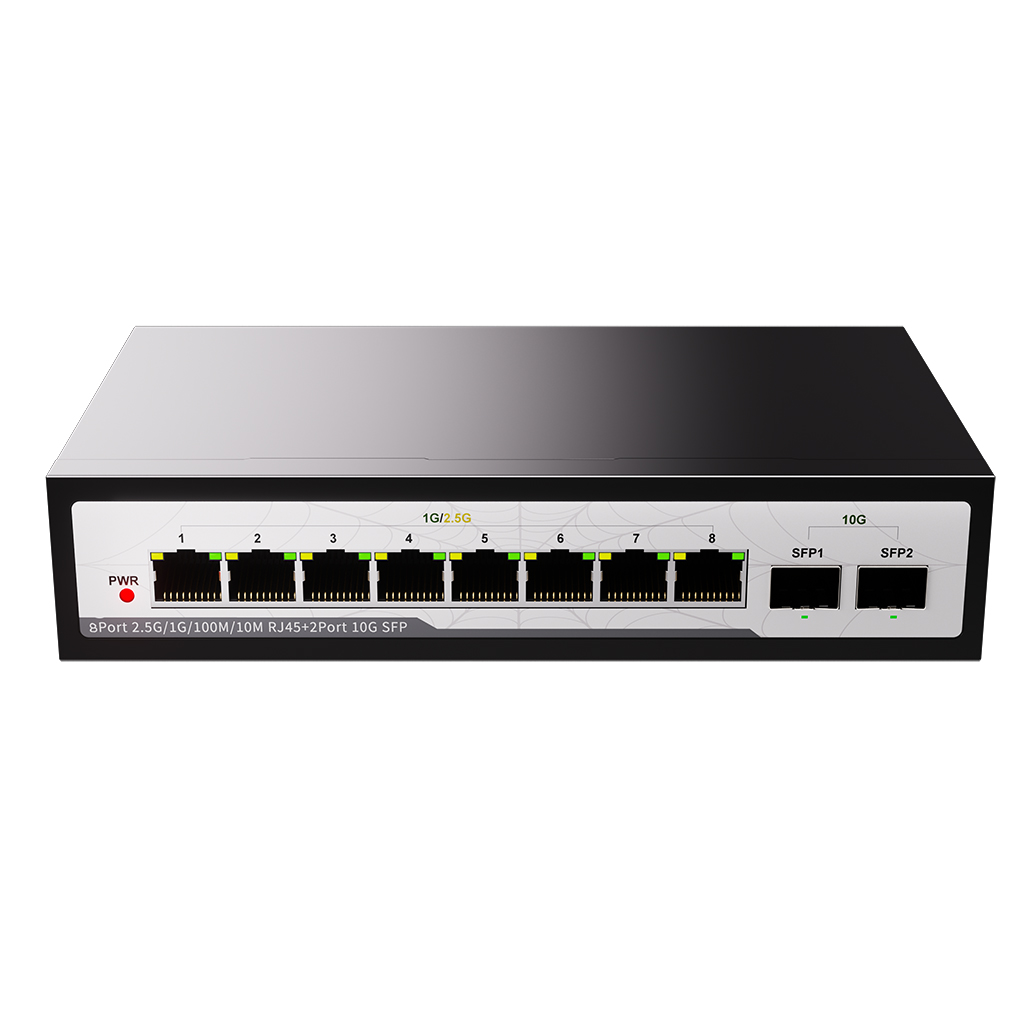

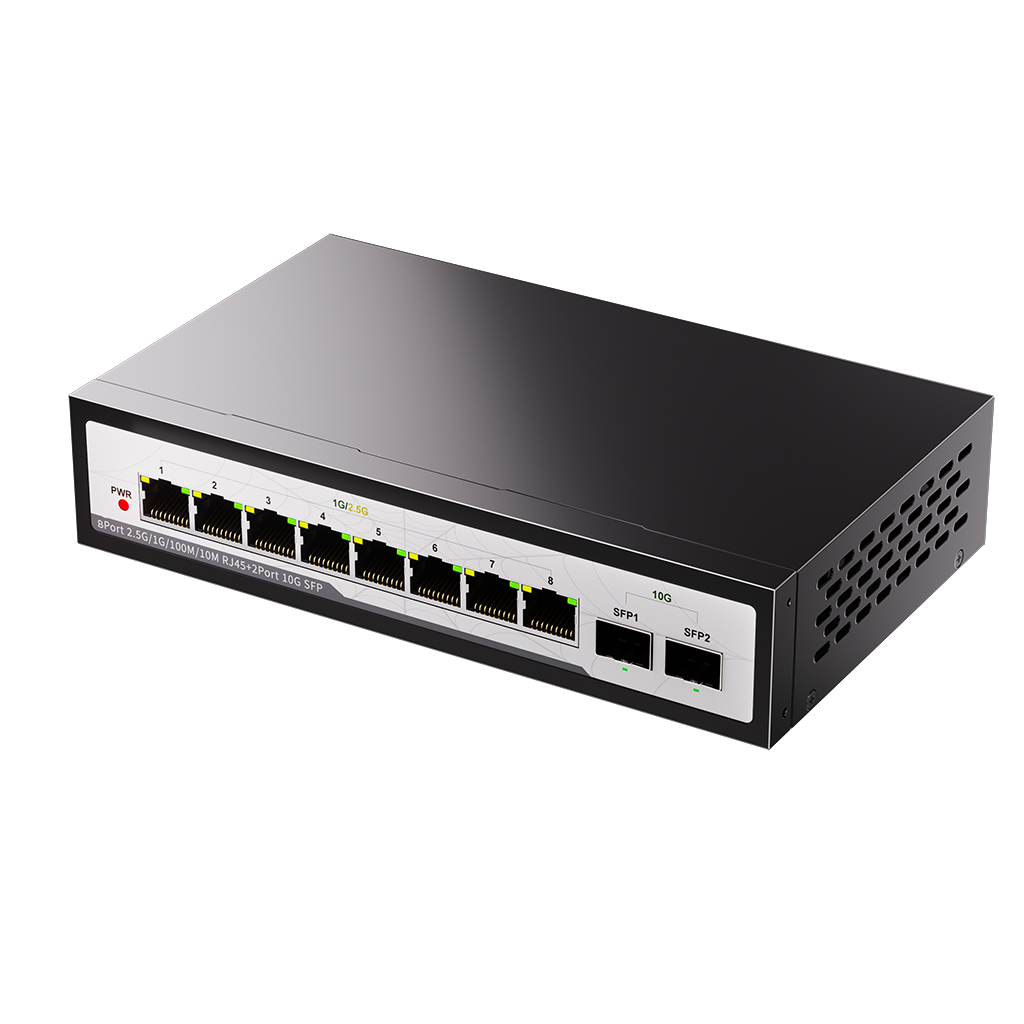

TXE296 is a 8-ports 10/100/1000/2500Mbps+2-Ports 10Gbps unmanaged Ethernet switch provides the seamless network connection. Providing 8x 10/100/1000/2500Mbps. RJ45 ports, 2x10G SFP supporting all port wrie-speed forwarding, and each port has MDI/MDIX cross detection function. Using store and forward technology, combined with dynamic memory allocation, to ensure the effective allocation of bandwidth to each port. TXE296 is easy to use without configuration, plug and play.

Features:
Ø Comply with IEEE802.3、IEEE 802.3u、IEEE802.3ab、
IEEE802.3x、IEEE802.1q standards;
Ø Support 8 x10/100/1000/2500Mbps Auto-negotiation RJ45
ports ,2X10G SFP all port auto MDI/MDIX;
Ø Support IEEE802.3x flow control for Full-duplex Mode and
backpressure for Half-duplex Mode;
Ø Support IGMP V1、V2、V3
Ø 8K entry MAC address table of the switch with auto-learning and
auto-aging;
Ø LED indicators for monitoring port Link/Activity;
Ø Equipped internal power adapter design, the switch can operate
stably.

Specifications:
Model Name: TXE296

Chipset: Mxl86282C

Standards and Protocols:
IEEE802.3、IEEE 802.3u、IEEE802.3ab、IEEE802.3x、IEEE802.1q

Interface: 8 x 10/100/1000/2500Mbps Auto-Negotiation ports,2X10G SFP

Network Media:
10Base-Tx: UTP category 5, 5e cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
2500Base-T: UTP category 5, 5e cable (maximum 100m)

Transfer Method: Store-and-Forward

MAC Address Table: 8K

Switching Capacity: 80Gbps

Packet Forwarding Rate: 59.6Mpps

Packet buffer: 4M bits

Jumbo frame: 15k Bytes

Indic ators:
Per Device: Power (Green)
Per Port:
2500M Link/Activity (Green)
1000M/100M/10M Link/Activity (Orange)

Power Supply:
IN:100-240VAC,50/60Hz0 OUT: 12V/1.5A

Power Consumption: 9w

Dimensions ( W x D x H ): 200*118*44.5mm

Environment:
Operating Temperature: 0℃~50℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
