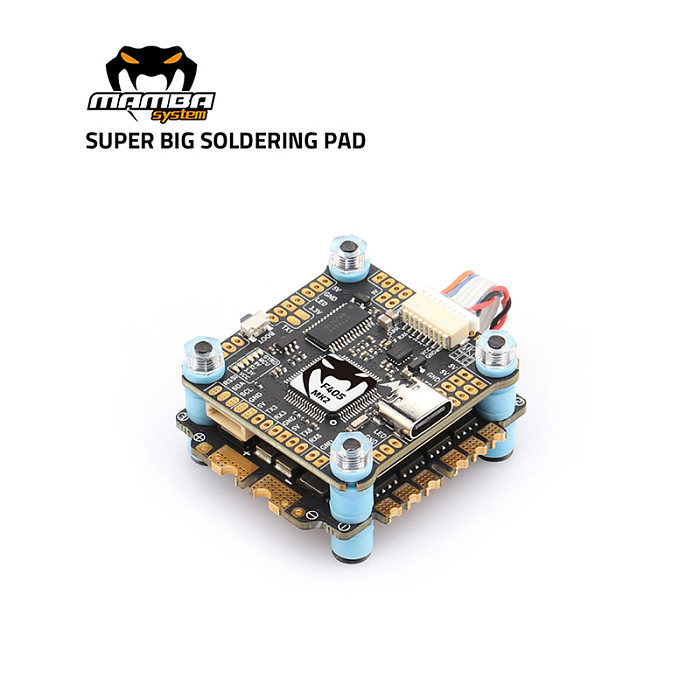

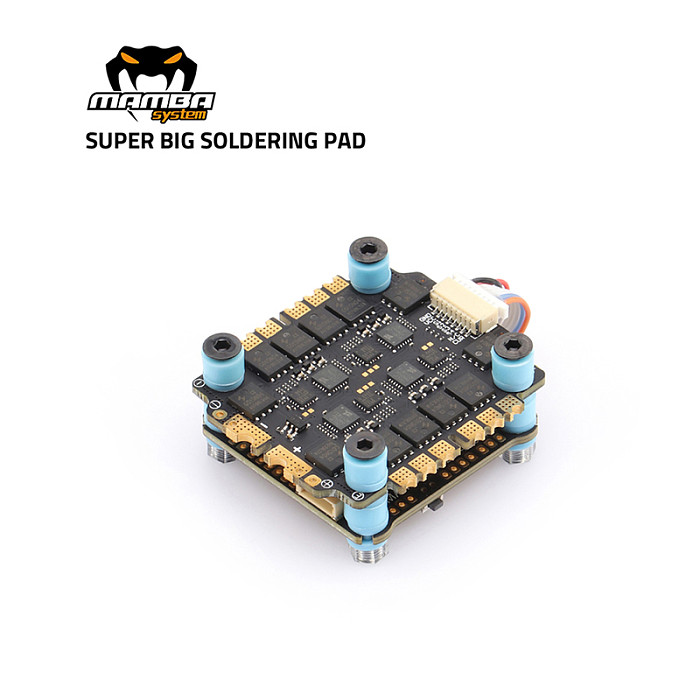

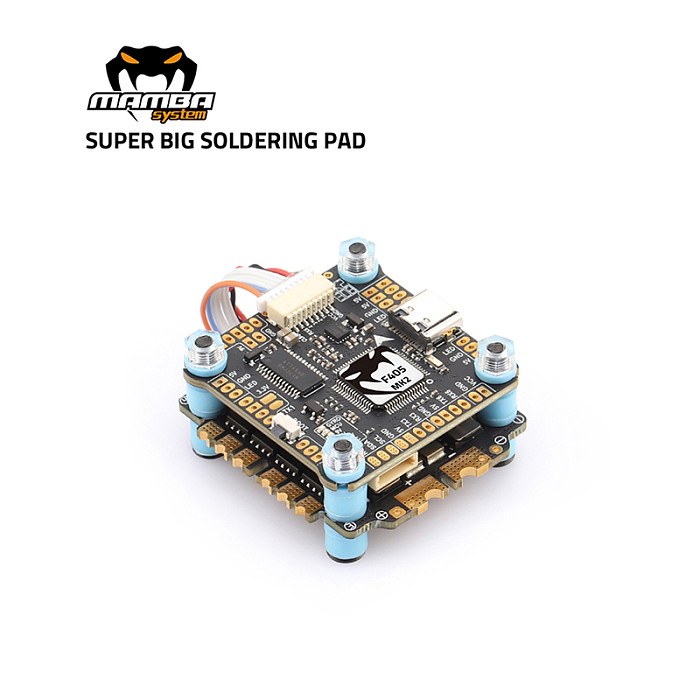

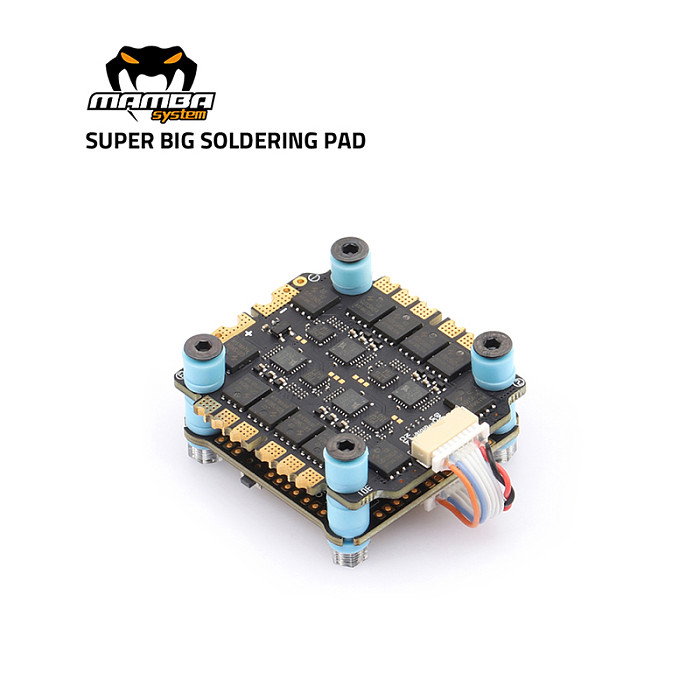

DIATONE F405 MK2 V2 FC&ESC Stack F405MK2 Flight Controller F55 BLS ESC 3-6S DSHOT300/600 For FPV Drone Quadcopter Airplane
-
Detail
- Product Name: DIATONE F405 MK2 V2 FC&ESC Stack F405MK2 Flight Controller F55 BLS ESC 3-6S DSHOT300/600 For FPV Drone Quadcopter Airplane
- Item NO.: F54270
- Weight: 0.13 kg = 0.2866 lb = 4.5856 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2025-05-24
Descriptions:
Product ParametersFirmware: FURYF4OSD
Main Controller: 168MHz STM32F405
Gyroscope: ICM - 42688 - P
OSD (On - Screen Display): Supported
Black Box (Data Logging): 16M Flash Memory
Barometer: None
Serial Ports: 3 Sets
I2C Signal: Supported
F.Port Signal: None
RSSI Signal (Received Signal Strength Indicator): Supported
Buzzer: Supported
ESC (Electronic Speed Controller) Output: 6 Sets
ESC Protocol: Dshot300/600
ESC Telemetry: Supported
Status Indicator Light: Available
LED Output: With BF LED
VTX (Video Transmitter) Interface: Supported
WIFI Tuning: None
VTX Power Control: None
BEC (Battery Eliminator Circuit) Protection: Yes
Receiver Protection: Yes
TVS (Transient Voltage Suppressor) Power Protection: Yes
BEC Output: 3.3V 0.5A, 5V 2A, 9V 2A
Operating Voltage: 3 - 6S Lipo (12.6 - 25.2V)
Mounting Size: 30.5mm/M3

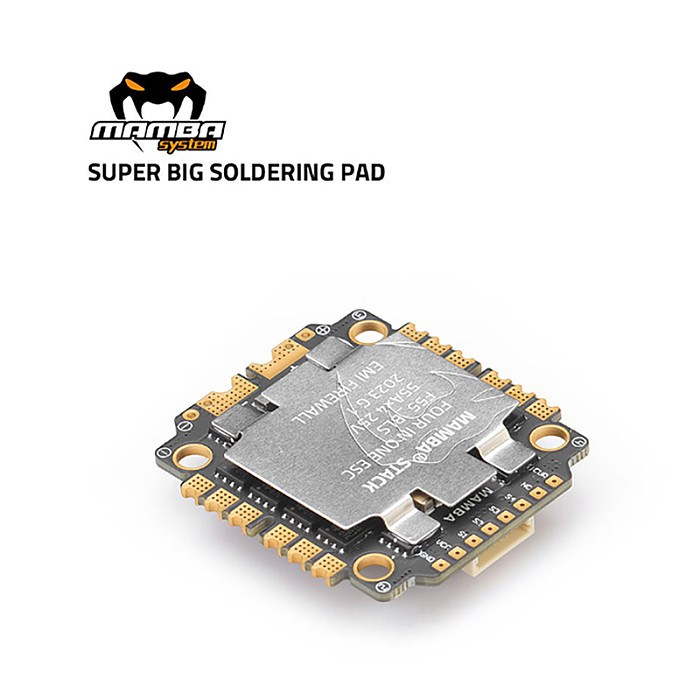

For MAMBAF55 BLS ESC
Input Voltage: 4 - 6S Lipo (12.6 - 25.2V)
Rated Current: 55A×4
Peak Current: 60A (10S)
BEC: None
Program: Dshot300/600
Firmware: BLHeli_S C4H0
TVS Power Protection: Yes
Mounting Hole Pattern: 30.5mm/M3
Dimensions: 44.5×40×6.8mm
Shipping Include
High - Frequency Capacitor 470μF/35V×1
8pin sh1.0×2
12AWG 100mm×2
AMASS Original XT60×1
