4PCS iFlight XING-E Pro 2306 2-6S Motor For FPV Ride Through Machine

4PCS iFlight XING-E Pro 2306 2-6S Motor For FPV Ride Through Machine Item NO.: F45268-D1-4 F45268-D2-4

Write a Review
US$ 54.75
Version
1700KV 2450KV
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • 4PCS iFlight XING-E Pro 2306 2-6S Motor For FPV Ride Through Machine
Product Name 4PCS iFlight XING-E Pro 2306 2-6S Motor For FPV Ride Through Machine
Item NO. F45268-D1-4 F45268-D2-4
Weight 0.14 kg = 0.3086 lb = 4.9384 oz
Category DIY RC Drone Accessories > Motor
Brand iFlight
Creation Time 2021-10-27

4PCS iFlight XING-E Pro 2306 2-6S Motor For FPV Ride Through Machine


iFlight XING-E Pro 2306 2-6S Motor For FPV Ride Through Machine

2 versions are available:1700kv or 2450kv

PRODUCT DESCRIPTION

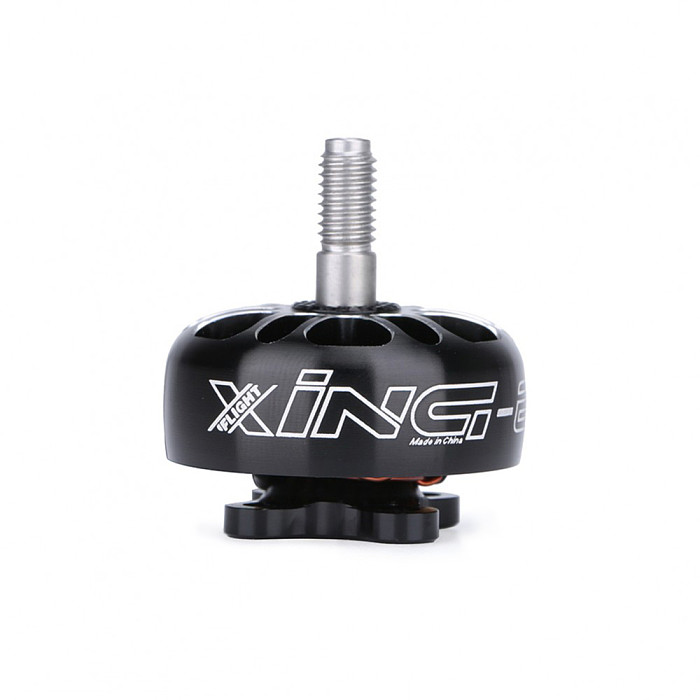

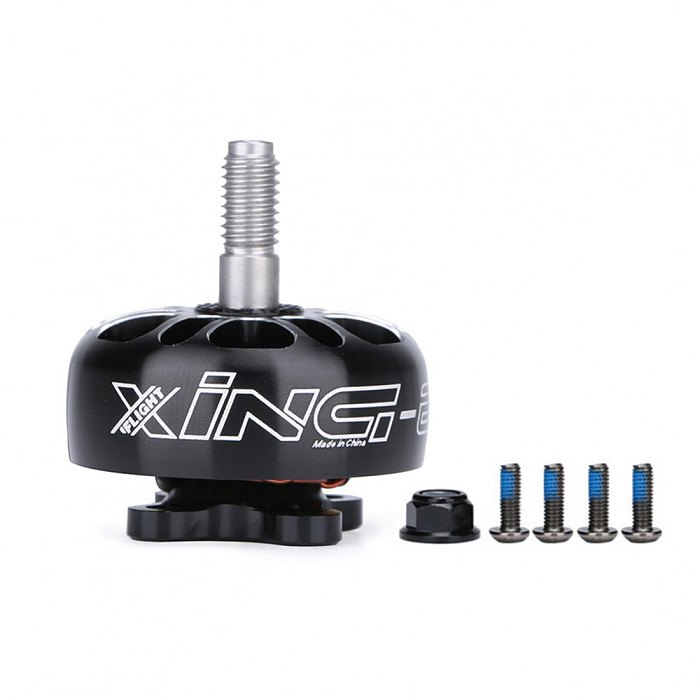

XING-E Pro series are very strong and powerful FPV motors for FPV racing, great value choice with well known
XING performance. focus on quality, the XING-E Pro series affordable motors that are strong and durable.

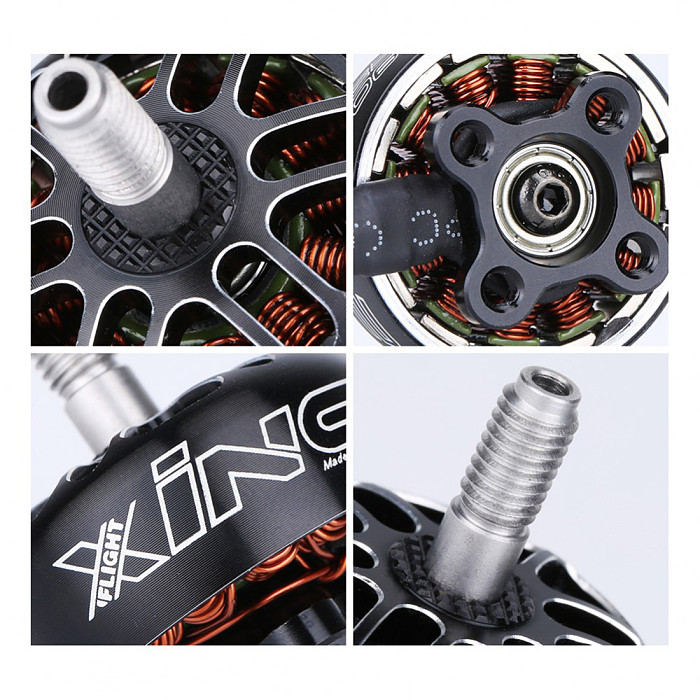

This 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance,
M3 shaft screw, and larger 9x4x4mm NSK bearings.

Features:
-High-strength 4mm Steel shaft
-N52SH High-temperature magnets, NSK bearings
-16x16mm hole pattern
-Single strand copper winding
-6061 CNC machined aluminum top and base parts
-Hex bolt shaft set screw
Specifications:
-Configuration: 12N14P
-Stator Diameter: 24mm
-Magnets: N52SH Curved
-Bearing Size: 9x4x4
-Shaft Diameter: 4mm / Steel
-Base Mounting Pattern: 16x16mm M3 Thread
-Motor Dimension:29.5x18.7mm
-Weight:33.1g (150mm wires)
-Idle Current @12.6v (Io):2.1A
-Cells (LiPo): 2-6S
-Max Burst Current <10s:55.22A
-Max Power (W) 60s:885.4W
-Internal Resistance (Rm): 40.6mΩ
-Motor Wire Length: 150mm / 20AWG

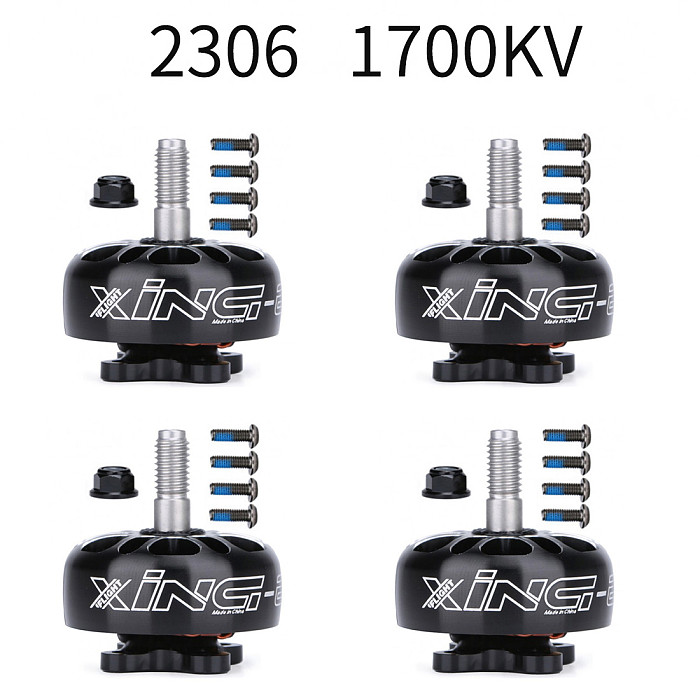

Package included:
  4PCS MOTORS
