BetaFPV Pavo Pico Brushless Bwhoop Frame Support 1102 | 14000kv Brushless Motor 45mm 2-Paddle Propeller Item NO.: F50222-A1234F50223-A1234

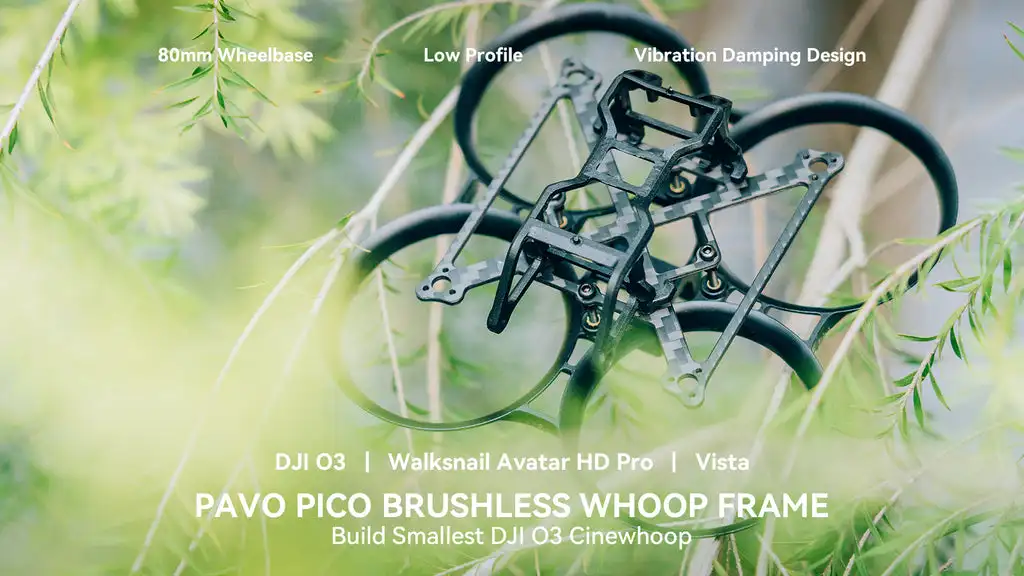

Pavo Pico is the Smallest 2S Sub100g DJI O3 Cinewhoop frame, compatible with other mainstream HD digital VTX on the market, such as Walksnail Avatar Pro Kit, Vista Kit, etc. Based on feedback from pilots during the BETA TEST before, we have made upgrades to the frame, such as lowering the battery slot height and adding filters and camera protection parts. These improvements will maximize the advantages of the camera and HD digital VTX providing, enabling a unique and unparalleled flying experience for pilots.

Click to learn more about this frame BETA TEST: Sub100g Whoop Drone with DJI O3.

Bullet Point

• HD digital VTX bracket made of lightweight and tough injection-molded PP material with an adjusted structure to prevent HD VTX displacement or loss after the crash.

• Incorporating an angle-limited lens protection print and DJI O3 series filters, It is recommended to purchase, which can increase safety and improve visual quality.
• The Rubber Damper Vibration damping design reduces low-frequency vibrations and is used with GyroFlow stabilization software for a stable and clear camera image during high-speed flight.
• To accommodate a wider range of battery sizes, the main body of the frame can be trimmed through DIY methods. Additionally, larger batteries can be installed by using battery straps or printed components.
• The DJI O3 can be directly installed, while Avatar and Vista require a 20*20 mounting plate and screws (included) for fixation. The naked frame is suitable for users who DIY refit and assemble the HD VTX by themselves

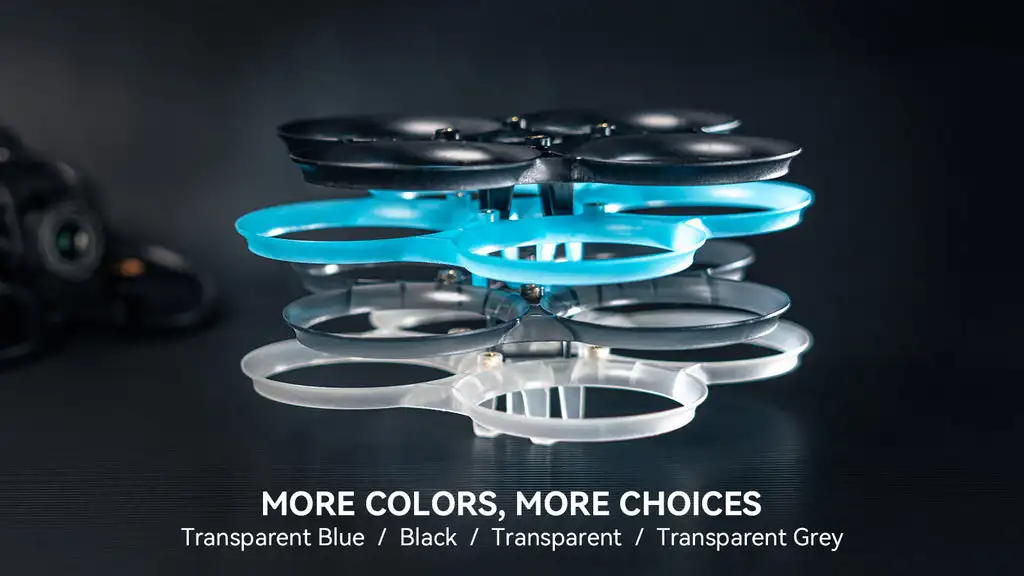

• We offer a wider range of colors for the Pavo Pico frames, giving you even more options to choose from. Whether you prefer a bold and bright hue or a more subdued shade, we have a color that will suit your style. You can choose your favorite color or collect them all to create your own unique mix-and-match cinewhoop.

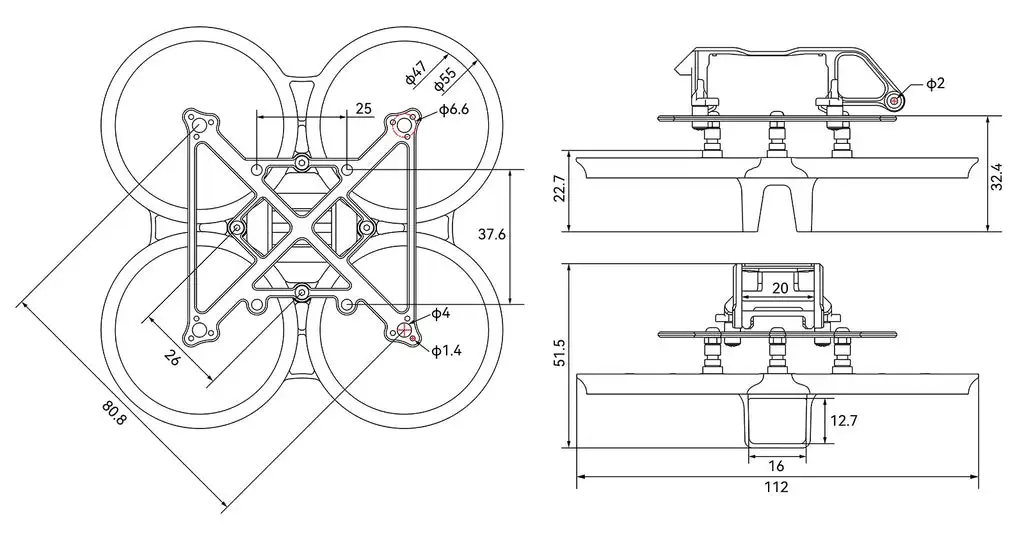

Specification

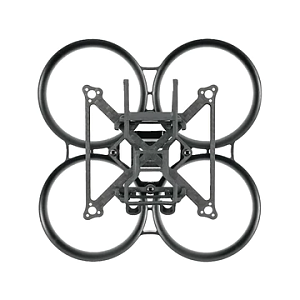

• Item: Pavo Pico Brushless Whoop Frame
• Material: PA12
• Wheelbase: 80.8mm
• Battery Slot Size: 16mm*12.7mm
• Camera Installation Spacing: 19mm/20mm
• Color: Black/Blue/Transparent/Transparent grey
• Weight: 13.80g/11.62g
• Motor Mounting Hole Position: 3-M1.4-φ6.6mm
• FC Pattern: 26×26mm, suitable for F4 1S 12A AIO Brushless FC V3

HD VTX Mounting Bracket

This frame is compatible with mainstream HD digital VTX on the market, such as Walksnail Avatar Pro Kit, Vista Kit, etc.

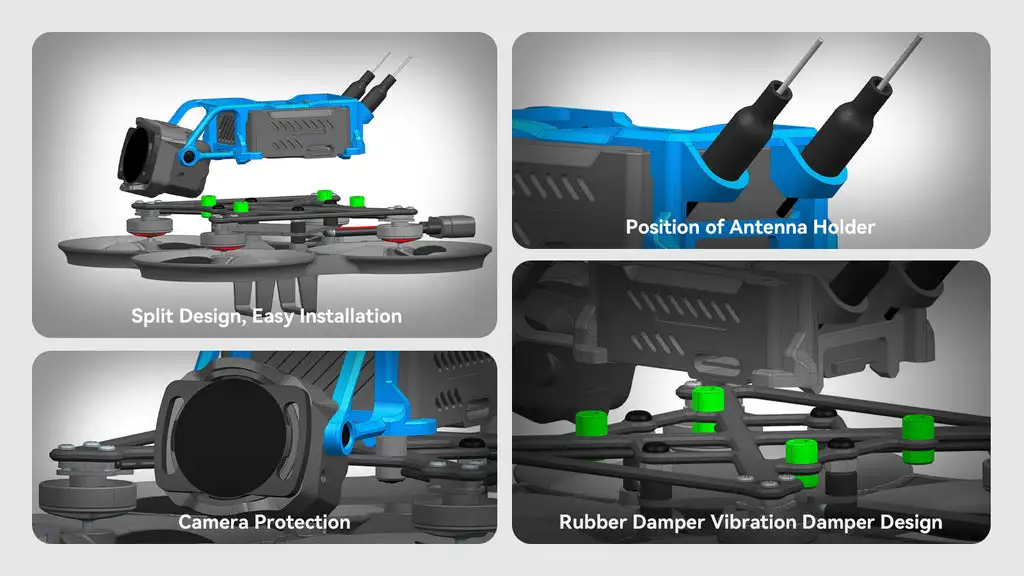

We used ultra-light PP material to make the HD VTX mounting bracket, increasing its toughness. The antenna fixing slot and frame have been fused to reduce damage risk, while the camera's installation height has been lowered with a protective printed part to limit its movable angle to within 30°. We have incorporated a unique rubber damper vibration-damping design, used with GyroFlow stabilization software, which greatly enhances safety and ensures a smooth, HD video output. When you screw the die-cast screws, please DO NOT screw them too tight to leave room for rubber dampers to absorb vibration. It may cause jello in the video footage. And The whole quadcopter is presented with the installation bracket of the DJI O3 digital transmission original antenna.

Click to watch the installation guide video for DJI O3 Air Unit on Pavo Pico.

Die-cast screws in this frame design offer benefits such as increased whoop quadcopter strength and precision, enhance flight stability, and improved reliability.

And The whoop quadcopter package includes the DJI O3 HD Digital VTX Antenna Mount.

Carbon Fiber VTX Adapter

We found that the installation dimensions of the Vista and Avatar HD Pro digital VTX modules closely match those of the O3 digital VTX. Thus, Installing a carbon plate with mounting holes that measure 20x20mm is sufficient to mount both digital VTXs. Install quickly and effortlessly, while meeting pilots' various DIY needs, and exploring more possibilities for flying.

ND Filter for DJI O3 Camera

BETAFPV ND Filter for DJI O3 Camera is specifically designed for the Pavo Pico Brushless Whoop Quadcopter frame. Meanwhile, the DJI O3 Air Unit ND Filters are tailored for the DJI O3 Air Unit and are capable of reducing the amount of light that enters the camera lens. With this feature, you can achieve slower shutter speeds or wider apertures when flying. These lightweight filters are crafted from high-quality optical class ensuring optimal image clarity and are too easy to install on the build.

Recommend Parts

• FC&ESC: F4 1S 12A AIO V3 / F4 1S 12A AIO V2.2
• Motor: 1102 | 14000kv Brushless Motor
• Propeller: GF 45mm 3-Blade Propeller, GF 45mm 2-Blade Propeller
• Battery: 2S 450mAh 45C Lipo Battery
• ND Filter: BETAFPV ND Filter for DJI O3 Camera
• Quadcopter: Pavo Pico Brushless Whoop Quadcopter
• Support HD Digital VTX: DJI O3 HD Digital VTX, Avatar HD Digital VTX, Vista HD Digital VTX, Runcam Link

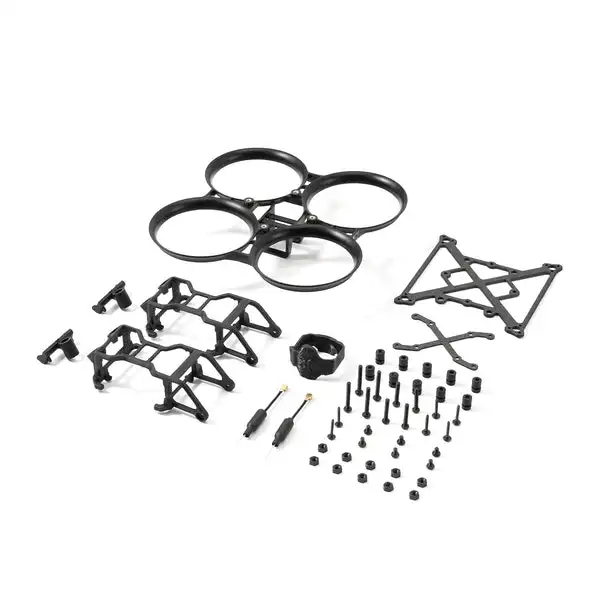

Package

HD Frame KIT

• 1 * Pavo Pico Frame
• 1 * Pavo Pico Top Plate
• 1 * Frame FC Screw Package
• 1 * VTX Bracket Screw Package
• 1 * 20*20mm VTX Mounting Plate
• 2 * DJI O3 HD Digital VTX Mounting Bracket
• 2 * DJI O3 HD Digital VTX Antenna Mount
• 2 * 5.8g Copper Tube Antenna

Naked Frame

• 1 * Pavo Pico Frame
• 1 * Pavo Pico Top Plate
• 1 * Frame FC Screw Package
