Copy| Product Name | Beecore VTX Brushed Flight Controller for Tiny Whoop Built-in Betaflight OSD and 25mw VTX with Smartaudio |
| Item NO. | F24985 |
| Weight | 0.015 kg = 0.0331 lb = 0.5291 oz |
| Category | DIY RC Drone Accessories |
| Tag | |
| Brand | JMT |
| Creation Time | 2018-06-11 |
Beecore VTX Brushed Flight Controller for Tiny Whoop Built-in Betaflight OSD and 25mw VTX with Smartaudio
The
tiny whoop style Brushed flight controller built-in Betaflight OSD and
25mw VTX with Smartaudio is coming now. Best for Kingkong Tiny6/6x/7/7x .
Features:

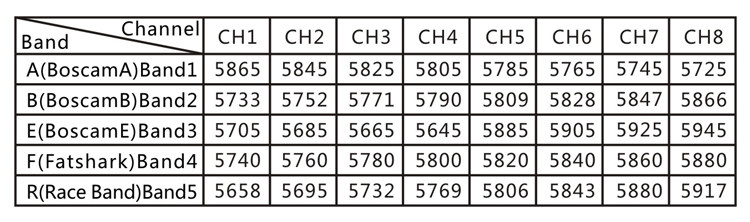

VTX channel list
Specifications:
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)
Power supply: 1S battery input (DC 3.5-4.35V)
Built-in Betaflight OSD(SPI Controll)
Built-in 5.8G 25mw 40ch vtx
Smartaudio function ready
Heading LED Ready
Mount hole distance: 26mm * 26mm
Board size:29mm*29mm
Board weight: 4.0 g
With 4 large current NMOS transistors, operating current of up to 10A each
Built-in OSD(Using F3 MCU controls OSD over SPI bus in DMA mode)
Smartaudio ready, you can change the VTX channels by your radio sticks
PPM/SBUS/IBUS/DSM2/DSMX ..etc protocol receiver compatible
Best for Tinywhoop style brushed frame , perfect flight controller replacement for Kingkongrc/LDARC Tiny6/6x/7/7x/8/8x
