BETAFPV HX115 115mm FPV Toothpick Drone FPV Freestyle with F4 2-4S AIO FC 1105 5000KV Motor Caddx Kangaroo Racing Camera Item NO.: F33168 F33169 F33172 F33173

Name: BETAFPV HX115 115mm FPV Toothpick Drone FPV Freestyle with F4 2-4S AIO FC 1105 5000KV Motor Caddx Kangaroo Racing Camera
Brand: BETAFPV
SKU: F33168 F33169 F33172 F33173
Price: 128.34 USD
Availability: SoldOut
Rating: 5 (1 reviews)

5.0

(1)

Write a Review Sold (1)

US$ 128.34

US$ 150.99 Save US$ 22.65 (15% Off)

Sold Out

Product Name	BETAFPV HX115 115mm FPV Toothpick Drone FPV Freestyle with F4 2-4S AIO FC 1105 5000KV Motor Caddx Kangaroo Racing Camera
Item NO.	F33168 F33169 F33172 F33173
Weight	0.16 kg = 0.3527 lb = 5.6438 oz
Category	DIY RC Drone Accessories > Motor
Brand	BETAFPV
Creation Time	2019-11-11

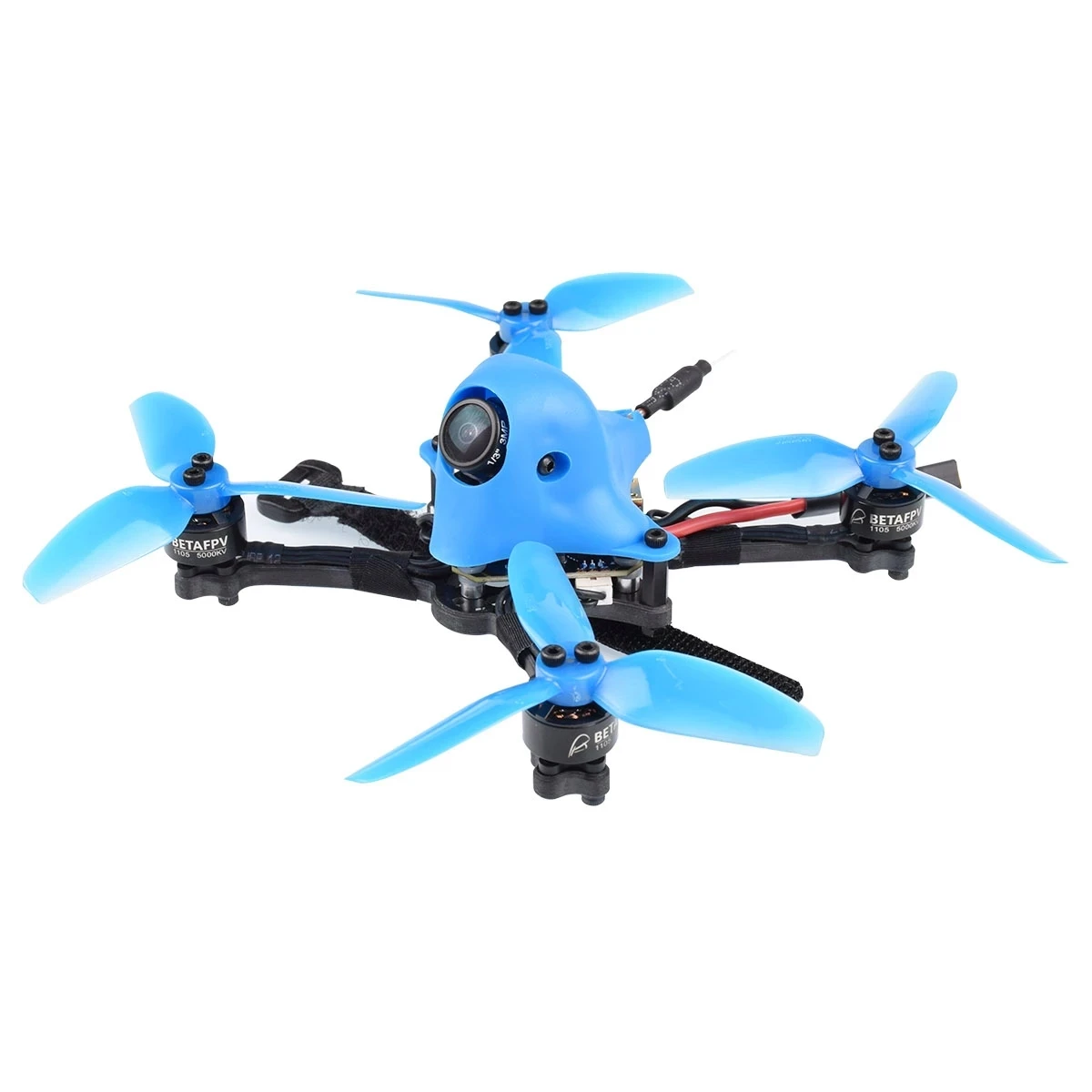

BETAFPV HX115 115mm FPV Toothpick Drone FPV Freestyle with F4 2-4S AIO FC 1105 5000KV Motor Caddx Kangaroo Racing Camera

HX115 FPV 3-4S racing drone is the ideal micro racer. It is crazy fast due to ultra-light with 115mm size, powerful thrust with Toothpick 12A AIO FC and 1105 5000KV motor. So be careful as this is not a toy! At the same time, we customized ultra-low latency(4ms) and FOV 165° ultra-wide-angle racing Camera for a more expansive field-of-view.

Bullet Point
Customized Caddx Kangaroo, delivering 4ms ultra-low latency, FOV 165°, and super WDR with weight just 3.5g, specially designed for the pilot who seeking the ultimate speed.
The first carbon fiber series installs Betafpv Toothpick 12A 2-4S AIO flight controller, which can reduce weight and size and makes it easier to work on and DIY without lots of messy soldering and wiring.
More durable and aesthetic while maintaining minimal weight is achieved with a 4.2mm thickness carbon fiber unibody frame.

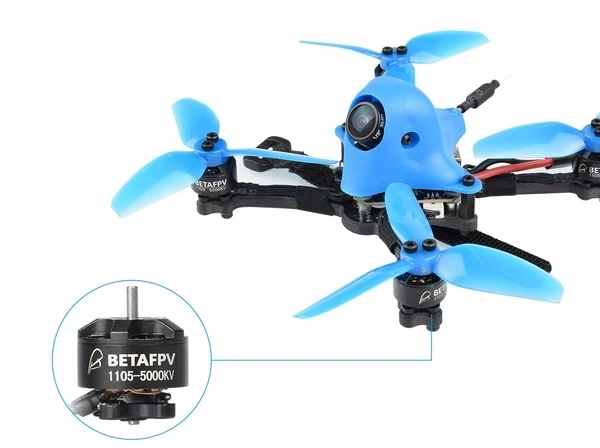

Integrates with 1105 5000KV motor, HX115 offers unparalleled execution in thrust and control.
Supports 3-4S battery. It has plenty of power and punch to do all the tricks and flips you want. Our recommended power combination is that 3030 3-blade props with 450mAh 3S battery, while 3020 2-blade props with 450mAh 4S battery.

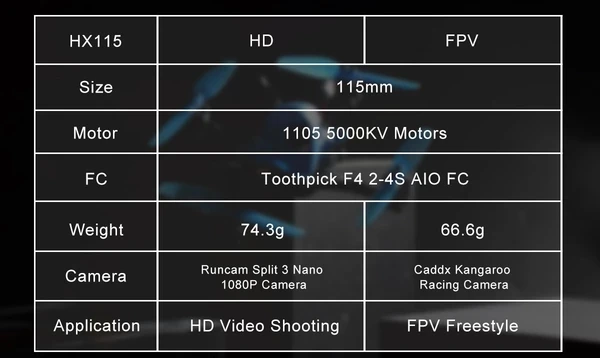

HX115 comes with two versions at your disposal. If you prefer to enjoy HD video shooting at 115mm little beast, HD version is your best choice. If you just wanna experience freestyle with ultimate speed, please choose FPV version. Following table is the specifications comparison.

Specification

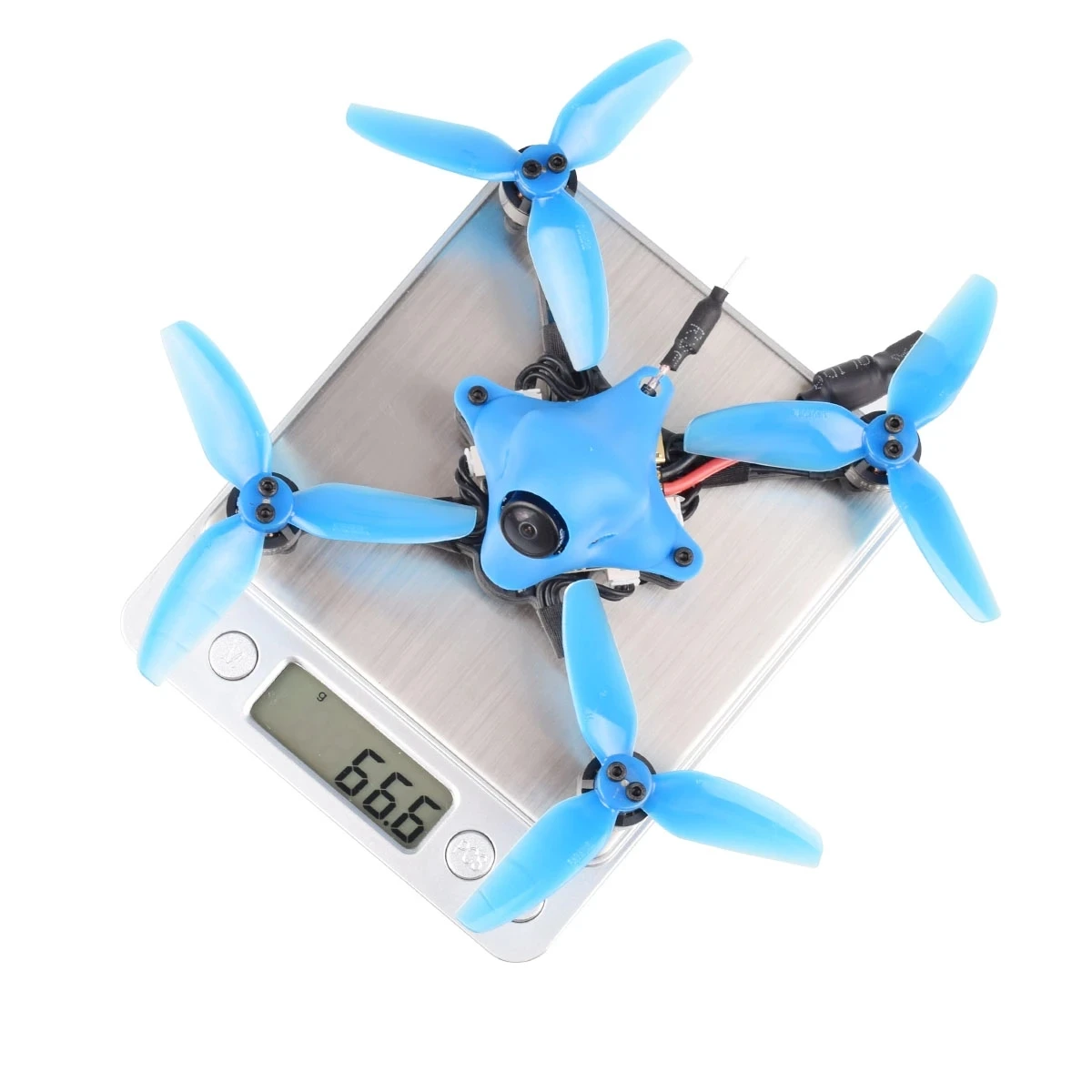

Weight: 66.6g (without battery)
FC&ESC:Toothpick F4 2-4S AIO FC
Motors: 1105 5000KV Brushless Motors
Props: HQ 3020 2-Blade Props / HQ 3030 3-Blade Props
Camera: Caddx Kangaroo
VTX: A01 25-200mW 5.8G VTX
Frame: HX115 T700 carbon fiber frame
Canopy: Canopy for HX115
Receiver Option: Frsky XM+ / DSMX / Futaba S-FHSS / Flysky / TBS Crossfire
Battery: 450mAh 4S battery / 450mAh 3S battery (NOT included)
Flight time: Almost 5mins in a smooth flight

Toothpick F4 2-4S AIO Flight Controller
The first carbon fiber drone series that installs a new layout all-in-one Toothpick FC, makes this ideal for tight builds and achieves mini stack height. Possesses high-performance STM32F411CEU processor and tuned Betaflight MATEKF411 (MK41), which provides much more power on 2-4S.

Specifications of VTX
A01 VTX board is lighter and perfectly suitable for canopy with switchable output power between 25mW and 200mW. SmartAudio is available for VTX remote control in default.
Output power: 25mW and 200mW (Adjustable)
Smart Audio function is included for radio control
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz

HX115 T700 Carbon Fiber Frame
Newly structure design, R0.5 chamfer, and 4.2mm thickness make HX115 T700 carbon unibody frame become ultimate durability and aesthetic while maintaining minimal weight. It has applied upgraded T700 carbon fiber material, stronger crashworthiness compared to the initial T300 frame.

Recommended Battery
Adhering to the purpose of bringing the perfect flight experience to customers, the most suitable match for props and batteries are as follows, which is switchable and affordable.

Package
1 * HX115 115mm FPV Quad
1 * HQ 3030 3-Blade Props (4pcs)
1 * HQ 3020 2-Blade Props (4pcs)
*Battery is NOT included. It comes with two sets of 3'' props without pre-installed, props at your disposal.
