BETAFPV HX100 100mm 2-3S FPV Racing Quadcopter Carbon Fiber with F4 2-4S AIO 12A FC Runcam Nano V2 Camera OSD Smart Audio Motor RC Drone Item NO.: F34344/F34345/F34346/F34347

Name: BETAFPV HX100 100mm 2-3S FPV Racing Quadcopter Carbon Fiber with F4 2-4S AIO 12A FC Runcam Nano V2 Camera OSD Smart Audio Motor RC Drone
Brand: BETAFPV
SKU: F34344/F34345/F34346/F34347
Price: 114.99 USD
Availability: SoldOut
Rating: 5 (1 reviews)

5.0

(1)

Write a Review

US$ 114.99

Sold Out

Product Name	BETAFPV HX100 100mm 2-3S FPV Racing Quadcopter Carbon Fiber with F4 2-4S AIO 12A FC Runcam Nano V2 Camera OSD Smart Audio Motor RC Drone
Item NO.	F34344/F34345/F34346/F34347
Weight	0.15 kg = 0.3307 lb = 5.2911 oz
Category	RC Toy Drone
Brand	BETAFPV
Creation Time	2019-11-21

BETAFPV HX100 100mm 2-3S FPV Racing Quadcopter Carbon Fiber with F4 2-4S AIO 12A FC Runcam Nano V2 Camera OSD Smart Audio Motor RC Drone

HX100, New star of FPV Drone
HX100 is a revolutionary pocket-size FPV racing drone of BETAFPV, which is suitable for indoor and outdoor flight. Take it home and explore the big world. Unleash your other side!

SPECIFICATION

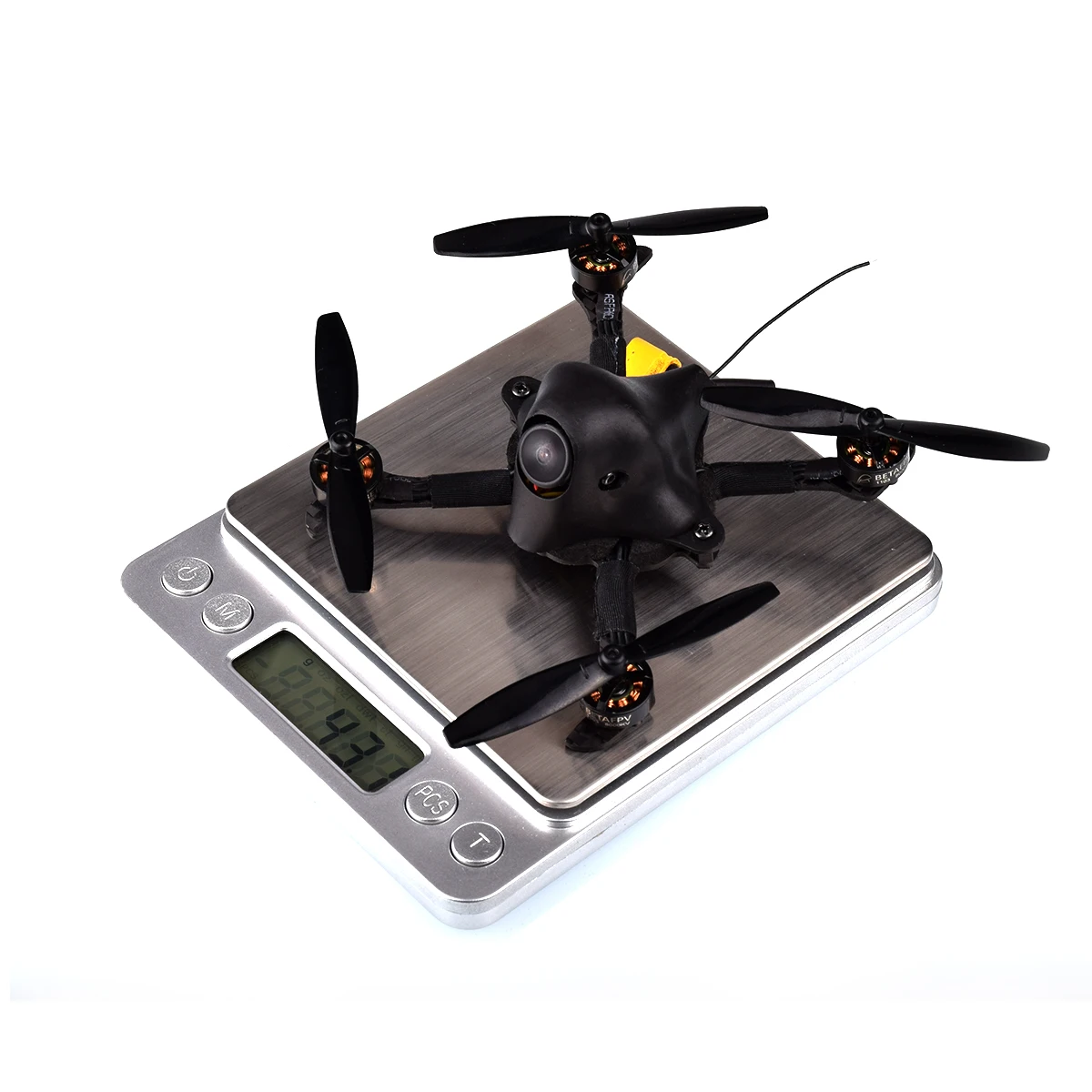

Weight: 41.8g (without battery)
FC&ESC:F4 2-4S AIO 12A FC
Motors: 1103 8000KV with connector
Props: 65mm 2-blade props(1.5mm shaft hole) / 48mm 4-blade props (1.5 mm shaft hole)
Camera: Runcam Nano V2
VTX: A01 25-200mW 5.8G VTX
Frame: HX100 carbon fiber frame
Canopy: EOS2 canopy (Black)
Receiver: Frsky FCC
Recommend Battery:300mAh 3S Battery / 300mAh 2S Battery

F4 2-4S AIO 12A FC
CPU: STM32F411CEU6 (100MHZ )
Six-Axis: MPU6000 (SPI connection)
Size: 26mm x 26mm, whoop mounting pattern
Firmware version: Betaflight MATEKF411 (MK41)
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: Frsky FCC
Support programmable LED like WS2812 etc
Built-in current sensor Weight: 5.6g

SPECIFICATION of ESC
Support BLheli/BLHELI_S suite Pass-through ready
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-4S Lipo
Continue current: 12A
Peak current: 13A
Firmware: BLHELI_S
Processor: SILABS EFM8BB21F16G
Motor Connectors: 1.25mm header pins connector
Factory firmware: G-H-30-16.7
Runcam Nano V2 Camera and A01 VTX

Runcam Nano V2 & A01 VTX
Output power: 25mW and 200mW (Adjustable)
Smart Audio function is included for radio control
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz
TV System: NTSC/PAL
Image Sensor: 1/3" CMOS
Horizontal Resolution: 700TVL
Lens: 2.1mm(M8) FOV 155°

PACKAGE
1 * HX100 Frsky FPV Quadcopter
1 * Spare set of 65mm 2-blade prop
